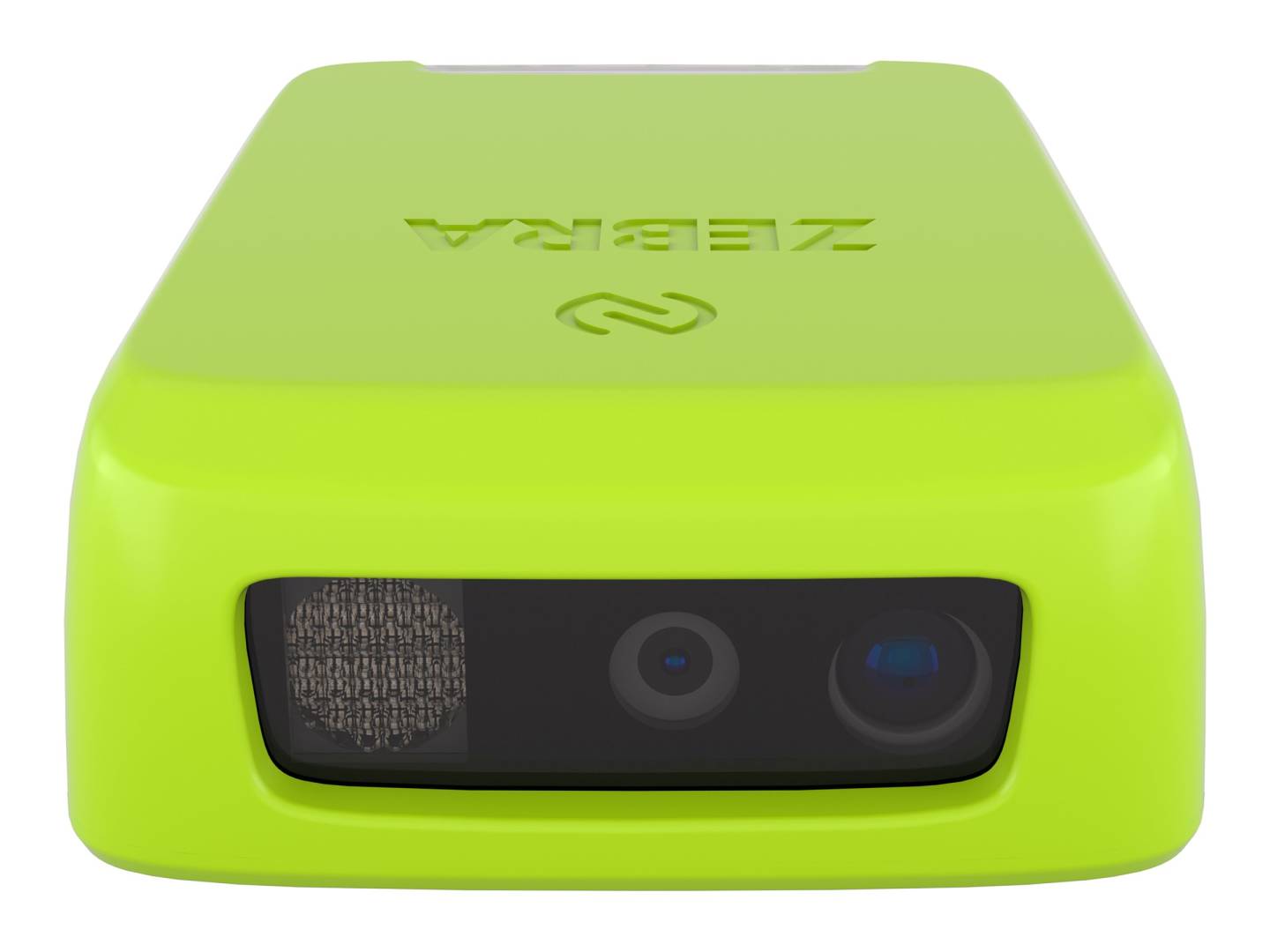

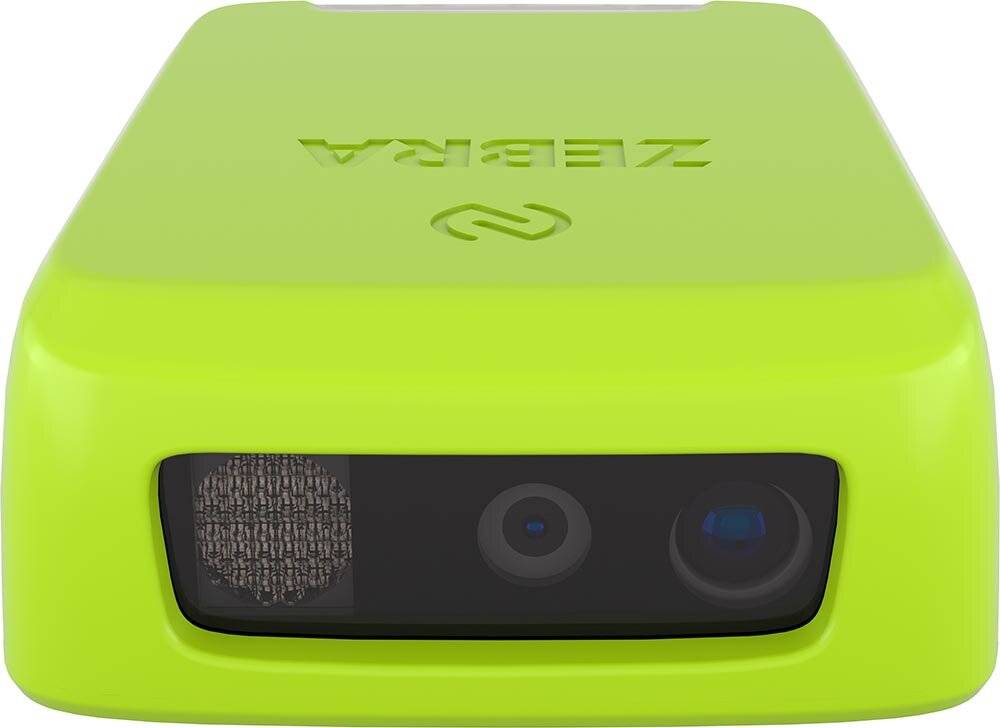

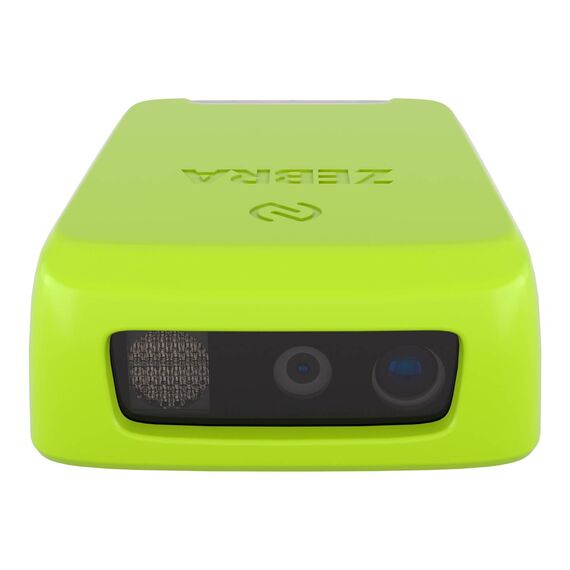

Zebra RS2100 SE4770 Wearable 1D/2D Bluetooth Scanner with Integrated Battery, Scanner Only

Brand:
Zebra

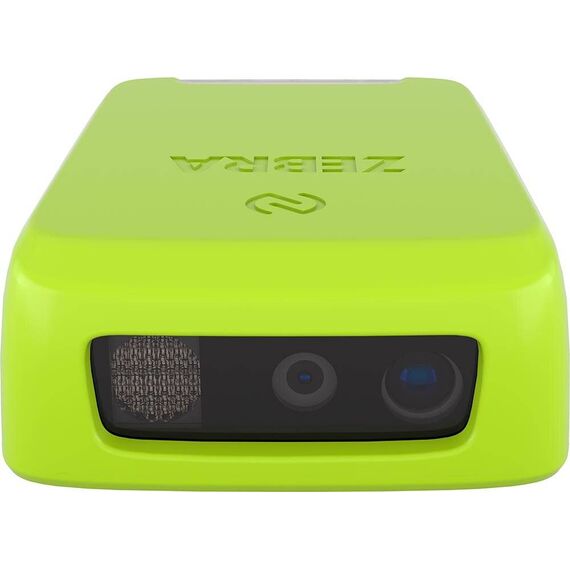

Zebra RS2100 Green Wearable SE4770 1D 2D Bluetooth Scanner Module with Integrated Battery
Zebra RS2100 SE4770 Wearable 1D/2D Bluetooth Scanner with Integrated Battery, Scanner Only
€664.73 inc. VAT
Buy
RS21C0-TS00ZWR
€558.60
€664.73 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
CK30809
EAN Code
5715063669051
Manufacturer
Zebra
Features
Bluetooth, Wireless

Quick Specs

Capture
SE4770 1D / 2D
Weight / profile
31 g / 14.6 mm
Battery
480 mAh embedded
Mount and trigger
Sold separately
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Back-of-hand scanning with the palm left free

1D / 2D SE477031 g480 mAhMount separate

The green Zebra RS2100 RS21C0-TS00ZWR is a small Bluetooth scanner module with a SE4770 1D/2D imager and embedded 480 mAh battery. This SKU supplies one scanner, without the hand mount and trigger. Select the correct right- or left-hand mount and compatible charging equipment separately, then pair it to a supported host application. The mount positions the scanner on the back of the hand while leaving the palm clear for handling items.

Before you order:
A scanner module alone is not a complete wearable installation. The separate mount contains the trigger, and a receiving host/application is required. Device Tracker requires an optional license. Do not assume a supplied USB adapter or charger.

What's in the Box

  • 1 × RS21C0-TS00ZWR RS2100 scanner with integrated 480 mAh battery.
  • Hand mount with trigger, charging equipment, optional USB Bluetooth adapter, host and application are separate.

What It Means in Practice

  • Fit the separately selected mount to the correct hand, charge the scanner and pair it using supported NFC or a Scan-to-Connect barcode. Configure the host input profile.
  • For example, scan a picked item and place it in the order carton without putting down a handheld scanner. The host application verifies the item and updates the order.
  • Use LED and sound feedback for confirmation. Test real labels, hand fit, radio coverage and the receiving application before deployment.

What Will Not Work

  • No standalone inventory application, screen, native Wi-Fi or included trigger mount.
  • Reading a code does not independently validate an order, ticket or document. The receiving application supplies that logic.

Key Features


Small and low profile
A 31 g module measuring 52 × 35.5 × 14.6 mm supports wearable workflows with a separately selected mount.

SE4770 area imaging
A 1280 × 800 imager reads supported 1D/2D formats, including QR and Data Matrix; nine ranges are listed below.

Flexible host pairing
Bluetooth 5.2 with BLE, NFC pairing and Scan-to-Connect support compatible hosts and input profiles.

Durable daily construction
IP54 sealing, multiple 1.8 m concrete drops and 1,000 tumbles from 0.5 m are manufacturer test references.

Technical Specifications

EXACT CONFIGURATION
MPN RS21C0-TS00ZWR
EAN 5715063669051
Included 1 × RS2100 scanner module with integrated 480 mAh battery
Separate equipment Right/left hand mount with trigger; compatible charging equipment; host and application
Dimensions (L × W × H) 52 × 35.5 × 14.6 mm
Weight 31 g
CAPTURE AND OPTICS
Engine SE4770 Standard Range 1D/2D area imager
Resolution 1280 × 800 pixels
Aimer 655 nm laser
Illumination 1 × Hyper Red 660 nm LED
Field of view 48° horizontal × 30° vertical
Roll / pitch / skew 360° / ±60° / ±60°
Ambient light immunity Up to 107,639 lux
1D symbologies Code 39 / 128 / 93; Codabar/NW7; Code 11; MSI; UPC/EAN; Interleaved 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma)
2D symbologies PDF417; MicroPDF417; Composite; TLC-39; Aztec; Data Matrix; MaxiCode; QR; MicroQR; Han Xin; Postal Codes
OCR formats OCR-A; OCR-B, with configuration and receiving-application support
TYPICAL WORKING RANGES
Code 39, 3 mil 7.6–14.7 cm
Code 128, 5 mil 5.8–24.9 cm
PDF417, 5 mil 7.6–20.1 cm
PDF417, 6.67 mil 6.3–25.7 cm
Data Matrix, 10 mil 5.3–27.8 cm
UPC-A, 100% 4.1–63.2 cm
Code 128, 15 mil 6.1–70.6 cm
Code 39, 20 mil 4.1–91.7 cm
QR, 20 mil 2.8–44.5 cm
Range conditions Typical; printing resolution, contrast and ambient-light dependent
WIRELESS AND INTEGRATION
Bluetooth Class 1 / 2; version 5.2 with BLE
Profiles SPP; HID; SDAP
Pairing NFC Tap-to-Pair with supported host; Scan-to-Connect pairing barcode alternative
Host platforms Compatible Zebra mobile computers, Apple/Android tablets and smartphones, PCs; application/profile support required
Optional PC connection Zebra Bluetooth USB Adapter supports up to 7 scanners on a non-mobile host; adapter separate
Battery Embedded 480 mAh Li-ion pack
Configuration 123Scan: setup, data formatting and firmware updates
Radio coexistence Wi-Fi Friendly Mode; not native Wi-Fi connectivity
Optional tracking Device Tracker and virtual tether require an optional license and supported setup
ENVIRONMENT AND FEEDBACK
Sealing IP54, IEC 60529
Operating / storage temperature 0–50 °C / −40–60 °C
Humidity 5–95% RH, non-condensing
Drop resistance Multiple 1.8 m drops onto concrete across operating range
Tumble test 1,000 tumbles from 0.5 m
Vibration resistance test Sine 5–2000 Hz, 4 g peak, 1 h/axis; random 20–2000 Hz, 6 g RMS or 0.04 g²/Hz, 1 h/axis
ESD ±15 kV air; ±8 kV contact
LED feedback 2 rear RGB LEDs
Beeper Up to 85 dBA at 10 cm from rear beeper port
Environmental compliance RoHS 2011/65/EU + 2015/863; REACH SVHC 1907/2006
Manufacturer warranty 1 year from shipment, subject to Zebra terms

Frequently Asked Questions

Does this SKU include the trigger?
No. The scanner has its battery, but the right- or left-hand mount with trigger is selected separately.
Can it read QR?
Yes. The SE4770 supports listed 1D/2D formats, including QR and Data Matrix. Actual distances depend on code size and conditions.
Is Device Tracker included?
Device Tracker requires an optional license and supported deployment. It is not included by merely purchasing this scanner SKU.
Singular Expert Insight
Select the scanner, correct-hand mount and charging solution as one deployment plan. Test the actual application and label sizes; the module alone cannot complete the workflow. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need a light wearable 1D/2D scanner and will select its mount and charging equipment.
✕

Skip it if

 you require a complete mount kit or a standalone mobile computer.
→

Also consider

 a verified bundle when scanner, trigger mount and charging must be purchased together.
Confirm hand preference, mount, charging, host profile and application with Singular.
