Zebra SE4710 OEM 2D Imaging Scan Engine
OEM engine1280 × 800Parallel / MIPI4.8 g

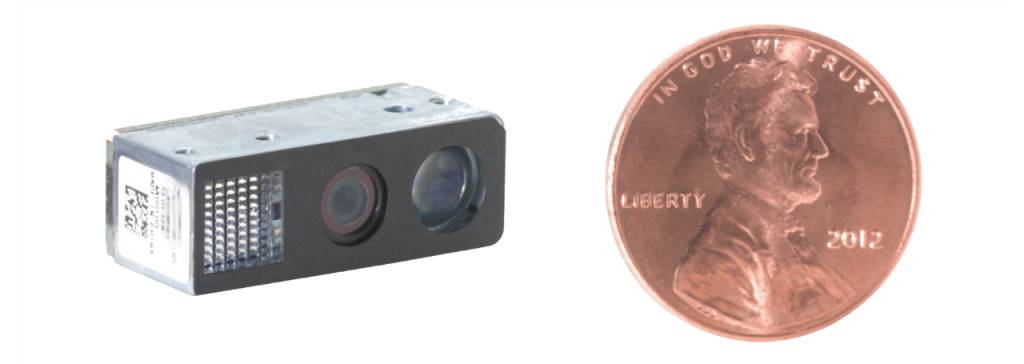

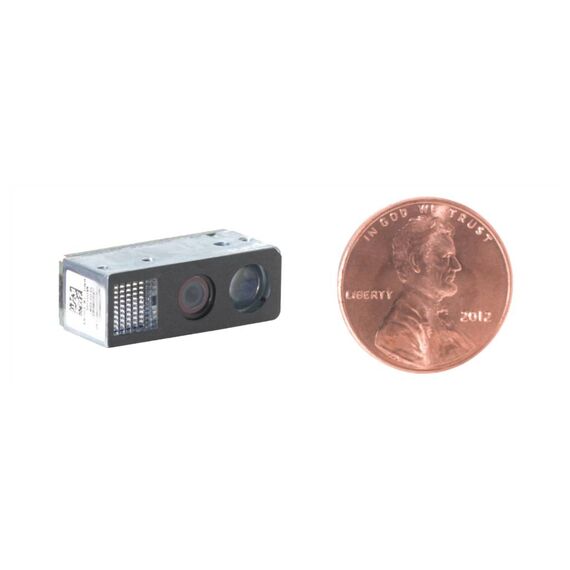

The Zebra SE4710-LM000R is a miniature SE4710 2D imaging scan engine for building barcode scanning into handheld terminals, kiosks, medical and industrial devices. At 8.1 × 22.3 × 13.7 mm and 4.8 g it fits slim designs, and it reads from near contact to beyond 60 cm.
It is an OEM component, not a ready scanner: it delivers images over a parallel or MIPI interface and needs a decoder (a Zebra PL3307 decoder board, a decoder chip on your board, or Zebra’s software decoder on the host) plus a suitable enclosure and exit window.
Before you order: For integrators and repair workshops. The engine has no USB, housing or trigger of its own; fitting it as a replacement part in a specific terminal must be checked against that device’s service documentation.
What's in the Box
- 1 × Zebra SE4710 imaging engine (SE4710-LM000R)
- Flex cable not included (Zebra: PF000084A01 for MIPI, PF000062A01 for parallel)
- Decoder not included (PL3307 board or host software decoder)
What It Means in Practice
- One engine covers both parallel and MIPI hosts: the interface is chosen by flex cable and a software command.
- Reads 100% UPC-A up to 66 cm and 20 mil Code 39 up to 76.2 cm (Zebra spec sheet).
- Rated for 2,000–2,500 G shock and −20 to 50 °C operation, so it suits rugged devices.
- The circular 610 nm LED aimer and 660 nm red illumination work in light up to 107,639 lux.
What Will Not Work
- Plugging into a PC: there is no USB; use a finished scanner instead.
- Decoding on its own: a hardware or software decoder is required.
- Exposed mounting: Zebra requires a sealed enclosure and an exit window (0.7–1.5 mm PMMA, CR-39 or chemically tempered glass).
- Drop-in replacement in a given terminal without checking that device’s service parts list.
Key Features
Tiny footprint
8.1 mm tall and 4.8 g for slim handhelds.
Two interfaces
Parallel or MIPI on a 27-pin 0.3 mm ZIF connector.
Long reach
Near contact to more than 60 cm on common codes.
Rugged rating
2,000–2,500 G shock, −20 to 50 °C.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The SE4710 is the engine inside many slim Zebra-class devices; it is the right buy for product designers and repair workshops, not for end users who just need to scan. If you only need to read barcodes, see our finished barcode scanners.
✓ Buy it if you integrate or repair devices that use the Zebra SE4710 engine.
✕ Skip it if you need a plug-and-play scanner for a PC or POS.
→ Also consider a finished Zebra handheld scanner if you do not build hardware.
Integrating the SE4710? Send us your host board and interface and we will check the flex cable and decoder you need before you order.
