Zebra 220Xi4 Replacement Printhead 300 dpi (12 dots/mm), Genuine Zebra Part for the 220Xi4 Industrial Label Printer

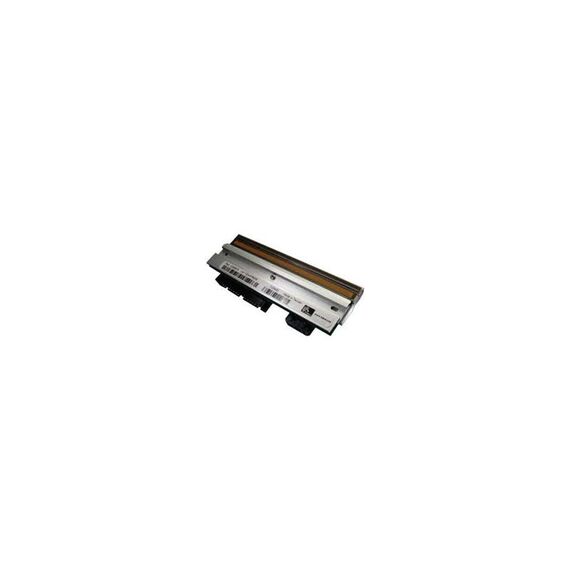

The Zebra P1004239 is the genuine 300 dpi (12 dots/mm) printhead for the Zebra 220Xi4, the 8-inch-wide industrial label printer (print width up to 216 mm), listed by Zebra in its Xi4 Series parts catalogue.

A worn printhead shows up as thin white lines running along the label, faded patches or barcodes that stop scanning. Match the part to both your printer model and its resolution — the configuration label printed from the printer shows the dpi.

• 1 × Zebra 220Xi4 printhead, 300 dpi (as listed in Zebra’s parts catalogue)
• No platen roller, cables or tools

• Printheads are wear parts: abrasive media, a ribbon narrower than the label, high darkness settings and missed cleaning all shorten their life.
• Clean the head with isopropyl alcohol or a cleaning pen whenever you change the ribbon or a media roll — it is the cheapest way to protect the new part.
• A ribbon at least as wide as the label keeps the head from rubbing directly on the label face; we stock matching thermal-transfer ribbons.

• A 220Xi4 set to 203 dpi — order P1004238.
• Zebra 110Xi4, 140Xi4, 170Xi4, the older 220XiIII/220XiIIIPlus or the successor ZE500/ZT600 printers.
• Faults caused by a worn platen roller, wrong ribbon or wrong media settings — check those if print defects remain after the swap.
