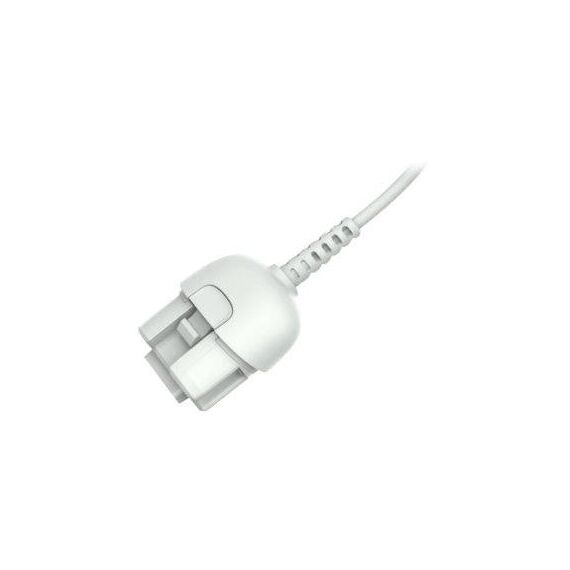

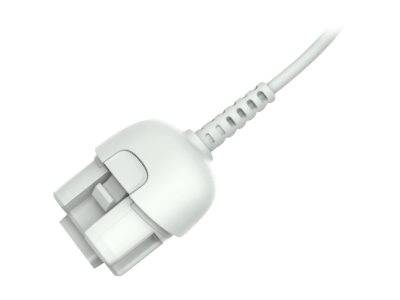

Zebra CVTR-U70060C-0B — Corded USB Converter for the CS6080-HC
Genuine Zebra accessoryUSB-A host2.1 m · 7 ftHealthcare white
The Zebra CVTR-U70060C-0B is the 2.1 m (7 ft) corded USB-A converter for the Zebra CS6080-HC healthcare scanner in HC white. It replaces the battery and turns the cordless CS6080-HC into a corded scanner connected directly to a PC, workstation-on-wheels or nursing cart over USB. It is for hospitals, clinics and pharmacies that want the same scanner on some desks with a cable and on others cordless.
With the converter fitted, the scanner draws power from the host and never needs charging, which suits fixed admission desks, pharmacy counters and lab benches. The healthcare-white housing matches the CS6080-HC and is designed to fit in clinical environments where devices are disinfected regularly.
Before you order: This -0B version is for the healthcare CS6080-HC (white). The standard CS6080-SR uses the black version CVTR-U70060C-04. Do not confuse it with CBL-CS6-S07-0B, which is the USB-C to USB-A cable for the HC presentation cradle used in cordless mode. The converter and the battery are not used at the same time.
What's in the Box
- 1 × Zebra corded USB-A converter cable 2.1 m for CS6080-HC, part number CVTR-U70060C-0B
What It Means in Practice
- Turns a cordless CS6080-HC into a corded USB scanner — no charging needed
- Ideal for fixed admission, pharmacy and lab workstations
- Same scanner model across the hospital, corded or cordless as each station needs
- Easy to swap: remove the battery, insert the converter, plug into USB
What Will Not Work
- It does not fit the standard CS6080-SR (use CVTR-U70060C-04, black)
- It is not the cradle cable CBL-CS6-S07-0B
- It does not charge a battery — the battery is removed when the converter is used
- It does not fit other Zebra scanners such as DS8108-HC or DS2208
Key Features
Cordless to corded
Replaces the battery and powers the scanner from the host USB port.
Healthcare white
Matches the CS6080-HC housing for clinical environments.
2.1 m reach
Comfortable cable length for desks and carts.
Technical Specifications
| Identification |
| Part Number |
CVTR-U70060C-0B |
| EAN / GTIN |
8596375245358 |
| Brand |
Zebra |
| Official name |
7 ft (2.1 m) Corded USB-A (Host) Converter for CS6080-HC (HC White) |
| Connectivity |
| Host connector |
USB-A |
| Function |
Converts cordless CS60-HC to corded |
| Physical |
| Length |
2.1 m (7 ft) |
| Colour |
Healthcare white |
| Compatibility |
| Scanner |
Zebra CS6080-HC |
| SR (black) version |
CVTR-U70060C-04 |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Zebra publishes no separate warranty term for this cable — claims handled through Singular |
Frequently Asked Questions
How do I fit it?
Remove the scanner’s battery, insert the converter in its place, then connect the USB-A end to the host. To detach, press the release and pull.
Can I switch back to cordless later?
Yes. Remove the converter and refit the charged battery; the scanner then works cordless again with its cradle.
Singular Expert Insight · Buyer's Guide
Hospitals often buy one scanner model for the whole site; the converter is what lets the same CS6080-HC live on a fixed desk without charging routines. Match the colour suffix to your scanner (0B for HC white, 04 for black SR) and you will not get the wrong part. For more scanners, see our
barcode scanners.
✓ Buy it if you want to use a CS6080-HC as a corded USB scanner on fixed workstations.
✕ Skip it if you have a CS6080-SR (order CVTR-U70060C-04) or need the cradle cable (CBL-CS6-S07-0B).
→ Also consider the HC presentation cradle for stations where the scanner stays cordless.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
