Zebra RS-232 Cable for Nixdorf Beetle POS, 5V Direct Power, 2 m (7 ft) Straight, for DS2208, DS9908 and Zebra Scanners
Brand:
Zebra
Zebra RS-232 Cable for Nixdorf Beetle POS, 5V Direct Power, 2 m (7 ft) Straight, for DS2208, DS9908 and Zebra Scanners
€27.67 inc. VAT
CBA-R08-S07ZBR
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Zebra RS-232 Cable for Nixdorf Beetle, 5V Direct Power, 2 m
Nixdorf Beetle RS-2325V direct power2 m (7 ft) straightTTL current-limit protection

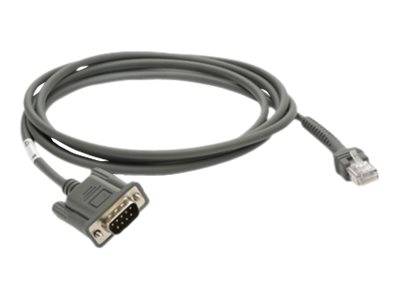

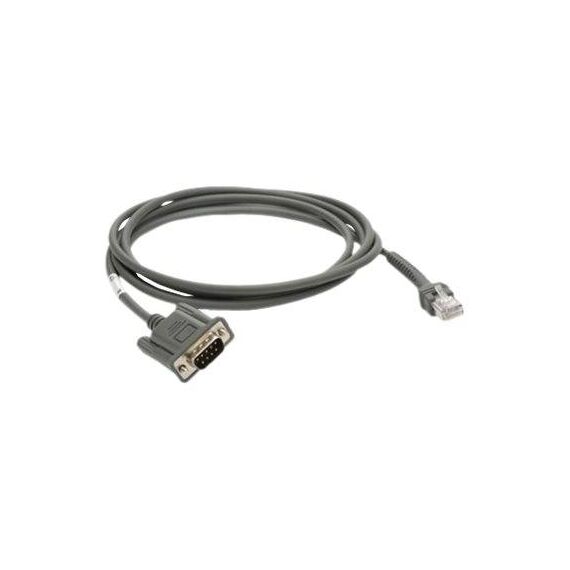

The Zebra CBA-R08-S07ZBR is the official RS-232 cable that connects Zebra corded scanners such as the DS2208 and DS9908 to a Wincor Nixdorf Beetle POS, taking 5V power directly from the Beetle's powered serial port over a 2 m (7 ft) straight lead.
Because power comes through the cable, no separate scanner power supply is needed on a Beetle till. Zebra added TTL current-limit protection to this version, which replaces the discontinued CBA-R08-S07ZAR.
Before you order: This cable is specifically for Nixdorf Beetle 5V powered RS-232 ports. On a standard PC serial port without 5V, use a Zebra RS-232 cable that takes an external power supply instead.
What's in the Box
- 1 × Zebra RS-232 cable, Nixdorf Beetle, 5V direct power, 2 m (7 ft) straight (as described)
- No power supply or scanner is included
What It Means in Practice
- One cable for data and power on Beetle tills: plug the modular end into the scanner and the other end into the Beetle's powered RS-232 port.
- No mains adapter on the counter, so fewer cables and one less part to fail.
- The scanner must be set to RS-232 with the settings your POS software expects (baud rate, parity) — Zebra's scanner guide has the setup barcodes.
- Straight 2 m lead reaches from the scanning position to a till under the counter.
What Will Not Work
- It will not power the scanner from a standard PC COM port that has no 5V on the port.
- It is not a USB cable — for USB hosts use CBA-U21-S07ZBR.
- Not for IBM 46xx or keyboard-wedge POS ports.
- Older Symbol LS-series scanners such as the LS1203 use different cables.
Key Features
5V direct power
Powers the scanner from the Nixdorf Beetle port — no external supply needed.
TTL current-limit protection
Zebra's improved protection circuit, the reason this version replaced CBA-R08-S07ZAR.
Shared Zebra cable family
Listed by Zebra for DS2208, the DS2278 cradle, DS9908 and SP72.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On Nixdorf Beetle tills this is the cleanest scanner connection: data and power over one lead, no adapter under the counter. The only real mistake is buying it for a generic PC serial port. If your till has free USB ports, USB is usually the easier route — see our cables range for other counter cabling.
✓ Buy it if Buy it if you connect a Zebra DS2208, DS9908 or similar scanner to a Wincor Nixdorf Beetle POS by RS-232.
✕ Skip it if Skip it if your POS is a standard PC, uses USB, or has an unpowered serial port.
→ Also consider Also consider CBA-U21-S07ZBR, Zebra's 7 ft shielded USB Series A cable, if your POS has a USB port.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Zebra - CBA-R08-S07ZBR
Length
2m
More Details
Product Code
V36A562
EAN Code
8596375040236
Manufacturer
Zebra
