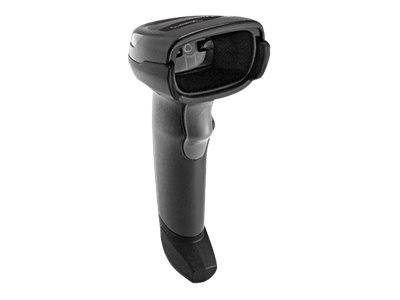

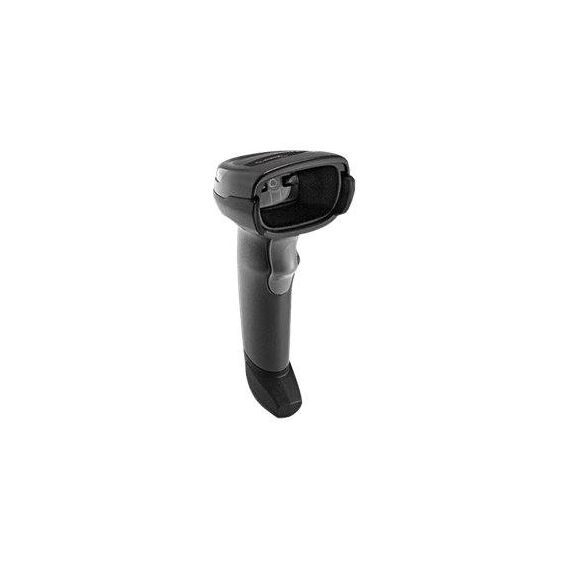

Zebra DS2208 / USB Kit / barcode scanner / handheld / 2D imager / 762 mm / sec / decoded / USB | DS2208-SR7U3200SGW
Please sign in so that we can notify you about a reply
Zebra DS2208 / USB Kit / barcode scanner / handheld / 2D imager / 762 mm / sec / decoded / USB | DS2208-SR7U3200SGW
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
| Interface Type | USB |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 640 x 480 |
| Light Source Wave Length | 624 nm |
| Scan Mode | Single-pass |
| Scan Speed | 762 mm / sec |
| Max Working Distance | 36.8 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, Code 32, Code 3 of 5, Italy Pharmacode, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, UPC/EAN supplementals |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Interfaces | 1 x USB |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IP42, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
| Width | 6.6 cm |
| Depth | 9.9 cm |
| Height | 16.5 cm |
| Weight | 161.6 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Features - Zebra Technologies - DS2208-SR7U3200SGW
More Details
Product Code
V36C932
EAN Code
-
Manufacturer
Zebra Technologies
