Zebra DS2278-SR00006ZZWW Bluetooth 1D/2D Barcode Scanner Only, Nova White

Brand:
Zebra

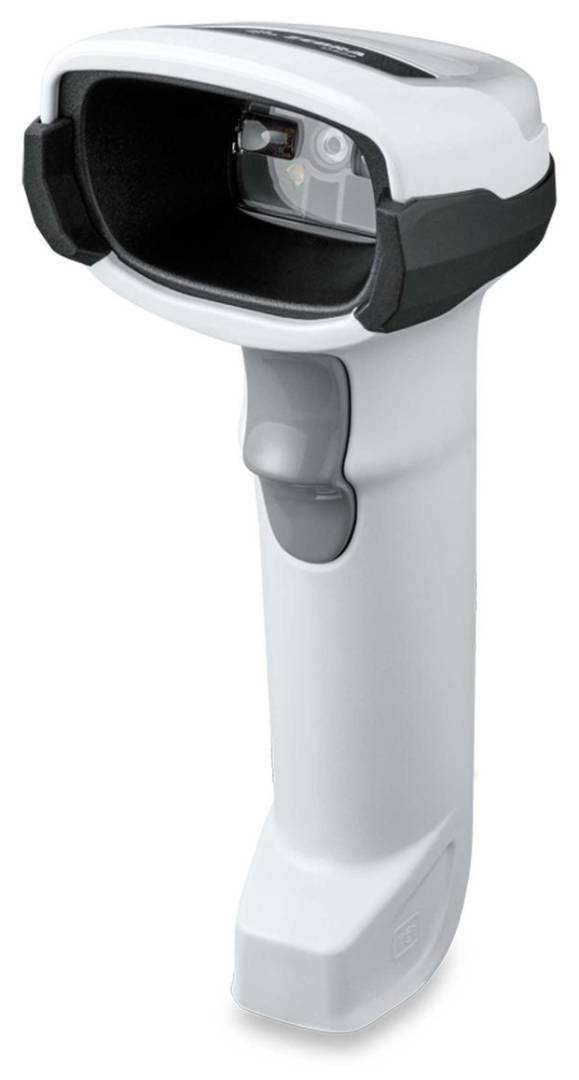

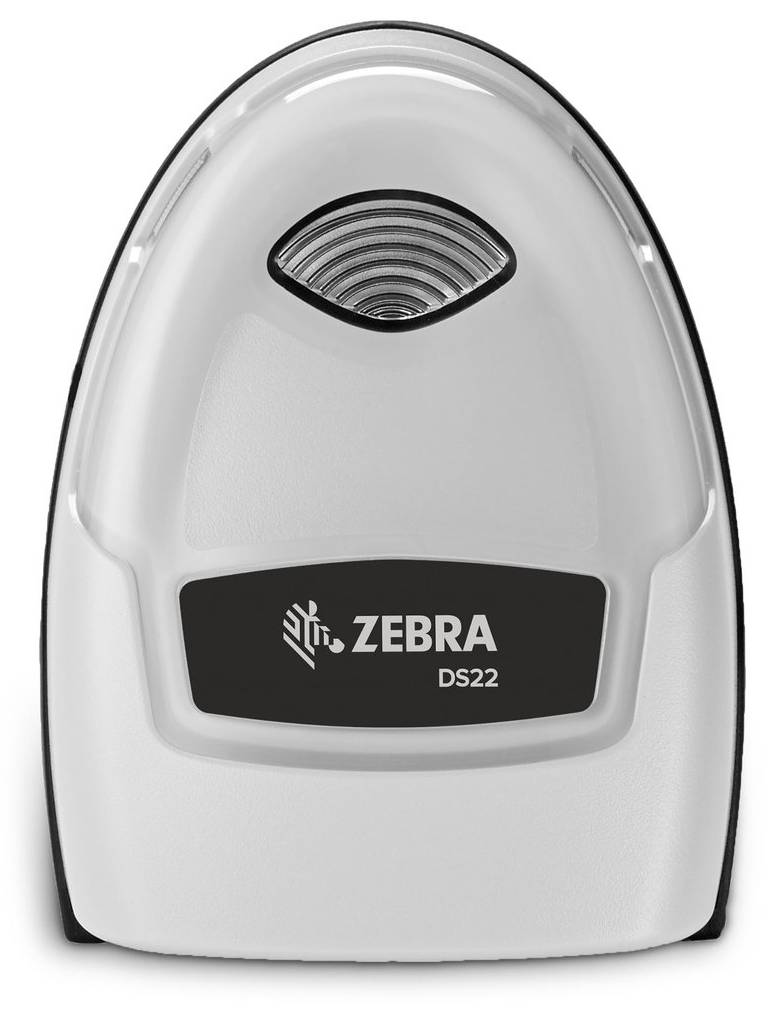

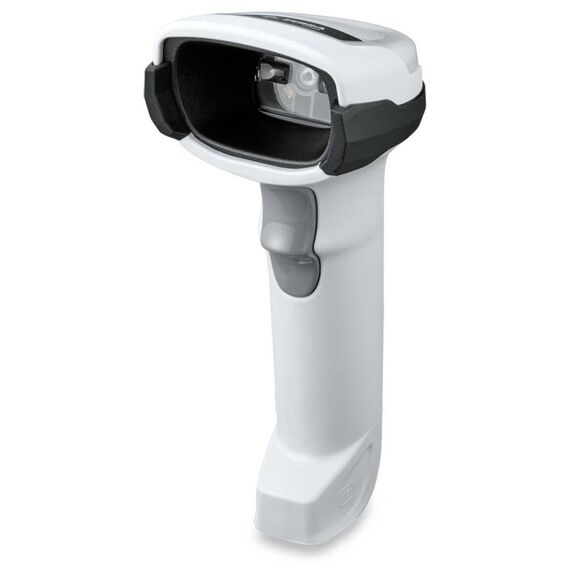

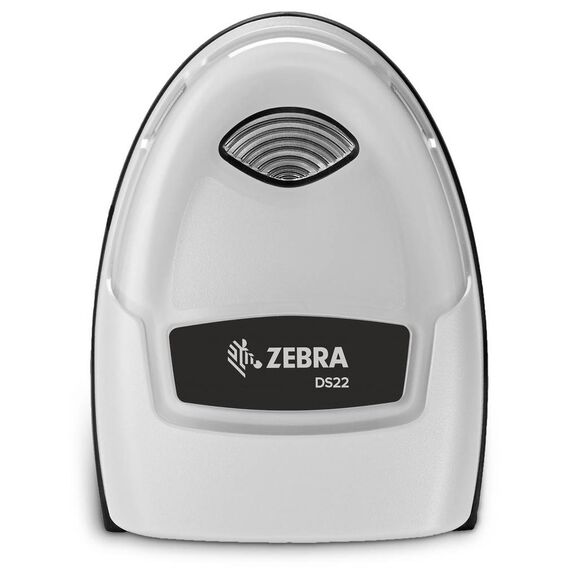

Zebra DS2278 Nova White Bluetooth 1D/2D barcode scanner, scanner only
Zebra DS2278-SR00006ZZWW Bluetooth 1D/2D Barcode Scanner Only, Nova White
€161.6 inc. VAT
Buy
DS2278-SR00006ZZWW
€135.80
€161.60 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
V368663
EAN Code
8596375044432
Manufacturer
Zebra
Features
Bluetooth, Wireless

Quick Specs

Reading
1D / 2D Standard Range
Wireless
Bluetooth 4.0 + BLE
Battery
2400 mAh Li-ion
Configuration
Scanner only
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cordless 2D scanning — reader-only configuration

Scanner onlyBluetooth 4.02400 mAh

This Nova White DS2278-SR is a cordless standard-range 1D/2D area imager supplied as the reader-only configuration. It reads printed and on-screen codes, including QR and Data Matrix. Unlike the DS2208 USB kits, this SKU does not include a presentation cradle or host/charging cable.

Before you order:
Plan the charging method before ordering: a compatible Micro USB cable or CR2278 cradle and suitable power connection are separate. Bluetooth HID can connect directly to a compatible host; USB/RS232/keyboard interfaces require the appropriate cradle and cable.

What's in the Box

  • DS2278-SR cordless scanner, Nova White
  • 2400 mAh Li-ion battery
  • Cradle and host/charging cable not included

What It Means in Practice

  • Pair directly with a Bluetooth host using Scan-to-Connect.
  • Omnidirectional imaging reduces the need to align a linear barcode.
  • A good-decode light and adjustable beeper provide feedback.

What Will Not Work

  • This is not a complete USB kit with cradle.
  • The up-to-100 m radio figure requires CR2278 in open air and is not guaranteed with every Bluetooth host.
  • IP52 does not permit immersion.

Key Features


1D and 2D imaging
A 640 × 480 imager supports common retail codes, QR, Data Matrix, PDF417 and postal formats. PRZM processing helps with poor-quality codes.

Cordless host connection
Bluetooth 4.0 with BLE supports HID and Serial Port profiles. Actual range depends on the paired device and environment.

Flexible charging options
Charge through a separately purchased Micro USB cable or compatible presentation cradle. Charging duration depends on the source and USB charging capability.

Technical Specifications

Identification
Manufacturer SKU DS2278-SR00006ZZWW
EAN / GTIN 8596375044432
Configuration
Colour Nova White
Package type Scanner only; cradle/cables separate
Scanning
Scanner engine Standard Range 1D/2D area imager
Sensor 640 × 480 pixels
1D examples Code39 / Code128 / Code93 / Codabar / Code11 / MSI / UPC/EAN / I2of5 / GS1 DataBar
2D examples PDF417 / Composite / TLC39 / Aztec / Data Matrix / MaxiCode / QR / Micro QR / Han Xin / postal codes
Keyboard layouts More than 90 international layouts
Aiming / illumination Amber LED 624 nm / dual red LED 645 nm
Field of view 32.8° horizontal / 24.8° vertical
Minimum print contrast 25%
Skew / pitch / roll ±65° / ±65° / 0–360°
Minimum resolution Code39, Code128: 4 mil / Data Matrix: 6 mil / QR: 6.7 mil
Handheld motion tolerance Up to 13 cm/s on 13 mil UPC
Hands-free swipe speed Up to 76.2 cm/s on 13 mil UPC
Feedback Direct Decode Indicator / LEDs / adjustable beeper
Typical decode ranges
Code39, 5 mil 0.5–15.2 cm
Code128, 5 mil 1.5–10.1 cm
PDF417, 6.7 mil 2–14.5 cm
UPC, 13 mil 1.27–36.8 cm
Data Matrix, 10 mil 0.8–15.7 cm
QR, 20 mil 0–27.9 cm
Range conditions Depend on print resolution, contrast and ambient light
Physical / environmental
Operating / storage temperature 0–50 °C / −40–70 °C
Humidity 5–95%, non-condensing
Drop specification Multiple 1.5 m drops onto concrete
Tumble specification 250 tumbles at 0.5 m; 1 tumble = 0.5 cycle
Sealing IP52
ESD ±15 kV air / ±8 kV direct and indirect
Ambient light immunity 0–107600 lux
Power / management
Input voltage 4.5–5.5 VDC
Tools 123Scan / Scanner SDK / Scanner Management Service
DS2278 dimensions H × W × D 175 × 66 × 90 mm
DS2278 weight 214 g
Bluetooth 4.0 with BLE; HID / SPP
Radio range Open-air line of sight: minimum 10 m; up to 100 m with CR2278; environment-dependent
Battery 2400 mAh Li-ion
Scans per charge 110000 at 60 scans/min or 50000 at 10 scans/min, manufacturer profiles
Battery test qualifier Manufacturer footnote: simulated checkout, 10 scans in 10 s then 50 s rest; real results vary
Full charge via standard USB 17 h
Full charge via BC1.2 USB / external 5V 5 h
Full charge via Micro USB 7 h
Full charge via BC1.2 Micro USB 4 h
Charging current 500 mA standard USB / 1100 mA BC1.2 USB, typical
Cradle host interface capability USB / RS232 / Keyboard Wedge / TGCS IBM46XX RS485; accessories separate

Frequently Asked Questions

Does this SKU include a cradle?
No. DS2278-SR00006ZZWW is the scanner-only Nova White configuration. Select a complete kit if you need the cradle and cable together.
What is its Bluetooth range?
Zebra specifies at least 10 m in open-air line of sight, and up to 100 m with a CR2278 cradle. Obstacles, interference and the host affect results.
Does Micro USB provide the scan-data connection?
The listed Micro USB option is for charging. Use Bluetooth or the appropriate cradle/host interface for scanned data.
Singular Expert Insight
The decision is the bundle, not just the DS2278 name: this Nova White reader-only SKU is useful when a compatible charging setup already exists. For a new counter, compare the total reader, cradle and cable requirements with a full kit. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You need a replacement reader or direct Bluetooth connection and have planned charging.
✕

Skip it if

 You expect a ready-to-connect USB kit with cradle and cables.
→

Also consider

 Compare full DS2278 kits, or DS2208 wired kits for a fixed position.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
