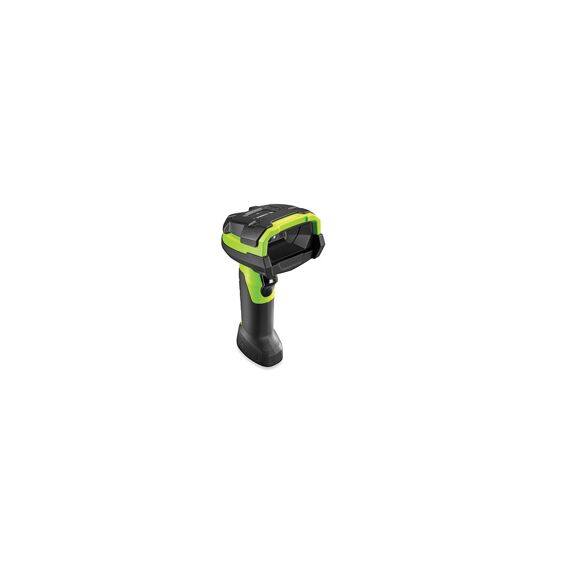

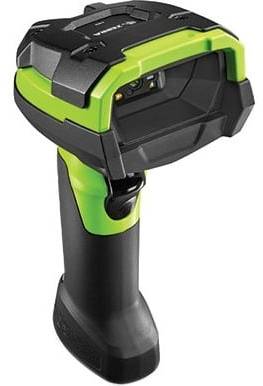

Zebra DS3608-SR Ultra-Rugged Corded 1D/2D Scanner USB Kit, Shielded 7 ft Cable, Industrial Green

Brand:
Zebra

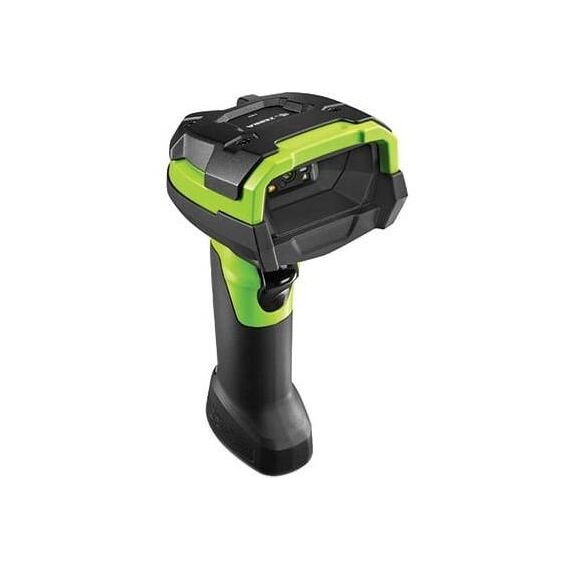

Zebra DS3608 SR Industrial Green 2D Scanner USB Cable Kit
Zebra DS3608-SR Ultra-Rugged Corded 1D/2D Scanner USB Kit, Shielded 7 ft Cable, Industrial Green
€351.94 inc. VAT
Buy
DS3608-SR3U4600VZW
€295.75
€351.94 inc. VAT
Ships from EU stock: 59 item(s)
+ −
Add to wish list Ask a question
Product Code
V358009
Manufacturer
Zebra

Quick Specs

Focus
Standard Range · 1D/2D
Protection
IP65 + IP68
Connection
Corded · USB/RS232/Keyboard Wedge
Package
Scanner + shielded USB 7 ft
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Rugged SR reading with the shielded USB cable supplied

Standard RangeCorded 1D/2DVibrationUSB kit

This Industrial Green DS3608-SR USB kit supplies the rugged corded 1D/2D scanner and CBA-U46-S07ZAR high-current shielded USB cable, 7 ft long. Its practical difference from SR00003VZWW scanner-only is the included host connection. Vibration, LEDs and sound confirm reading in a noisy workplace, while the configured host application interprets the data and performs warehouse actions.

Before you order:
This is the SR USB kit, not a cordless model or an ER extended-range configuration. The shielded USB cable is included; stand and alternate-interface cabling are separate. SR ranges depend strongly on barcode element size. Industrial Ethernet requires the separate Network Connect arrangement.

What's in the Box

  • DS3608-SR00003VZWW Industrial Green scanner
  • CBA-U46-S07ZAR high-current shielded USB cable, 7 ft

What Will Not Work

  • No stand, battery, Bluetooth radio or charging cradle is included.
  • The kit does not add ER, HD or DPM optics; alternate host ports need the correct separate cable.

Key Features


Built for hard handling
The current manufacturer sheet specifies IP65/IP68, repeated 3.0 m drops at room temperature and 2.4 m across the corded operating temperature range. Preserve those test conditions when comparing rugged readers.

Code-specific working distances
Typical Code128 40 mil is 4.4–152.4 cm, while Data Matrix 10 mil is 3.5–21.8 cm. Label size matters more than a single headline maximum.

Configurable capture
Digimarc and IUID parsing support specialized data workflows when configured with compatible host software. Standard reading still requires actual label testing.

Technical Specifications

Identity & installation
MPN DS3608-SR3U4600VZW
EAN 4016139084619
Colour / focus Industrial Green / Standard Range
Included DS3608-SR00003VZWW scanner + CBA-U46-S07ZAR high-current shielded USB cable 7 ft; stand separate
Dimensions H × W × D 185 × 76 × 132 mm
Weight 305 g
Host interfaces USB, RS232, Keyboard Wedge
Industrial network EtherNet/IP, Profinet, Modbus TCP, Std TCP/IP through separate Network Connect setup
Optical performance
Sensor 1280 × 800 pixels
Illumination / aimer 660 nm LED / 610 nm LED
Field of view 42° H × 28° V
Minimum contrast 15% reflectance difference
Skew / pitch / roll ±60° / ±60° / ±360°
1D Code39, Code128, Code93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I2of5, Korean3of5, GS1 DataBar, Base32 Italian Pharma
2D PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal
Special decoding Digimarc digital watermarks; IUID field parsing, configuration/application required
Image capture Basic
Feedback Direct decode, LEDs, beeper, vibration
Typical decode ranges
Conditions Depend on printing resolution, contrast and ambient light
Code128 5 mil 3.3–17.0 cm
Code128 20 mil 7.1–71.1 cm
Code128 40 mil 4.4–152.4 cm
Data Matrix 7.5 mil 4.8–15.2 cm
Data Matrix 10 mil 3.5–21.8 cm
Power & environment
Host / external input 4.5–5.5 V DC / 11.4–12.6 V DC
Operating / standby 360 mA RMS typical / 100 mA RMS typical
Operating / storage −30–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
Sealing IP65 + IP68
Drop resistance Multiple 3.0 m drops at room temperature; 2.4 m at −30–50 °C to concrete
Tumbles 7,500 at 1.0 m
ESD ±25 kV air / ±10 kV direct and indirect
Freezer transitions Separate heated holder recommended to reduce external scan-window condensation
Utilities 123Scan, Scanner SDK, SMS, Zebra DNA
Compliance RoHS EN50581:2012; EN/IEC/UL60950-1, CAN/CSA; IEC62471:2006, EN62471:2008; EN55022/55024, EN61000-6-2/-3-2/-3-3, EN/IEC60601-1-2, FCC15B, ICES003
Manufacturer term 36 months from shipment under Zebra hardware warranty terms

Frequently Asked Questions

How does this kit differ from scanner-only?
It adds CBA-U46-S07ZAR high-current shielded USB cable, 7 ft. The DS3608-SR00003VZWW scanner and its optics are the same.
Is it Bluetooth?
No. DS3608 is corded. Bluetooth, battery and cradle data on the family sheet apply to DS3678.
Does SR read every code at 1.5 m?
No. The longest listed range applies to a large 40 mil Code128. Smaller or denser codes have much shorter specified ranges.
Singular Expert Insight
Choose the USB kit for a new rugged wired station where the proper high-current cable must be supplied. If a verified compatible cable is already available, compare scanner-only. Check code size and actual working distance; including a cable changes installation completeness, not SR reading performance. Compare corded scanner kits

Buyer’s Guide

✓

Buy it if

 You need rugged corded SR 1D/2D with its shielded USB cable supplied.
✕

Skip it if

 You require cordless movement, a stand in the box or ER distances.
→

Also consider

 Scanner-only when reusing a verified cable, or a verified ER/HD/DPM model for a different reading task.
Confirm host interface, cable, power, real labels and environmental conditions before installation.
