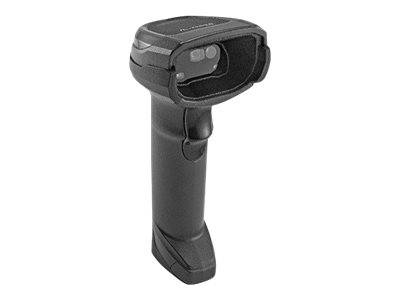

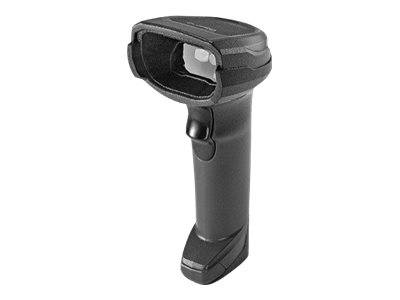

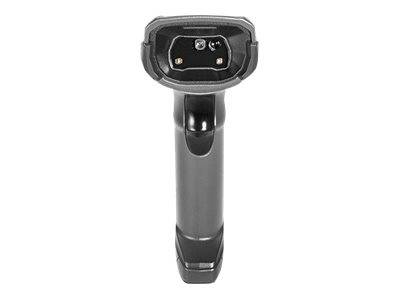

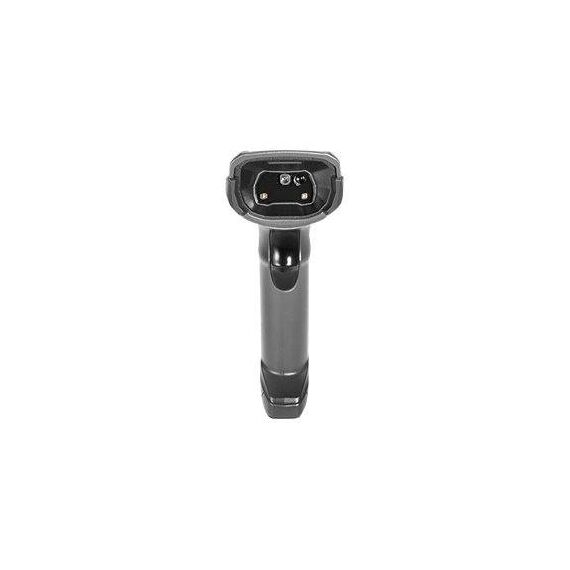

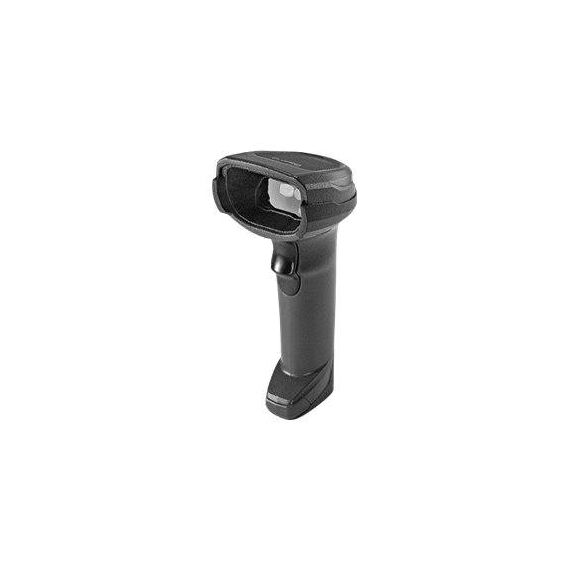

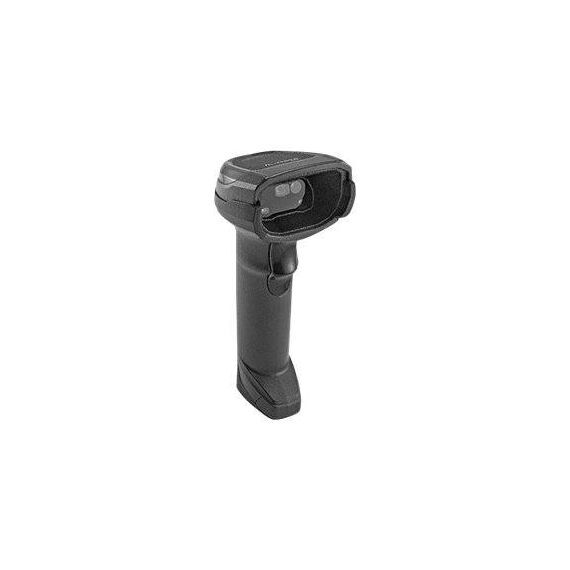

Zebra DS8178-SR Bluetooth 1D/2D USB Kit with presentation Cradle, Shielded USB Cable and 2500 mAh Battery, Black

Brand:
Zebra
Zebra DS8178 SR Twilight Black Bluetooth USB Kit with Presentation Cradle
Zebra DS8178-SR Bluetooth 1D/2D USB Kit with presentation Cradle, Shielded USB Cable and 2500 mAh Battery, Black
€846.03 inc. VAT
Buy
DS8178-SR7U2100PFW
€710.95
€846.03 inc. VAT
Ships from EU stock: 63 item(s)
+ −
Add to wish list Ask a question
Product Code
V358688
EAN Code
0808447025583
Manufacturer
Zebra
Features
Bluetooth, Wireless

Quick Specs

Capture
1D / 2D Standard Range
Wireless
Bluetooth 4.0 with BLE
Included battery
2500 mAh PowerPrecision+
Package
presentation cradle + USB cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cordless 1D/2D scanning with presentation cradle and USB

1D / 2DBluetooth2500 mAhpresentation USB kit

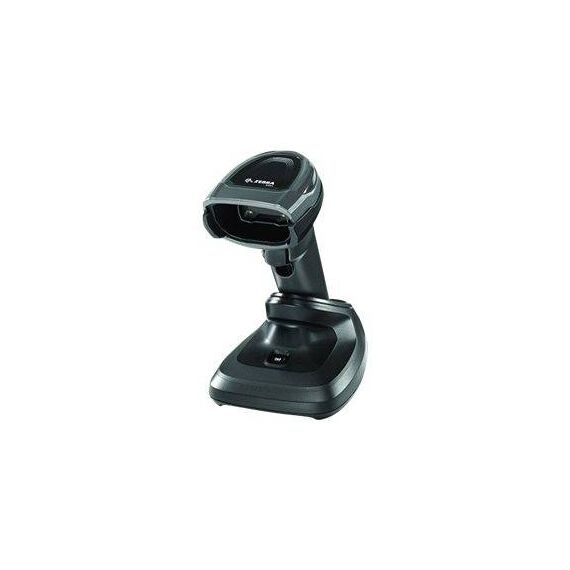

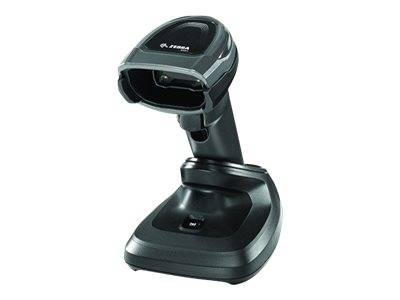

The Twilight Black DS8178-SR7U2100PFW kit includes one DS8178-SR0F007ZZWW 1D/2D Bluetooth scanner with a 2500 mAh PowerPrecision+ battery, one CR8178-PC100F4WW presentation cradle and one CBA-U21-S07ZBR shielded USB cable. Connect the cradle to a compatible host using the supplied cable, charge and pair the scanner, then scan into your POS or stock application. The application handles transactions and stock records; the scanner is not an independent inventory computer.

Before you order:
This is the presentation-cradle battery kit, not a PowerCap configuration. The USB cable is included; confirm host power and any additional power accessories needed for your installation. Battery figures are manufacturer tests at one scan per second. Drivers-license parsing requires a dedicated DL version.

What's in the Box

  • 1 × DS8178-SR0F007ZZWW scanner and 2500 mAh PowerPrecision+ battery.
  • 1 × CR8178-PC100F4WW presentation cradle.
  • 1 × CBA-U21-S07ZBR shielded USB cable. Compatible host/application and any required additional power equipment are separate.

What It Means in Practice

  • Connect the included presentation cradle with the supplied shielded USB cable, verify host power, charge, pair and configure the input mode.
  • At checkout, scan a printed product code or a supported screen coupon into the appropriate application field; the POS software performs the transaction logic.
  • Use 123Scan and the supported management tools to set prefixes, formats and host parameters. Test real codes and radio coverage.

What Will Not Work

  • A compatible receiving host/application is required. There is no native Wi-Fi or standalone stock database.
  • PowerCap, document stands and cradle-dependent tools require the appropriate separate equipment and configuration.

Key Features


High-resolution area imaging
A 1280 × 960 sensor and 800 MHz processor support listed 1D/2D formats, including QR, Data Matrix and PDF417.

Cordless connection
Bluetooth 4.0 with BLE supports HID/SPP; actual range depends on host, configuration and environment.

Replaceable power options
The included 2500 mAh battery can be exchanged for a separately selected PowerCap with appropriate firmware.

Manageable deployment
123Scan, SMS and SDKs assist configuration; AutoConfig, Virtual Tether and paging depend on a compatible cradle.

Technical Specifications

EXACT CONFIGURATION
MPN DS8178-SR7U2100PFW
EAN 0808447025583
Included 1 × DS8178-SR0F007ZZWW with 2500 mAh battery; 1 × CR8178-PC100F4WW presentation cradle; 1 × CBA-U21-S07ZBR shielded USB cable
Separate equipment Compatible host and application; any additional power equipment required by the installation
Colour Twilight Black
Host interfaces Through appropriate cradle/cable: USB Certified, RS-232, keyboard wedge, TGCS (IBM) 46XX over RS-485
International keyboards Over 90
CAPTURE AND IMAGING
Sensor / processor 1280 × 960 pixels; 800 MHz
Field of view 48° horizontal × 37° vertical, nominal
Aimer Circular 617 nm amber LED
Illumination 2 × 645 nm red LEDs
Minimum contrast 16% reflective difference
Skew / pitch / roll ±60° / ±60° / 0–360°
Minimum element Code 39 / 128: 3 mil; Data Matrix / QR: 6 mil; PDF: 5 mil
Image export Bitmap, JPEG, TIFF; 109 PPI on A4
1D symbologies Code 39 / 128 / 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; Interleaved 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32
2D symbologies PDF417; MicroPDF417; Composite; TLC-39; Aztec; Data Matrix; MaxiCode; QR; MicroQR; Han Xin; Postal Codes; SecurPharm; DotCode; Dotted Data Matrix
Additional decoding Digimarc digital watermark technology
TYPICAL DECODE RANGES
Code 39, 3 mil 5.6–12.7 cm
Code 39, 20 mil 0–93.5 cm
Code 128, 3 mil 6.6–11.4 cm
Code 128, 5 mil 4.1–21.3 cm
Code 128, 15 mil 0–68.8 cm
PDF417, 5 mil 5.8–16.3 cm
PDF417, 6.7 mil 4.6–21.6 cm
UPC, 13 mil 0–61 cm
Data Matrix, 7.5 mil 5.3–17.5 cm
Data Matrix, 10 mil 2.8–25.1 cm
QR, 20 mil 0.3–44.7 cm
Range conditions Typical; printing resolution, contrast and ambient-light dependent
WIRELESS AND POWER
Bluetooth Bluetooth 4.0 with BLE; HID and SPP profiles
Radio range Class 1 reference 100 m; Class 2 reference 10 m; host, configuration and environment dependent
Bluetooth power control Class 1 down from 4 dBm in 8 steps; Class 2 down from 2 dBm in 8 steps
Included battery PowerPrecision+ Li-ion 2500 mAh
Scans per charge 65,000 at 1 scan/s, manufacturer test
USB charging 9 h empty-to-full; 3 h low-warning-to-20% Ready-to-Scan
Optional power source PowerCap 440 F capacitor, separate; firmware CAACXS00-004-R00 or later required
Optional PowerCap performance 2,000 scans full; 200 at 20% / 100 at 15%, at 1 scan/s. USB charging: full 30 min; low warning to 20% 90 s / to 15% 35 s
Cradle input voltage 5 V: 4.7–5.5 VDC; 12 V: 10.8–13.2 VDC
Cradle current 470 mA typical standard USB; 743 mA typical 12 V
PHYSICAL AND ENVIRONMENT
Dimensions 16.8 × 6.6 × 10.7 cm
Weight 235.3 g
Feedback Direct Decode Indicator; good-decode and rear LEDs; adjustable beeper; power gauge
Operating / charging temperature 0–50 °C / 0–40 °C
Storage temperature −40–70 °C
Humidity 5–95% RH, non-condensing
Drop / tumble tests Multiple 1.8 m drops onto concrete; 2,000 tumbles from 0.5 m
Sealing IP52
ESD ±15 kV air; ±8 kV direct / indirect
Ambient light 0–96,840 lux
Configuration and management 123Scan; Scanner SDK; SMS; ScanSpeed Analytics; Label Parse+; Multi-Code Data Formatting
Cradle-dependent features AutoConfig; Virtual Tether; paging; compatible cradle/configuration required
Manufacturer warranty 3 years from shipment, subject to Zebra terms

Frequently Asked Questions

Are cradle and USB cable included?
Yes. This kit includes the CR8178-PC100F4WW presentation cradle and CBA-U21-S07ZBR shielded USB cable, plus the scanner and 2500 mAh battery.
Does it read QR?
Yes. It supports the listed 1D/2D formats, including QR, Data Matrix and PDF417.
Can I use the capacitor instead of a battery?
A separate PowerCap 440 F option is supported with firmware CAACXS00-004-R00 or later. It is not included in this battery configuration.
Singular Expert Insight
Choose this presentation USB kit for cordless checkout and stock tasks with the host connection cable included. Confirm the base format suits the counter and test real codes and radio coverage. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need cordless 1D/2D capture with a presentation cradle and shielded USB cable included.
✕

Skip it if

 you require a standalone stock terminal or PowerCap rather than the included battery.
→

Also consider

 a verified alternative cradle format if your counter layout needs it.
Confirm cradle, power, host profile and application support with Singular.
