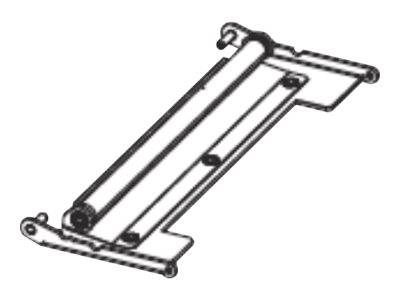

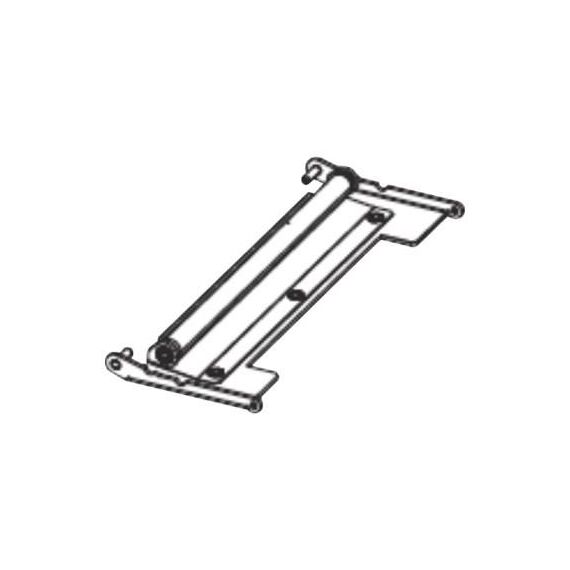

Zebra Peel Bracket Assembly for ZE500-6 Print Engine
Genuine Zebra partZE500-6RH & LHMedia path component
The Zebra P1046696-110 is the peel bracket assembly for the Zebra ZE500-6, the 6-inch print engine used in print-and-apply systems. Zebra lists it in the ZE500 Series parts catalogue under media path components as “Peel Bracket Assembly ZE500-6 RH & LH”, so the same part serves both right-hand and left-hand engines.
The peel bracket carries the peel edge where the liner is pulled back sharply and the printed label separates for the applicator. A bent, worn or damaged bracket causes labels that do not peel cleanly, misfeeds and inconsistent label presentation on the line.
Before you order: This assembly is for the 6-inch ZE500-6 only. The 4-inch ZE500-4 uses P1046696-109, the peel bar alone is a separate part (P1046696-075 for ZE500-6), and the successor ZE521 uses different peel parts. Check the engine model plate before ordering.
What's in the Box
- 1 × Zebra peel bracket assembly for ZE500-6 (P1046696-110)
- Zebra does not publish a detailed packing list for this part
What It Means in Practice
- Restores a clean, straight peel edge so labels separate reliably for the applicator.
- Replacement is a maintenance task on the engine’s media path — usually done by the line integrator or the site maintenance team.
- One part number covers right-hand and left-hand engines, so you do not need to know the orientation to order.
- Worth replacing together with worn pinch/peel rollers if labels still slip after a bracket change.
What Will Not Work
- Not for the 4-inch ZE500-4 or for ZE511/ZE521 engines.
- It does not include the pinch and peel rollers or the platen roller.
- It will not cure peel problems caused by the wrong label stock or liner tension settings.
- It is not a desktop printer dispenser kit.
Key Features
Genuine Zebra part
Listed in Zebra’s official ZE500 Series parts catalogue.
RH & LH
The same assembly fits both engine orientations.
Line uptime
A straight peel edge keeps label presentation consistent for the applicator.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On a print-and-apply line a damaged peel bracket stops production far more often than electronics do, so keeping one spare for each ZE500-6 is good practice. When the engines approach end of life, ask us about current label printers and print engines and the ZE521 successor.
✓ Buy it if you run a ZE500-6 engine and labels do not peel or present cleanly.
✕ Skip it if your engine is a ZE500-4, ZE511 or ZE521.
→ Also consider the ZE500-6 pinch/peel rollers (P1046696-060) if the rollers are also worn.
Not sure it fits your engine? Send us the model and serial plate and we will check before you order.
