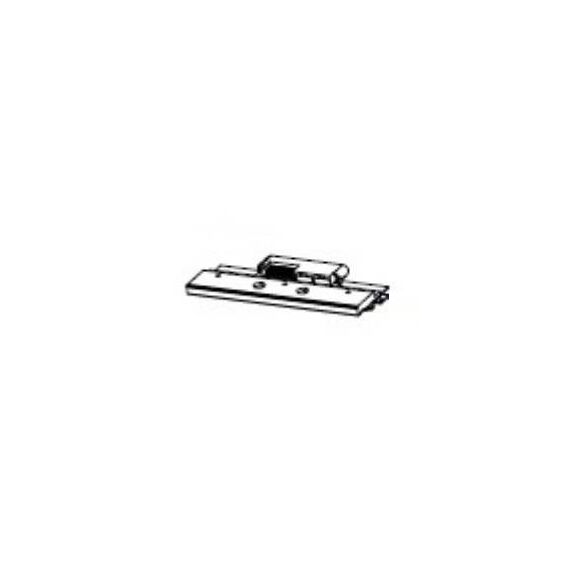

Zebra P1083320-015 Printhead 203 dpi for ZT620 and ZT620R Industrial Label Printers, Genuine Zebra Kit

Brand:
Zebra
Zebra 203 dpi printhead for Zebra P1083320015
Zebra P1083320-015 Printhead 203 dpi for ZT620 and ZT620R Industrial Label Printers, Genuine Zebra Kit
€1007.79 inc. VAT
Buy
P1083320-015
€846.88
€1,007.79 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
V369456
EAN Code
8596375087750
Manufacturer
Zebra

Quick Specs

Type
Thermal printhead
Resolution
203 dpi
Fits
ZT620 · ZT620R (6-inch)
Printer class
Industrial, 6-inch
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zebra P1083320-015 Printhead — 203 dpi replacement head for the ZT620 industrial printer

Genuine Zebra203 dpiZT620 / ZT620RIndustrial

The Zebra P1083320-015 is the genuine 203 dpi printhead for the Zebra ZT620 and ZT620R 6-inch industrial label printers.

The printhead is the heating element that forms every dot on the label. When individual elements fail you see white lines running through text and barcodes, which can make barcodes unreadable. Replacing the head restores full print quality on the existing printer.

Before you order: P1083320-015 is the 203 dpi head for the 6-inch ZT620. The 300 dpi ZT620 needs P1083320-016, and the 4-inch ZT610 uses P1083320-010 (203 dpi), -011 (300 dpi) or -012 (600 dpi). Check the dpi on the printer's configuration label.

What's in the Box

  • 1 x Zebra 203 dpi printhead for ZT620 (P1083320-015)

What It Means in Practice

  • Zebra's printhead warranty in EMEA is 1 year or 1 million inches printed, whichever comes first.
  • Zebra states its printers are designed to work only with genuine Zebra printheads.
  • Printhead mounting screws are a separate Zebra part (P1083320-112) if the originals are lost or damaged.
  • Clean the new head regularly and use Zebra-approved ribbons and media to protect the warranty.

What Will Not Work

  • It does not fit 300 dpi ZT620 printers (P1083320-016).
  • It does not fit the 4-inch ZT610.
  • It will not fix label skewing or slipping, which come from the platen roller.
  • It does not fit older ZT400 or ZT200 series printers.

Key Features


Genuine Zebra head
Designed for the ZT620 print mechanism.

203 dpi
Matches 203 dpi ZT620 and ZT620R configurations.

Zebra printhead warranty
1 year or 1 million inches in EMEA, per Zebra.

Restores barcode quality
Replaces failed dots that break barcodes and text.

Technical Specifications

Identification
Part Number P1083320-015
MPN P1083320-015
Brand Zebra
Product Type Printhead
Compatibility
Printers ZT620, ZT620R (203 dpi)
300 dpi version P1083320-016
ZT610 heads P1083320-010 / -011 / -012
Accessories
Mounting screws P1083320-112 (separate)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Zebra printhead warranty for EMEA: 1 year or 1,000,000 inches printed, whichever comes first — claims handled through Singular.

Frequently Asked Questions

How do I know the printhead needs replacing?
Consistent white lines along the label direction that remain after cleaning the head point to failed dots.
Is it the same for ZT620 and ZT620R?
Yes, both use this head in 203 dpi configuration.
Does printing on cheap ribbon matter?
Yes. Abrasive or mismatched ribbon and media wear printheads faster; Zebra-approved supplies protect it.
Singular Expert Insight · Buyer's Guide
On a ZT620 the printhead is the most important wear part. Before replacing it, clean it with Zebra cleaning pens or swabs; if white lines remain, the head has dead dots and replacement is the fix. Our printer accessories and service parts page lists other label printer parts.
✓ Buy it if your 203 dpi ZT620 or ZT620R prints white lines through barcodes after cleaning.
✕ Skip it if your ZT620 is 300 dpi or you have a 4-inch ZT610.
→ Also consider Zebra P1083320-016 for 300 dpi ZT620 printers.
Not sure which printhead your Zebra takes? Send us the model and serial from the printer label and we will check it before you order.
