Zebra Platen Roller for ZD410 and ZD411d Direct Thermal Desktop Label Printers, 203 and 300 dpi, Genuine Spare Part
Brand:
Zebra
Zebra Platen Roller for ZD410 and ZD411d Direct Thermal Desktop Label Printers, 203 and 300 dpi, Genuine Spare Part
€37.52 inc. VAT
P1079903-003
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

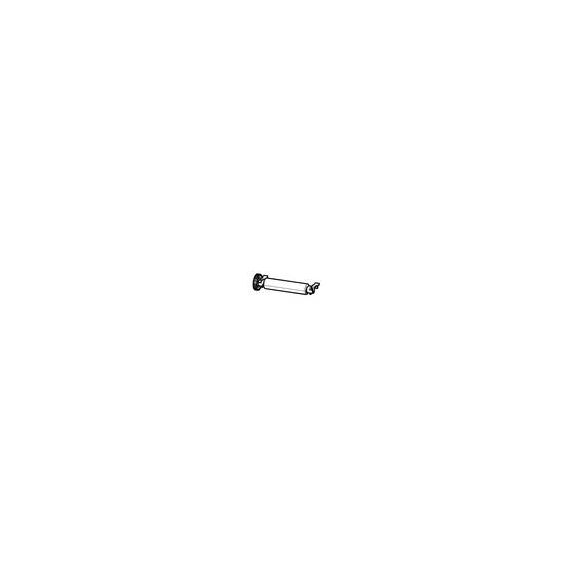

Zebra P1079903-003 Platen Roller for ZD410 / ZD411d
Genuine Zebra partZD410 · ZD411d203 & 300 dpiDirect thermal
The Zebra P1079903-003 is the genuine replacement platen (drive) roller for the Zebra ZD410 and ZD411d 2-inch direct thermal desktop label printers, including the healthcare (-HC) versions, at both 203 and 300 dpi. It is the rubber roller under the printhead that pulls labels through the printer and presses them against the printhead.
A worn, glazed or nicked platen is a common reason for labels that skew, slip, jam or print with faint or missing lines. Zebra advises that if sticking or jamming continues even after cleaning, the platen must be replaced. This part lets you do that yourself instead of sending the printer away.
Before you order: This roller is listed by Zebra for the ZD410 and ZD411d. The larger ZD420, ZD421 and ZD620 use different platen part numbers, and the GK/GX series uses its own platens too. Check the model on the label under your printer before ordering.
What's in the Box
- 1 × Zebra platen roller P1079903-003
- Platen bearings are a separate Zebra part (P1079903-014) — reuse the bearings from your old roller, or order new ones if they are worn
What It Means in Practice
- Labels feed straight again and the printhead gets even pressure across the label, so barcodes print solid and scan first time.
- Zebra describes the swap in the ZD410 user guide: open the printer, release the platen and lift it out, then fit the new one — no tools needed.
- Before replacing, try cleaning the old roller with 99% isopropyl alcohol and a lint-free swab; replace it if jams or slipping continue.
- Keep a spare if the printer runs all day — a platen is a wear part and the printer stops when it fails.
What Will Not Work
- It will not fit ZD420, ZD421, ZD620 or ZD621 printers — they use the P1080383 / P1112640 platen families.
- It will not fit GK420d/GX420d or GK420t/GX420t/GX430t printers (G-Series platens are different).
- It will not fix a damaged or worn printhead — streaks that stay in the same place after a new platen usually point to the printhead.
- It does not include new bearings or a drive gear; Zebra sells the bearings separately.
Key Features
Genuine Zebra part
Zebra part number P1079903-003 as listed in the ZD410 parts catalogue — the same roller fitted at the factory.
One part for both resolutions
Zebra uses the same platen for 203 dpi and 300 dpi ZD410 / ZD411d models.
Tool-free replacement
The ZD410 user guide shows the platen coming out by hand after releasing it from the frame.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On small 2-inch desktop printers the platen roller is the part that wears first, especially with die-cut labels and rough media. A new genuine roller usually cures slipping and skewed labels for a fraction of the cost of a service visit. Browse our POS printer accessories for printheads, cables and other parts.
✓ Buy it if you have a ZD410 or ZD411d whose labels slip, skew or jam even after cleaning the roller.
✕ Skip it if your printer is a ZD420, ZD421, ZD620, ZD621 or a G-Series model, or the problem is a fixed white line (printhead).
→ Also consider Zebra P1079903-014 platen bearings if the bearings on your old roller are worn.
Not sure it fits? Send us the exact printer model and resolution from the label on its base (or the serial number) and we will confirm the correct part number before you order.
