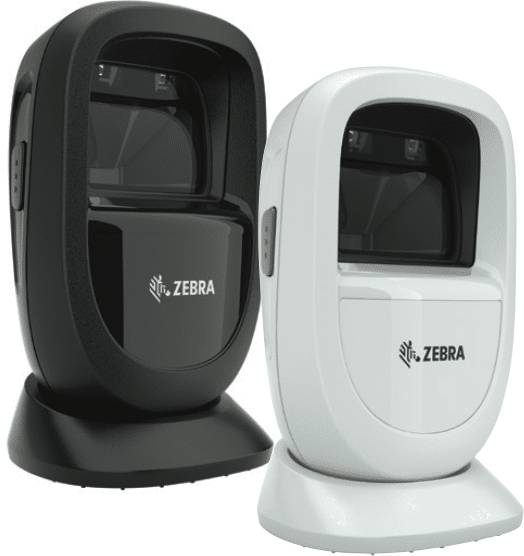

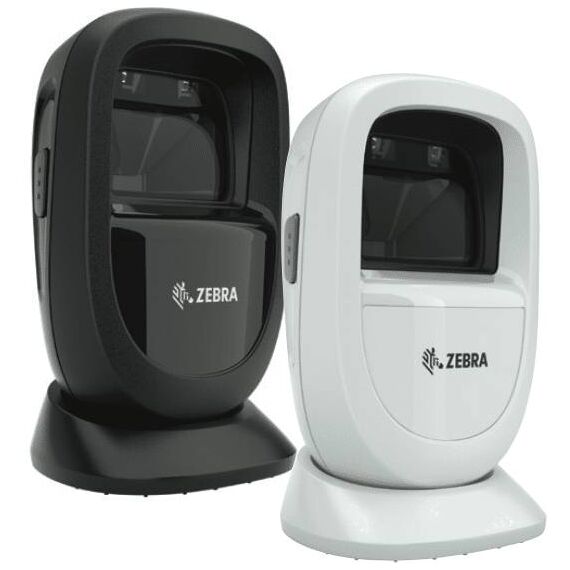

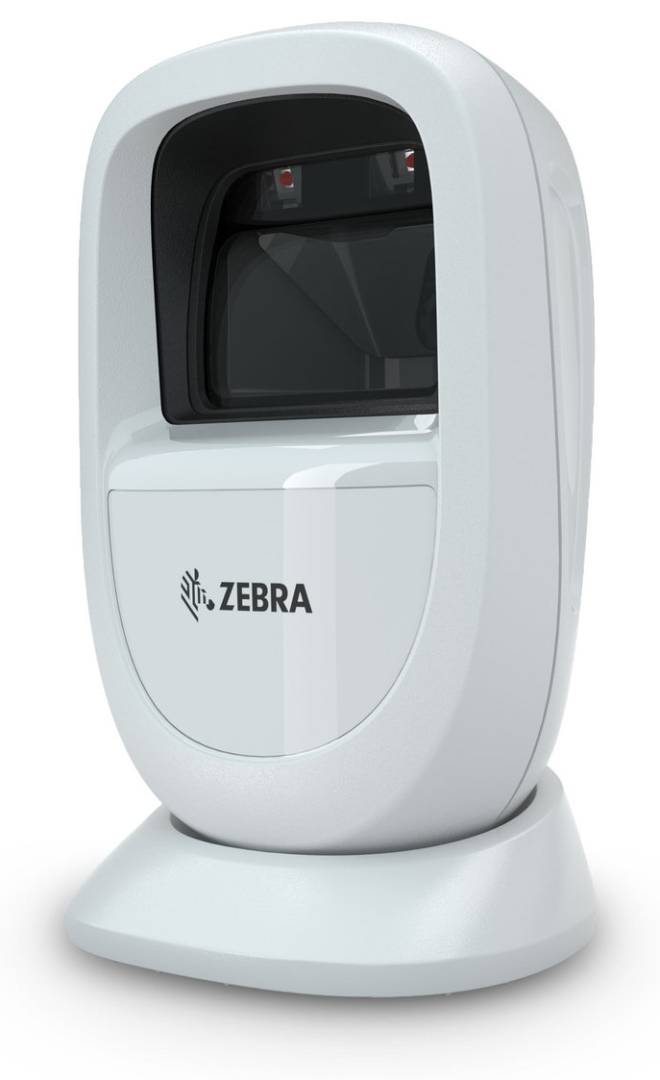

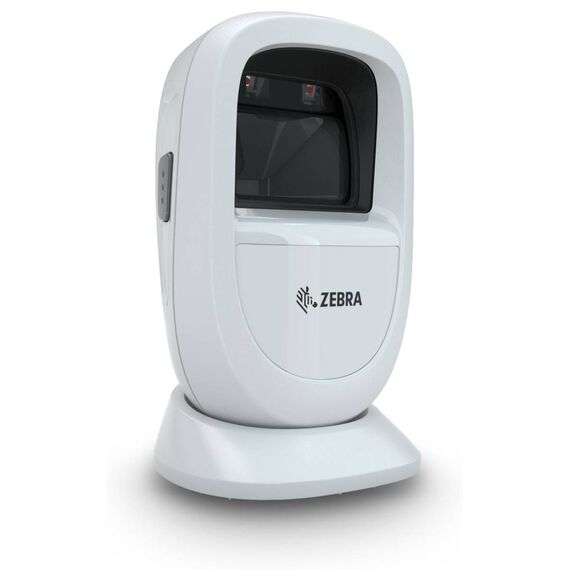

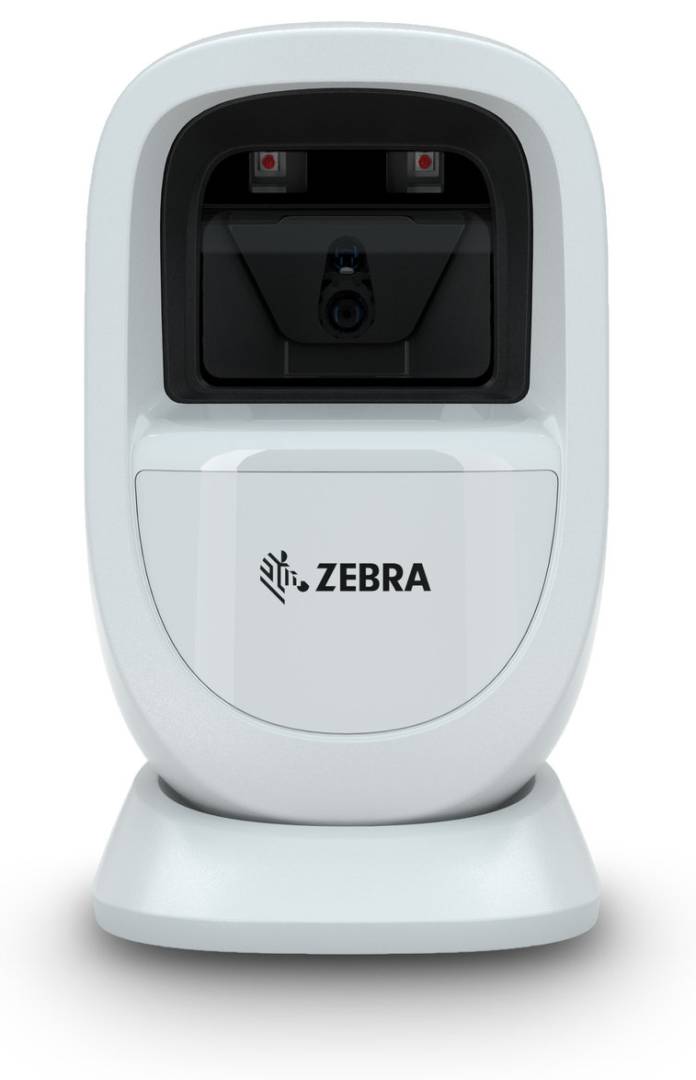

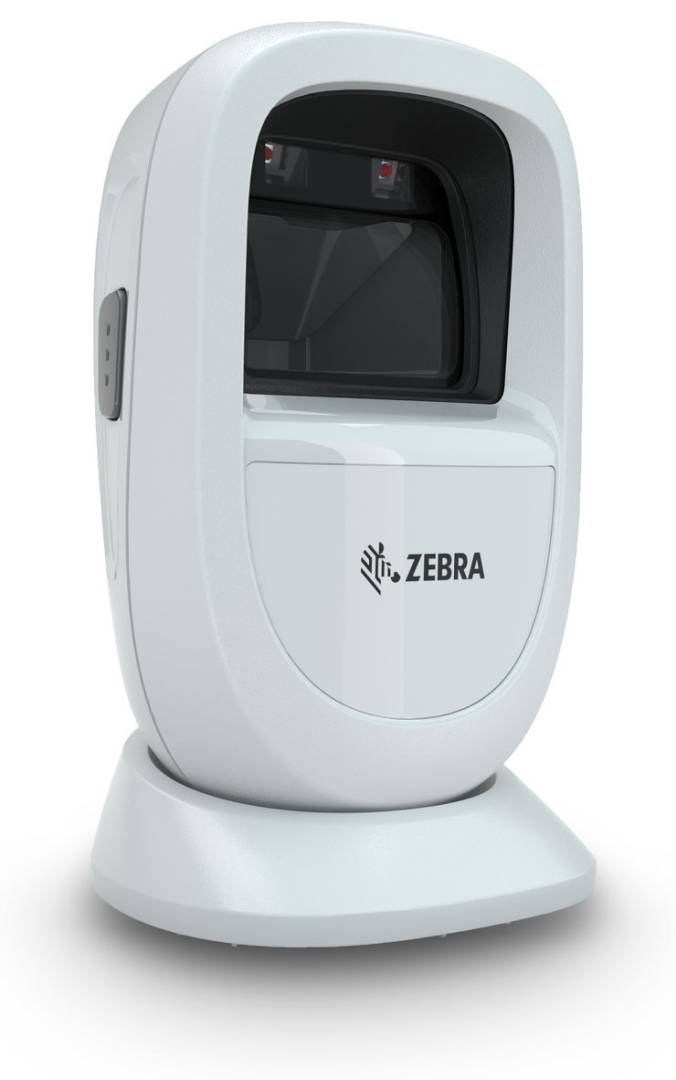

Zebra DS9308-SR 1D/2D Presentation Scanner, Alpine White, Scanner Only, Cable Separate

Brand:
Zebra
Zebra DS9308 Alpine White Standard Range Presentation Barcode Scanner
Zebra DS9308-SR 1D/2D Presentation Scanner, Alpine White, Scanner Only, Cable Separate
€295.86 inc. VAT
Buy
DS9308-SR0000WZZWW
€248.62
€295.86 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
V36C439
EAN Code
0843715118642
Manufacturer
Zebra

Quick Specs

Variant
Standard Range · Alpine White
Reading
1D / 2D · labels and screens
Counter use
Tilting presentation base
Package
Scanner only · cable separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Hands-free barcode reading in a compact white counter scanner

1D / 2DStandard RangeAlpine WhiteCable separate

The Alpine White DS9308-SR is a wired presentation scanner for checkout counters and ticket desks. Present a printed label or phone-screen code to its scan window; the connected POS or ticket application receives the data and performs its own lookup or validation. The integral tilting base is part of the scanner, but this scanner-only SKU does not include the host cable.

Before you order:
This is DS9308-SR0000WZZWW, the white scanner-only version. Select the host cable for your actual port. Optional multi-mount/locking brackets are separate; Digimarc is available only on specific models and is not promised for this SKU.

What's in the Box

  • Alpine White DS9308-SR scanner with integral tilting base

What Will Not Work

  • No wireless Bluetooth operation; a suitable host cable is required.
  • The reader does not supply a POS database or ticket-validation service.

Key Features


Aim the window at your workflow
Adjust the ratcheting base for the counter position. Presentation scanning supports hands-free use; the optional mounting brackets serve installations that need additional restraint.

Useful range rather than a universal distance
Typical UPC 13 mil range is 0–22.4 cm and QR 20 mil is 0–19.1 cm. Barcode size, contrast and lighting affect the usable distance.

Printed labels and screens
The 1280 × 800 imager reads 1D/2D codes, including DotCode and Dotted DataMatrix. Configure decoding and data formatting for the receiving application.

Technical Specifications

Identity & setup
MPN DS9308-SR0000WZZWW
EAN 0843715118642
Colour / engine Alpine White / Standard Range
Package Scanner with integral tilting base; host cable separate
Host interfaces USB2.0 Full Speed, RS232, Keyboard Wedge, TGCS(IBM)46XX over RS485
Keyboard / management Over 90 international keyboards; 123Scan, Scanner SDK, SMS, WMI
Mounting options Integral ratcheting base; optional multi-mount / locking-mount brackets
Dimensions H × W × D 14.5 × 8.6 × 8.3 cm
Weight 318 g
Imaging & decoding
Sensor 1280 × 800 pixels
Presentation swipe speed Up to 305 cm/s for 13 mil UPC in optimized mode
Aimer / illumination Circular amber LED 617 nm / Hyper Red LED660 nm
Field of view 52° H × 33° V nominal
Minimum contrast 15%
Skew / pitch / roll ±60° / ±60° / 360°
Feedback Good-decode and rear LEDs; adjustable beeper tone/volume
1D codes Code39, Code128, Code93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I2of5, Korean3of5, GS1 DataBar, Base32 Italian Pharma
2D codes PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal, securPharm, DotCode, Dotted DataMatrix
OCR / Digimarc OCR-A, OCR-B, MICR, US Currency configuration dependent; Digimarc on specific models only
Minimum element Code39 / Code128 3 mil; Data Matrix / QR 5 mil
Image output BMP, JPEG, TIFF; 109 PPI on A6 4.1 × 5.8 inch document
Typical reading ranges
Range conditions Depend on print resolution, contrast, barcode width and ambient light
Code39 3 mil 0–6.35 cm
Code39 5 mil 0–12.7 cm
Code39 20 mil 0–27.9 cm
Code128 3 mil 0–5.1 cm
Code128 5 mil 0–10.2 cm
PDF417 6.7 mil 0–10.2 cm
UPC 13 mil (100%) 0–22.4 cm
Data Matrix 10 mil 0–11.4 cm
QR 20 mil 0–19.1 cm
Power & durability
Input 4.5–5.5 V DC, host or external supply
Operating current at 5 V Presentation335 mA / Trigger350 mA
Idle current at 5 V Presentation135 mA / Trigger75 mA
Protection IP52
Drops / tumbles Multiple 1.5 m drops to concrete; 1,000 tumbles at 0.5 m
Operating / storage 0–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
ESD ±15 kV air / ±8 kV indirect
Ambient light 0–107,700 lux
EAS support Compatible with Checkpoint deactivation system; system integration required
Compliance RoHS, REACH, EN50581, IEC63000; IEC/EN62368-1, UL/IEC/CAN/CSA60950-1; IEC/EN62471; FCC15B, ICES003, EN55032/55024/55035, VCCI, SABS
Manufacturer term 3 years from shipment; Zebra hardware warranty terms apply

Frequently Asked Questions

Is this a complete USB kit?
No. It includes the scanner and its integral base; choose the host cable separately.
Is the white model a healthcare scanner?
Alpine White identifies this colour configuration. Do not infer healthcare housing or clinical features from colour alone.
Does every DS9308 read Digimarc?
The current manufacturer sheet limits Digimarc to specific models. Confirm the required licensed/configured variant before ordering for that workflow.
Singular Expert Insight
This white scanner-only format fits a counter where you already specify the host cable or are replacing a compatible wired reader. For a new USB installation, compare the complete USB kit so the cable is included in the purchasing decision. The white and black SR versions share the documented optical specifications; colour is not a performance upgrade. Compare scanner-only and USB kits

Buyer’s Guide

✓

Buy it if

 You need a white hands-free counter reader and will select a suitable host cable.
✕

Skip it if

 You expect a supplied USB cable or wireless operation.
→

Also consider

 The black SR version for a different counter finish, or the USB kit for cable-inclusive setup.
Confirm host port, cable, application data format and actual barcode samples before installation.
