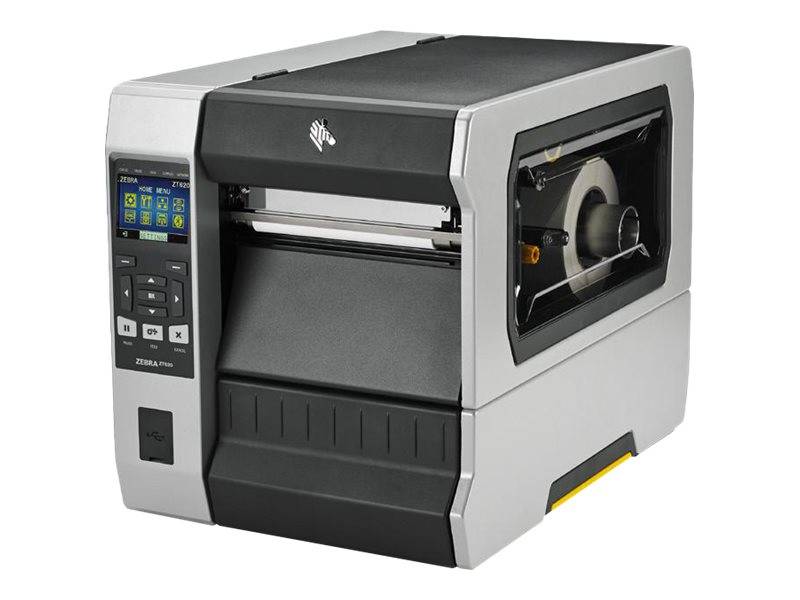

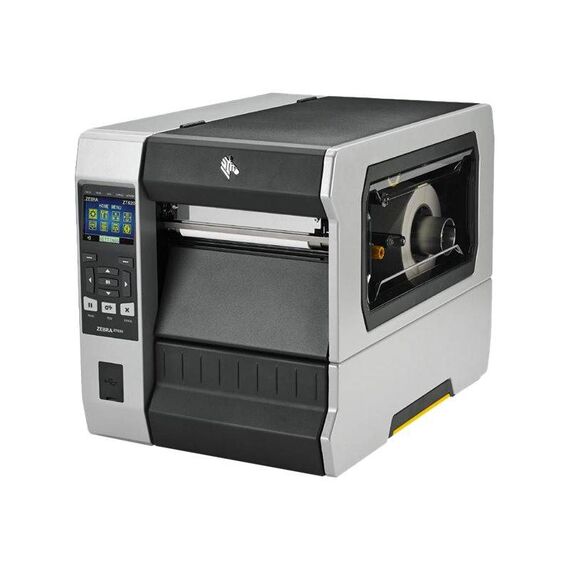

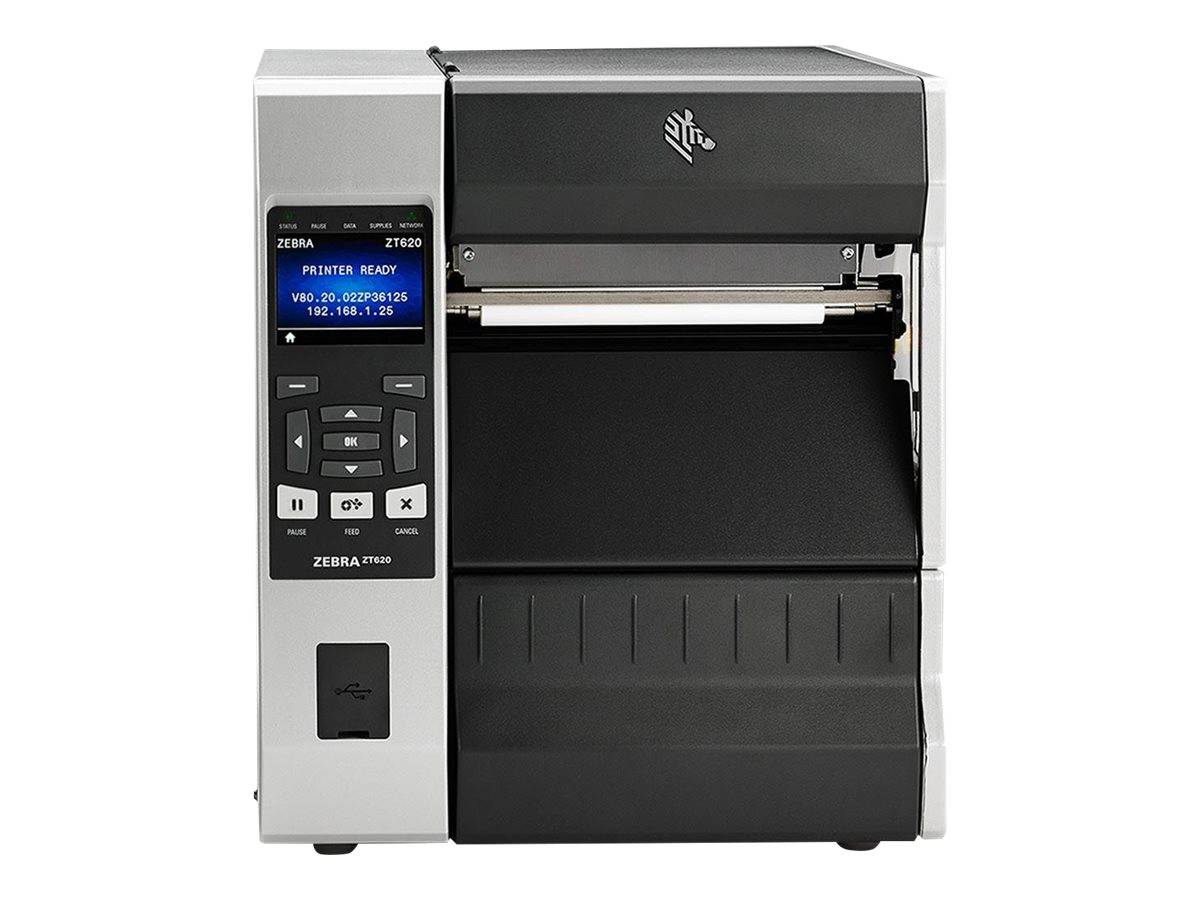

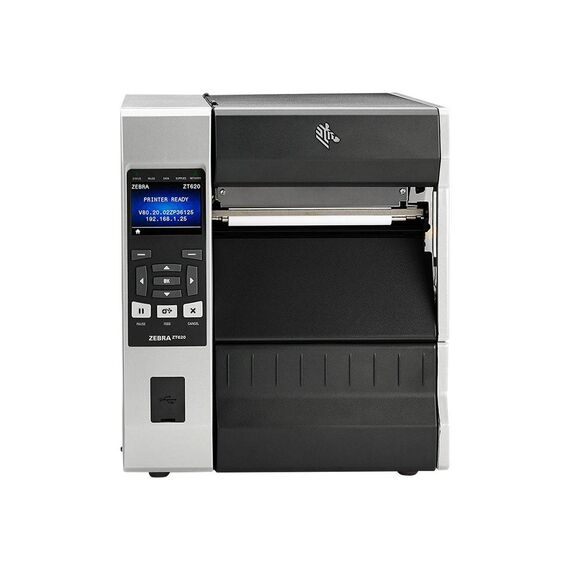

Zebra ZT620 Industrial Label Printer
6-inch / 168 mm wide203 dpiUp to 305 mm/sThermal Transfer / Direct Thermal
The Zebra ZT620 is a 6-inch wide industrial label printer from the ZT600 Series, pairing fast 203 dpi printing with a rugged all-metal build for warehouse, logistics, manufacturing and high-volume labelling. Identified by part number ZT62062-T0E0100Z (EAN 5704174270362), this standard tear-off configuration ships with thermal transfer and direct thermal printing plus USB, Gigabit Ethernet, RS-232 serial and Bluetooth 4.0 connectivity. With print speeds up to 305 mm/s, a fan-free thermal design and a 4.3-inch colour touch display, it is built for reliable 24/7 duty cycles. Typically in stock with fast delivery across Cyprus.
Good to know
This is the 203 dpi, standard tear-off, non-RFID ZT620 — 203 dpi favours speed and standard barcodes; choose the 300 dpi model for very small text or dense 2D codes. Labels are torn off manually at the tear bar (no cutter, peeler or rewinder). Thermal transfer printing requires a compatible 6-inch wax, wax/resin or resin ribbon — sold separately.
Best For
✓High-throughput warehouse, distribution and manufacturing labelling
✓Pallet, shipping and compliance labels up to 168 mm wide
✓Standard 1D barcodes and regular text at fast 203 dpi speeds
✓High-volume, 24/7 print environments needing rugged hardware
✓Straightforward tear-off batch printing without extra modules
✓Network printing via Gigabit Ethernet across multiple hosts
Key Features
Fast 6-inch, 203 dpi Printing
Handles media up to 178 mm wide with a 168 mm print width and prints at up to 305 mm/s, ideal for high-volume standard barcode and text labels.
Built for 24/7 Industrial Duty
Die-cast metal frame with fan-free thermal management and a 4.3-inch colour touch display deliver reliable, around-the-clock throughput.
Simple, Economical Tear-Off
The standard tear-bar configuration keeps the printer cost-effective for straightforward batch labelling without a cutter, peeler or rewinder.
Flexible Connectivity
Standard USB, Gigabit Ethernet, RS-232 serial and Bluetooth 4.0, with ZPL/ZPL II/XML support for easy integration into existing systems.
Technical Specifications
| Identification |
| Part Number |
ZT62062-T0E0100Z |
| EAN / GTIN |
5704174270362 |
| MPN |
ZT62062-T0E0100Z |
| Series |
Zebra ZT600 Series (ZT620) |
| Printing |
| Technology |
Thermal Transfer / Direct Thermal — ribbon-based for durable labels, or ribbon-free on heat-sensitive media |
| Resolution |
203 dpi (8 dots/mm) — standard resolution, faster throughput for everyday barcodes and text |
| Max Print Width |
168 mm (6.6 inch) |
| Max Media Width |
Up to 178 mm |
| Max Print Speed |
305 mm/s (12 ips) at 203 dpi |
| Languages |
ZPL, ZPL II, XML |
| Media Handling |
| Mode |
Tear-off — labels torn manually at the tear bar (no cutter, peeler or rewinder) |
| Max Roll Diameter |
203 mm (8 inch) OD |
| Connectivity |
| Interfaces |
USB 2.0, Dual USB Host, RS-232 Serial (DB-9), Gigabit Ethernet (10/100/1000), Bluetooth 4.0 |
| Memory & Build |
| Memory |
1 GB RAM, 2 GB on-board Flash |
| Display |
4.3-inch full-colour touch LCD |
| Construction |
Die-cast metal frame, fan-free thermal management, 24/7 duty cycle |
| Power |
100–240 VAC universal |
| Brand |
Zebra (genuine) |
Frequently Asked Questions
What is the difference between the 203 dpi and 300 dpi ZT620?
203 dpi prints faster (up to 305 mm/s) and suits standard barcodes and text, while 300 dpi gives finer detail for very small fonts and dense 2D codes at a lower top speed.
What media handling does this ZT620 use?
This is the standard tear-off configuration: printed labels are torn off by hand at the tear bar. It does not include a cutter, peeler or internal rewinder.
Does this ZT620 print RFID labels?
No. This is the standard non-RFID model. If you need inline UHF RFID encoding, choose the ZT620R RFID version instead.
What do I need before printing on the ZT620?
For thermal transfer printing you need a compatible 6-inch ribbon (wax, wax/resin or resin) plus your label media; direct thermal media can print without a ribbon.
Singular Expert Insight
Pick this 203 dpi tear-off ZT620 when speed and cost matter more than fine detail — it is the fastest, most economical 6-inch ZT620 and handles standard shipping and pallet barcodes with ease. Step up to the 300 dpi version only if you print very small text or dense 2D codes. If you need peel-and-present or internal rewind choose the rewind/peel ZT620, and for inline RFID encoding choose the ZT620R. For labels 4 inches or narrower, the ZT610 is the better-value platform.
Buyer’s Guide
Buy it if
You need fast, economical 6-inch (168 mm) industrial labels at 203 dpi with simple tear-off output for high-volume 24/7 use.
Skip it if
You print very small text or dense 2D codes (choose 300 dpi), need peel/rewind or RFID, or print labels 4 inches or narrower (ZT610).
Also consider
Add a 6-inch thermal transfer ribbon and matching label media; a Wi-Fi option can be added if your workflow needs wireless.
