Zebra ZT231 300 dpi Industrial Label Printer, Thermal transfer / direct thermal, Peel without liner take-up

Brand:
Zebra

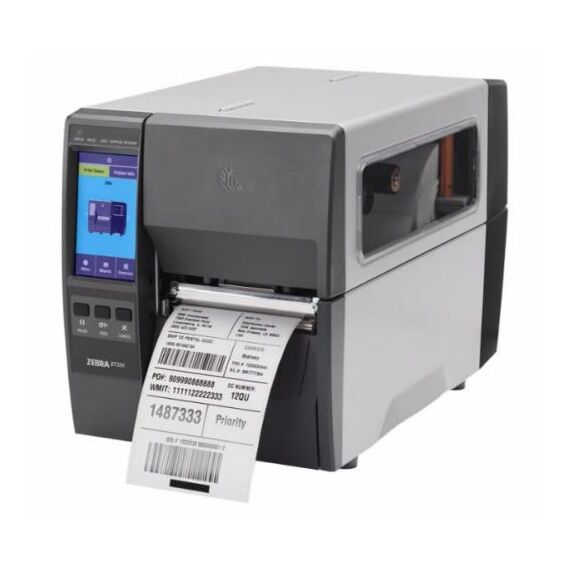

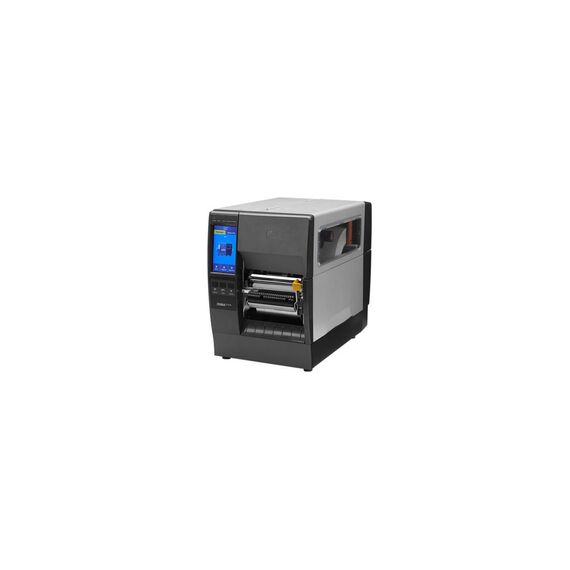

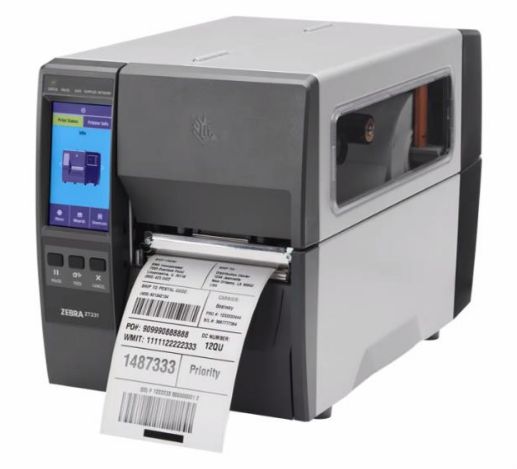

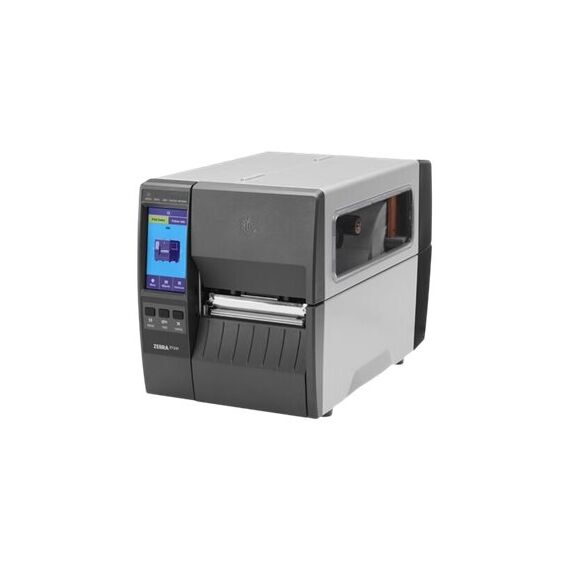

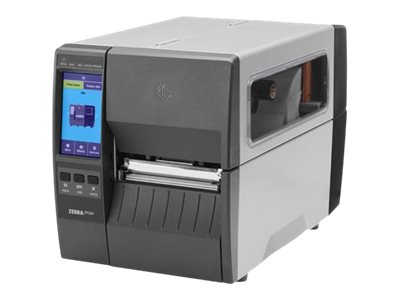

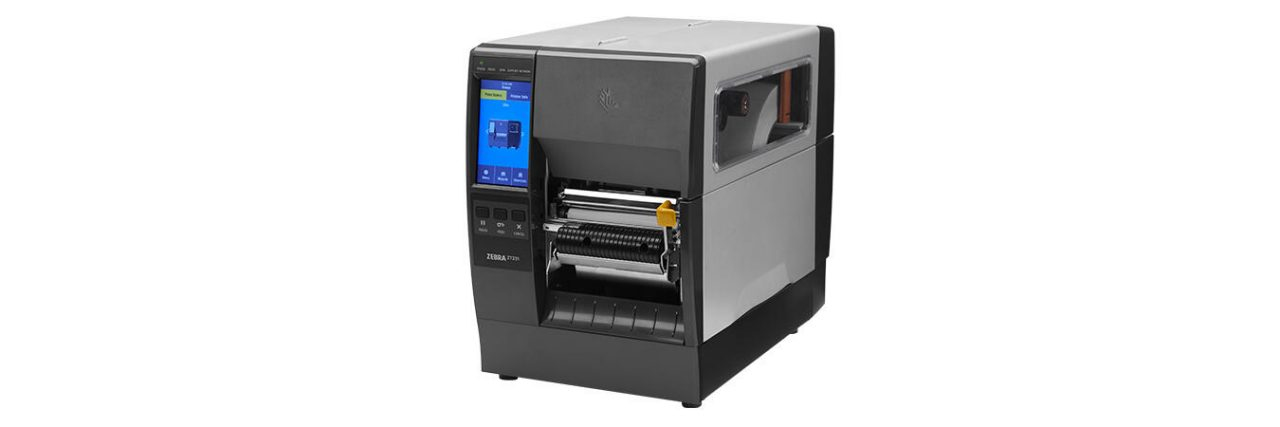

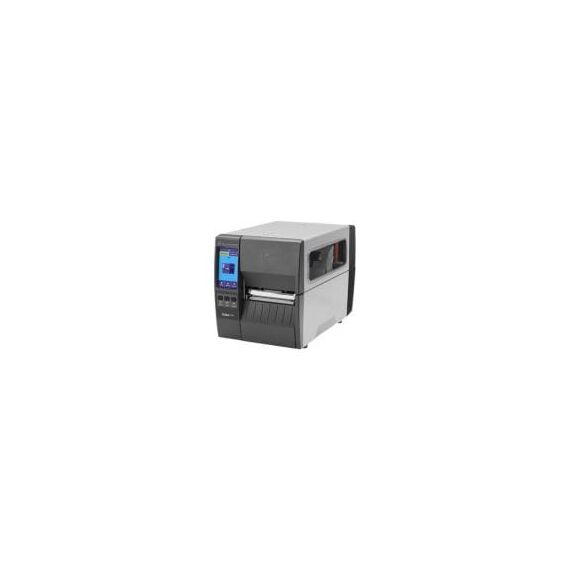

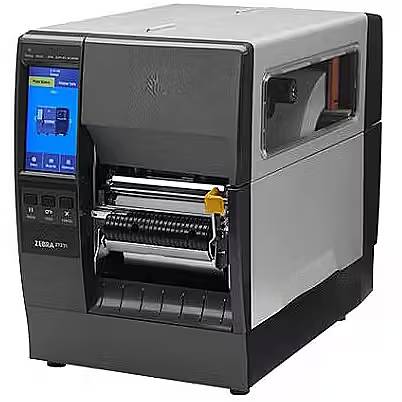

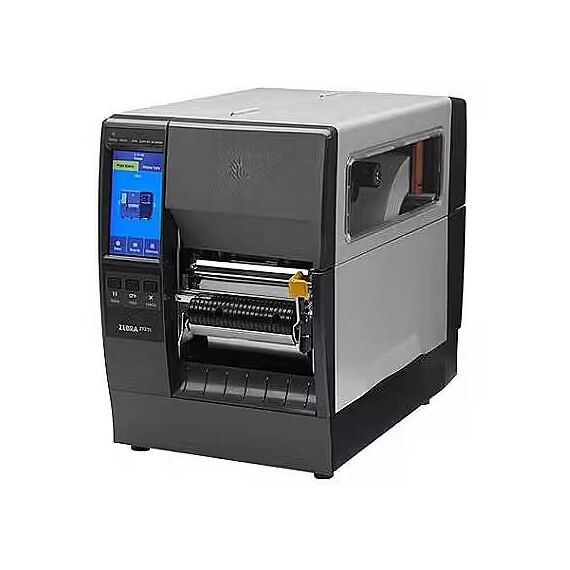

Zebra ZT231 ZT23143-T1E000FZ industrial label printer
Zebra ZT231 300 dpi Industrial Label Printer, Thermal transfer / direct thermal, Peel without liner take-up
€1397.57 inc. VAT
Buy
ZT23143-T1E000FZ
€1,174.43
€1,397.57 inc. VAT
Ships from EU stock: 59 item(s)
+ −
Add to wish list Ask a question
Product Code
CF07516
EAN Code
0663056024040
Manufacturer
Zebra

Quick Specs

Resolution
300 dpi
Print method
Thermal transfer / direct thermal
Media handling
Peel without liner take-up
Connections
USB / Ethernet
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zebra ZT231 300 dpi Peel

300 dpiThermal transfer / direct thermalPeel without liner take-upEthernet

The ZT23143-T1E000FZ is a Zebra ZT231 industrial label printer for product identification, packing and warehouse labelling. The passive peeler separates each label from its backing for immediate application. This configuration has no liner take-up spindle, so the backing needs separate handling.

Before you order:
Use a compatible label application or business system to send a label job from a computer over USB or the network. Load labels and a matching ribbon for thermal transfer, or heat-sensitive labels without ribbon for direct thermal. Ribbon and label material must be chosen together for the required durability.

What's in the Box

  • ZT231 printer, configuration ZT23143-T1E000FZ
  • EU and UK power cords

What It Means in Practice

  • The passive peeler separates each label from its backing for immediate application. This configuration has no liner take-up spindle, so the backing needs separate handling.
  • BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.

What Will Not Work

  • RFID encoding requires a separate upgrade.
  • Choose label stock and software suitable for your application; supplies are separate purchasing decisions.

Key Features


Configured for your label workflow
The passive peeler separates each label from its backing for immediate application. This configuration has no liner take-up spindle, so the backing needs separate handling.

300 dpi printing
Maximum print width is 104 mm, with print speeds up to 203 mm/s. Actual throughput depends on label design, media and settings.

Touchscreen and service access
The 4.3-inch colour touchscreen provides status and setup access. Side loading, a bi-fold door and tool-less platen and printhead removal simplify servicing.

Technical Specifications

Identity
Manufacturer Zebra
Model ZT231
MPN ZT23143-T1E000FZ
EAN 0663056024040
Printing and handling
Print method Thermal transfer / direct thermal
Resolution 300 dpi
Maximum print speed Up to 203 mm/s
Maximum print width 104 mm
Maximum print length 1854 mm
Installed media handling Peel without liner take-up
Minimum label and liner length 13 mm
Media sensors Moveable transmissive and reflective
Media
Media width 19.4–114 mm
Media thickness 0.076–0.25 mm
Roll capacity 203 mm outside diameter / 76 mm core; 152 mm outside diameter / 25 mm core
Media types Continuous, die-cut, notch, black mark
Ribbon
Standard ribbon length 450 m
Ribbon width 51–110 mm
Ribbon core 25.4 mm
System and connections
Interfaces USB 2.0, RS-232, 10/100 Ethernet, USB Host
Bluetooth Low Energy Location functionality; not a verified printing interface
Display 4.3-inch colour resistive touchscreen
Memory 256 MB SDRAM; 256 MB Flash
Firmware languages ZPL, ZPL II
Barcode support Linear and 2D, including Code 128, EAN-13, QR Code, Data Matrix, PDF417
Fonts and graphics 7 bitmap fonts, 1 scalable font; EMEA Unicode fonts; custom fonts and logos
NFC Print Touch tag for compatible mobile devices
Real-time clock Included
Print DNA Supported; some capabilities require a licence
Construction and environment
Construction Metal frame and enclosure; bi-fold media door
Dimensions (L × W × H) 432 × 241 × 279 mm (base model reference)
Weight 9.1 kg (base model reference)
Operating temperature 5–40°C thermal transfer; 0–40°C direct thermal
Storage temperature −40–60°C
Operating humidity 20–85%, non-condensing
Storage humidity 5–85%, non-condensing
Power supply 100–240 V AC, 50–60 Hz, auto-ranging
Certification ENERGY STAR
Included power cords EU / UK
RFID Optional upgrade; not included

Frequently Asked Questions

Does this configuration rewind printed label rolls?
The passive peeler separates each label from its backing for immediate application. This configuration has no liner take-up spindle, so the backing needs separate handling.
Does it support ribbon printing?
Use a compatible label application or business system to send a label job from a computer over USB or the network. Load labels and a matching ribbon for thermal transfer, or heat-sensitive labels without ribbon for direct thermal. Ribbon and label material must be chosen together for the required durability.
Can I print over Bluetooth or Wi-Fi?
BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.
Singular Expert Insight
Choose this configuration for applying labels one at a time. Check whether collecting the backing is required before choosing between peel and peel with liner take-up. 300 dpi is useful for finer text and dense barcode details; confirm label design and scan requirements. Compare label printers and handling configurations

Buyer’s Guide

✓

Buy it if

 you need 300 dpi, thermal transfer / direct thermal and peel without liner take-up.
✕

Skip it if

 you need labels wider than the 104 mm print area.
→

Also consider

 a different ZT231 handling configuration if your workflow needs a cutter or roll rewinder.
BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.
