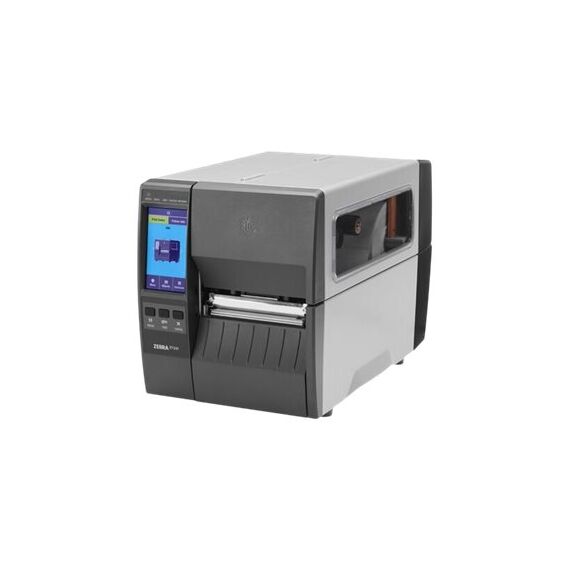

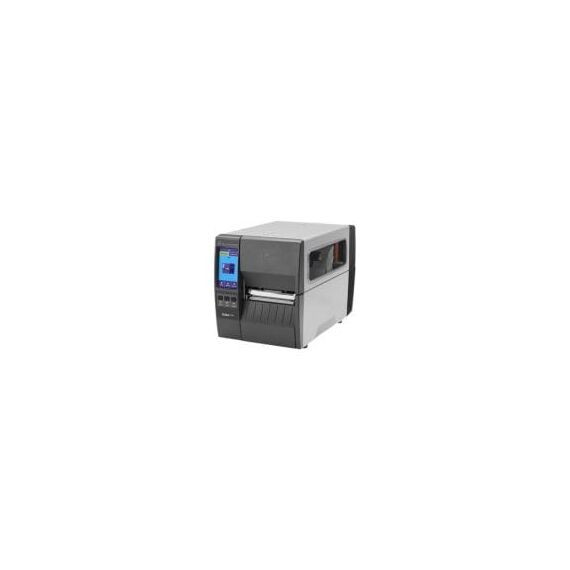

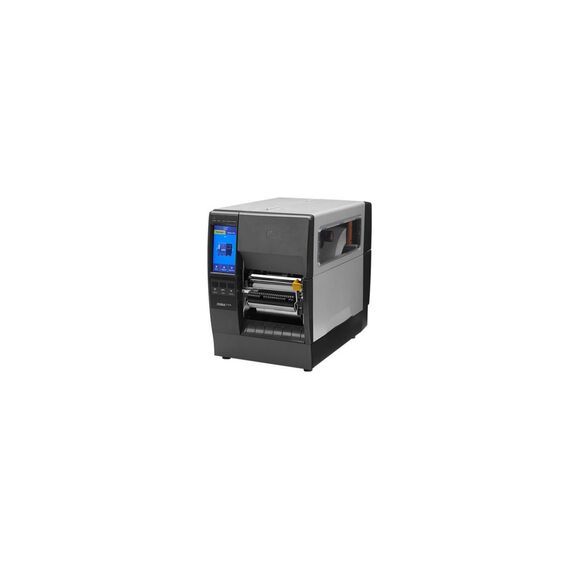

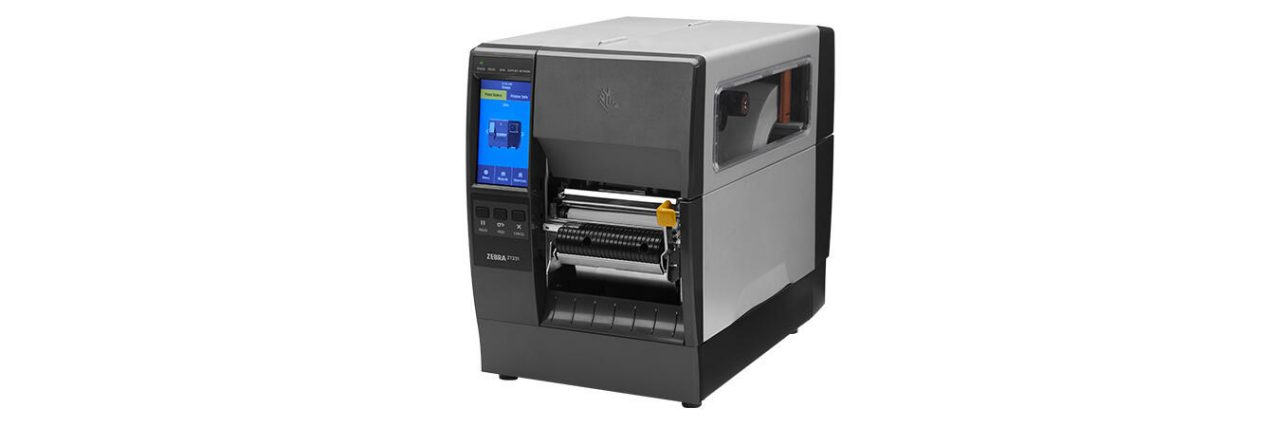

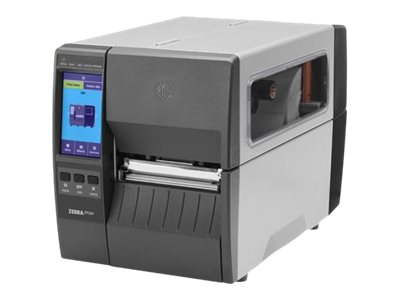

Zebra ZT231 300 dpi Industrial Label Printer, Direct thermal only, Peel + liner take-up

Brand:
Zebra
Zebra ZT231 - Label printer - direct thermal - | ZT23143-D3E000FZ
Zebra ZT231 300 dpi Industrial Label Printer, Direct thermal only, Peel + liner take-up
€1464.84 inc. VAT
Buy
ZT23143-D3E000FZ
€1,230.96
€1,464.84 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
CF07522
EAN Code
5715063056790
Manufacturer
Zebra

Quick Specs

Resolution
300 dpi
Print method
Direct thermal only
Media handling
Peel + liner take-up
Connections
USB / Ethernet
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zebra ZT231 300 dpi Peel + Take-up

300 dpiDirect thermal onlyPeel + liner take-upEthernet

The ZT23143-D3E000FZ is a Zebra ZT231 industrial label printer for product identification, packing and warehouse labelling. The peeler presents each label ready to apply and the liner take-up spindle winds the discarded backing. It does not rewind a finished roll of printed labels.

Before you order:
Send jobs from a computer or compatible business application over USB or the network. This direct-thermal-only configuration uses heat-sensitive labels without ribbon. It cannot perform ribbon-based thermal transfer; assess exposure to heat, light and abrasion when choosing the label stock.

What's in the Box

  • ZT231 printer, configuration ZT23143-D3E000FZ
  • EU and UK power cords

What It Means in Practice

  • The peeler presents each label ready to apply and the liner take-up spindle winds the discarded backing. It does not rewind a finished roll of printed labels.
  • BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.

What Will Not Work

  • RFID encoding requires a separate upgrade.
  • Choose label stock and software suitable for your application; supplies are separate purchasing decisions.

Key Features


Configured for your label workflow
The peeler presents each label ready to apply and the liner take-up spindle winds the discarded backing. It does not rewind a finished roll of printed labels.

300 dpi printing
Maximum print width is 104 mm, with print speeds up to 203 mm/s. Actual throughput depends on label design, media and settings.

Touchscreen and service access
The 4.3-inch colour touchscreen provides status and setup access. Side loading, a bi-fold door and tool-less platen and printhead removal simplify servicing.

Technical Specifications

Identity
Manufacturer Zebra
Model ZT231
MPN ZT23143-D3E000FZ
EAN 5715063056790
Printing and handling
Print method Direct thermal only
Resolution 300 dpi
Maximum print speed Up to 203 mm/s
Maximum print width 104 mm
Maximum print length 1854 mm
Installed media handling Peel + liner take-up
Minimum label and liner length 13 mm
Media sensors Moveable transmissive and reflective
Media
Media width 19.4–114 mm
Media thickness 0.076–0.25 mm
Roll capacity 203 mm outside diameter / 76 mm core; 152 mm outside diameter / 25 mm core
Media types Continuous, die-cut, notch, black mark
System and connections
Interfaces USB 2.0, RS-232, 10/100 Ethernet, USB Host
Bluetooth Low Energy Location functionality; not a verified printing interface
Display 4.3-inch colour resistive touchscreen
Memory 256 MB SDRAM; 256 MB Flash
Firmware languages ZPL, ZPL II
Barcode support Linear and 2D, including Code 128, EAN-13, QR Code, Data Matrix, PDF417
Fonts and graphics 7 bitmap fonts, 1 scalable font; EMEA Unicode fonts; custom fonts and logos
NFC Print Touch tag for compatible mobile devices
Real-time clock Included
Print DNA Supported; some capabilities require a licence
Construction and environment
Construction Metal frame and enclosure; bi-fold media door
Dimensions (L × W × H) 432 × 241 × 324 mm
Weight 10.9 kg
Operating temperature 0–40°C
Storage temperature −40–60°C
Operating humidity 20–85%, non-condensing
Storage humidity 5–85%, non-condensing
Power supply 100–240 V AC, 50–60 Hz, auto-ranging
Certification ENERGY STAR
Included power cords EU / UK
RFID Optional upgrade; not included

Frequently Asked Questions

Does this configuration rewind printed label rolls?
The peeler presents each label ready to apply and the liner take-up spindle winds the discarded backing. It does not rewind a finished roll of printed labels.
Does it support ribbon printing?
Send jobs from a computer or compatible business application over USB or the network. This direct-thermal-only configuration uses heat-sensitive labels without ribbon. It cannot perform ribbon-based thermal transfer; assess exposure to heat, light and abrasion when choosing the label stock.
Can I print over Bluetooth or Wi-Fi?
BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.
Singular Expert Insight
Choose this configuration for applying labels one at a time. Check whether collecting the backing is required before choosing between peel and peel with liner take-up. 300 dpi is useful for finer text and dense barcode details; confirm label design and scan requirements. Compare label printers and handling configurations

Buyer’s Guide

✓

Buy it if

 you need 300 dpi, direct thermal only and peel + liner take-up.
✕

Skip it if

 you need ribbon printing, which this direct-thermal-only model does not offer.
→

Also consider

 a different ZT231 handling configuration if your workflow needs a cutter or roll rewinder.
BTLE is provided for location-related functionality; it is not specified here as a Bluetooth printing interface. Wi-Fi is an optional upgrade and is not included in this SKU.
