Zebra ZT400 Series Internal Ethernet Print Server, 10/100 Wired Network Card for ZT410 and ZT420 Industrial Printers
Brand:
Zebra
Zebra ZT400 Series Internal Ethernet Print Server, 10/100 Wired Network Card for ZT410 and ZT420 Industrial Printers
€513.97 inc. VAT
P1058930-074
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

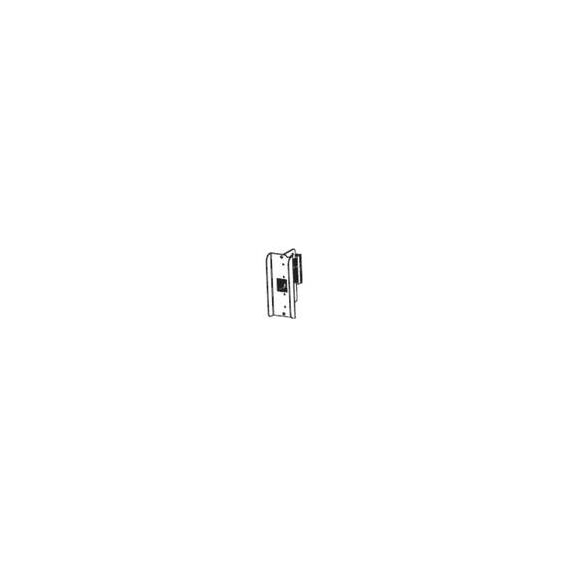

Genuine internal Ethernet print server for Zebra ZT400 Series printers
10/100 EthernetZT410 and ZT420Internal cardGenuine Zebra
The Zebra ZT400 Series Internal Ethernet Print Server is the genuine Zebra internal 10/100 wired network card that gives a ZT410 or ZT420 industrial label printer its Ethernet port, for warehouses, production lines and offices that print labels over the local network. Zebra lists it in the ZT400 Series Parts Catalog as the internal print server with Ethernet port, and its connectivity options page describes the internal IPv4 Ethernet print server as a 10/100 Ethernet card.
You would order it to replace a failed Ethernet card, to return a printer to wired networking after it was fitted with a wireless option, or to keep a spare for a fleet of ZT400 Series printers where downtime is expensive. The card sits inside the printer, so the result looks and works like a factory-networked printer: one RJ45 socket at the rear, a fixed or DHCP IP address and printing from your WMS, ERP or label design software.
Before you order: Only one print server, wired or wireless, can be installed in the printer at a time. Fitting this card means removing any installed wireless print server.
What's in the Box
- 1 x Zebra internal Ethernet print server card for the ZT400 Series (quantity 1 as listed in the parts catalog)
- Network cable is not included
- Detailed kit contents and installation hardware are not published in the parts catalog
What It Means in Practice
- Connects a ZT410 or ZT420 to a 10/100 Ethernet network for printing from any system on the LAN
- Lets you manage and configure the printer remotely over the network once an IP address is set
- Useful as a hot spare for sites with several ZT400 Series printers, cutting downtime when a card fails
- After installation the network settings (IP, mask, gateway or DHCP) are configured from the printer menu or Zebra tools
- A 10/100 link is more than enough for label jobs, so you can connect it to any standard switch port
What Will Not Work
- Cannot be installed together with a wireless print server: the printer takes one print server at a time
- Is not the parallel port option (P1058930-075) or the 802.11n or 802.11ac wireless options; order the right one if you need those
- Is not the 10/100/1000 gigabit card, which Zebra offers only for ZT510, ZT610 and ZT620
- Does not include a network cable or a switch port
- Listed by Zebra only for the ZT400 Series and the ZE511 and ZE521 print engines; send us the model if unsure
Key Features
Internal card, no external box
The print server mounts inside the printer, so there is no external adapter to lose, power or knock off a shelf in a busy warehouse.
10/100 Ethernet
Zebra specifies the internal IPv4 print server as a 10/100 Ethernet card, compatible with any standard switch port and ample for label printing.
Listed for ZT400 Series and print engines
The ZT411/ZT421 parts catalog lists the same part number for the ZE511 and ZE521 print engines and the ZT400 Series.
One print server at a time
Zebra's user guide notes that only one print server, wired or wireless, is installed at a time, which keeps the printer's network configuration simple.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A wired print server is only as reliable as the cable and switch port behind it. For a clean installation, pair it with one of our network cables of the right length.
✓ Buy it if Buy if your ZT410 or ZT420 has lost its Ethernet port, if you are returning a printer from wireless to wired networking, or if you keep spares for a ZT400 Series fleet.
✕ Skip it if Skip if you need Wi-Fi (order the wireless option), a parallel port (P1058930-075) or gigabit Ethernet on a ZT510 or ZT600 Series printer.
→ Also consider Network patch cables, a switch port near the printer, and Zebra wireless options if some printers need Wi-Fi. Send us your printer model and we check the right card.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Zebra - P1058930-074
More Details
Product Code
V365581
EAN Code
0760707029451
Manufacturer
Zebra
