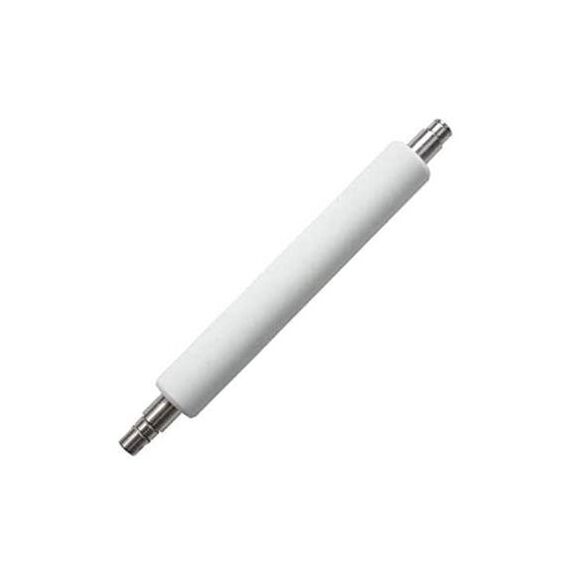

Zebra Platen Roller for ZT410 / ZT411
Genuine Zebra partZT410 / ZT4114-inch (104 mm) widthReplacement roller
The Zebra P1058930-080 is the genuine platen roller for the Zebra ZT410 / ZT411 4-inch industrial label printers, listed under this part number in Zebra’s own spare parts catalogue. The platen is the rubber drive roller under the printhead: it pulls the labels through the printer and presses them against the head, so its condition directly decides feed accuracy and print quality.
It is the part to order when labels start to slip, skew or print faded or patchy across the width, or when the roller surface is cut, worn smooth or contaminated with adhesive.
Before you order: Zebra catalogues this roller for the ZT410 / ZT411 only. Do not order it for the 6-inch ZT420 or ZT421 — those use P1058930-081 — and note that linerless ZT411 printers use Zebra’s separate linerless platen. Zebra does not list a different platen per resolution for this model, so check the model on the printer’s label, not the dpi.
What's in the Box
- 1 × Zebra platen roller (P1058930-080)
- Zebra does not publish a detailed packing list for this part
What It Means in Practice
- A worn platen is the most common cause of slipping media, label registration errors and faint print on one side — replacing it is far cheaper than a printhead.
- Always replace the roller with the printer switched off and unplugged; Zebra recommends cleaning the new roller and printhead path with isopropyl alcohol (99.7%) or the Zebra preventive maintenance kit.
- Zebra’s ZT4x0/ZT4x1 platen roller kit instructions are written for the user: open the peel unit if fitted, fit the roller with the bearing grooves facing up and check that the retainer locks it in place.
- Keep the old roller until the new one is in and printing correctly, in case you need to compare.
What Will Not Work
- It will not fit other Zebra models, including the wider/narrower sibling of the same series.
- It will not fix faults caused by a worn printhead, wrong media settings or a failing drive motor or belt.
- It is not a linerless-media platen — linerless printing needs Zebra’s dedicated linerless roller.
- It does not include the printhead, peel roller or pinch rollers.
Key Features
Genuine Zebra part
Same roller Zebra lists in the official parts catalogue for the ZT410 / ZT411.
Restores feed accuracy
A fresh drive surface stops label slip and keeps registration tight.
Even print density
Correct pressure under the full head width avoids faded or patchy print.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On busy industrial printers the platen roller is a wear part that should be changed long before the printhead — it is the cheapest way to bring back sharp, well-registered labels. If the printer itself is near the end of its life, compare current industrial and desktop label printers before investing in more spares.
✓ Buy it if you run a Zebra ZT410 / ZT411 and labels slip, skew or print unevenly across the width.
✕ Skip it if your printer is a different model or width, or the issue is missing dots or white lines (that points to the printhead).
→ Also consider the 6-inch ZT420/ZT421 platen roller P1058930-081 if you run the wider model.
Not sure it fits your printer? Send us the full model and serial label of your Zebra and we will check the right roller before you order.
