Gamber-Johnson Zirkona 7110-1235 Medium Joiner Only, M20, 2.8 kg Dynamic / 15 kg Static, Black

Brand:
GAMBER JOHNSON

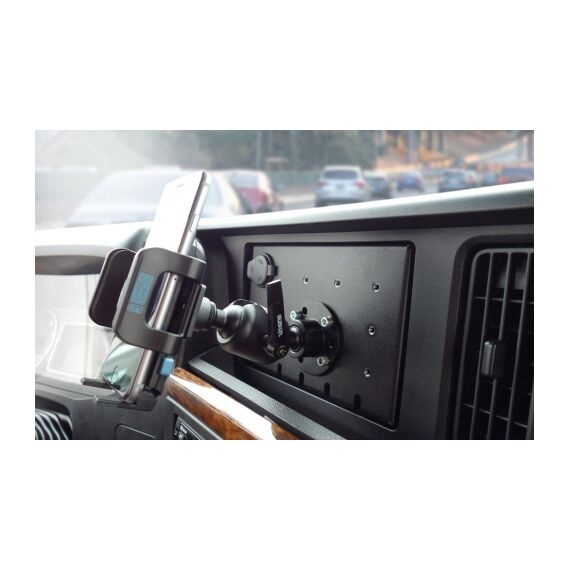

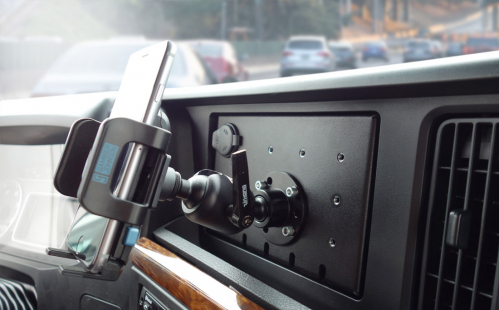

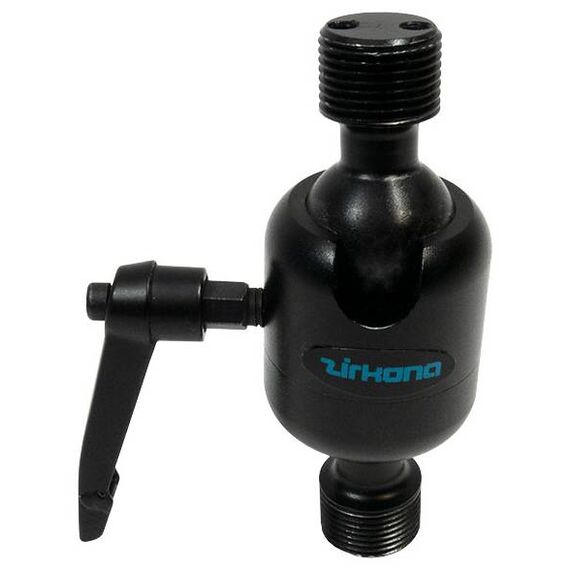

Gamber-Johnson Zirkona 7110-1235 Black Medium Joiner and Installation Example
Gamber-Johnson Zirkona 7110-1235 Medium Joiner Only, M20, 2.8 kg Dynamic / 15 kg Static, Black
€51.59 inc. VAT
Buy
7110-1235
€43.35
€51.59 inc. VAT
Ships from EU stock: 17 item(s)
+ −
Add to wish list Ask a question
Product Code
3N80182
EAN Code
0041898989961
Manufacturer
GAMBER JOHNSON

Quick Specs

Dynamic load
Up to 2.8 kg / 6 lb
Static load
Up to 15 kg / 33 lb
System connection
Zirkona / M20
Supplied component
Medium joiner only
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

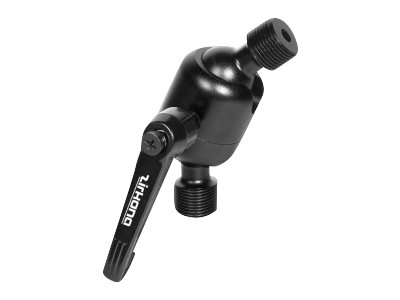

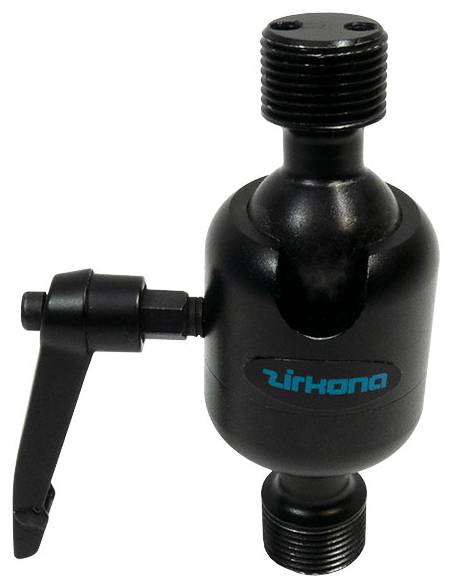

Gamber-Johnson Zirkona 7110-1235 Medium Joiner

Up to 2.8 kg / 6 lbUp to 15 kg / 33 lbZirkona / M20Medium joiner only

The Gamber-Johnson Zirkona 7110-1235 is one Medium articulated joiner for a modular mounting system. It connects compatible M20 Zirkona components and uses a quick-adjust handle to reposition the device in three axes. You receive the joiner only: a suitable base, device mounting plate or cradle, fixing hardware and required thread-locking adhesive are separate. The phone and complete installation shown in the example photo are not the supplied kit. The guide rates the Medium joiner up to 2.8 kg in dynamic/vibration use or 15 kg in static use before extension derating.

Before you order:
Choose the complete mounting configuration for the equipment and environment. The 15 kg static figure must not be used as the vehicle/vibration rating. Extensions lower the permissible payload by the manufacturer rule of 20% per 50 mm. Follow the installation guide, use the specified M20 thread-locking adhesive and allow at least 12 h curing before attaching the device.

What's in the Box

  • 1 × Zirkona Medium Joiner 7110-1235 only

What It Means in Practice

  • For example, an installer combines a suitable fixed base, this joiner and the correct cradle or plate for a small device. Loosen the handle to adjust the viewing position, then secure it. Install the joiner notch towards the device; optional extensions belong on the base end only. In a moving vehicle, use the dynamic rating with the applicable extension reduction and the complete system limitations.

What Will Not Work

  • You need a complete ready-to-fit phone mount, incompatible non-M20 components, or payload above the applicable dynamic/static and extension-adjusted rating.

Key Features


Different load ratings by use
The official guide distinguishes 2.8 kg dynamic/vibration from 15 kg static capacity.

Three-axis positioning
The encapsulated ball and quick-adjust handle allow movement in X, Y and Z axes.

Modular M20 component
Use with appropriate Zirkona mounting components; it is not a complete device holder by itself.

Technical Specifications

Identity
MPN 7110-1235
EAN 0041898989961
Mounting and load limits
Product type Zirkona Medium articulated joiner component
System connection M20 threaded connections, external threads at both ends
Dynamic/vibration load maximum 6 lb / 2.8 kg, before extension derating
Static load maximum 33 lb / 15 kg, before extension derating
Extension derating, manufacturer rule Reduce maximum payload by 20% per 50 mm extension; 100 mm reduces it by 40%
Adjustment Quick-adjust handle; X left/right, Y front/back, Z up/down motion
Ball design Encapsulated ball; manufacturer describes theft deterrence
Modular configuration Compatible Zirkona bases, device plates and optional extension components required for complete mounting
Installation requirements
M20 thread locking Manufacturer requires thread-locking epoxy; recommends LOCTITE EA 9460 / EA 9461 / EA 9466
Curing before device attachment Minimum 12 h per installation guide
Joiner orientation Body notch towards device end
Extension placement Base end only, not device end
Separate base fixing hardware Guide specifies 1/4-inch or 6 mm hardware, not included
Physical and identity details
Construction Anodized aluminium, all metal
Colour Black
Weight 0.45 lb / 0.20 kg
Overall end-to-end length, metric drawing 102.1 mm
Body diameter, metric drawing 39 mm
Central body length, metric drawing 43 mm
Manufacturer page width 3.38 in / 85.9 mm
Former item number 7160-0287
Recommended replacement for 14549
Manufacturer warranty Limited lifetime warranty; manufacturer terms apply

Frequently Asked Questions

Can I mount a 15 kg device in a moving vehicle?
The 15 kg value is the static rating. The guide specifies 2.8 kg for dynamic/vibration use, reduced further by extension length and subject to the complete assembly.
Is the phone cradle shown included?
No. This SKU is the Medium joiner only. The example shows a complete installation using additional components.
How does a 100 mm extension affect capacity?
The guide gives a 40% reduction in maximum payload for 100 mm extension. Extensions must be fitted at the base end.
Singular Expert Insight
Select the joiner after checking the full assembly, device weight and motion environment. Read the manufacturer installation guide for thread locking, orientation and extension limits before installation. Compare vehicle mounting accessories

Buyer’s Guide

✓

Buy it if

 You are building a compatible Zirkona M20 mounting assembly within the applicable load limits.
✕

Skip it if

 You need a complete ready-to-fit phone mount, incompatible non-M20 components, or payload above the applicable dynamic/static and extension-adjusted rating.
→

Also consider

 Compare a complete mounting kit if you also need the vehicle base and device cradle or plate.
Tell us your equipment and application so we can check the exact configuration.
