Zyxel QSFP100G-LR4 100GbE QSFP28 Transceiver, 10 km

Brand:
Zyxel

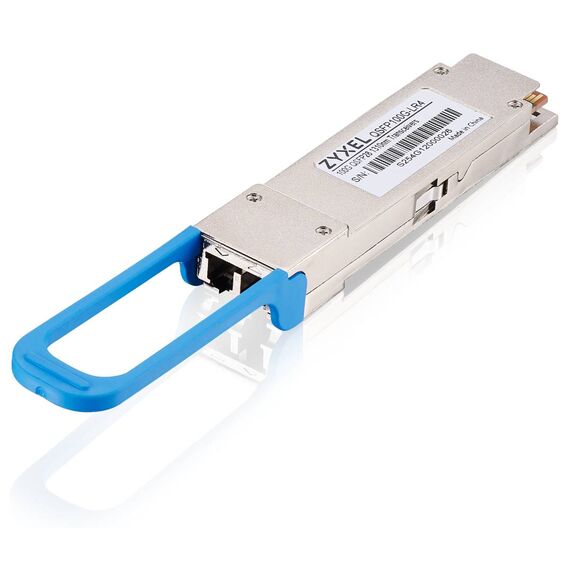

Zyxel QSFP100G-LR4 module, angled front view with duplex LC receptacle and blue pull tab
Zyxel QSFP100G-LR4 100GbE QSFP28 Transceiver, 10 km
€659.86 inc. VAT
Buy
QSFP100G-LR4-ZZ0101F
€554.50
€659.86 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:537996
EAN Code
4718937649501
Manufacturer
Zyxel
Quick Specs
Data rate
100GbE
Host interface
QSFP28 100G
Optical connection
Duplex LC, single-mode fibre
Maximum reach
10 km, subject to optical-path limits
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zyxel QSFP100G-LR4 100GbE QSFP28 Transceiver

100GbEQSFP28 100GDuplex LC, single-mode fibre10 km, subject to optical-path limits

The Zyxel QSFP100G-LR4 is a single 100GbE QSFP28 optical transceiver for extending a supported switch connection over duplex single-mode fibre. It uses a duplex LC connector, 1310 nm wavelength and supports a maximum transmission distance of 10 km subject to optical-path limits. A suitable QSFP28 100G host port and compatible LR4 optics at both ends are required.

Best For: For network installations extending a supported 100GbE QSFP28 link over suitable duplex single-mode fibre, up to the stated optical distance and within path limits.
Before you order: Confirm the exact host supports this 100G QSFP28 module and check firmware, optic acceptance, host power and thermal allowance. A suitable duplex single-mode LC fibre path and compatible 100G LR4 optics at both ends are needed. Only one module is included; a remote module is not automatically needed if a suitable one is already installed. The 10 km figure is a maximum, not a guaranteed application throughput or included cable length. Fibre leads, host equipment and any needed remote optic are not listed as included. Removing the module interrupts the physical link.

What's in the Box

  • One Zyxel QSFP100G-LR4 optical module

What It Means in Practice

  • Use a supported QSFP28 100G port at the host and appropriate host support at both ends; cage shape alone does not establish compatibility.
  • The link requires suitable duplex single-mode fibre with matching LC terminations and compatible 100G LR4 optics at the remote end. Existing suitable remote optics may be used.
  • The 10 km maximum is subject to path loss, connectors, splices and matching optics; it does not state included cable length or guarantee application throughput.
  • DDMI can expose operating readings and threshold alarms only where host firmware supports diagnostics; the module has no standalone web dashboard.

What Will Not Work

  • Not for SFP, SFP+, SFP28 or ordinary RJ45 NIC ports; supported QSFP28 100G host-port and firmware acceptance are required.
  • Not an SR4 MPO12 850 nm multimode, BiDi/single-strand or DAC product.
  • Does not function as a complete switch or media converter and does not provide independent Internet access, routing, Wi-Fi or Ethernet-cable conversion.
  • Fibre patch leads, host switches and any required remote optic are not listed as included.
  • Removing the hot-pluggable module interrupts the physical link; zero downtime is not guaranteed. The listed reach is subject to optical-path limits.

Key Features


Duplex LC, single-mode optics
Uses duplex LC terminations over single-mode fibre, for a link design that matches those interfaces.

Up to 10 km transmission distance
A stated maximum for suitable optical paths; actual reach depends on path loss, connectors, splices and matching optics.

DDMI diagnostics
Can provide optical and module readings with threshold alarms when the host firmware supports them.

Listed Zyxel host support
The manufacturer matrix lists CX4800-56F and CX3800 Series for this exact LR4 model; verify the precise host and firmware.

Technical Specifications

ManufacturerZyxel
ModelQSFP100G-LR4
Manufacturer SKUQSFP100G-LR4-ZZ0101F
EAN4718937649501
Product type100GbE optical transceiver
Form factor / interfaceQSFP28; supported host QSFP28 100G port required
Optical connectorDuplex LC
Fibre typeSingle-mode fibre
Nominal wavelength1310 nm
Maximum transmission distance10 km; subject to path loss, connectors, splices and matching optics
Transmit optical power-4.3 to +4.5 dBm
Receive optical power-10.6 to +4.5 dBm
Digital diagnosticsDDMI supported; host firmware must support diagnostics
Monitored parametersTemperature, received/transmitted optical power, bias current, supply voltage and threshold alarms, where supported by host firmware
Supply voltage3.135–3.465 V
Maximum current1360 mA
Maximum power consumption4.5 W
Power sourceCompatible host cage; no external mains adapter or PoE injector required or supplied
Dimensions (W × D × H)118.4 × 19 × 9.8 mm
Weight45 g
Operating temperature0–70°C
Storage temperature-40–85°C
MTBF4,863,340 hours at 25°C; statistical specification, not a warranty or promised service life
Hot-pluggingHot-pluggable in a compatible host under its supported procedure; removing the module interrupts the physical link
Laser / safetyClass 1 laser; manufacturer lists 21 CFR 1040.10/1040.11 safety compliance
Manufacturer-listed compatible hostsZyxel CX4800-56F and CX3800 Series; CX3800 availability noted for Q4 2026. Verify exact model, port, firmware and current support.
Package quantitySingle pack; one module
Included itemOne QSFP100G-LR4 optical module

Frequently Asked Questions

What must the host support?
A supported QSFP28 100G port and appropriate firmware/optic acceptance are required. The manufacturer matrix lists Zyxel CX4800-56F and CX3800 Series; CX3800 carries a Q4 2026 availability note. Check the exact model, port, firmware and current support.
What else is needed for a link?
Suitable duplex single-mode fibre with matching LC terminations, compatible 100G LR4 optics at the remote end and appropriate host support at both ends. A second module is not included, but need not be purchased if a suitable remote optic is already installed.
Is a fibre cable included?
No fibre cable is listed as included. The package quantity is one module; other package extras are unverified.
Does the 10 km rating guarantee that reach in every installation?
No. It is the maximum stated transmission distance and is subject to optical-path loss, connectors, splices and matching optics.
Singular Expert Insight

It combines a 100GbE QSFP28 host interface with duplex LC single-mode optics and a 10 km maximum transmission distance in one module. Zyxel's current compatibility matrix lists the CX4800-56F and CX3800 Series for this exact model.

Buyer’s Guide

✓ Buy it if For network installations extending a supported 100GbE QSFP28 link over suitable duplex single-mode fibre, up to the stated optical distance and within path limits.
✕ Skip it if Confirm the exact host supports this 100G QSFP28 module and check firmware, optic acceptance, host power and thermal allowance. A suitable duplex single-mode LC fibre path and compatible 100G LR4 optics at both ends are needed. Only one module is included; a remote module is not automatically needed if a suitable one is already installed. The 10 km figure is a maximum, not a guaranteed application throughput or included cable length. Fibre leads, host equipment and any needed remote optic are not listed as included. Removing the module interrupts the physical link.
→ Also consider For a multimode/MPO link, consider an SR4 transceiver designed for that separate fibre and connector setup. This LR4 model is duplex LC single-mode and is not an SR4 substitute.
