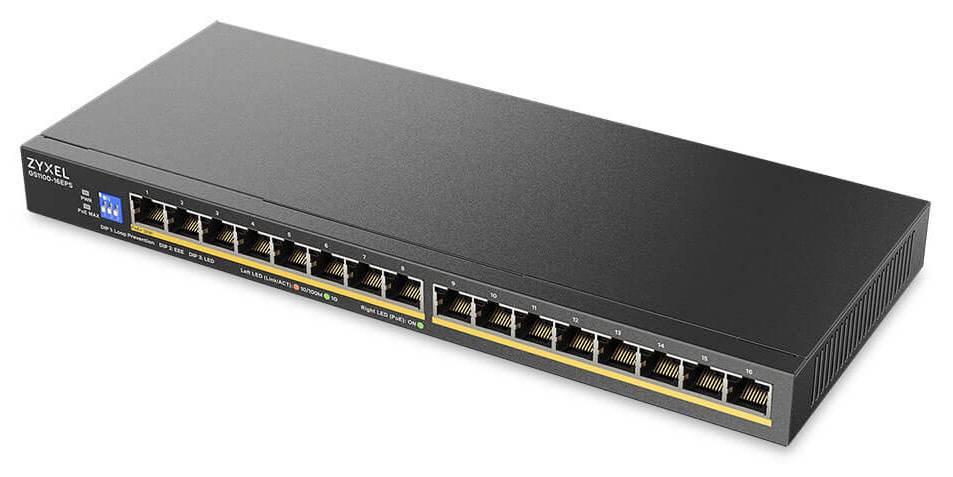

Zyxel GS1100-16EPS 16-Port PoE+ 135W DIP Switch
Brand:
Zyxel
GS1100-16EPS-EU0101F
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Sixteen PoE+ connections with quick physical DIP control
16 × Gigabit PoE+135 W shared budget3 physical DIP switchesBlack fanless slim design
The Zyxel GS1100-16EPS combines sixteen Gigabit PoE+ ports with three physical controls in a slim black chassis. Each port supports IEEE 802.3at within a shared 135 W budget. This Switchable-series model uses DIP switches for loop prevention, energy saving and port LEDs without requiring a browser or management login.
Best For: Small premises needing wired Gigabit access and a carefully budgeted mix of compatible APs, cameras and VoIP phones.
Before you order: Each port can supply up to 30 W, but all powered devices share 135 W. Add their actual requirements before connecting them; sixteen ports do not mean sixteen simultaneous 30 W loads. Use the supplied external adapter and maintain airflow. This slim model supports wall mounting, not the rack kit supplied with some other GS1100 variants.
What's in the Box
- Zyxel GS1100-16EPS-EU0101F switch.
- External power adapter and wall-mount kit.
- Current manufacturer datasheet lists a power cord; confirm the supplied regional cord configuration. Ethernet cables and powered devices are separate.
What It Means in Practice
- Connect wired Gigabit devices with plug-and-play forwarding.
- Power compatible IEEE 802.3af/at endpoints within the shared 135 W limit.
- Toggle DIP 1 for loop prevention, DIP 2 for IEEE 802.3az EEE and DIP 3 for port LED control.
- Place on a suitable surface or wall-mount with clearance for passive cooling.
What Will Not Work
- No SFP slots, 2.5G or 10G network ports.
- The 135 W shared budget cannot supply 30 W to all sixteen ports at once.
- This Switchable model does not provide the EP model’s web-managed VLAN controls or full enterprise management.
- Indoor 0–40°C operation; no weatherproof enclosure or model-specific rack kit.
Key Features
Power across sixteen ports
All sixteen ports support IEEE 802.3at PoE+, up to 30 W each within 135 W shared.
Control without a login
Three DIP switches toggle loop prevention, EEE and port LEDs.
Quiet deployment
Fanless black chassis with an external power adapter.
Slim Gigabit capacity
32 Gbps switching capacity in a 286 × 118 × 26 mm housing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the EPS when quick physical control suits the installation. Its DIP switches offer useful loop and energy settings without web configuration. Allocate actual endpoint power within 135 W and retain airflow around both chassis and adapter; a switch on each feature does not add enterprise VLAN management.
Buyer’s Guide
✓ Buy it if You need quiet Gigabit PoE+ with simple physical controls and modest total power demand.
✕ Skip it if You need configurable VLAN through a web interface, more than 135 W shared PoE, fibre uplinks or multi-Gigabit access.
→ Also consider Actual endpoint power, DIP positions, cable losses, adapter placement and wall or desktop ventilation.
Features - Zyxel - GS1100-16EPS-EU0101F
Colour
black
Interface
- Ethernet
Standard
16-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:592791
EAN Code
4718937652662
Manufacturer
Zyxel
