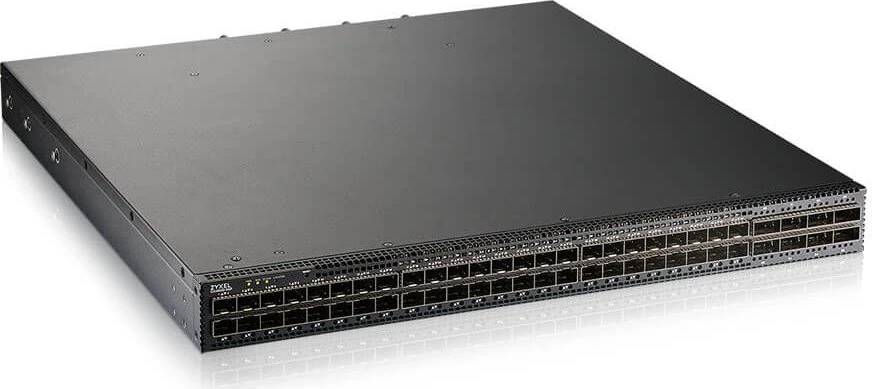

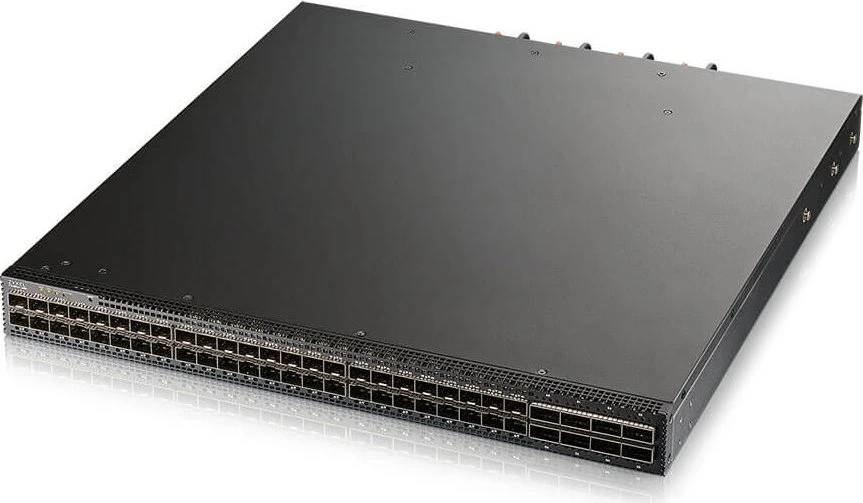

Zyxel CX4800-56F 48-Port 10G/25G SFP28 + 8-Port 100G QSFP28 Layer 3 Aggregation Fiber Switch

Brand:
Zyxel
Zyxel CX4800-56F 48-Port 10G 25G L3 Switch
Zyxel CX4800-56F 48-Port 10G/25G SFP28 + 8-Port 100G QSFP28 Layer 3 Aggregation Fiber Switch
€9346.93 inc. VAT
Buy
CX4800-56F-EU0101F
€7,854.56 €8,727.29
€9,346.93 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:527088
EAN Code
4718937637034
Manufacturer
Zyxel

Quick Specs

SFP28 Ports
48 × 10G/25G
Uplinks
8 × 100G QSFP28
Switching
4.0 Tbps · Layer 3
Management
Nebula Cloud · Dual PSU
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zyxel CX4800-56F — 48×10G/25G SFP28 + 8×100G QSFP28 L3 Aggregation Switch

48 × 10G/25G SFP288 × 100G QSFP284.0 Tbps · 2.0 BppsLayer 3 · Nebula Cloud

The Zyxel CX4800-56F is a 1U Layer 3 aggregation fiber switch with 48 × 10G/25G SFP28 ports and 8 × 100G QSFP28 uplinks, delivering 4.0 Tbps of switching and 2.0 Bpps forwarding. Designed for the aggregation and spine of data-center and campus networks, it offers dual hot-swappable power supplies, hot-swap fans and Nebula cloud management for resilient, easy-to-run high-speed connectivity. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
All ports are fiber / DAC — 48 × SFP28 (10G/25G) and 8 × QSFP28 (100G) — so transceivers and direct-attach cables are sold separately. This is a fiber aggregation switch (no PoE). It offers dual hot-swappable AC or DC power supplies (max 323 W consumption) — order both for redundancy — and can be managed locally or via Zyxel Nebula cloud.

Best For

✓ Data-center and campus aggregation
✓ 25G server/leaf access with 100G uplinks
✓ 100G spine in mid-size fabrics
✓ Cloud-managed multi-site networks (Nebula)
✓ High-throughput Layer 3 routing
✓ Consolidating 10G and 25G links

Key Features


48×25G SFP28 + 8×100G QSFP28
Forty-eight SFP28 ports run at 10G or 25G for fiber access and aggregation, while eight QSFP28 uplinks deliver 100G — 4.0 Tbps of switching and 2.0 Bpps forwarding.

Layer 3 Aggregation
Full Layer 3 with up to 12K IPv4 routes and 256 IP interfaces handles inter-VLAN routing and aggregation for demanding campus and data-center designs.

Nebula Cloud Management
Manage the switch locally or through Zyxel Nebula for centralized, multi-site cloud administration, monitoring and configuration.

Redundant, Serviceable Hardware
Dual hot-swappable AC/DC power supplies and up to four hot-swappable fans keep the 1U switch resilient, drawing a maximum of 323 W.

Technical Specifications

Identification
Brand Zyxel
Series CX4800
Model / Part Number CX4800-56F
EAN / GTIN 4718937637034
MPN CX4800-56F-EU0101F
Ports & Switching
SFP28 Ports 48 × 10G/25G SFP28
QSFP28 Ports 8 × 100G QSFP28
Switching Capacity 4.0 Tbps
Forwarding Rate 2.0 Bpps
Switching Layer Layer 3 aggregation
Routing & Hardware
Routes Up to 12K IPv4 entries; 256 IP interfaces
Power Supplies Dual hot-swappable AC/DC
Fans Up to 4 hot-swappable
Max Power 323 W
Form Factor 1U rack-mountable
Management
Management Zyxel Nebula cloud, local web GUI, CLI, SNMP
PoE No (fiber aggregation switch)
Warranty
Warranty Zyxel limited manufacturer warranty. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

What is the switching capacity of the CX4800-56F?
4.0 Tbps with 2.0 Bpps forwarding, from 48 × 10G/25G SFP28 ports and 8 × 100G QSFP28 uplinks — suitable for aggregation and 100G spine roles.
Does it have PoE?
No. The CX4800-56F is a fiber aggregation switch; all ports are SFP28/QSFP28 optical. The 323 W figure is maximum power consumption, not a PoE budget.
Are transceivers included?
No. The SFP28 and QSFP28 optics and direct-attach cables are sold separately so you can match reach, media and speed to your links.
Can it be managed in the cloud?
Yes. It supports Zyxel Nebula cloud management for centralized, multi-site administration, alongside local web GUI, CLI and SNMP.
Singular Expert Insight
The CX4800-56F is a value-oriented 25G/100G aggregation switch with cloud management — a strong alternative when you want 4.0 Tbps of Layer 3 aggregation with dual power redundancy and Nebula. Pair it with 25G-capable access switches below and 100G spines above. Explore more in our managed switches category and complete the network with enterprise routers.

Buyer’s Guide

Buy it if
You need a 25G/100G Layer 3 fiber aggregation switch with 4.0 Tbps, dual redundant power and Nebula cloud management for a data-center or campus core.
Skip it if
You need copper access or PoE to power devices — this is a fiber-only aggregation switch with no PoE.
Also consider
A 25G-capable access switch to sit below it, or a dedicated 100G spine for larger fabrics.

Features - Zyxel - CX4800-56F-EU0101F

Port Speed
  • 10 Gbps,
  • 25 Gbps,
  • 40 Gbps,
  • 100 Gbps
More Details
Product Code
04:527088
EAN Code
4718937637034
Manufacturer
Zyxel
