Compact Gigabit access with useful local web controls
16 × Gigabit RJ45Unmanaged Plus web UIInternal AC powerFanless, rack/wall kits

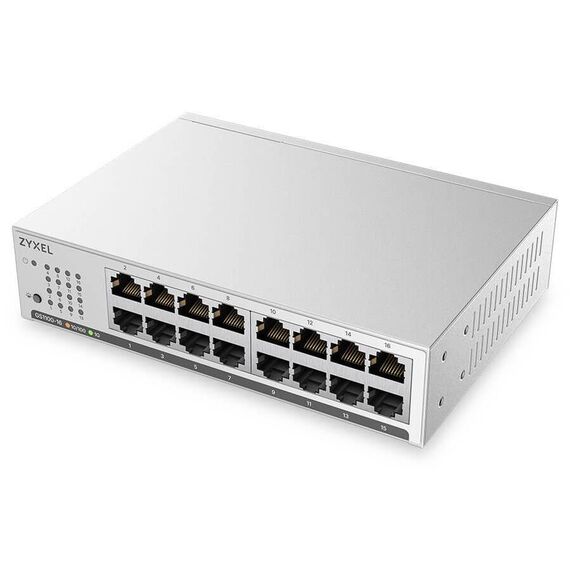

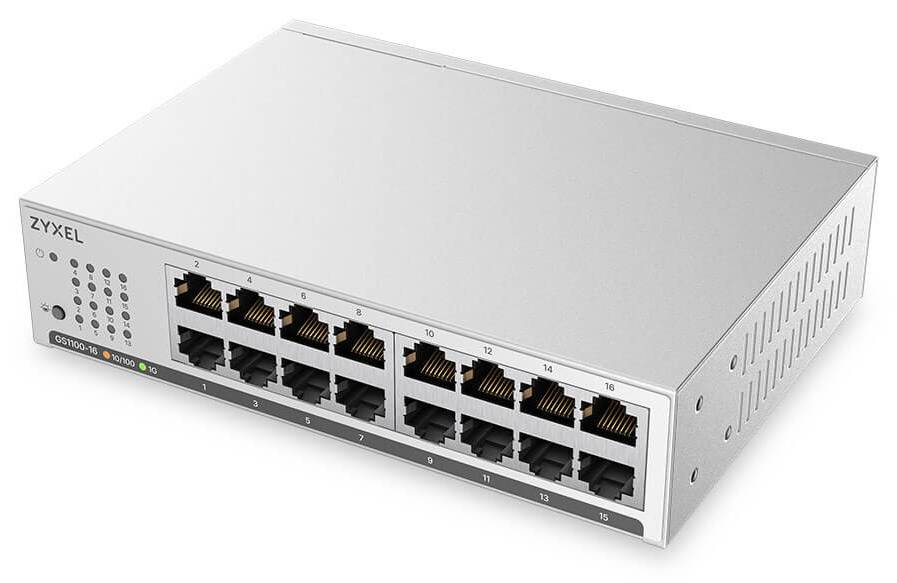

The current Zyxel GS1100-16 Unmanaged Plus provides sixteen Gigabit data ports in a compact fanless chassis. The exact GS1100-16-EU0104F ordering code combines plug-and-play forwarding with a basic web interface for selected VLAN, loop and port controls. An internal AC supply and included rack and wall kits support several placement options.
Best For: Quiet office or shop networks needing sixteen data ports, basic local separation controls and flexible mounting.

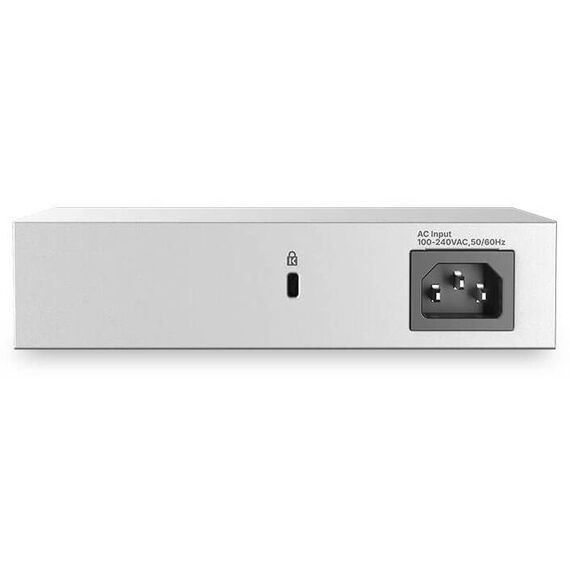

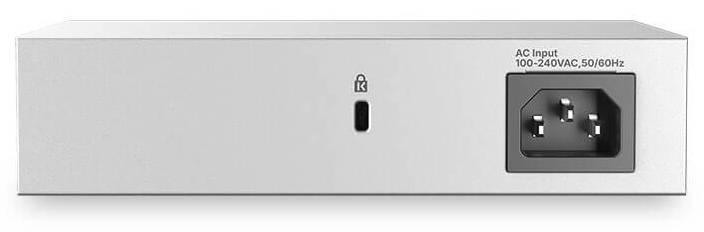

Before you order: This exact EU0104F model is non-PoE. Cameras and APs needing Ethernet power require a separate suitable injector or a PoE switch. Use its internal 100–240 V AC input with the supplied power cord and maintain ventilation. Do not apply specifications from older GS1100-16 revisions or similarly named DIP-switch models.
What's in the Box
- Zyxel GS1100-16-EU0104F switch.
- Power cord, wall-mount kit and rack mounting kit.
- Ethernet cables, endpoints and any separate PoE injectors are not included.
What It Means in Practice
- Connect sixteen Gigabit data devices with plug-and-play forwarding.
- Use the local web interface for supported 802.1Q VLAN, loop prevention, port isolation and EEE settings.
- Back up configuration and maintain firmware through the supported interface.
- Choose desktop, wall or rack placement with appropriate clearance for passive cooling.
What Will Not Work
- No PoE output, SFP slots, 2.5G or 10G ports.
- Basic Unmanaged Plus controls are not a full enterprise SNMP or Layer 3 routing feature set.
- The web VLAN capability supports up to five static entries, not an unlimited VLAN design.
- Indoor 0–40°C operation; the metal chassis is not weatherproof.
Key Features
Sixteen wired devices
Gigabit access with 32 Gbps switching capacity and 23.8 Mpps forwarding.
Basic local control
Web VLAN, loop prevention, isolation and energy settings when required.
Flexible mounting
Rack and wall kits included alongside desktop placement support.
Quiet internal AC design
Fanless silver housing with 100–240 V AC supply and up to 8.43 W consumption.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The ordering code matters because GS1100-16 has existed in different generations. EU0104F provides the current Unmanaged Plus web controls and compact internal-AC chassis. Use its limited VLAN capability for a simple design, and select a more capable managed switch if the network needs advanced routing or many VLANs.
Buyer’s Guide
✓ Buy it if You need quiet Gigabit data switching with basic web controls and included mounting options.
✕ Skip it if You need PoE, multi-Gigabit/fibre uplinks, many VLANs or advanced enterprise management.
→ Also consider Exact EU0104F identity, VLAN count, endpoint power, mounting hardware and passive-cooling clearance.
Features - Zyxel - GS1100-16-EU0104F
Colour
silver
Interface
- Ethernet
Standard
16-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:592789
EAN Code
4718937653232
Manufacturer
Zyxel
