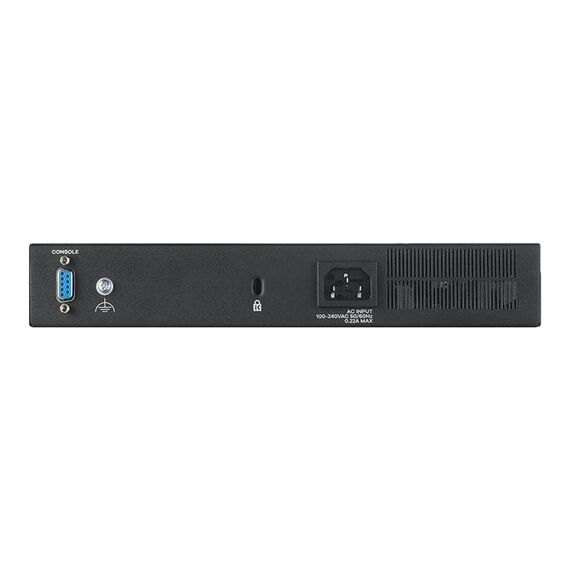

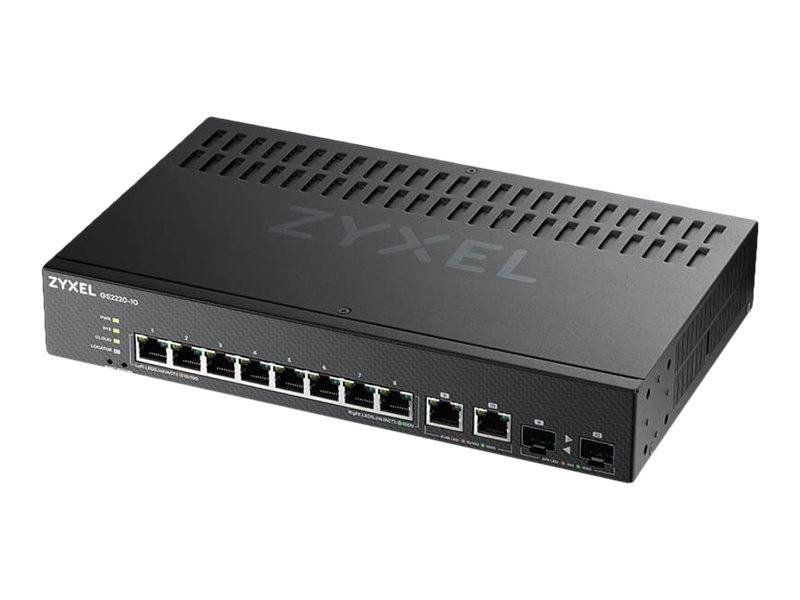

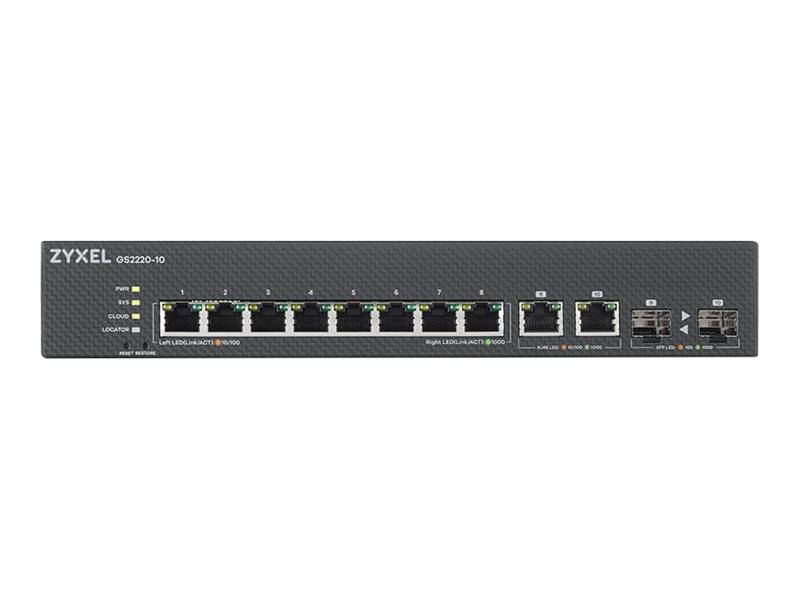

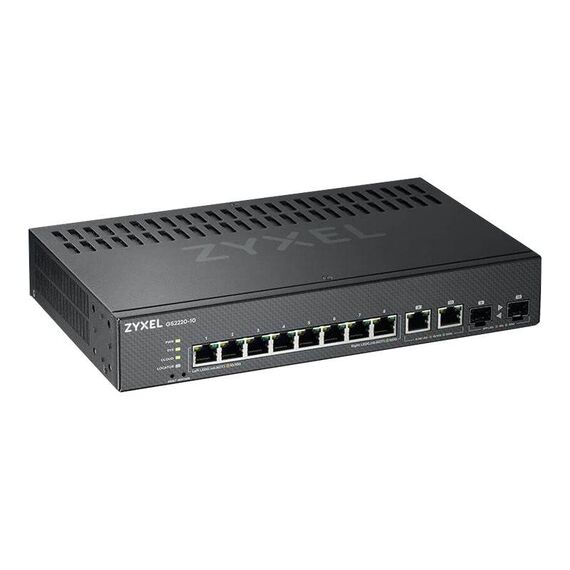

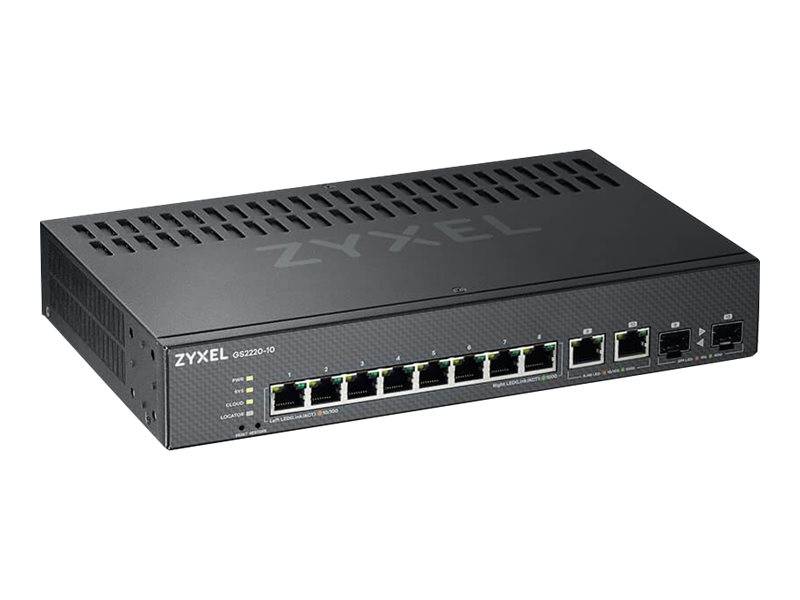

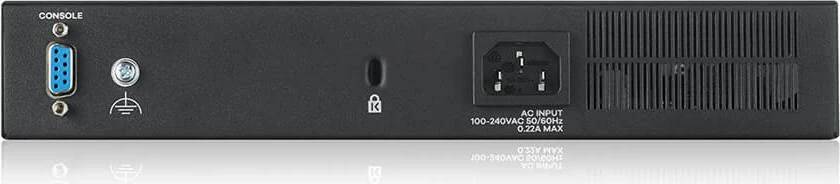

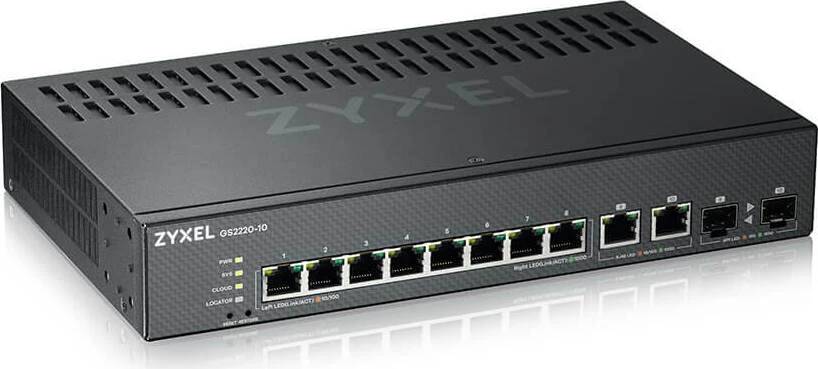

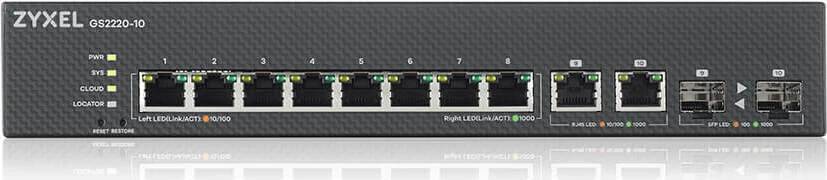

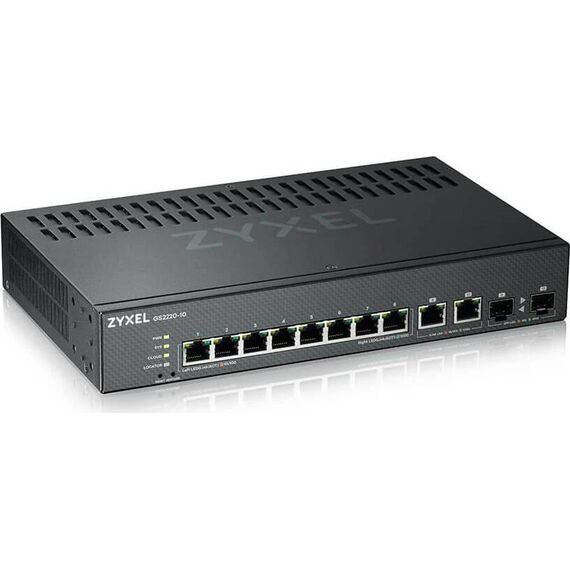

Zyxel GS2220-10 / Switch / Managed / 8 x 10/100/1000 + 2 x combo Gigabit SFP / rack-mountable, wall-mountable | GS2220-10-EU0101F
Please sign in so that we can notify you about a reply
Product Features
- Powerful L2 features
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today. - Power your devices with efficiency and energy-saving
The intelligent consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI. - Experience whisper-silent operations
The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Special Features
- Powerful L2 features
- Power your devices with efficiency and energy-saving
- Experience whisper-silent operations
Product Specification
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | Rack-mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x combo Gigabit SFP |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding rate: 15 Mpps ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), port isolation, Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), cloud managed, DiffServ Code Point (DSCP) support, ErrDisable Recovery, IP source guard, ARP inspection, dual image support, Root Guard, Loop Guard, LLDP-MED, Energy-Efficient Ethernet (EEE), VLAN Tagging, MRSTP |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 10 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| Rack Mounting Kit | Included |
| MTBF | 1,213,492 hours |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 26.7 cm |
| Depth | 16.2 cm |
| Height | 4.4 cm |
| Weight | 1.73 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 37.5 cm |
| Shipping Depth | 23.5 cm |
| Shipping Height | 6.1 cm |
| Shipping Weight | 2.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% |
Features - Zyxel - GS2220-10-EU0101F
General
8-Port
More Details
Product Code
04:339667
EAN Code
4718937607365
Manufacturer
Zyxel
