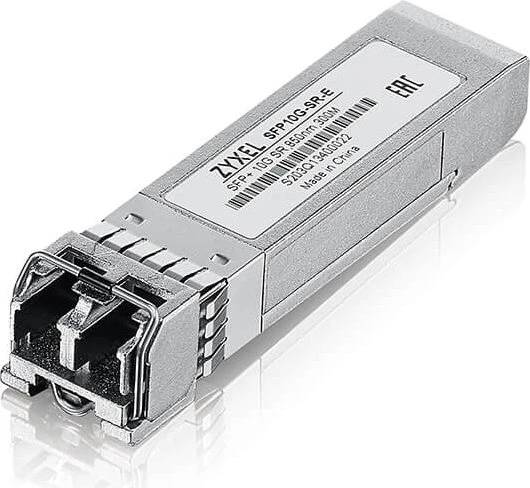

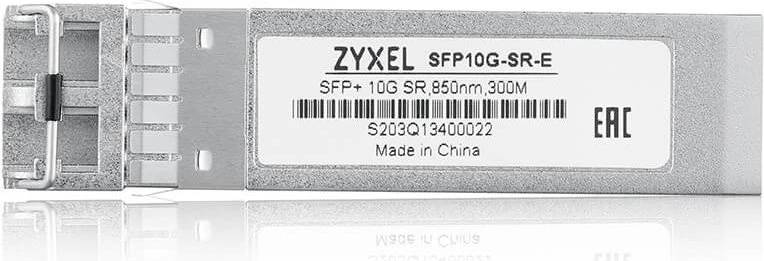

Zyxel SFP10G-SR-E / SFP+ transceiver module / 10 GigE / 10GBase-SR / LC multi-mode / up to 300 m / 850 nm (pack of 10) | SFP10G-SR-E-ZZBD01F
Please sign in so that we can notify you about a reply
Product Features
- Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device. - Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Special Features
- Hot-pluggable with maximum flexibility
- Supports digital diagnostics monitoring interface (DDMI)
Product Specification
| Packaged Quantity | 10 (specifications are for single item) |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 300 m |
| Features | Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10GBase-SR - LC multi-mode |
| Miscellaneous | Miscellaneous |
| MTBF | 798,275 hours |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.48 cm |
| Depth | 5.65 cm |
| Height | 1.185 cm |
| Weight | 20 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
Features - Zyxel - SFP10G-SR-E-ZZBD01F
More Details
Product Code
04:374763
EAN Code
4718937619238
Manufacturer
Zyxel
