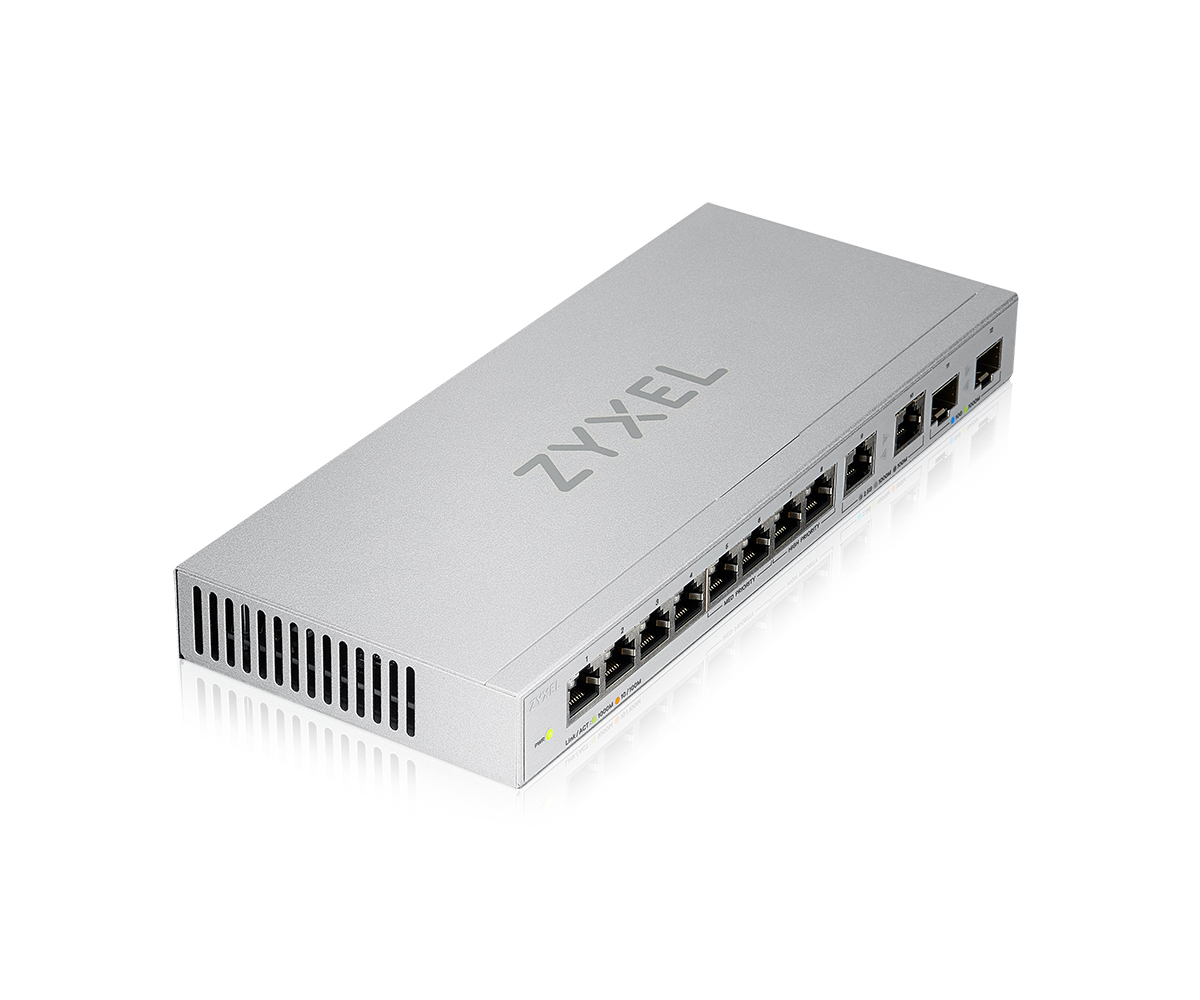

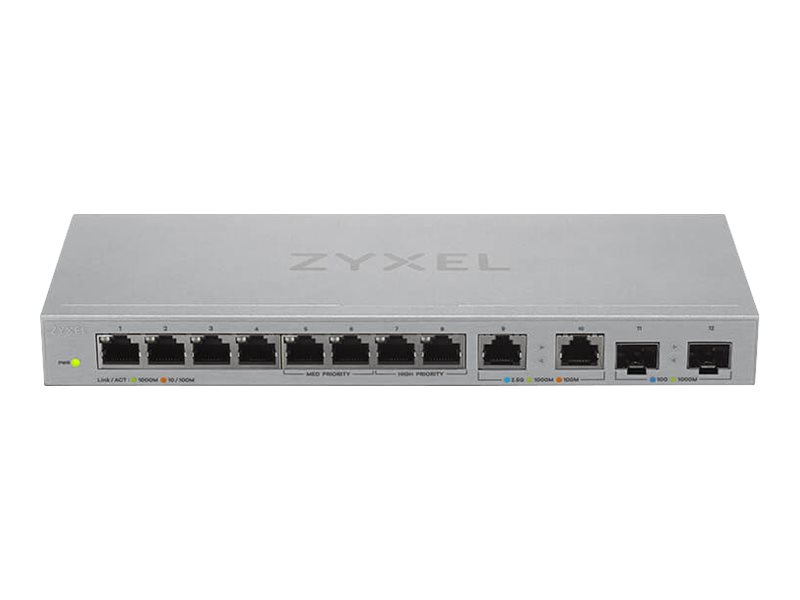

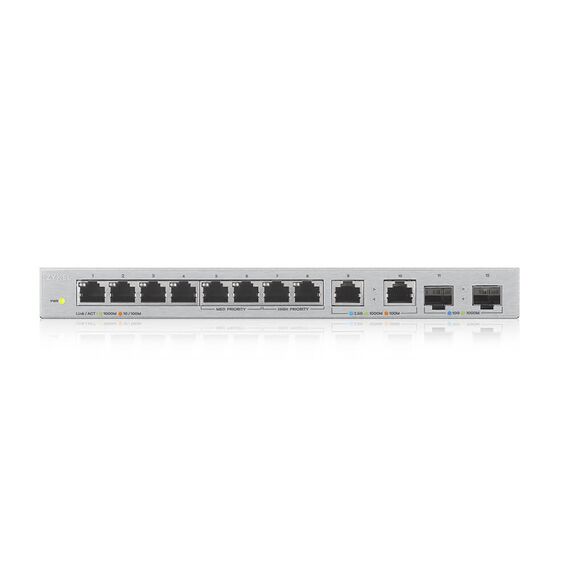

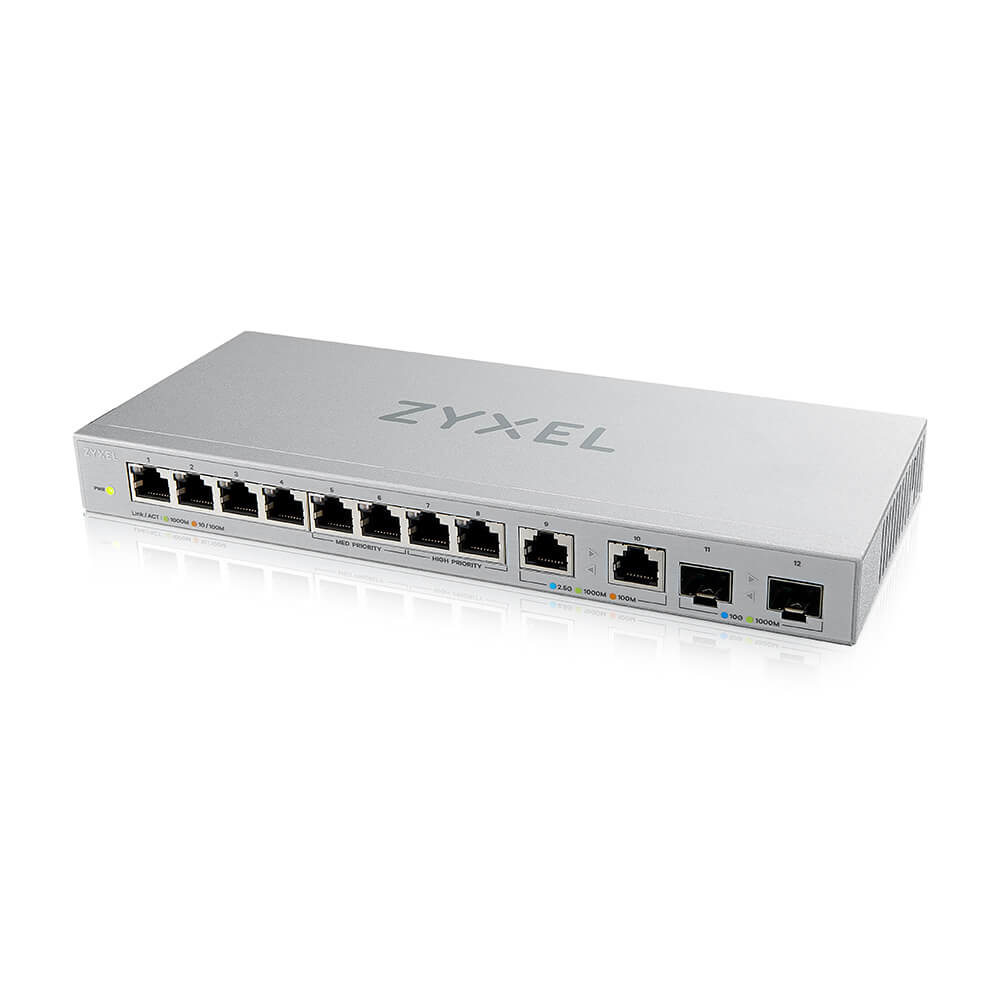

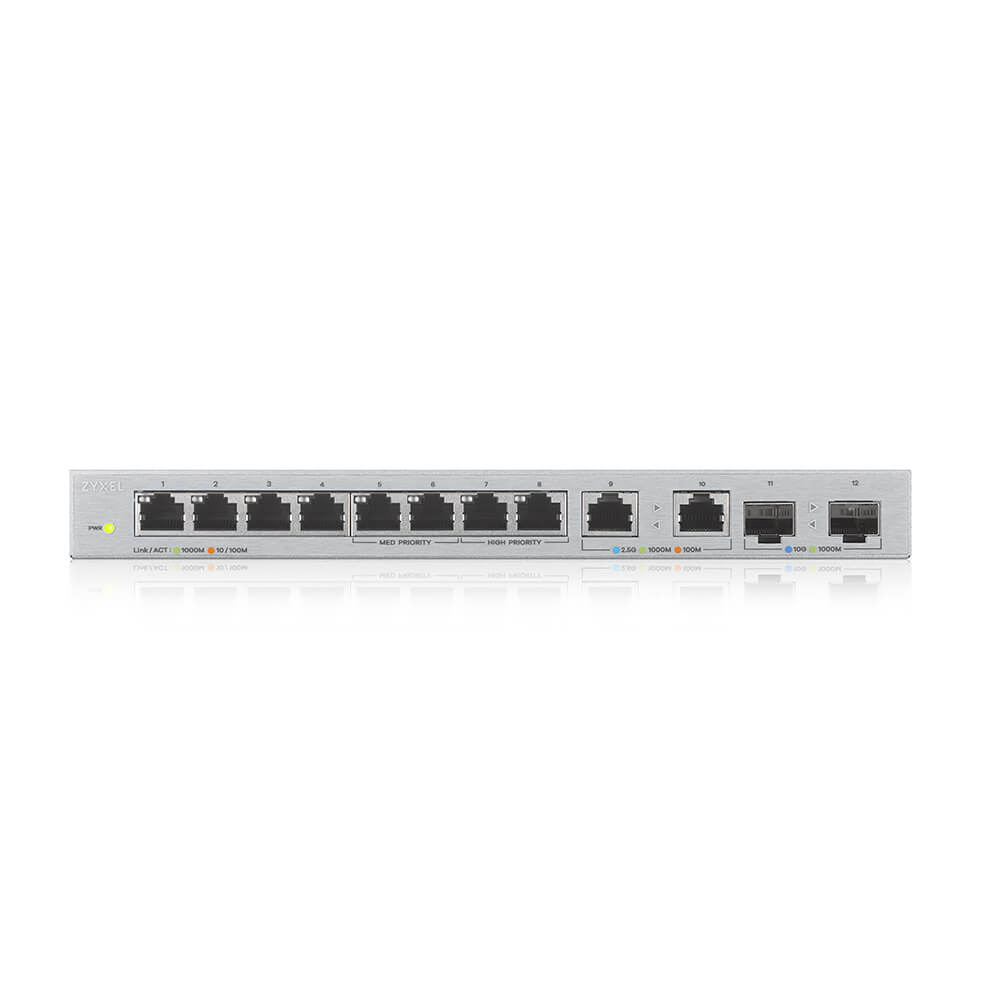

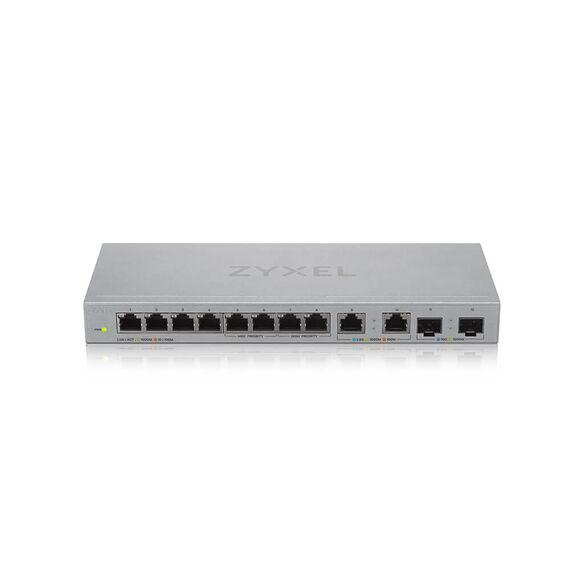

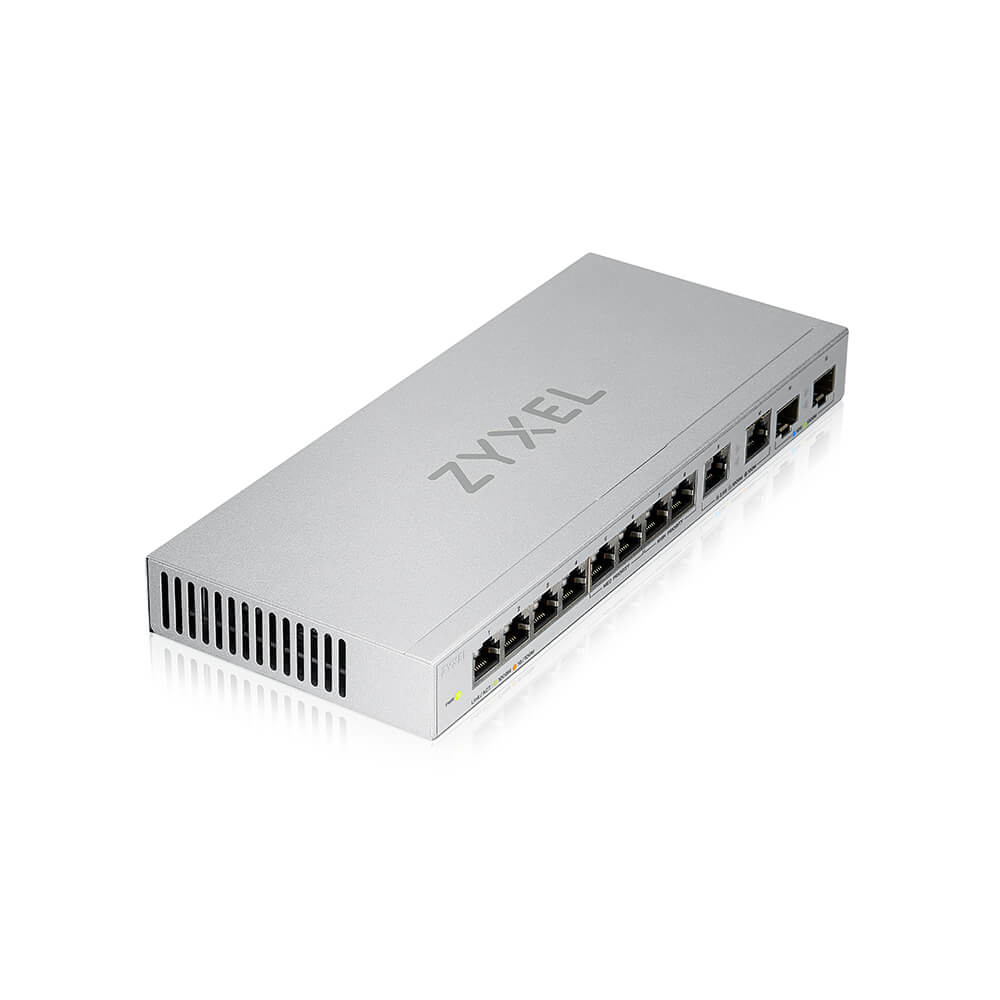

Zyxel XGS1010-12 - V2 - switch - Managed - 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - desktop, wall-mountable | XGS1010-12-ZZ0102F

Product Features
- 10G acceleration for all
The XGS1010-12 provides two SFP+ ports compatible with 10GbE which offers higher transmission speeds and allows customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price. - Multi-gigabit speed support

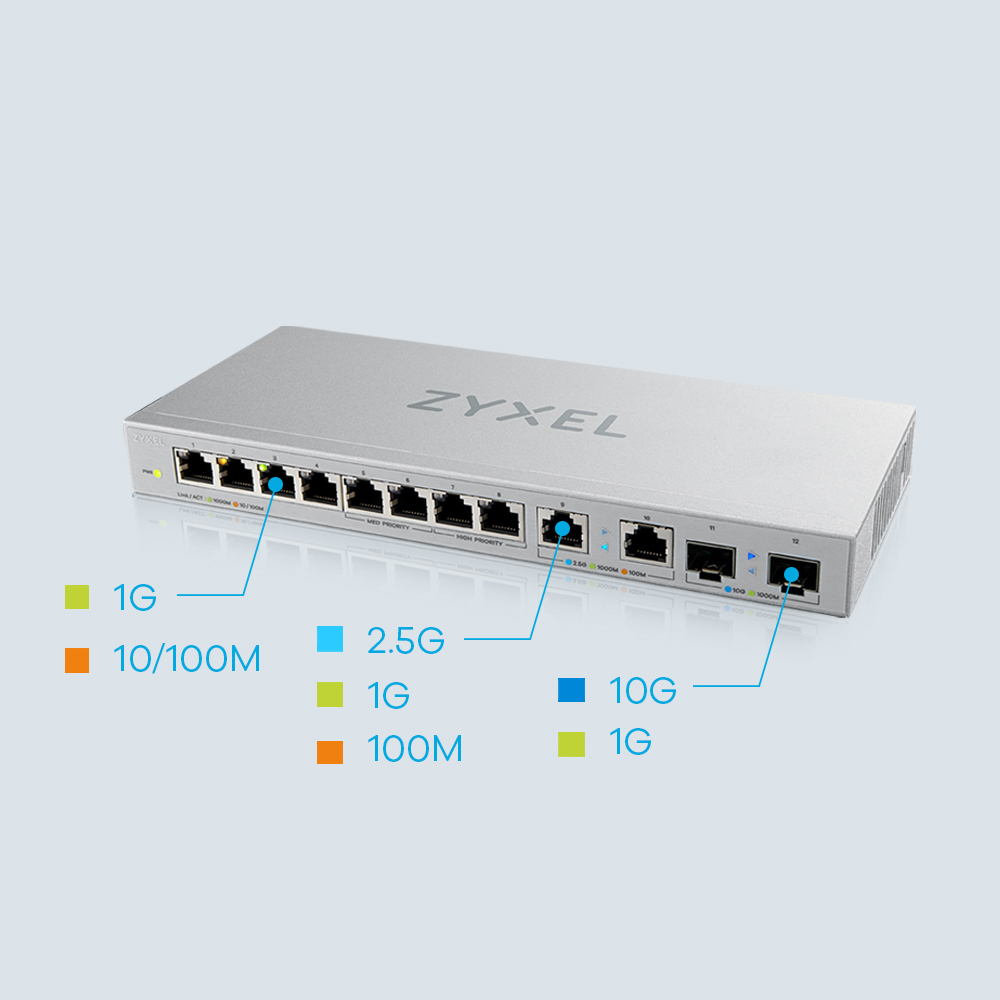

Support data transmission speed among 10G, 2.5G, 1G, or 100M capable of servicing a range of network devices such as gaming consoles, laptops, desktops, workstations, servers, network attached storage (NAS) devices, or wireless access points. The XGS1010-12 also features a handy LED indicator that shows the link rate with different colors. - Easy to use, no setup required
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration. - QoS for better traffic control
The Zyxel XGS1010-12 comes with two high-priority and two medium priority ports, which provides enhanced download quality, all while giving you a better sur?ng, gaming, and streaming experience on other devices. - Fanless, noiseless design
Extend your network without disrupting your quiet business environment. XGS1010-12 features a fanless design that ensures silent operation and greater reliability over time with no additional moving parts. - Energy-savings at work
Built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods. - Maximum flexibility for your gig
Attempting to meet today's demand for more bandwidth, increasing expenditures, difficult deployments, and other complex issues, the XGS1010-12 has been designed to overcome these challenges. XGS1010-12 offers additional flexibility for complex deployments and enables a hybrid high-speed network for homes and/or offices.
Special Fetures
- 10G acceleration for all
- Multi-gigabit speed support
- Easy to use, no setup required
- QoS for better traffic control
- Fanless, noiseless design
- Energy-savings at work
- Maximum flexibility for your gig
Product Specification
Device Type | Switch - 12 ports - Managed |

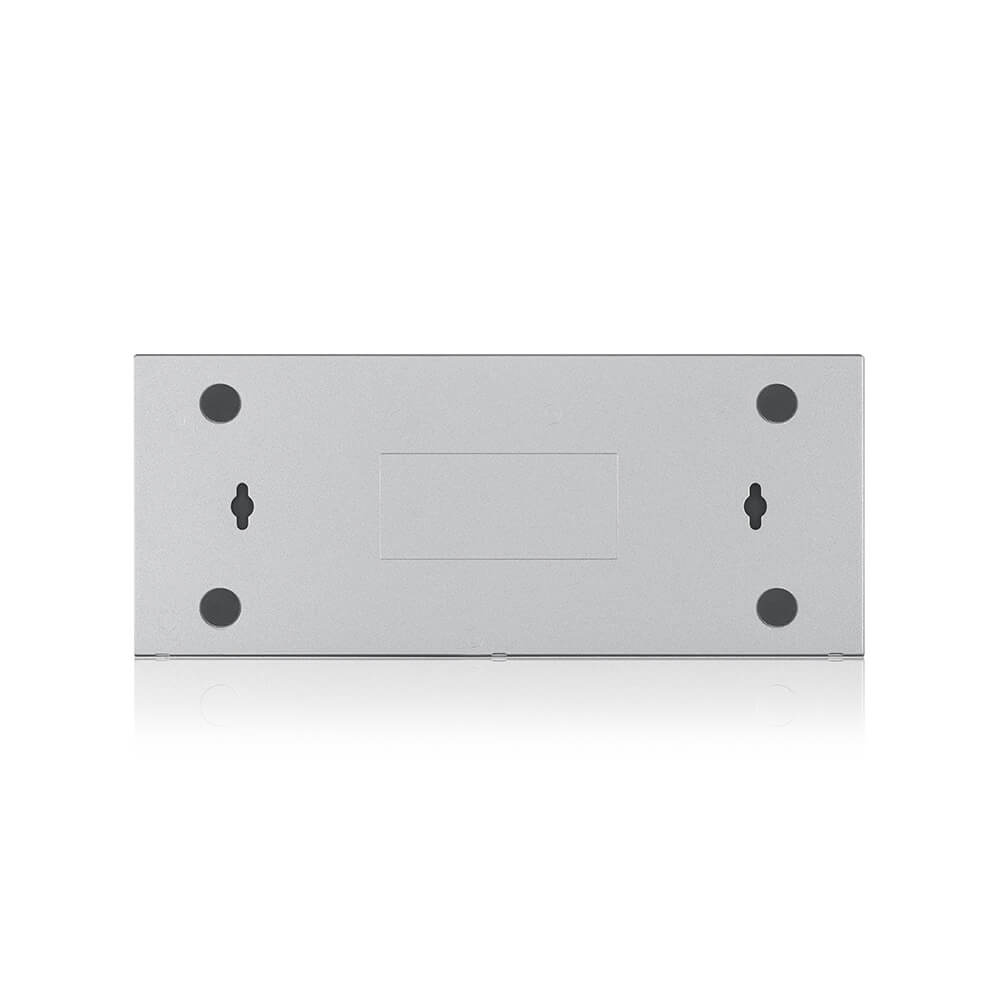

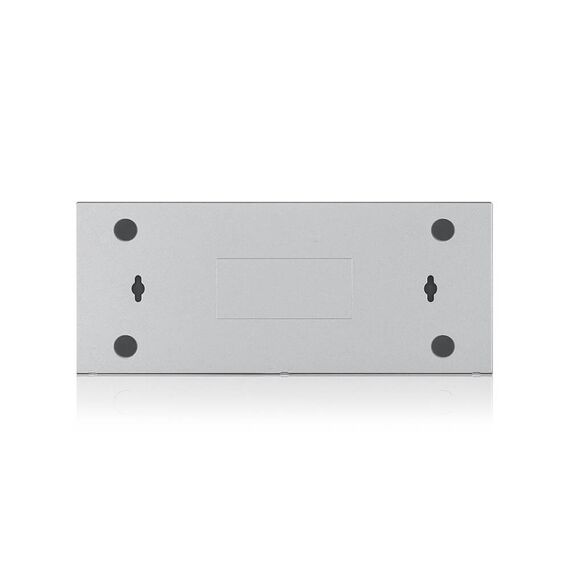

Enclosure Type | Desktop, wall-mountable |
Subtype | 2.5 Gigabit Ethernet |
Ports | 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
Performance | Switching capacity: 66 Gbps ¦ Forwarding performance: 49 Mbps |
Capacity | Multicast groups: 128 ¦ Packet buffer size: 1.5 MB |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 12000 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Features | Flow control, full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, QoS, reset button, fanless, DHCP client, loop prevention, Link Aggregation, Static Link Aggregation, WRR, loop detection, web GUI management portal, password authentication, LED status indicators |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 802.3bz |
Status Indicators | Power, link/activity |
Expansion / Connectivity | |
Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 100/1000/2.5G RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ uplink |
Power | |
Power Device | External power adapter |
Installed Qty | 1 |

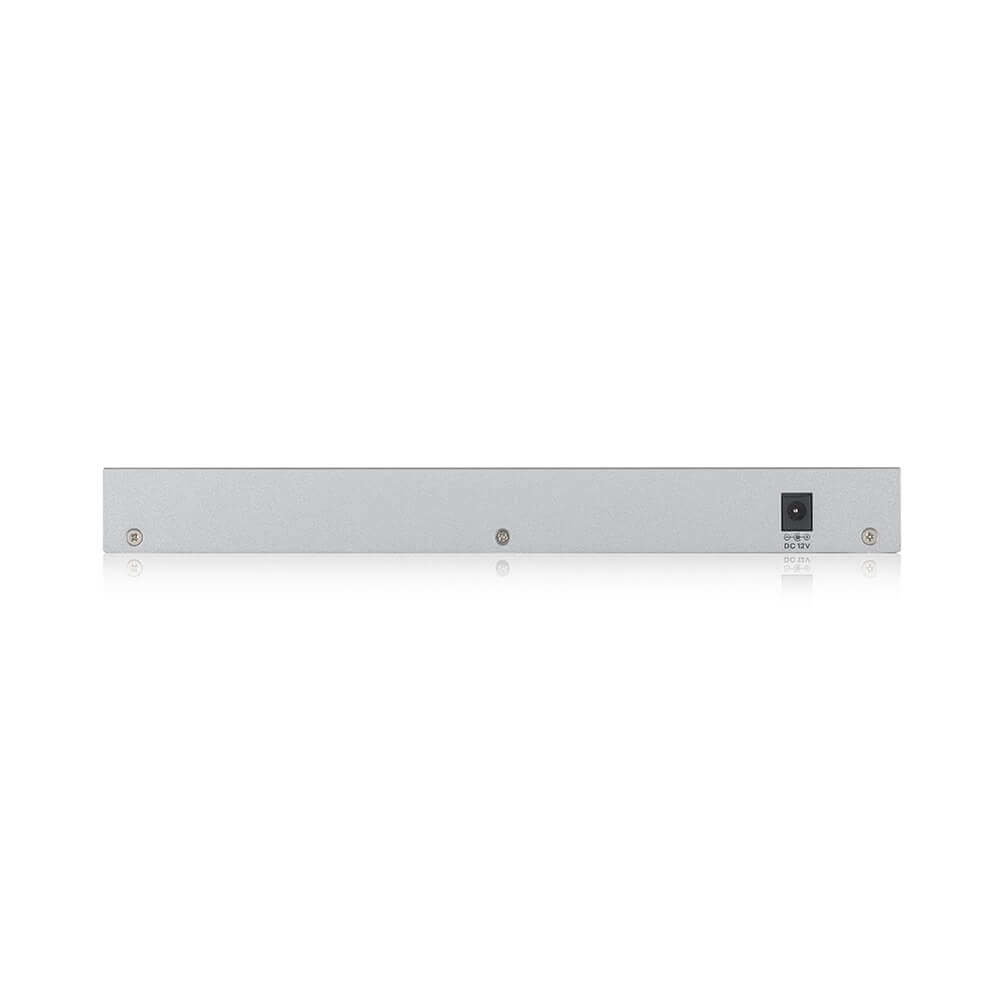

Power Provided | DC 12 V |
Voltage Required | AC 100 -240 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards | FCC, RoHS, BSMI Class B, LVD, EAC, SFF-8431 |
Dimensions & Weight | |
Width | 25 cm |
Depth | 10.4 cm |
Height | 2.7 cm |
Weight | 768 g |
Dimensions & Weight (Shipping) | |
Shipping Width | 30.6 cm |
Shipping Depth | 22.5 cm |
Shipping Height | 6.4 cm |
Shipping Weight | 1.127 kg |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 10 - 90% (non-condensing) |
