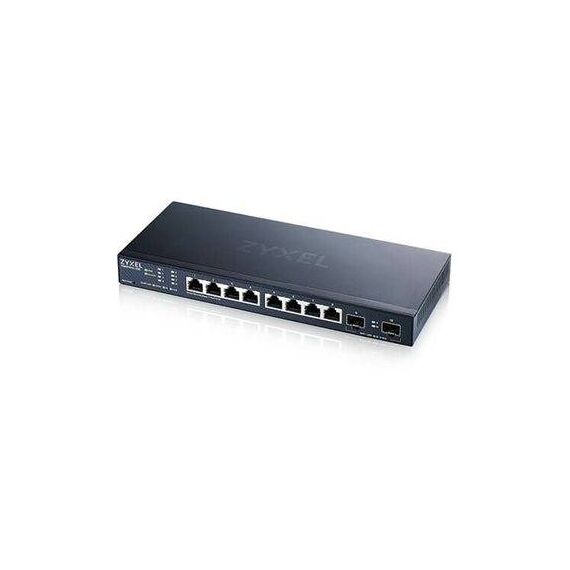

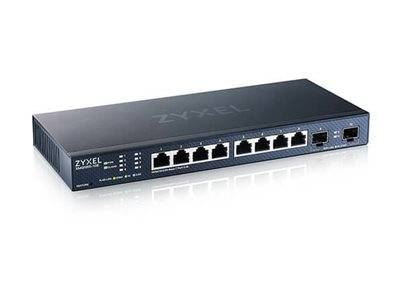

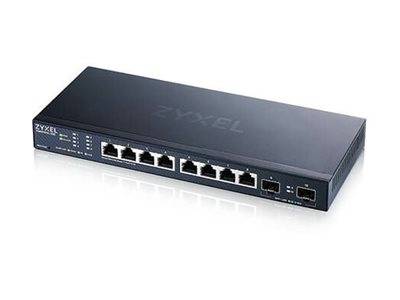

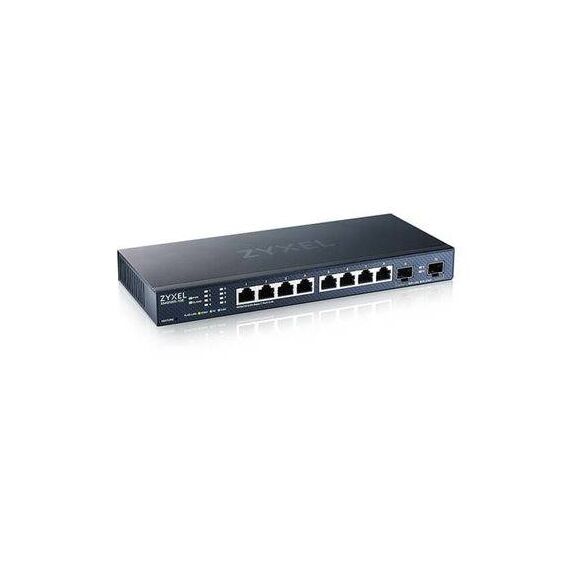

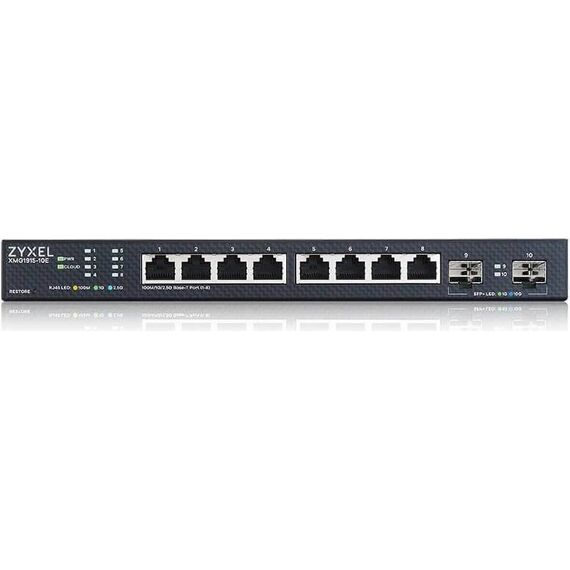

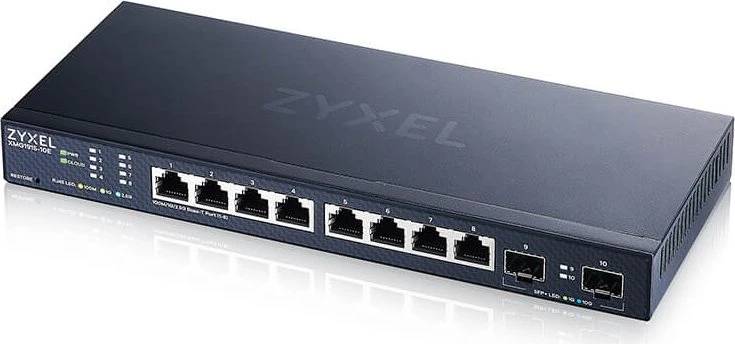

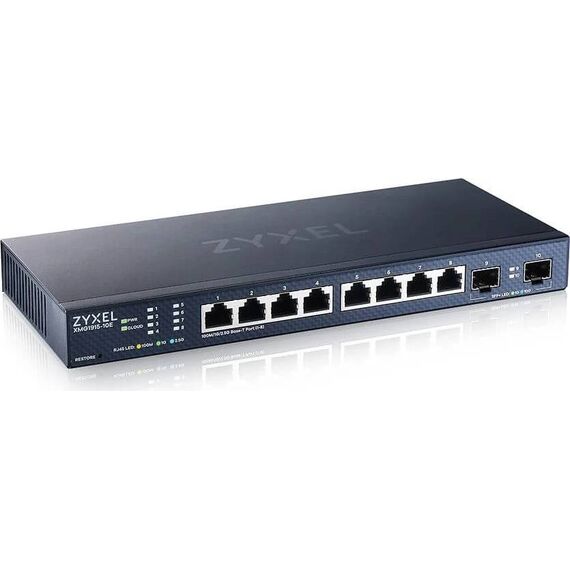

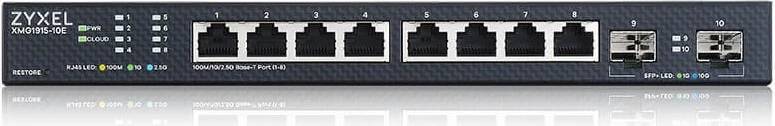

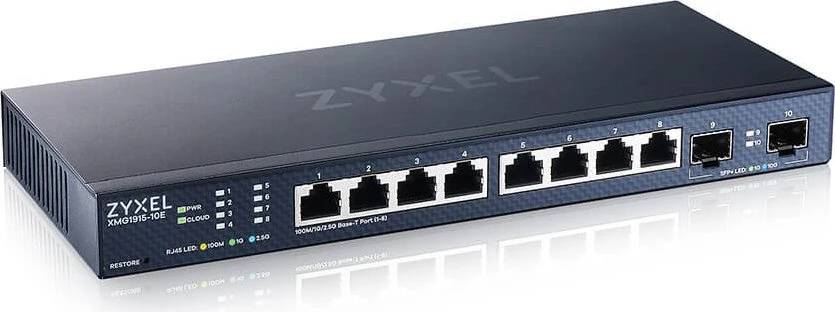

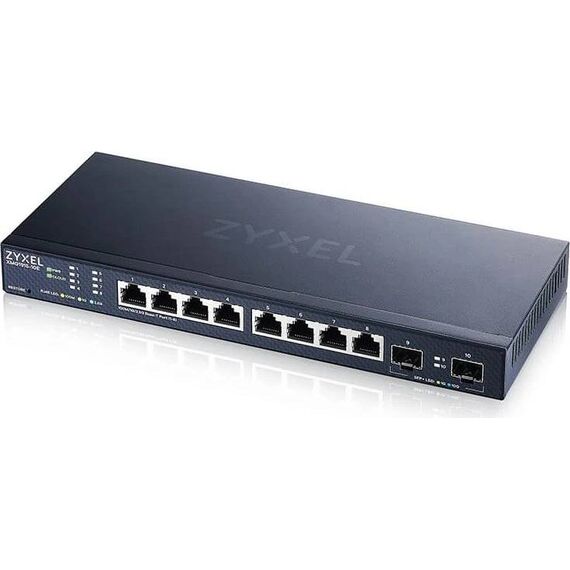

Zyxel XMG1915 Series XMG1915-10E / Switch / managed, NebulaFLEX cloud / L3 Lite / smart / 8 x 100/1000/2.5G + 2 x Gigabit SFP / 10 Gigabit SFP+ / rack-mountable | XMG1915-10E-EU0101F
Please sign in so that we can notify you about a reply
Special Features
- Stable hardware
- Fanless
- Fast
Product Specification
| Device Type | Switch - 10 ports - L3 Lite - smart |
| Enclosure Type | Rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G + 2 x Gigabit SFP / 10 Gigabit SFP+ |
| Performance | Switching capacity: 80 Gbps ¦ Forwarding rate: 59.5 Mpps |
| Capacity | IPv4 forwarding table entries: 128 ¦ IPv6 forwarding table entries: 128 ¦ Routing tables: 8 ¦ IP interfaces: 8 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12000 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTPS, SSH-2, Syslog |
| Encryption Algorithm | SSL, SHA-2 |
| Authentication Method | RADIUS |
| Features | VLAN support, IGMP snooping, IPv6 support, firmware upgradable, Weighted Fair Queuing (WFQ), DHCP snooping, Quality of Service (QoS), IPv4 support, fanless, Link Aggregation Control Protocol (LACP), Port Security, NTP server, DHCP client, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), DiffServ Code Point (DSCP) support, 2KV ESD Protector, ZyXEL One Network (ZON), Storm Control, CPU protection, MAC address authentication, Voice VLAN, Weighted Round Robin (WRR), port-based VLAN, 1KV surge protection, MAC freeze, Duplicate Address Detection (DAD), ESD Protector, DHCPv6 relay, MIB support, web GUI management portal |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1/10Gbit LAN SFP+ ¦ 8 x 2.5GBase-T RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Power adapter |
| Rack Mounting Kit | Included |
| MTBF | 646,958 hours |
| Compliant Standards | BSMI, EMC, RoHS, FCC Part 15 A, LVD |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 25 cm |
| Depth | 10.4 cm |
| Height | 2.7 cm |
| Weight | 760 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 30.6 cm |
| Shipping Depth | 22.5 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 1.3 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Zyxel - XMG1915-10E-EU0101F
General
8-Port
More Details
Product Code
04:456018
EAN Code
4718937631414
Manufacturer
Zyxel
