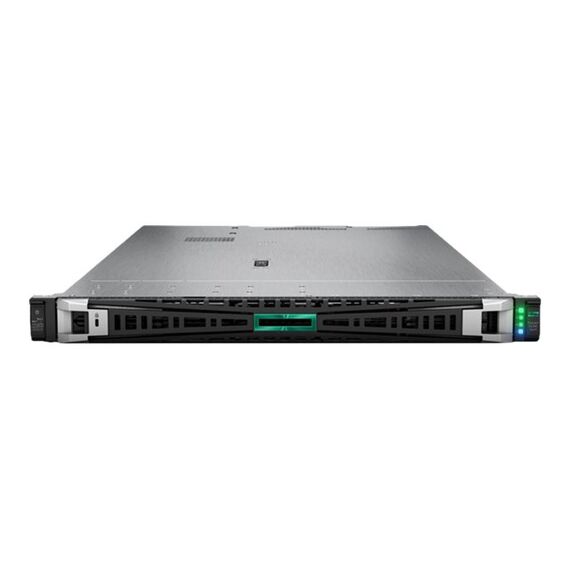

HPE ProLiant DL360 Gen11 / Server / rack-mountable / 1U / 2-way / 1 x Xeon Silver 4514Y / up to 3.4 GHz / RAM 64 GB / SATA/SAS/PCI Express / hot-swap 2.5" bay(s) / SSD 2 x 480 GB / 10 Gigabit Ethernet / no OS | P77237-425
HPE ProLiant DL360 Gen11 / Server / rack-mountable / 1U / 2-way / 1 x Xeon Silver 4514Y / up to 3.4 GHz / RAM 64 GB / SATA/SAS/PCI Express / hot-swap 2.5" bay(s) / SSD 2 x 480 GB / 10 Gigabit Ethernet / no OS | P77237-425
€7030.9 inc. VAT
P77237-425
CPU TypeIntel Xeon
Memory Size64GB
Product Code04:503951
EAN Code0190017767710
ManufacturerHewlett Packard
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: Europe |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Xeon Silver 4514Y |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel C741 |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 30 MB |
| Cache Per Processor | 30 MB |
| RAM | RAM |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 30 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
| Hard Drive | Hard Drive |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Interface Type | SATA |
| Storage Controller | Storage Controller |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | Networking |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x external Universal Media Bay 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x HPE iLO - Type A (1 in front) 1 x HPE iLO - RJ-45 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) 1 x VGA 2 x LAN (10Gigabit Ethernet) 1 x USB 2.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | 5 x standard fans |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4 |
| Power | Power |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| OS Certified | VMware vSphere 8.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Ubuntu 22.04 |
| Software | HPE Server UEFI |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.46 cm |
| Depth | 75.31 cm |
| Height | 4.29 cm |
| Weight | 14.56 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
