LANCOM 1930EF SD-WAN Gateway · 6× GbE incl. SFP/TP Combo · up to 3 WAN · 25 VPN · VoIP · Fanless 19" 1U
Brand:
Lancom Systems
LANCOM 1930EF SD-WAN Gateway · 6× GbE incl. SFP/TP Combo · up to 3 WAN · 25 VPN · VoIP · Fanless 19" 1U
€1654.43 inc. VAT
62146
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LANCOM 1930EF — Multi-WAN SD-WAN Gateway
Up to 3 WAN6× GbE · SFP/TP combo25 VPN tunnelsFanless 19" 1U
The LANCOM 1930EF is a fanless 19-inch 1U SD-WAN gateway with six Gigabit Ethernet ports (one an SFP/TP combo), up to three WAN connections and 25 IPsec/WireGuard VPN tunnels out of the box, built for branch offices and SMEs that connect fibre, cable or DSL modems and want load balancing, failover and secure site-to-site VPN.
It also includes a Voice Call Manager and session border controller for SIP telephony, a stateful firewall with IPS, and zero-touch SD-WAN management via the LANCOM Management Cloud (licence sold separately). Made in Germany; LANCOM is now part of Rohde & Schwarz Networks and Cybersecurity.
Before you order: There is no built-in DSL modem and no Wi-Fi or mobile modem. For a fibre line you need an SFP module that matches your operator (GPON/AON etc., not included) or the operator’s ONT on an Ethernet WAN port. LANCOM supports only its own SFP modules.
What's in the Box
- 1× LANCOM 1930EF (EU)
- IEC power cord (internal power supply)
- 3 m Ethernet cable
- 2× 19" rack mounting brackets
- Manual and quick installation guide
What It Means in Practice

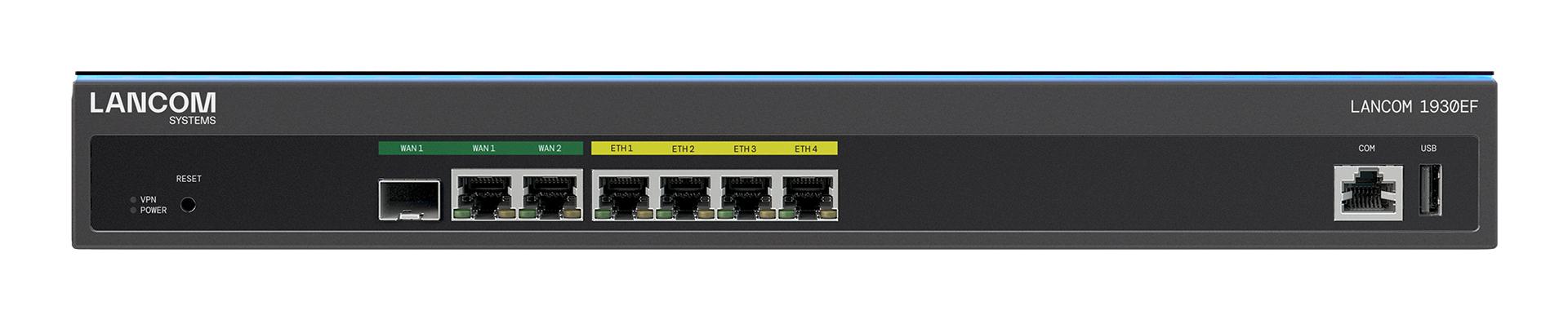

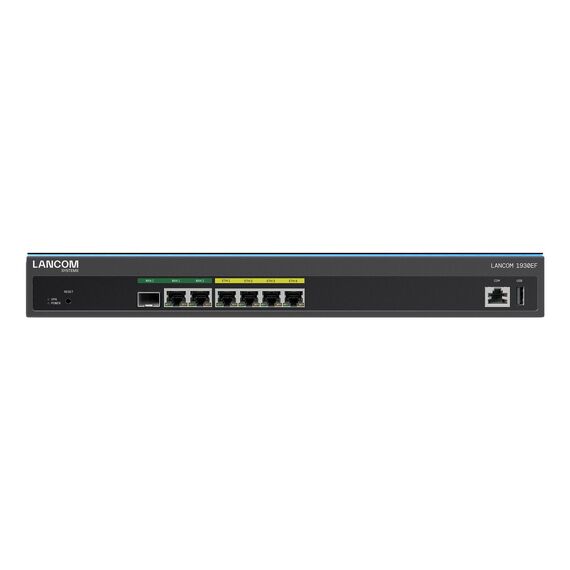

- Default port layout: WAN1 = SFP/TP combo, WAN2 = Gigabit Ethernet for an external modem, ETH1–4 = LAN; up to 3 ports can be WAN and every port is configurable.
- Fanless and low-power (max 18 W) — silent in an office rack.
- 25 VPN tunnels are included; options raise this to 50 or 100.
- SD-WAN, Auto-VPN and application routing require a LANCOM Management Cloud licence.
What Will Not Work
- Wi-Fi clients — there is no wireless access point built in.
- A DSL line directly (no internal DSL modem — use an external modem).
- Mobile (4G/5G) backup — choose the 1930EF-5G for that.
- Third-party SFP modules (only LANCOM SFPs are supported); no SFP module is included.
- ISDN or analogue telephone lines/phones.
Key Features
Multi-WAN SD-WAN
Load balancing and failover over up to 4 WANs, zero-touch rollout via the Management Cloud.
Secure VPN
25 IPsec/WireGuard tunnels included, IPsec over HTTPS and post-quantum pre-shared keys for IKEv2.
Integrated telephony
Voice Call Manager + SBC: 10 local users, up to 25 SIP accounts, 4 SIP PBXs.
Fanless design
Silent metal 1U housing, max 18 W.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The 1930EF family is the right step up when a branch needs proper multi-WAN, site-to-site VPN and SIP telephony in one rack unit. Plan the WAN side first: SFP type for fibre, external modem for DSL. See our firewalls if you need deeper UTM security.
✓ Buy it if you need a rack-mount business router with multiple WANs, VPN and SIP telephony.
✕ Skip it if you need built-in Wi-Fi or a built-in DSL modem.
→ Also consider the LANCOM 1930EF-5G for integrated mobile backup.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Lancom Systems - 62146
More Details
Product Code
04:481348
EAN Code
4044144621468
Manufacturer
Lancom Systems
