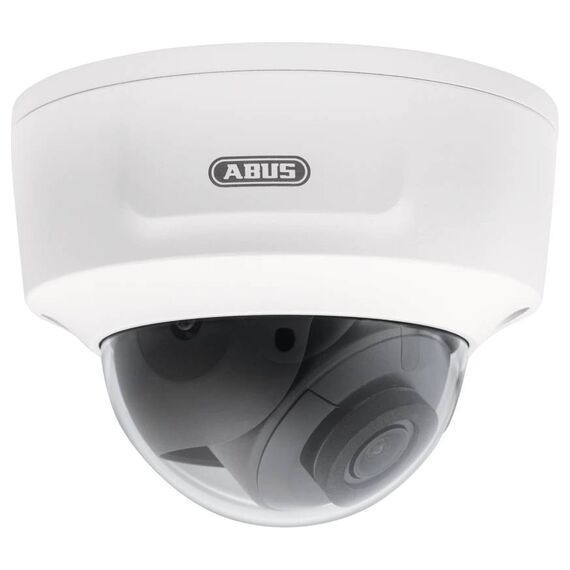

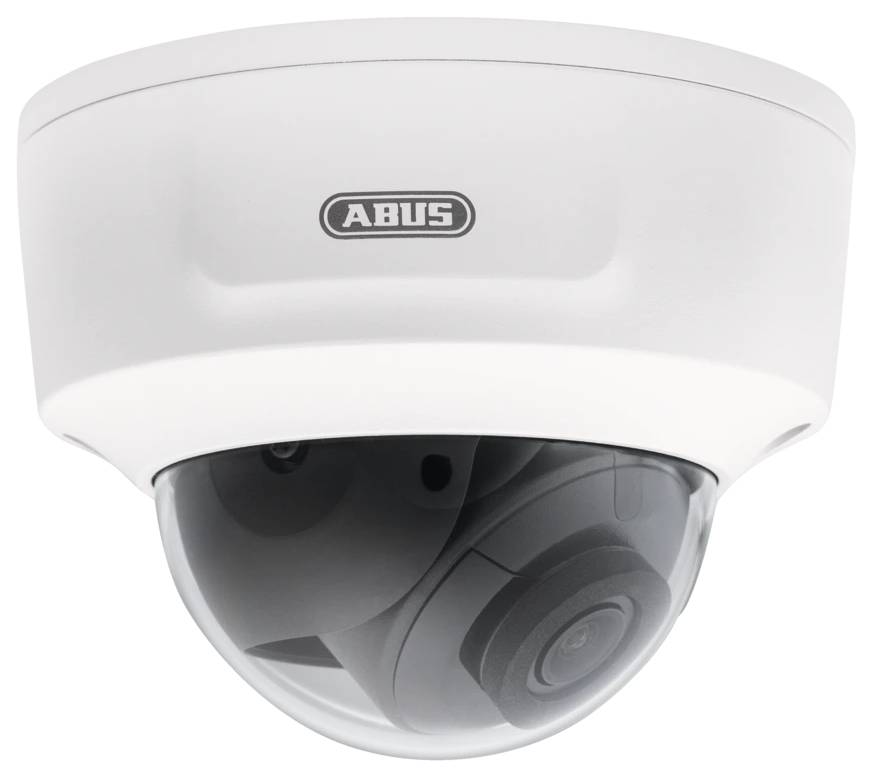

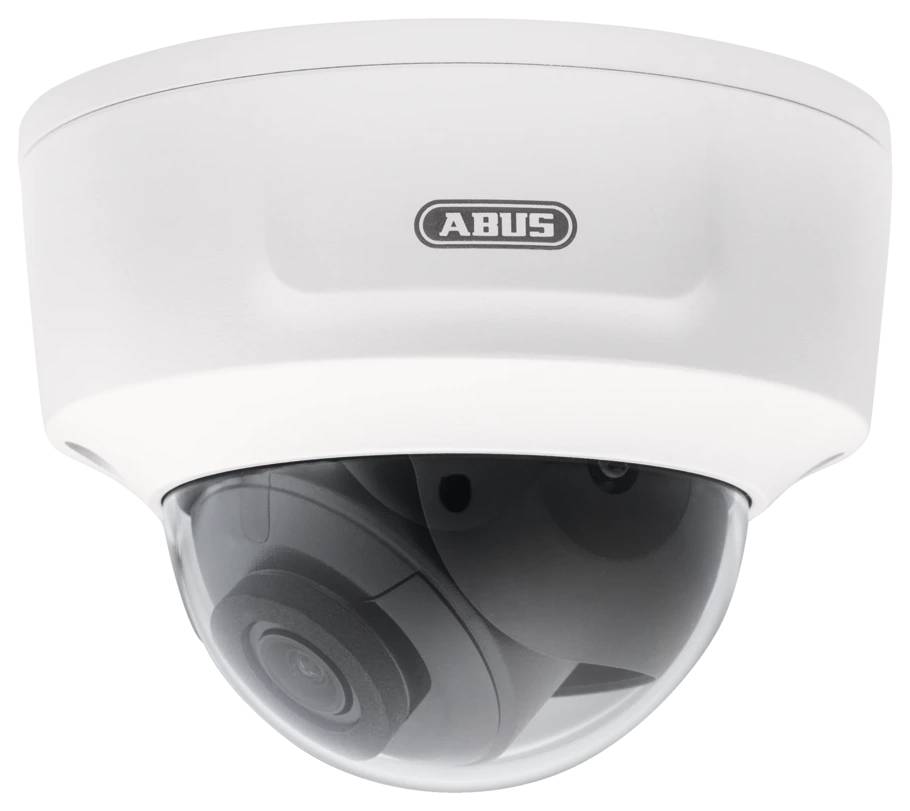

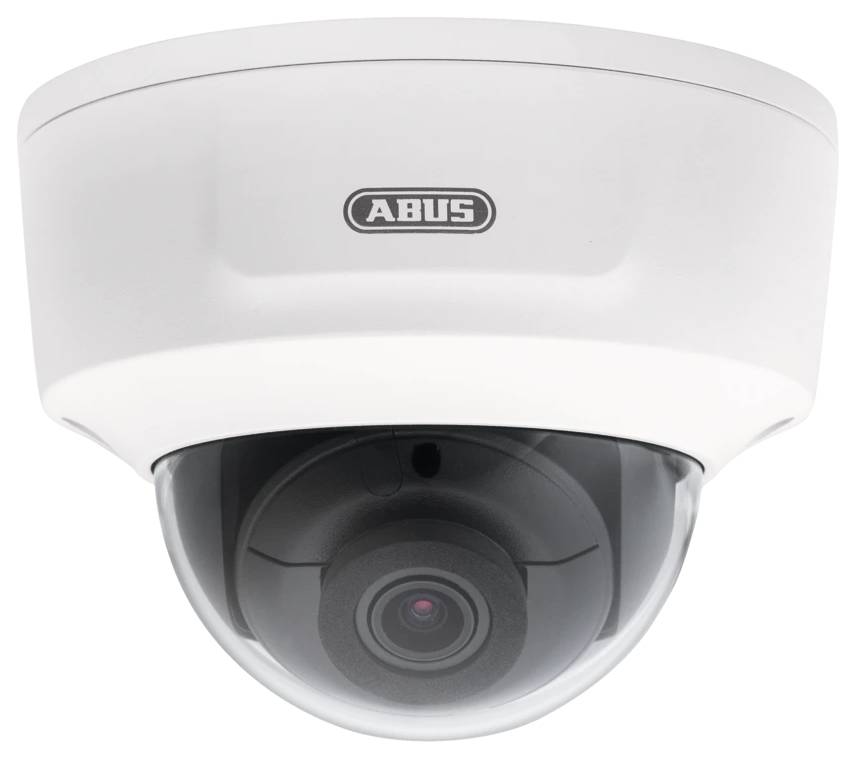

ABUS IP Dome Camera with HDMI Output 4 MP, 2.8 mm Lens, IR Night Vision 30 m, PoE, IK10, White

The ABUS IP Dome 4MPx (2.8mm) with HDMI port (IPCS74511A) is a 4-megapixel network dome camera for shop entrances, receptions and counters where a public-view monitor helps deter theft, with a fixed 2.8 mm lens covering 101° H × 55° V and infrared night vision up to 30 m in black and white.

It streams 2688 × 1520 at 25 fps in H.265 or H.264, runs on 12 V DC ±25% or PoE IEEE 802.3af (8.4 W max), records to an optional microSD card up to 512 GB and works with ABUS NVRs, ABUS CMS and the ABUS Link Station app, as well as third-party recorders through ONVIF Profile G, S and T. Built-in analytics classify people and vehicles, so tripwire and intrusion alarms ignore moving branches, animals and headlights.

• ABUS IP Dome 4MPx (2.8mm) with HDMI port camera, white metal housing
• HDMI adapter cable (micro-HDMI Type D to full-size HDMI), connection cable for DC/audio/alarm, drilling template and installation tool
• Quick guide and safety notes
• Not included: power supply, microSD card, network cable and junction/installation box

• 101° horizontal view with the 2.8 mm lens: wide enough to cover a typical entrance, shop floor or small car park from one corner.
• At night it switches to infrared and records in black and white up to about 30 m — invisible to passers-by.
• One Cat5e/Cat6 cable carries power and video (8.4 W max), so the camera mounts wherever a network cable can reach.
• Person/vehicle classification means far fewer false push alerts from trees, cats and rain than plain motion detection.
• With a microSD card it keeps recording locally if the recorder or network goes down.
• The micro-HDMI port drives a monitor directly at 1080p or 720p while the camera keeps streaming to the recorder — a classic “you are being recorded” public-view screen without an extra decoder.

• Wi-Fi: this is a wired network camera with no wireless connection.
• Built-in audio: there is no built-in microphone or speaker — sound needs external devices on the audio in/out.
• Colour at night: in darkness it switches to black-and-white infrared.
• Zoom: the fixed 2.8 mm lens has no optical zoom; for plates or faces far away choose a varifocal or PTZ model.
• Consumer cloud apps (Ring, Arlo, Google Home): it is a professional ABUS system camera, not a consumer cloud camera.
