ABUS 8-Channel Network Video Recorder (NVR), 8 MP 4K Cameras, 1 HDD Bay up to 16 TB, Fanless 1U

Brand:
Abus
ABUS 8-Channel NVR, 8 MP 4K, 1 HDD
ABUS 8-Channel Network Video Recorder (NVR), 8 MP 4K Cameras, 1 HDD Bay up to 16 TB, Fanless 1U
€377.87 inc. VAT
Buy
TVVR36702
€317.54
€377.87 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:600161
EAN Code
4003318867101
Manufacturer
Abus

Quick Specs

Type
8-channel NVR, 1U fanless
Connectors/Interface
Gigabit LAN · HDMI 4K · VGA
Key spec
1× 3.5" HDD up to 16 TB (not incl.)
Compatibility
ABUS IP cameras up to 8 MP
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

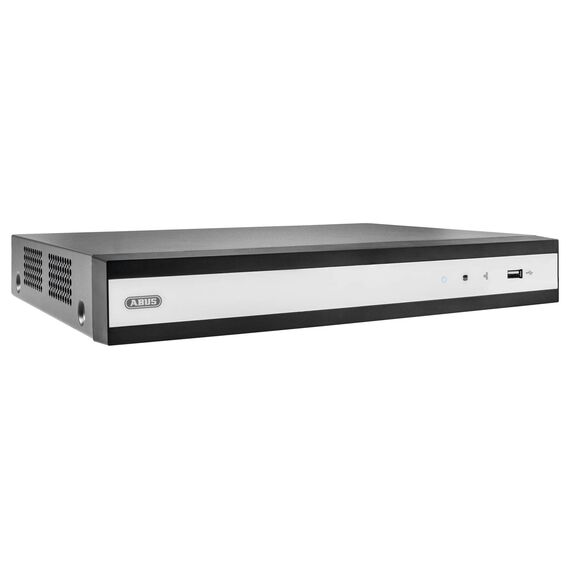

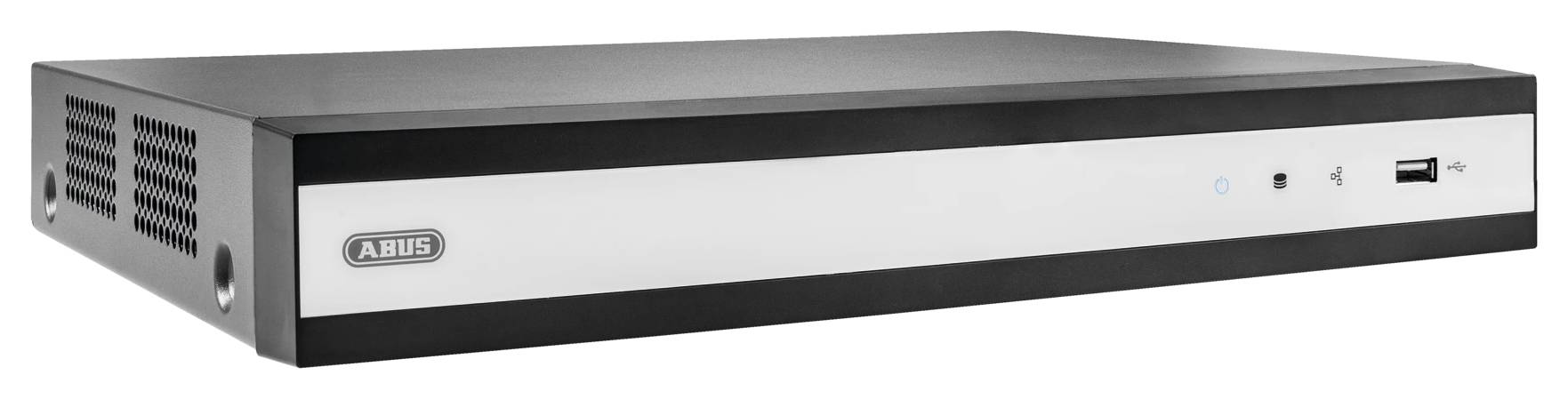

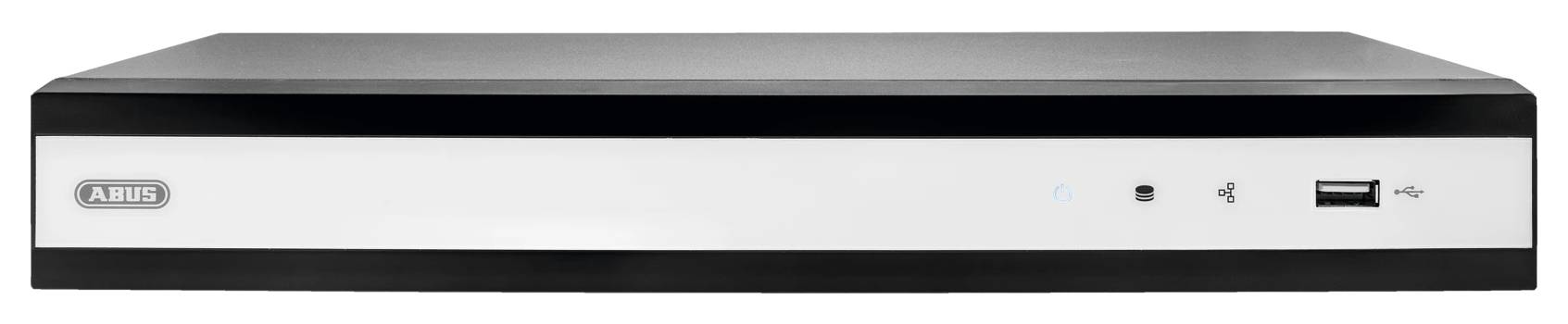

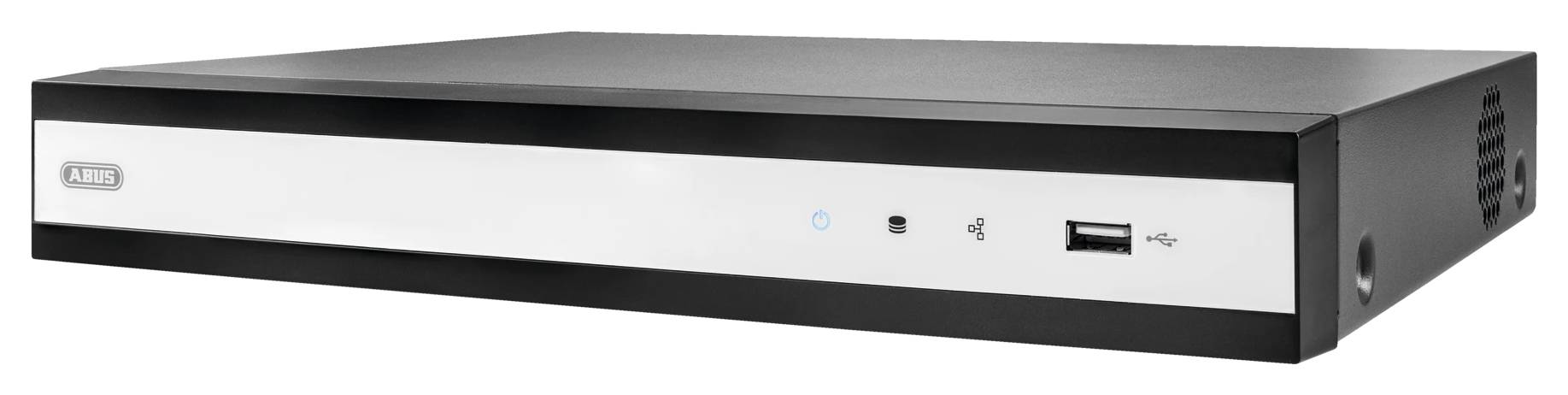

ABUS TVVR36702 — 8-Channel Network Video Recorder for 8 MP Cameras

8 IP channelsGigabit LAN1 HDD · up to 16 TBFanless 1U

The ABUS TVVR36702 is a 8-channel network video recorder (NVR) that records up to eight ABUS IP cameras at up to 8 MP (4K) — built for homes, shops and small offices that want local recording without a cloud subscription.

It sits in a compact, fanless 1U chassis, takes one 3.5" SATA hard drive of up to 16 TB, and shows live and recorded video on a monitor over HDMI (up to 4K) or VGA. Remote viewing runs through the free ABUS Link Station app and ABUS CMS on a PC.

Before you order: This model has no PoE ports — the cameras are powered by a separate PoE switch or their own adapters. No hard drive is included.

What's in the Box

  • ABUS TVVR36702 recorder in a 1U chassis
  • No hard drive — the 3.5" HDD bay is empty and the drive is bought separately
  • ABUS does not publish the full box contents (power adapter, mouse, cables) for this model — ask us and we confirm before you order

What It Means in Practice

  • Up to eight cameras at full 8 MP recording; the recorder can display up to 32 MP of decoded video at once (24 MP when its own AI analysis is on), so very large live layouts of 8 MP streams are limited.
  • Cameras connect through your network: plug the recorder and a PoE switch into the same LAN.
  • A 16 TB drive is the maximum per bay. Retention time depends on camera count, resolution and bitrate — we can estimate it for your setup.
  • Fanless design means silent operation, so it can sit in an office or under a counter. In a rack it needs a shelf (not included).
  • Notifications go to the ABUS Link Station app by push and e-mail; recording can be continuous, scheduled, on motion or on alarm.

What Will Not Work

  • No ONVIF support is listed by ABUS for this recorder — plan on ABUS IP cameras rather than third-party brands.
  • Analogue (coax/BNC) cameras will not connect — for those you need a hybrid recorder.
  • Not compatible with ABUS alarm systems Secvest, Secoris, Smartvest or wAppLoxx.
  • AI person/vehicle detection on the recorder works with ABUS IP cameras from 2022 onward and is limited to the channel counts in the table.
  • Only one drive bay — no RAID or mirroring for redundancy.

Key Features


H.265+ compression
H.265+ and H.264+ reduce bitrate, so the same drive stores noticeably more days of video than plain H.264.

4K monitor output
HDMI output up to 3840 × 2160 at 30 Hz, with VGA available at the same time for a second screen.

Recorder-side AI
Person/vehicle filtering, intrusion and tripwire rules or face comparison, processed by the NVR itself.

Free software
ABUS Link Station app for phones and ABUS CMS for PCs — no licence fee for local viewing.

Technical Specifications

Identification
Part Number TVVR36702
EAN / GTIN 4003318867101
MPN TVVR36702
Brand ABUS (Security-Center)
Channels & Cameras
IP channels 8 (synchronised playback 8)
Max. camera resolution 8 MP (4K) @ 25/30 fps
Recording resolution 12 MP down to QCIF @ 25/30 fps
PoE No — cameras need their own PoE switch or power supply
Bandwidth (in/out) 80 / 80 Mbit/s
Recording & Decoding
Compression H.265, H.265+, H.264, H.264+
Local decoding max. 32 MP (AI off) · max. 24 MP (AI via NVR)
Recording modes Manual, schedule, motion detection, alarm, VCA
AI via NVR (one option) 4-ch person/vehicle motion detection, or 1-ch VCA (intrusion, tripwire, region enter/leave), or 1-ch face detection + face comparison
Alarm actions Acoustic warning, on-screen display, e-mail, app push
Storage
HDD bays 1 × SATA, 3.5"
Max. capacity 16 TB
Hard drive included No
Network storage NAS supported
Connectivity

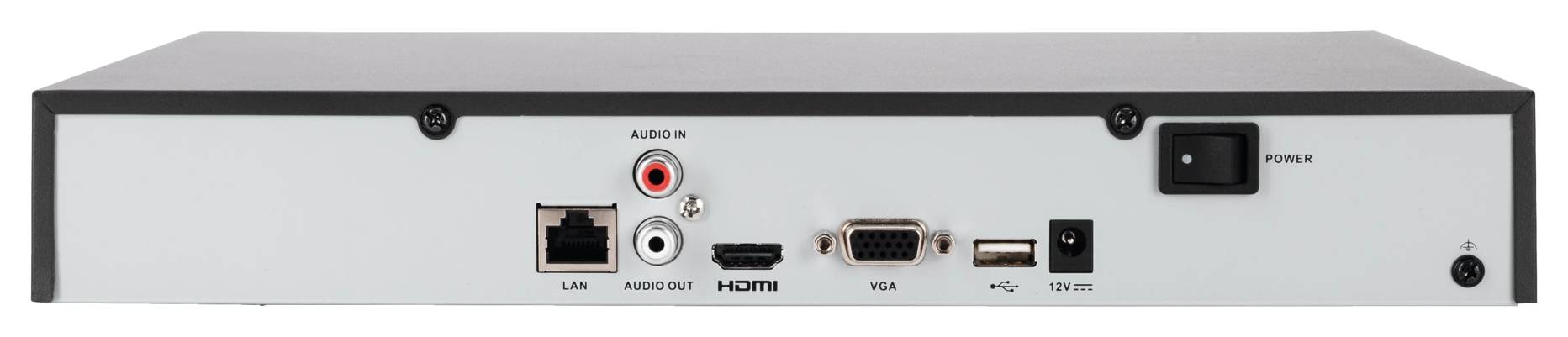

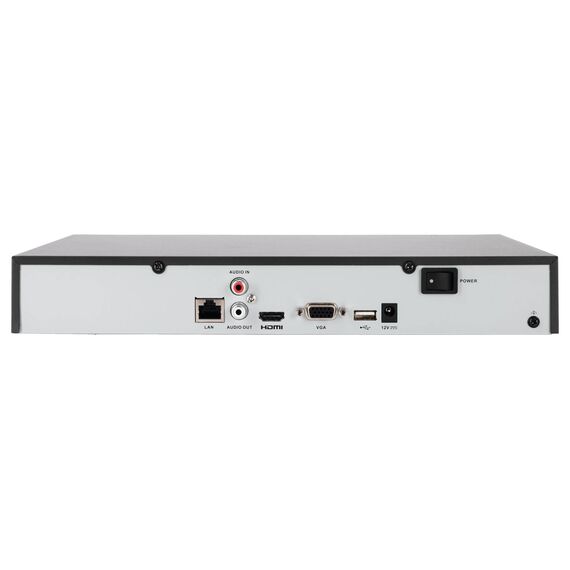

Video outputs HDMI up to 3840 × 2160 @ 30 Hz · VGA up to 1920 × 1080 @ 60 Hz (simultaneous)
Network 1 × RJ45 10/100/1000 Mbit/s
USB 2 × USB 2.0
Audio 1 × Cinch in · 1 × Cinch out
Physical & Power
Chassis 1U, metal/plastic, fanless
Dimensions (W × L × H) 315 × 240 × 48 mm
Weight 2.09 kg
Power input 12 V DC
Power consumption 18 W (8 W without HDD)
Operating temperature -10 °C to +55 °C, max. 90 % humidity
Software
App ABUS Link Station (iOS / Android)
PC software ABUS CMS (free), IP Installer, web browser
Alarm systems Not compatible with Secvest, Secoris, Smartvest, wAppLoxx
OSD languages DE, EN, FR, NL, DK, IT, PL, ES, SE
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term ABUS does not publish a warranty term for this model — claims are handled through Singular

Frequently Asked Questions

Which hard drive should I fit?
A 3.5" SATA surveillance-class drive (designed for 24/7 writing) up to 16 TB. Desktop drives work but wear faster under continuous recording.
Can I view the cameras on my phone?
Yes — through the ABUS Link Station app on iOS and Android. ABUS lists unlimited mobile access with the Pro version and 60 minutes per month of streaming with the Lite version.
Can I mount it in a 19" rack?
It is a 1U unit, but it has no rack ears — it sits on a rack shelf, which is ordered separately.
Singular Expert Insight · Buyer's Guide
The TVVR36702 makes sense when you are building a new ABUS IP system and want everything recorded locally in one quiet box. Without PoE it suits installs that already have a PoE switch. Budget for the drive from the start — see our surveillance hard drives for 24/7-rated models.
✓ Buy it if you use ABUS IP cameras up to 8 MP and want local recording with a free app and no subscription.
✕ Skip it if you need more than 8 channels, two drives for redundancy, or third-party ONVIF cameras.
→ Also consider the ABUS NVR10021 (8 channels, 2 HDD bays) for longer retention, or a hybrid ABUS TVVR33803 if you keep analogue cameras.
Not sure it fits your system? Send us the models of the cameras or recorder you already have and we will check compatibility before you order.
