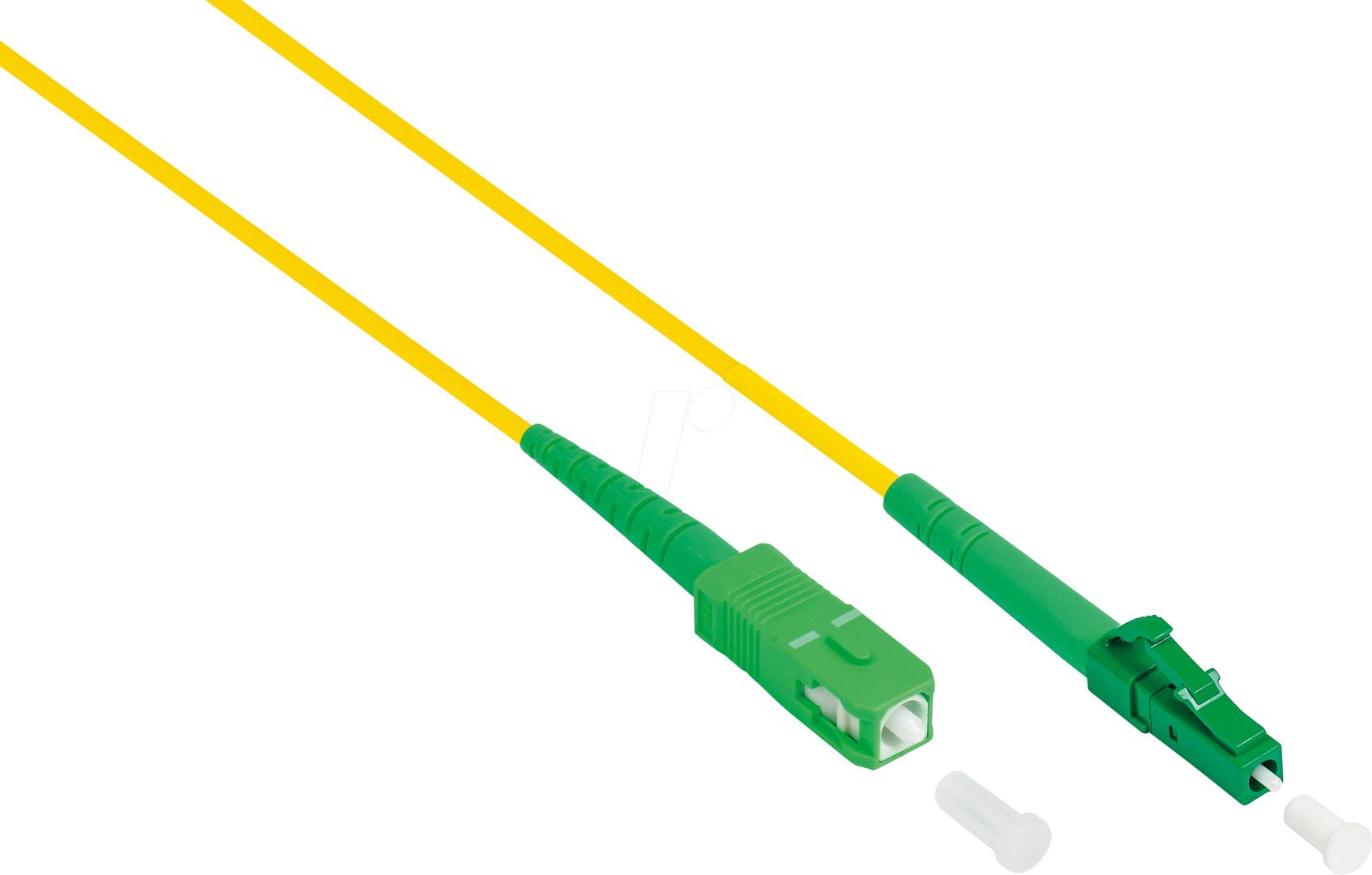

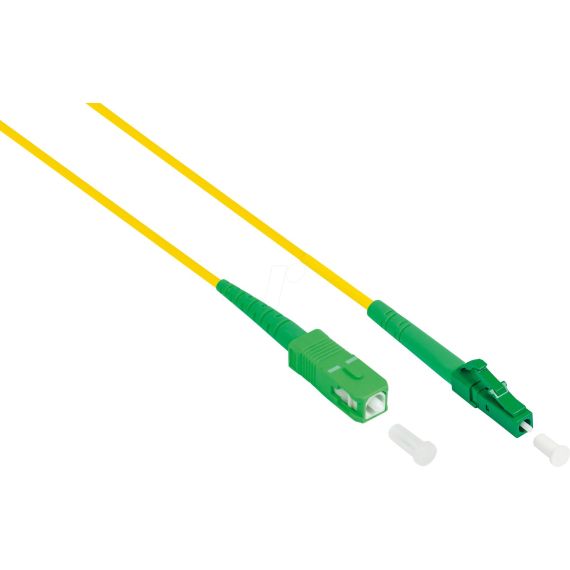

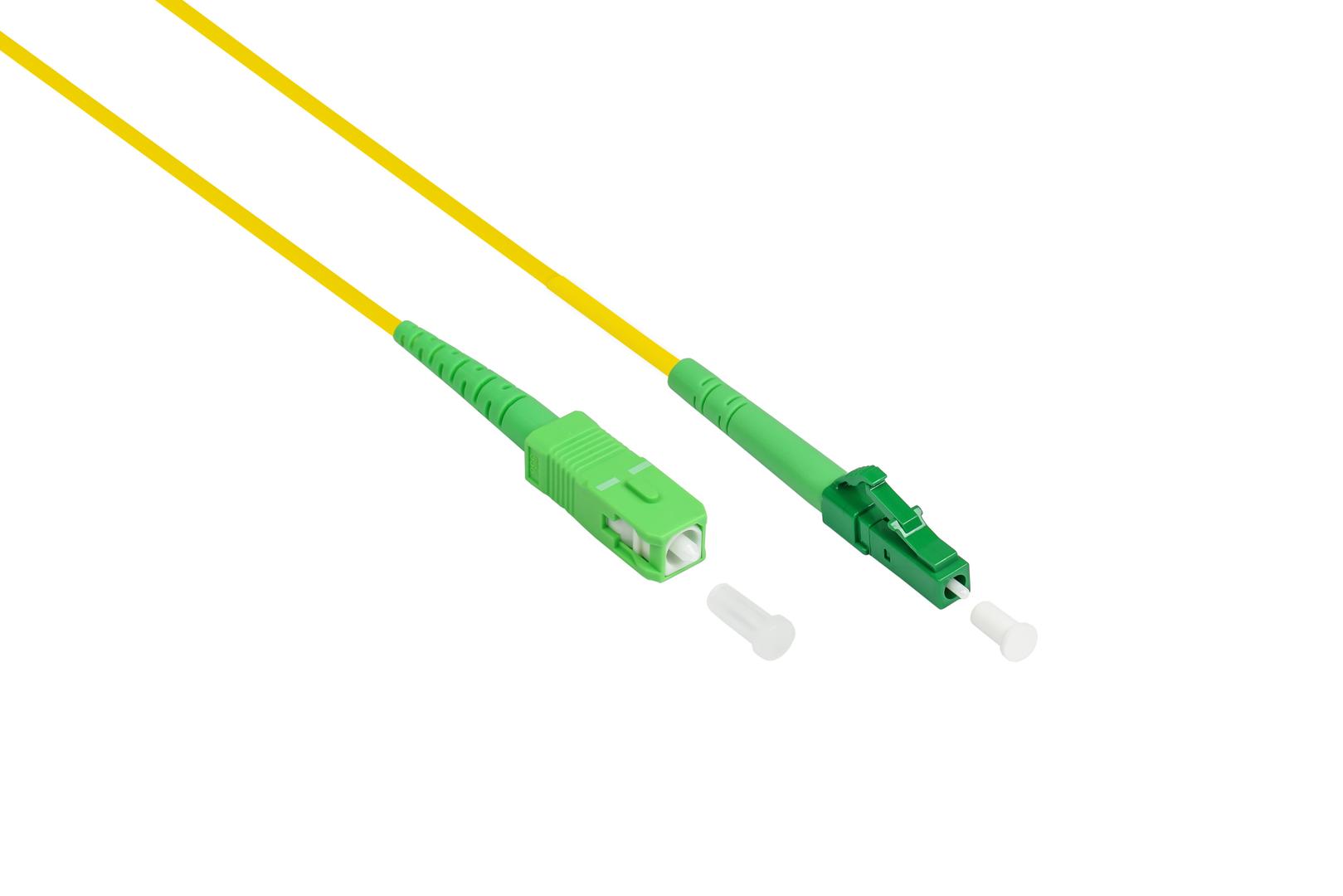

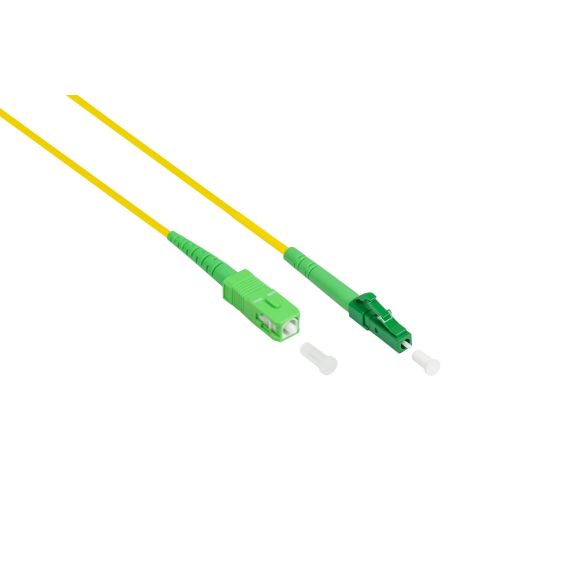

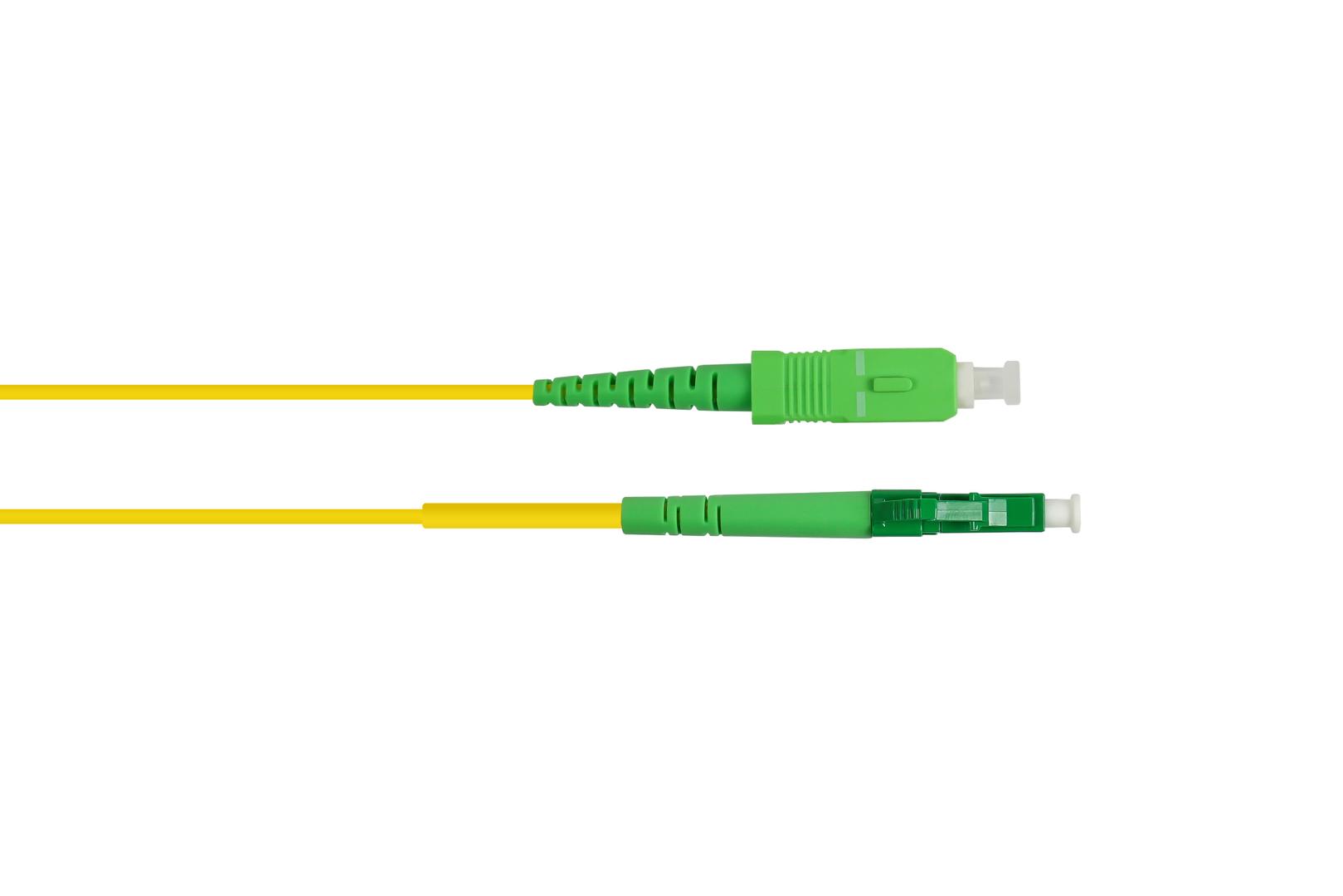

Good Connections OS2 Fibre Patch Cable LC/APC to SC/APC Simplex 9/125 µm Single-Mode, 15m, LSZH, Yellow

The Good Connections LW-S915LASA is a 15 m simplex OS2 single-mode fibre optic patch cable (9/125 µm) with LC/APC on one end and SC/APC on the other, for FTTx connections — for example from the building fibre termination point to an ONT or modem — and data-centre links that use APC.

The yellow 2.0 mm jacket is LSZH (low smoke, zero halogen), with a minimum bend radius of 15 mm. Every cable is tested and shipped with its own measurement report. OS2 is the current single-mode grade (9/125 µm). It is the choice for runs between floors or buildings, carrier and FTTH connections, and any LX/LR/ER-type optics; the reach is set by the transceiver, not by this short patch cord.

• 1 × Good Connections OS2 simplex patch cable, LC/APC to SC/APC, 15 m
• Dust caps on the connectors
• Individual test / measurement report
• No couplers, adapters or transceivers are included

• Simplex = one fibre. It suits single-fibre links such as an FTTH drop to an ONT or BiDi optics — it does not replace a duplex cable on a standard two-fibre SFP link.
• Mixed connectors: LC (small, latching) — fits SFP/SFP+ modules and high-density panels; SC (larger, push-pull) — common on older switches, media converters, fibre wall outlets and FTTH gear. This cable bridges the two directly, without a coupler.
• Jacket colour follows the usual convention (yellow single-mode, aqua OM3, violet OM4, lime OM5), so the cable is easy to identify later in the rack.

• Multimode SR transceivers or multimode (aqua/violet/lime) cabling — mixing single-mode and multimode fails or gives an unstable link.
• UPC (blue) ports, couplers or patch cords.
• Ports other than LC and SC (e.g. ST, MPO/MTP, FC) — use the matching cable or a suitable coupler.
• A standard two-fibre duplex SFP link — that needs a duplex cord or two simplex cables.
• It is a passive cable: it does not turn an RJ45 copper port into fibre — that needs an SFP module or a media converter.
