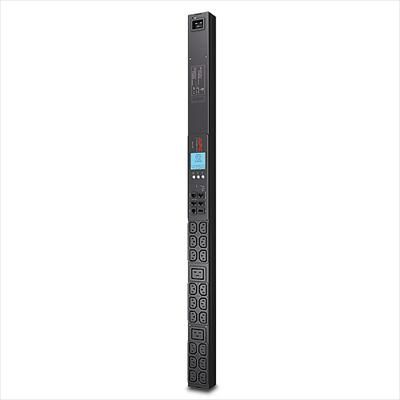

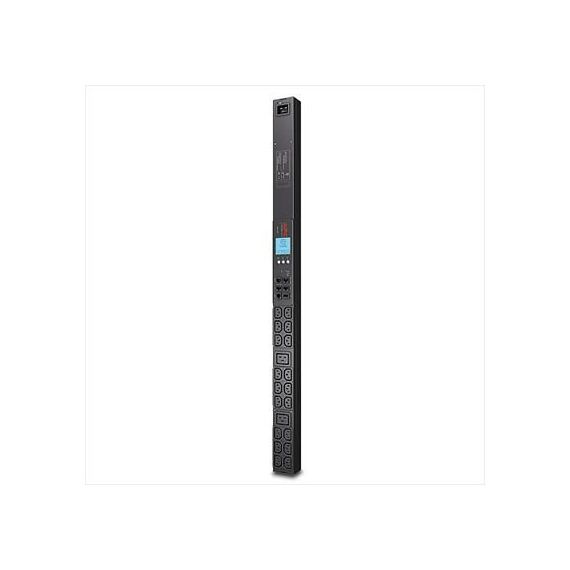

APC Metered Rack PDU ZeroU 2G - Power distribution strip - AC 200/208/230 V - RS-232 - 20 Output Connectors

APC AP8858 APC Metered Rack PDU ZeroU 2G - Power distribution strip - AC 200/208/230 V - RS-232 - 20 Output Connectors

APC Metered Rack PDU ZeroU 2G - Power distribution strip - AC 200/208/230 V - RS-232 - 20 Output Connectors

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Energy management Nominal output voltage 230 V Input frequency 50/60 Hz Technical details Nominal input voltage 200, 208, 230 V Cable length 3.0 m Certification CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE RoHS, REACH Output connections 18x IEC 320 C13 2x IEC 320 C19 Input connection type IEC 309 16A 2P+E Maximum total current draw per phase 16 A

Technical details Maximum input current per phase 16 A Environmental conditions Storage temperature range (T-T) -25 - 65 °C Operating relative humidity range 5 - 95 % Storage relative humidity range 5 - 95 % Operating temperature range (T-T) 5 - 45 °C Weight & dimensions Dimensions W x D x H 56 x 44 x 902 mm Weight 2930 g Package dimensions (W x D x H) 162 x 107 x 1124 mm Package weight 4920 g
