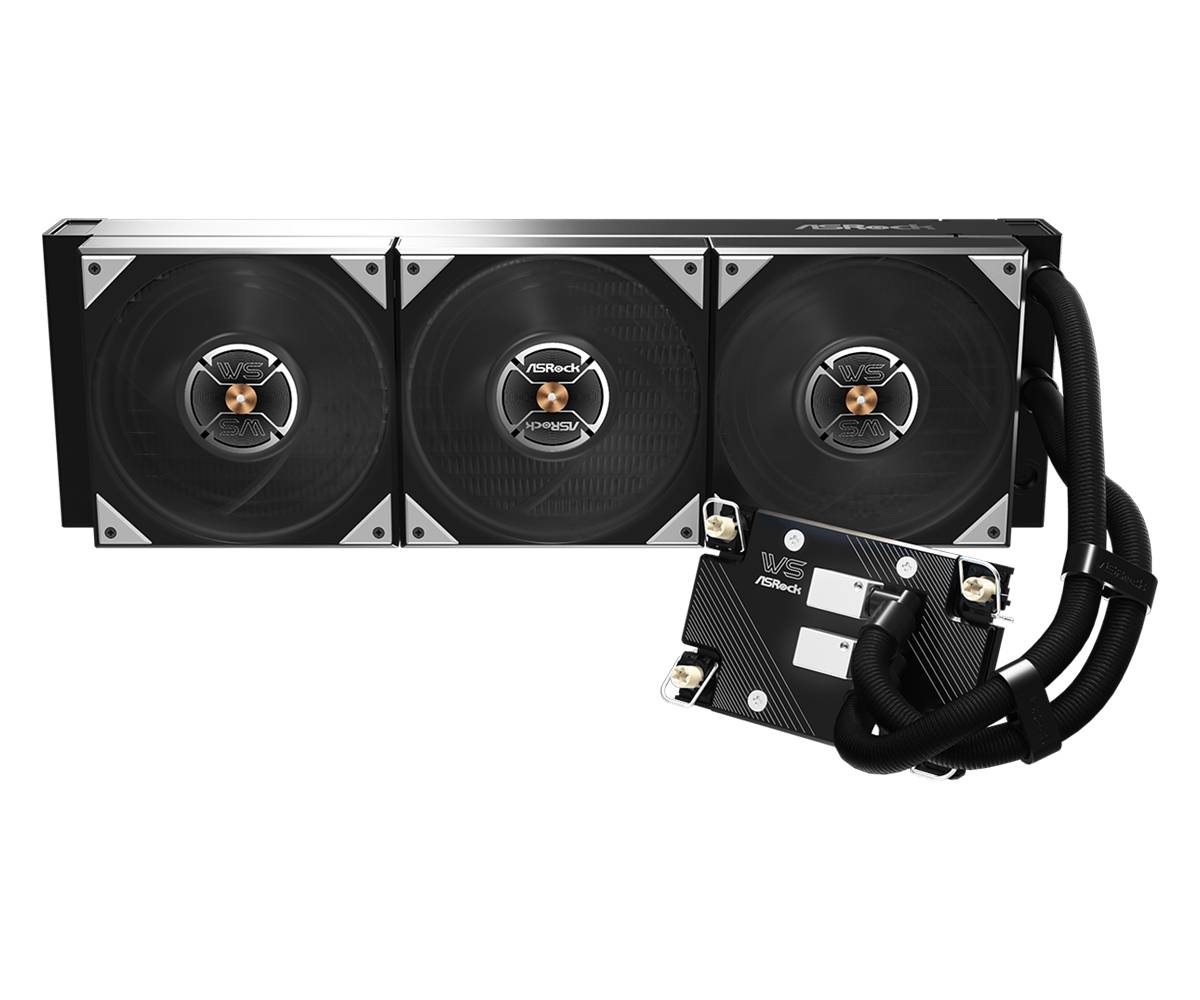

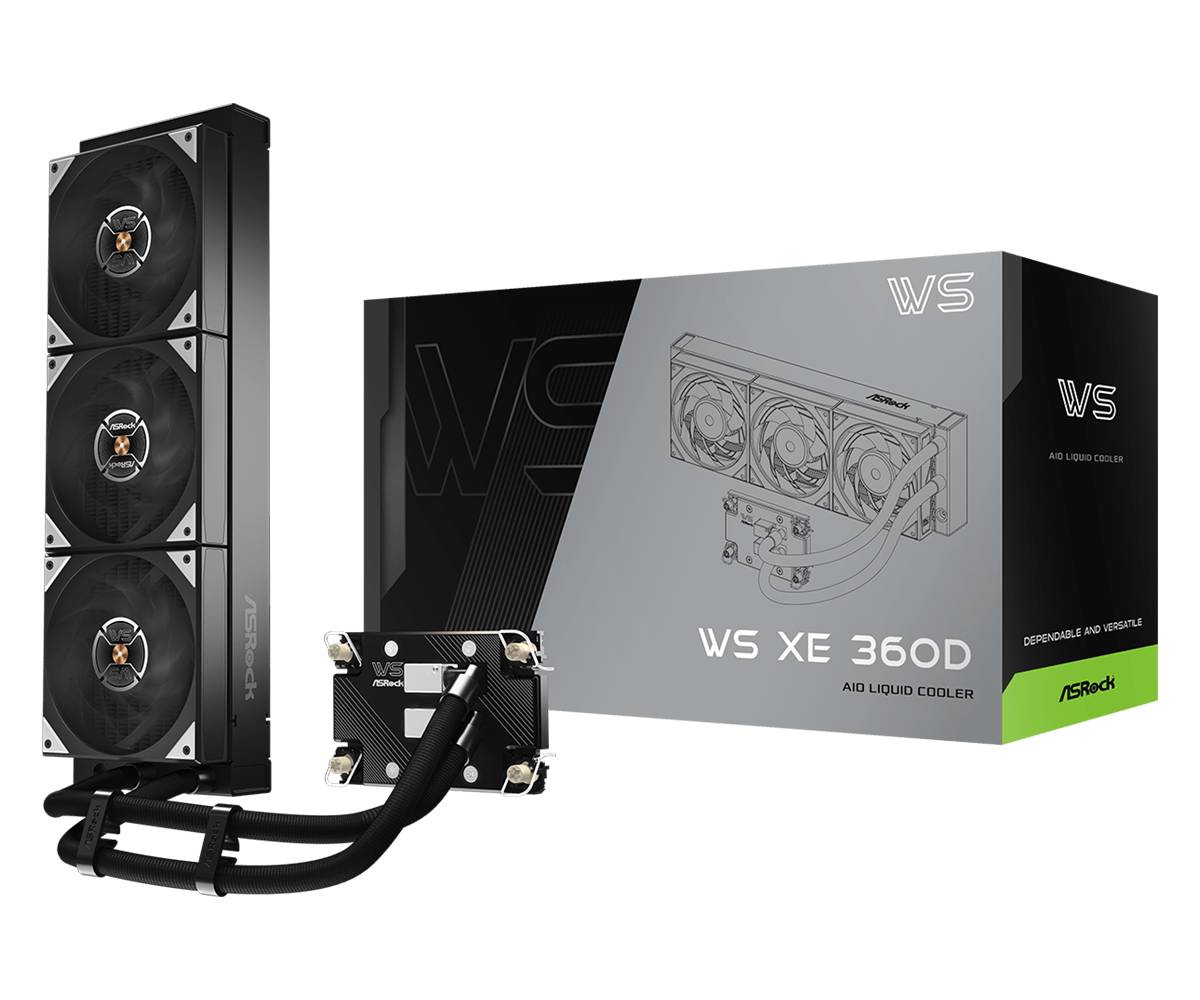

ASRock WS XE 360D 360mm AIO Liquid CPU Cooler Dual Pump for Intel Xeon LGA4677 / LGA4710 Black

Brand:
ASRock
ASRock WS XE 360D 360mm Dual-Pump AIO Cooler Xeon
ASRock WS XE 360D 360mm AIO Liquid CPU Cooler Dual Pump for Intel Xeon LGA4677 / LGA4710 Black
€580.64 inc. VAT
Buy
90-AWSA36-D46GA5
€487.93 €542.14
€580.64 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:597079
EAN Code
4711581494220
Manufacturer
ASRock
Quick Specs
Type
360 mm AIO liquid cooler · dual pump
Radiator
400 × 120 × 38 mm aluminium
Sockets
Intel LGA4677 · LGA4710 (Xeon)
Noise
Max. 39.7 dB(A) per fan
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ASRock WS XE 360D Workstation AIO Liquid Cooler

Dual-pump redundancy360 mm · 38 mm radiatorIntel Xeon LGA4677/47106-year warranty

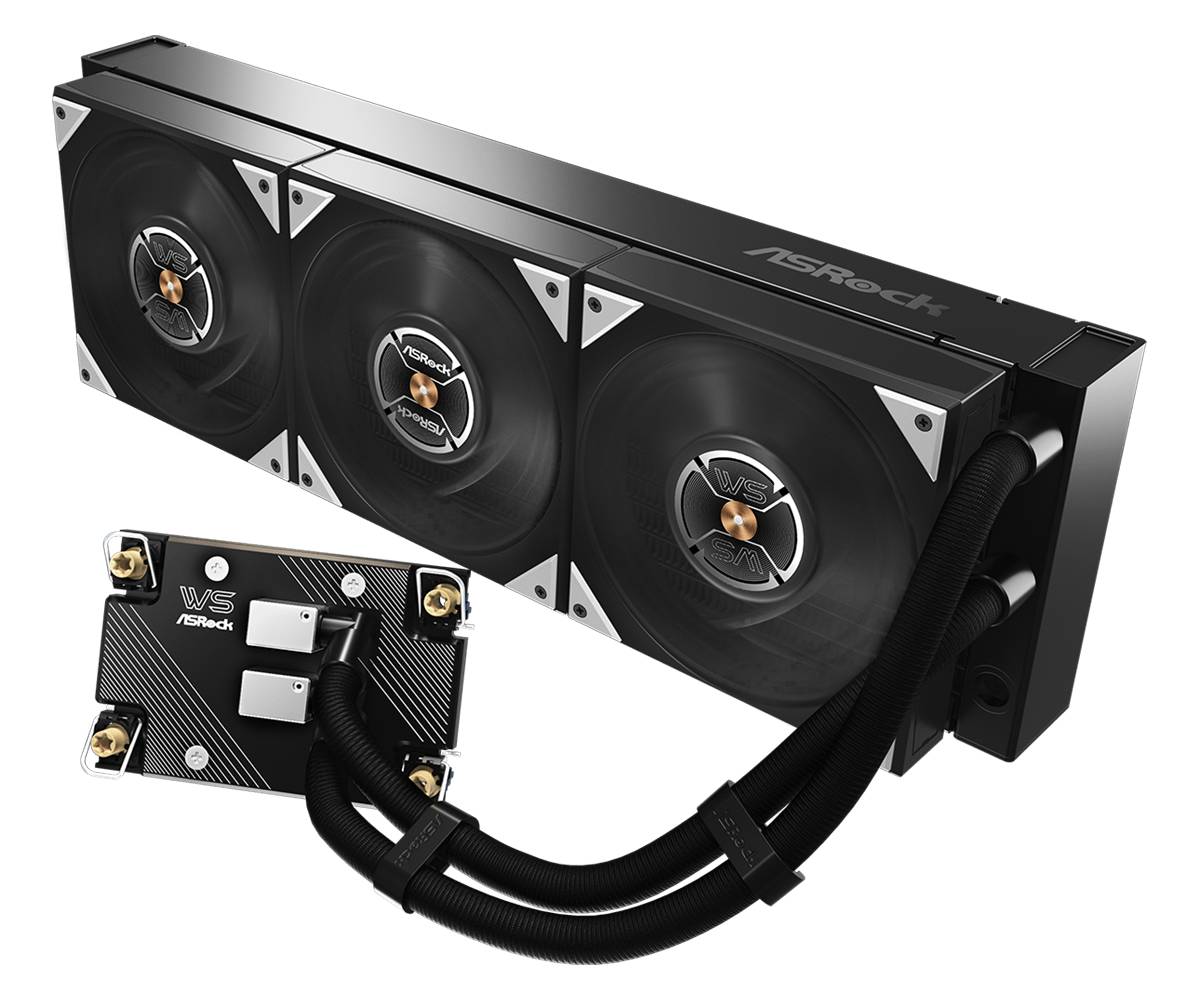

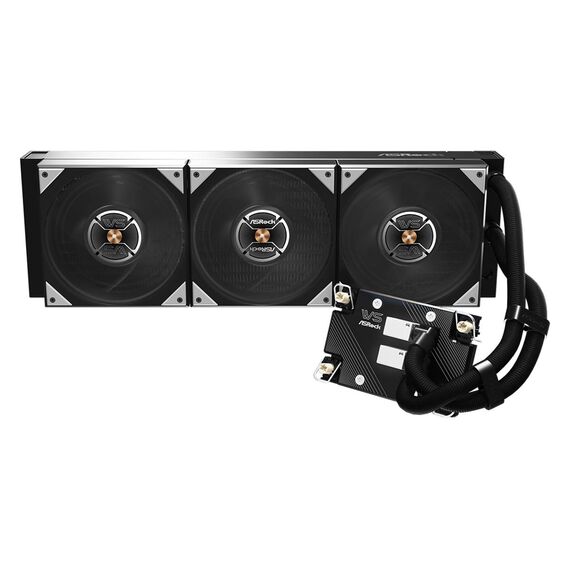

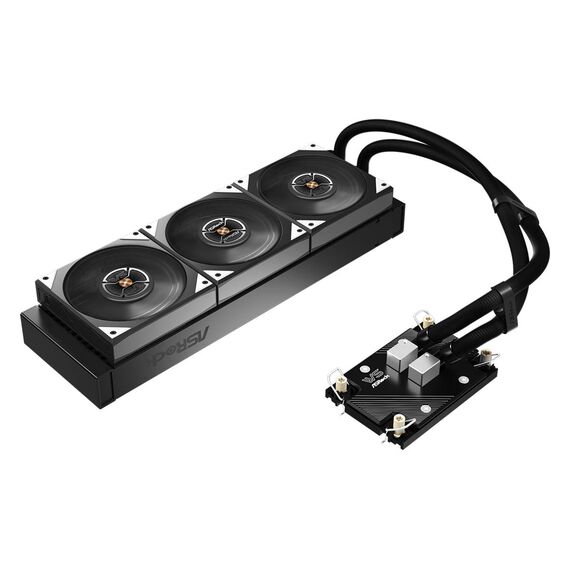

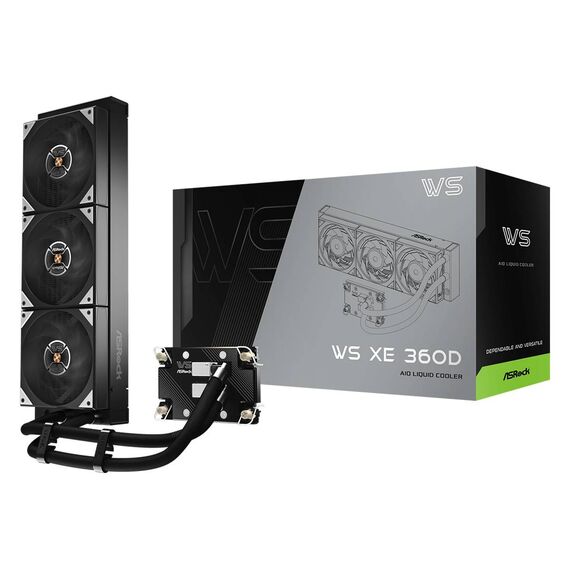

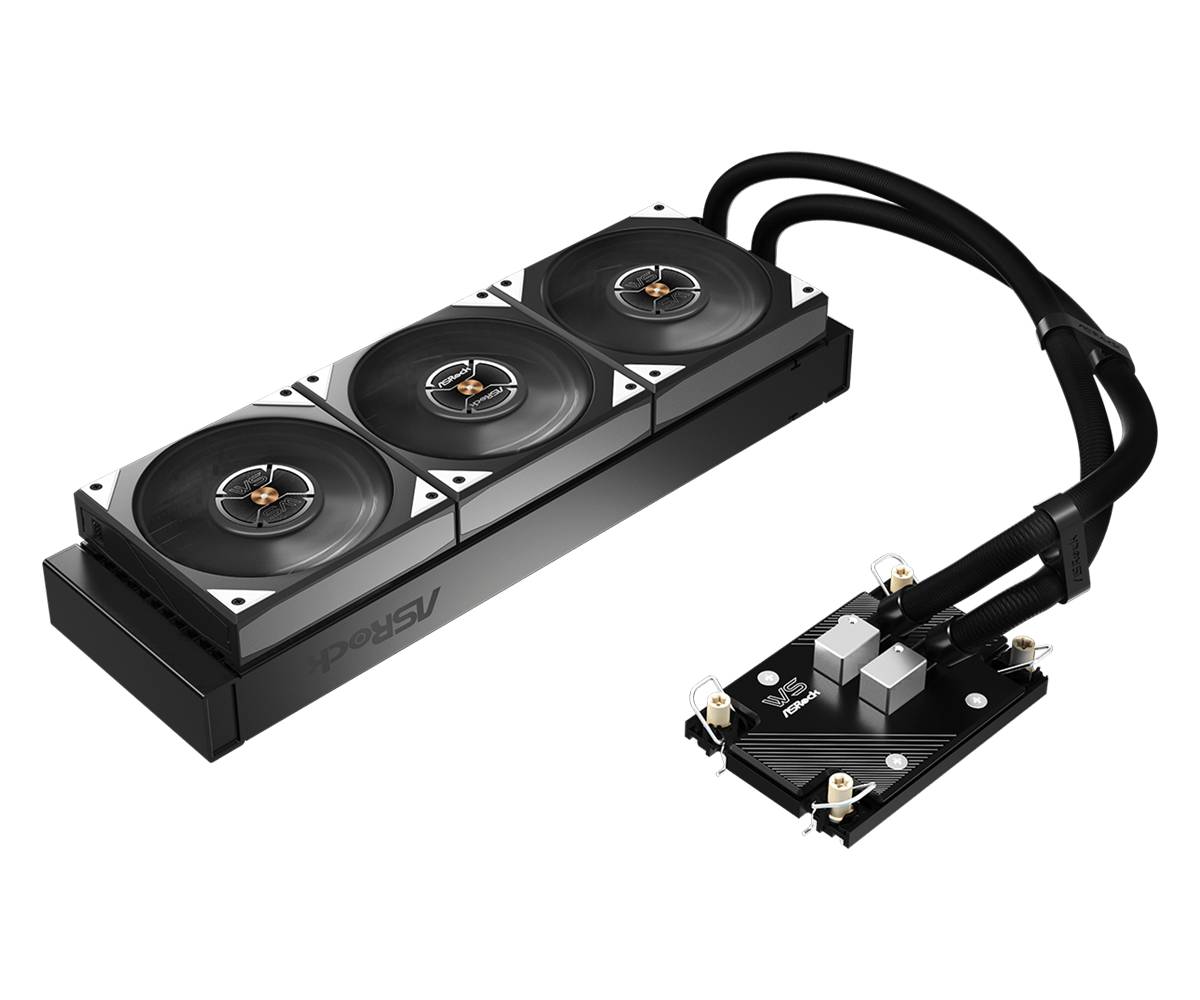

The ASRock WS XE 360D (model number 90-AWSA36-D46GA5) is a 360 mm all-in-one liquid CPU cooler built specifically for Intel Xeon workstation platforms on sockets LGA4677 and LGA4710. It is designed for high-core-count processors running long, heavy workloads such as rendering, simulation and AI.

Its dual-pump architecture provides redundant, uninterrupted circulation, feeding a brazed full-copper cold plate (118 × 78 mm) and a high-density 38 mm thick aluminium radiator cooled by three 120 mm fans with LCP blades and dual-ball bearings. A precision CNC-machined mounting system spreads pressure evenly across the large Xeon heat spreader, and ASRock backs the AIO module with a 6-year warranty.

Compatibility note: Compatible only with Intel LGA4677 and LGA4710 (Xeon workstation) sockets — not with consumer Intel LGA1700/1851 or AMD sockets. The radiator measures 400 × 120 × 38 mm plus 28 mm fans, so the case must support a 360 mm radiator with about 66 mm total thickness; tubing length is 450 mm. The pump uses a 3-pin connector and the fans 4-pin PWM.

Key Features


Dual-pump architecture
Two pumps provide redundancy, so cooling continues even under demanding long-duration workloads — a key requirement for professional workstations.

38 mm high-density radiator

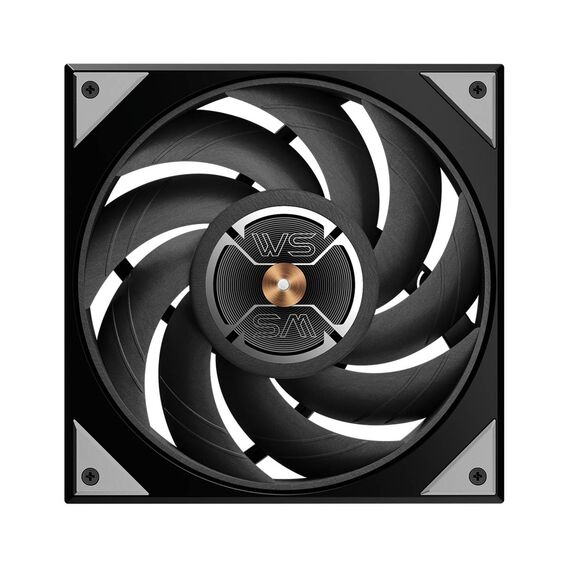

A thicker 360 mm radiator with more fin area, cooled by three 120 × 28 mm fans (up to 3000 RPM, 89.7 CFM, 4.7 mmH₂O).

Workstation-grade build
Brazed full-copper cold plate, CNC-machined Xeon mounting, LCP fan blades, dual-ball bearings, IIR + EPDM tubing and a 6-year warranty.

Technical Specifications

Identification
Model number / Part Number 90-AWSA36-D46GA5
Model WS XE 360D
EAN / GTIN 4711581494220
Brand ASRock (WS series)
Colour Black
Compatibility
CPU sockets Intel LGA4677 · LGA4710
Water Block & Pump

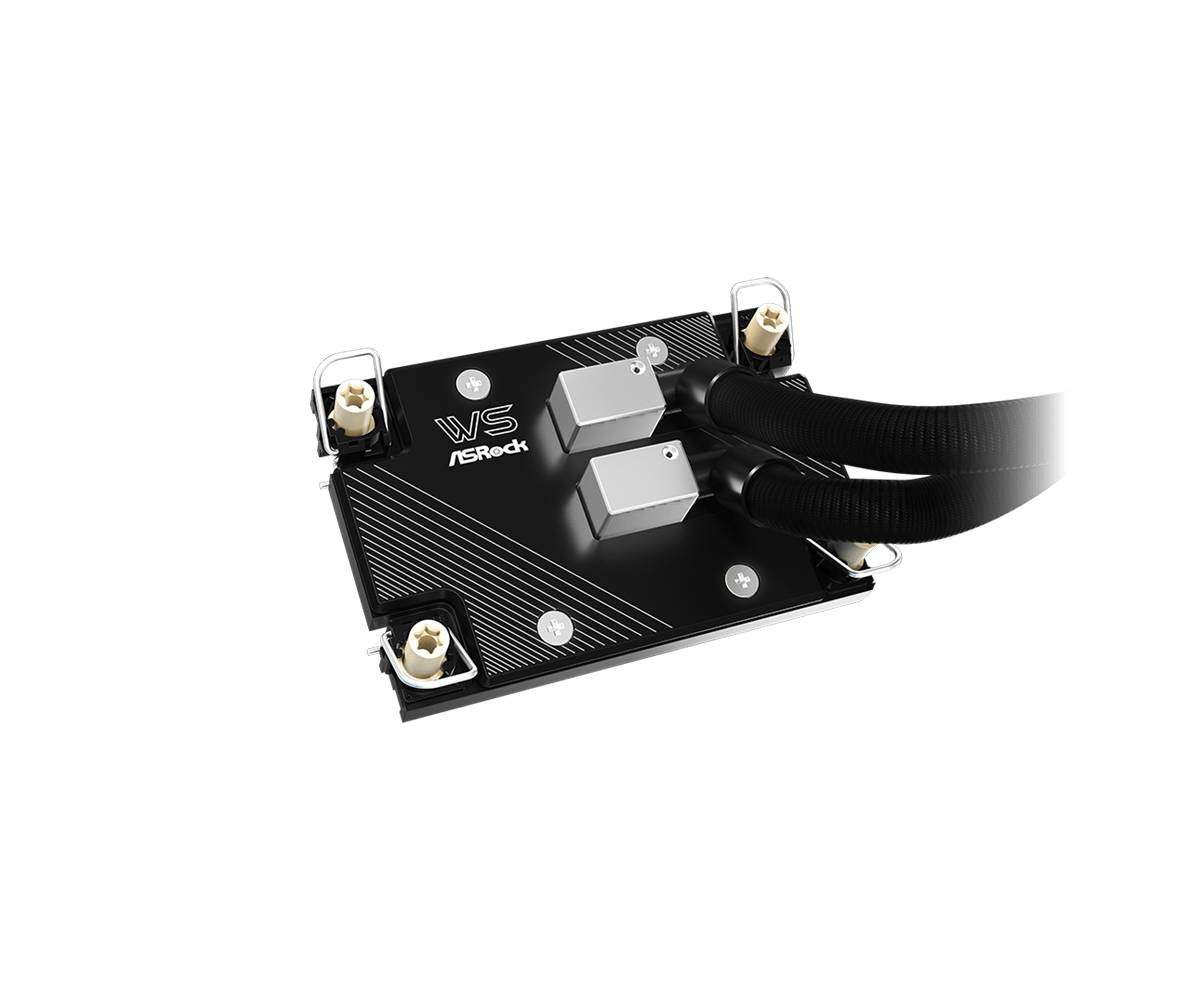

Water block dimensions 118 × 78 × 25.2 mm
Cold plate Copper (brazed full-copper)
Pump Dual-pump architecture · 4000 ± 10% RPM
Pump power 0.62 A / 12 V · 3-pin connector
Radiator & Tubing
Radiator dimensions 400 × 120 × 38 mm
Radiator material Aluminium
Tubing IIR + EPDM, 450 mm
Fans

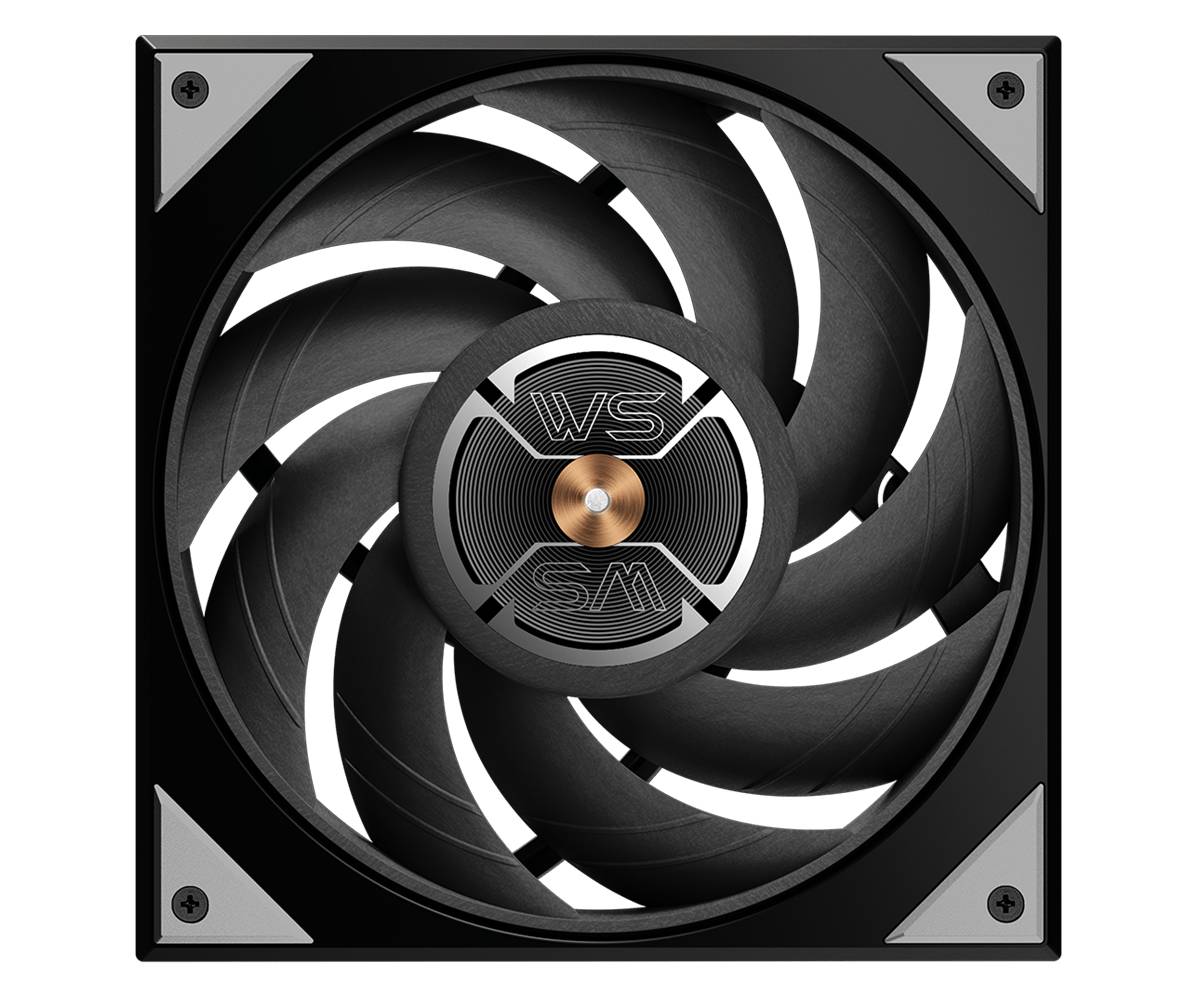

Size 120 × 120 × 28 mm (×3 on the 360 mm radiator)
Speed 0–3000 ± 10% RPM
Airflow Max. 89.7 CFM
Static pressure Max. 4.7 mmH₂O
Noise Max. 39.7 dB(A)
Connector 4-pin PWM · 0.36 A / 12 V
Bearing Dual-ball bearing
Warranty
AIO cooler module 6 years

Frequently Asked Questions

Which processors does the WS XE 360D support?
Intel Xeon workstation processors on LGA4677 and LGA4710 sockets. It does not fit consumer Intel Core or AMD Ryzen/Threadripper sockets.
Why does it have two pumps?
The dual-pump design provides redundancy and steady flow for high-core-count CPUs running 24/7 or long renders — if you need maximum reliability, this is the key advantage over single-pump AIOs.
Will it fit my workstation case?
You need a 360 mm radiator mount and roughly 66 mm clearance for the 38 mm radiator plus 28 mm fans. Tubing is 450 mm long, which suits most full-tower and workstation chassis.
Singular Expert Insight
The WS XE 360D is a rare purpose-built AIO for Xeon W-class workstations: dual pumps, a thick 38 mm radiator and a 6-year warranty address exactly what matters in professional systems — sustained load and reliability. It only makes sense on LGA4677/LGA4710 platforms, so check your socket first.
✓ Buy it if you run an Intel Xeon LGA4677/LGA4710 workstation and want quiet, redundant liquid cooling for sustained workloads.
✕ Skip it if you have a consumer Intel or AMD desktop CPU, or a case without 360 mm radiator support.
→ Also consider ASRock's other WS series AIOs for Threadripper platforms, or a high-end air cooler for Xeon if you prefer no liquid.
