Assmann AK-219604 RJ45 Modular Plug Cat6A Shielded, Pass-Through Crimp Type for Solid AWG 23-22 Round Cable
Brand:
Digitus
Assmann AK-219604 RJ45 Modular Plug Cat6A Shielded, Pass-Through Crimp Type for Solid AWG 23-22 Round Cable
€3.5 inc. VAT
AK-219604
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Assmann AK-219604 — Shielded Cat6A RJ45 Pass-Through Plug
Cat6A · 10GBase-TShielded 8P8CPass-throughSolid AWG 23/22

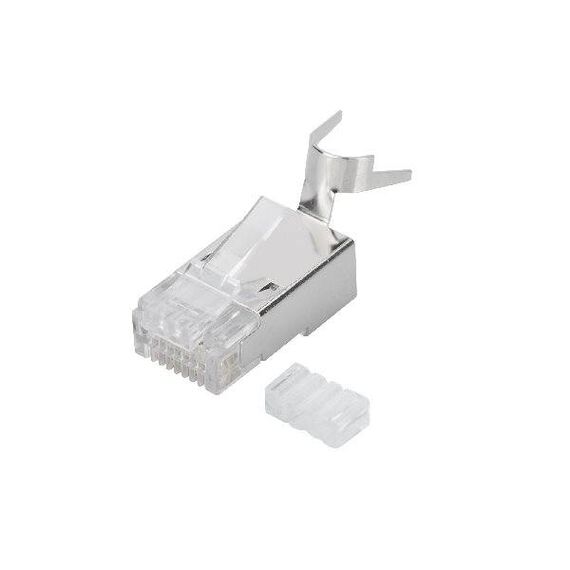

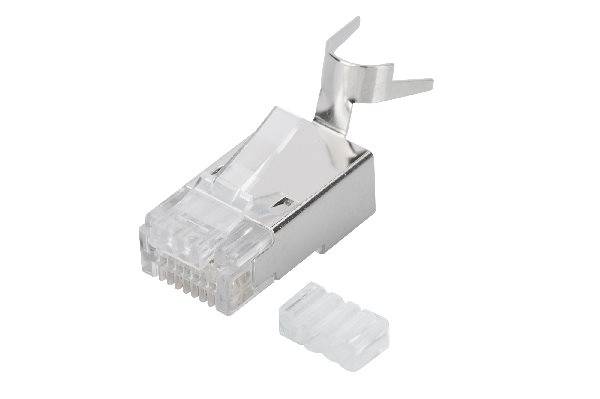

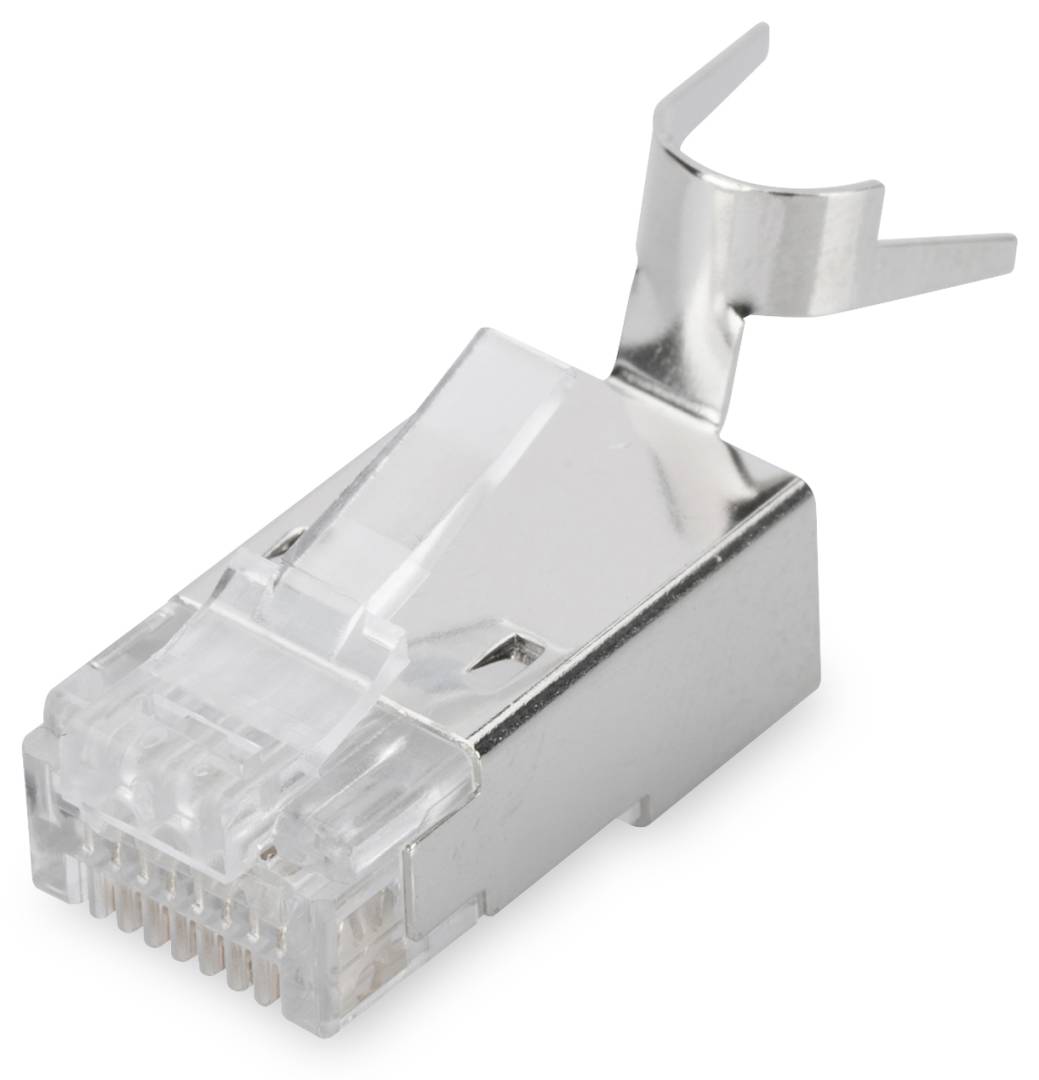

The Assmann AK-219604 is a shielded Cat6A RJ45 (8P8C) modular plug of the pass-through type, made for terminating solid-core round installation cable of AWG 23/1 to 22/1 when you build your own 10GBase-T patch leads or terminate a cable directly to a device.
Pass-through means the conductors are pushed all the way through the front of the plug, so you can check the colour order before crimping; the protruding ends are then cut flush by the crimp tool. This makes correct wiring much easier than with classic plugs, but it needs a crimp tool built for pass-through plugs.
Before you order: This plug accepts solid (single-wire) conductors of AWG 23/1 to 22/1 only. It is not for stranded patch cable, and it needs a pass-through crimp tool with a cutting blade (Digitus recommends DN-94025, not included).
What's in the Box
- 1 × Assmann AK-219604 shielded Cat6A RJ45 pass-through plug (sold individually)
- No crimp tool, boot or strain-relief sleeve included
What It Means in Practice
- You can see and correct the T568A/T568B colour order before the plug is crimped — fewer bad terminations on Cat6A cable, where conductors are thick and stiff.
- The shielded metal housing continues the cable shield into the connector; for shielding to work the cable must be shielded (F/UTP, U/FTP or S/FTP) and the far end must be grounded through shielded equipment.
- Rated for Cat6A / 10GBase-T link performance per ISO/IEC 11801 3rd Ed., EN 50173-1 and TIA-568-C when terminated correctly.
What Will Not Work
- Stranded (flexible) patch cable — the contacts are designed for solid AWG 23/1–22/1 conductors only.
- A standard crimp tool without a pass-through cutting blade — the protruding wire ends will not be trimmed and the plug may not seat in the port.
- Thin AWG 26/24 cable — the conductors will not be held reliably.
- Wall outlets or patch panels — for fixed installation you need a keystone jack or outlet, not a plug.
Key Features
Pass-through design
Conductors run through the plug front so wiring order can be checked before crimping.
Shielded for Cat6A
Metal-shielded 8P8C housing for 10GBase-T links on shielded solid cable.
Gold-plated contacts
Phosphor bronze/brass contacts with 0.6 µ gold plating, more than 750 mating cycles.
Wide temperature range
Rated from −40 to +80 °C operating temperature.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pass-through plugs are the easiest way to get Cat6A field terminations right, because you check the colour order before you crimp. The catch is the tool: without a pass-through crimper the plug cannot be finished properly. If you only need a few leads, ready-made Cat6A patch cables save time and come tested.
✓ Buy it if you terminate solid AWG 23/22 shielded Cat6A cable and have (or will buy) a pass-through crimp tool.
✕ Skip it if your cable is stranded, thin (AWG 24/26), or you would rather not crimp at all.
→ Also consider ready-made shielded Cat6A patch cables, or a Cat6A keystone jack for wall/panel terminations.
Not sure which plug matches your cable? Send us the cable type or part number and we will check it before you order.
Features - Digitus - AK-219604
More Details
Product Code
04:359866
EAN Code
4016032380627
Manufacturer
Digitus
