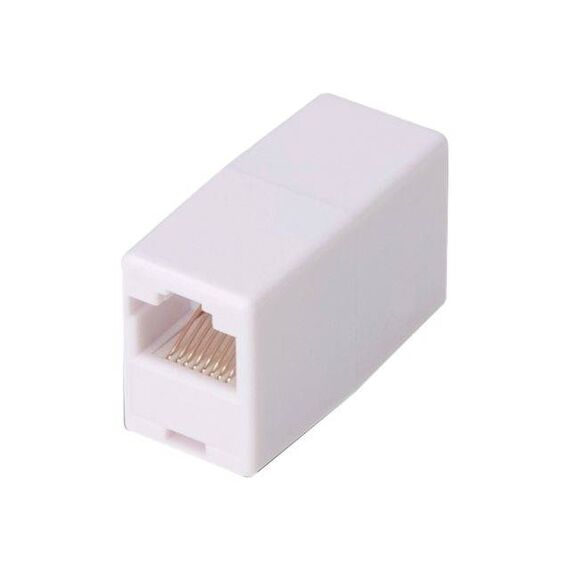

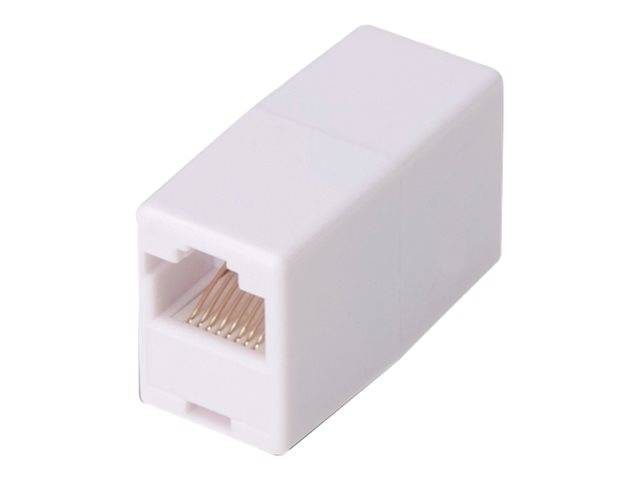

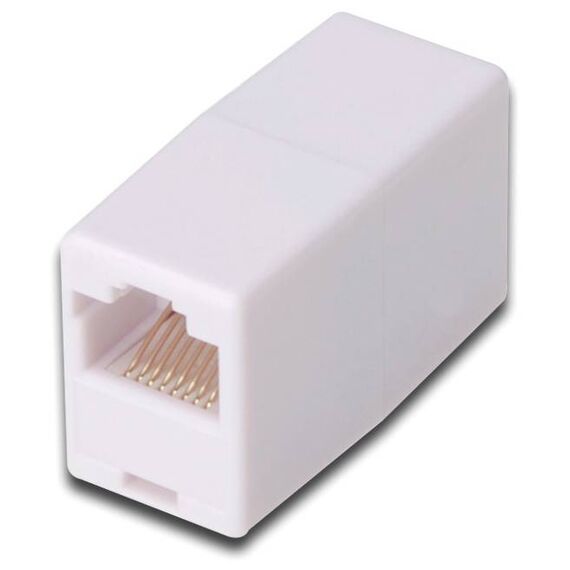

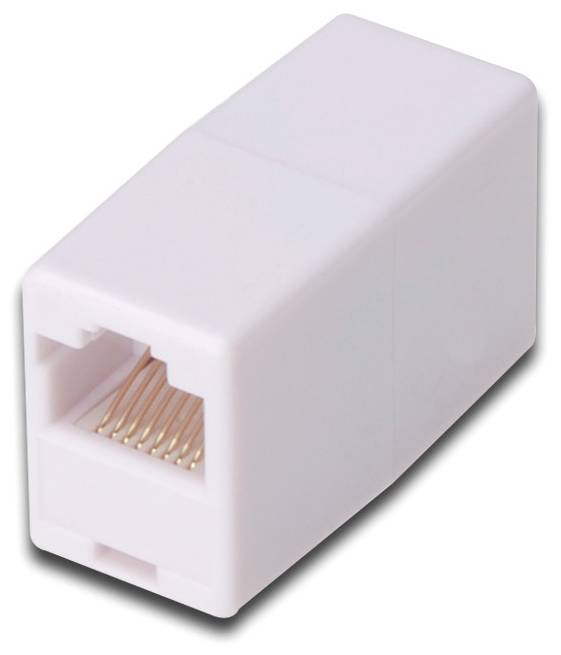

DIGITUS AT-A 8/8 — RJ45 Inline Coupler, Cat5e Unshielded, White
Cat5e UTPRJ45 F/F1:1 straightWhite
The DIGITUS AT-A 8/8 is an inline RJ45 coupler that joins two network patch cables end to end at Cat5e level — the simple fix when a cable is a little too short to reach a switch, PC or access point.
Both ends are RJ45 (8P8C) sockets wired 1:1, so it extends a straight cable without changing its pin-out. The white ABS body is small enough to lie behind a desk or along a cable run, and the contacts are gold-plated phosphor bronze rated for at least 750 mating cycles.
Before you order: Unshielded Cat5e: on shielded (STP/FTP) cable the shield is not carried through, and for Cat6 links choose a Cat6 coupler. It does not clip into keystone panels — it is a free inline coupler.
What's in the Box
- 1 × DIGITUS AT-A 8/8 RJ45 inline coupler, female to female, white
What It Means in Practice
- Join two short patch cables instead of buying a new long one.
- Works for 10/100 Mbit/s and Gigabit Ethernet over Cat5e cabling; PoE passes through because every pin is connected 1:1.
- A crossover is not created — a straight cable stays straight, so T568A/B wiring of both cables should match.
- Each coupler adds a connection point; keep it to one per link for best signal quality.
What Will Not Work
- It will not mount in a patch panel or keystone wall box.
- It does not maintain shield continuity on STP/FTP cable.
- It is not rated for Cat6/Cat6A performance; a link through it counts as Cat5e.
- It will not repair a damaged plug or cable — it only joins two working plugs.
Key Features
1:1 pin assignment
Straight-through wiring for transparent extension.
Gold-plated contacts
Phosphor bronze with nickel underplating and 0.5 µm gold.
Durable
At least 750 mating cycles; insertion force ≤ 30 N per IEC 60603-7-5.
Compact
Only 37 × 23 × 15 mm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Inline couplers are the quickest way to extend a run without re-cabling — handy in offices and homes. If you often find cables too short, a properly sized patch cable is still the cleaner long-term choice.
✓ Buy it if you need to join two RJ45 patch cables on an unshielded Cat5e or Gigabit link.
✕ Skip it if your cabling is shielded or must be certified Cat6/Cat6A, or you want a coupler that mounts in a panel.
→ Also consider a keystone coupler for patch panels, or a shielded Cat6 inline coupler for STP cabling.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - AT-A 8/8
Colour
white
More Details
Product Code
04:6042
EAN Code
4016032066569
Manufacturer
Digitus
