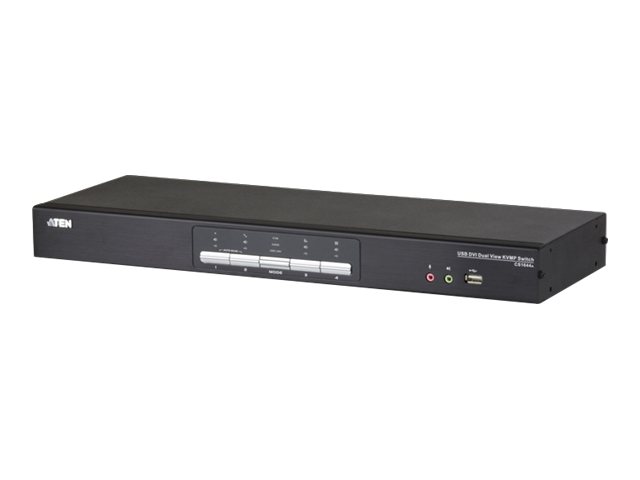

ATEN CS1644A · 4-Port Dual-Display DVI KVMP Switch

4 PCs · 2 monitorsDual-link DVI · 2560 x 1600USB 2.0 hub · audio8 cables included

Quick Specs

Computers / Monitors
4 PCs · 1 console · dual monitor
Video
DVI-I dual-link · 2560 x 1600 @ 60 Hz
USB & audio
2 x USB 2.0 hub · speaker + mic
Form & switching
Desktop · hotkey · button · mouse

The ATEN CS1644A is a 4-port USB DVI dual-link KVMP switch that lets one keyboard, mouse, two DVI monitors, speakers and microphone control four computers, at up to 2560 x 1600 at 60 Hz (1920 x 1200 at 120 Hz for 3D). It suits dual-screen workstations in design, finance and engineering.

A 2-port USB 2.0 hub shares printers and storage, and KVM, USB and audio focus can be switched independently. Switching works by hotkey, front push-button or mouse, with auto-scan; a daisy-chain port links two CS1642A/CS1644A units for quad-view setups.

Compatibility note: Connections are DVI-I; HDMI or DisplayPort sources and monitors need suitable adapters. Four KVM cable sets (DVI-D dual-link + USB + audio, 1.8 m) and four DVI-D dual-link cables are included.

Key Features


Dual-link DVI dual display
Two DVI-I heads at up to 2560 x 1600 each, HDCP compliant, with support for digital and analogue (DVI-I) monitors.

Independent USB and audio switching
Keep audio or a USB printer on one computer while the keyboard, mouse and video move to another.

Mac and Sun keyboard emulation
PC keyboard combinations emulate Mac and Sun keys, making mixed-platform desks easier to manage.

Technical Specifications

Identification
Part Number CS1644A
EAN / GTIN 4710423779686
MPN CS1644A
Brand ATEN
Ports & video
Computer ports 4 x (2 x DVI-I + USB + speaker + mic)
Console 2 x DVI-I, USB keyboard/mouse, 2 x USB 2.0 hub, speaker + mic
Max resolution 2560 x 1600 @ 60 Hz; 1920 x 1200 @ 120 Hz (3D)
DVI Dual-link, HDCP compliant
Monitors Dual
Control
Switching Hotkeys, front push-buttons, mouse switching
Auto-scan 1–99 s (default 5 s)
Independent switching KVM, USB hub and audio focus separately
Multi-view Daisy-chain port for two units (quad view)
Physical
Housing Plastic and metal
Dimensions 43.72 x 15.98 x 4.40 cm
Weight 2.32 kg
Power External adapter, DC 5.3 V
Cables included 4 x KVM cable (DVI-D DL + USB + audio, 1.8 m), 4 x DVI-D DL cable (1.8 m)
OS support Windows, Linux, Mac, Sun, FreeBSD

Frequently Asked Questions

Is the ATEN CS1644A single-link or dual-link DVI?
Dual-link: ATEN specifies up to 2560 x 1600 at 60 Hz per display.
Can I use HDMI monitors with the CS1644A?
Yes, with DVI-to-HDMI adapters or cables, as long as the resolution stays within the DVI limits; audio uses the separate 3.5 mm speaker ports.
What is the difference between the CS1644A and the CS1642A?
The CS1642A is the 2-port version with the same dual-display dual-link DVI and USB/audio features.
Singular Expert Insight
The CS1644A remains a solid pick for DVI-based dual-screen desks, especially with 30" 2560 x 1600 panels, and the full cable set is in the box. For new builds with DisplayPort monitors, a DP dual-display switch avoids adapters. Compare in our KVM switches range.
✓ Buy it if you run four dual-monitor DVI computers and want independent USB and audio switching.
✕ Skip it if your PCs and monitors are DisplayPort/HDMI only or you need 4K.
→ Also consider the TRENDnet TK-440DP (4-port dual DisplayPort, 4K 60 Hz) or ATEN CS1642A (2 ports).
