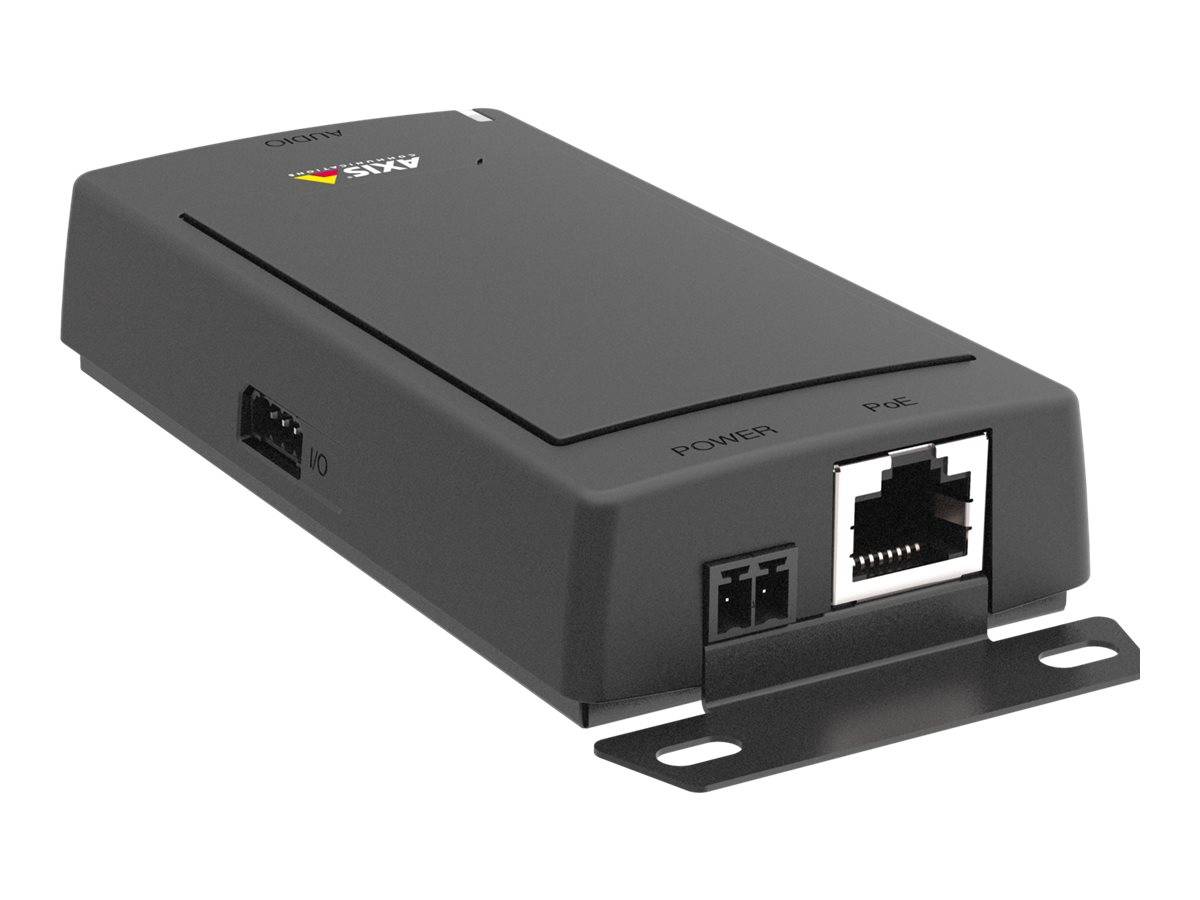

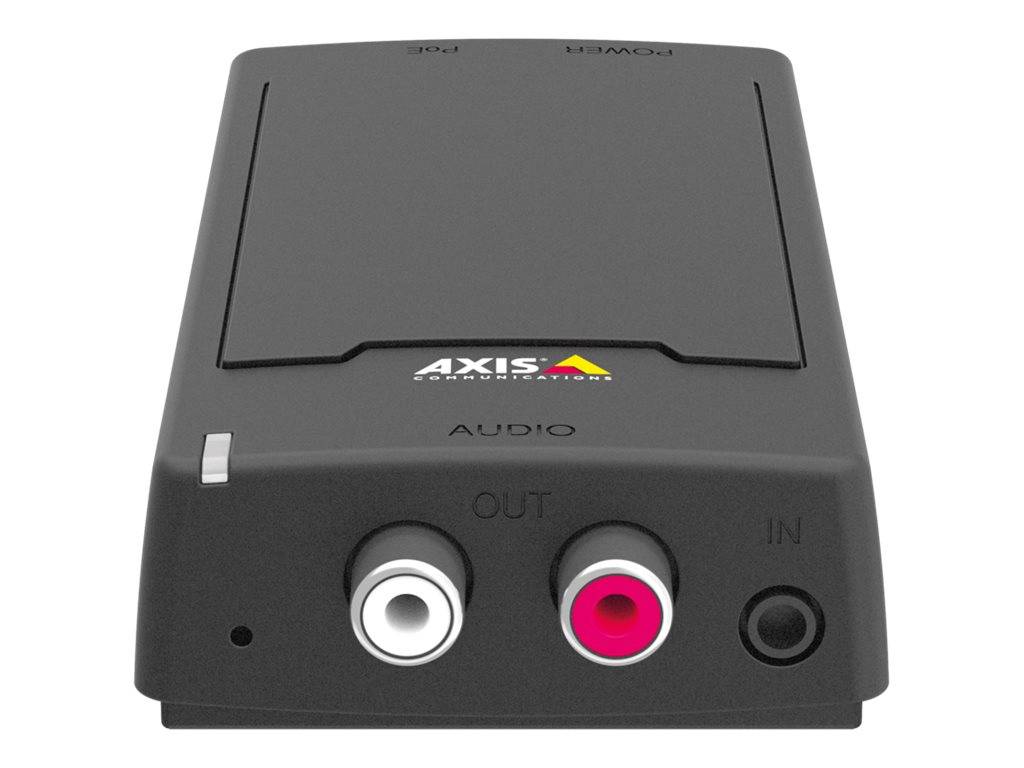

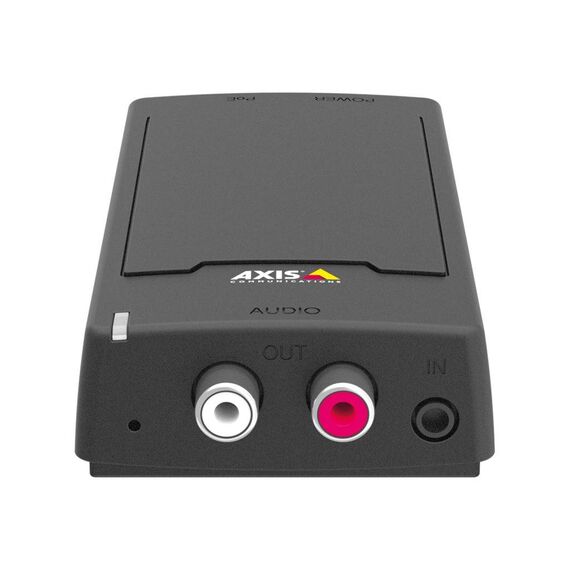

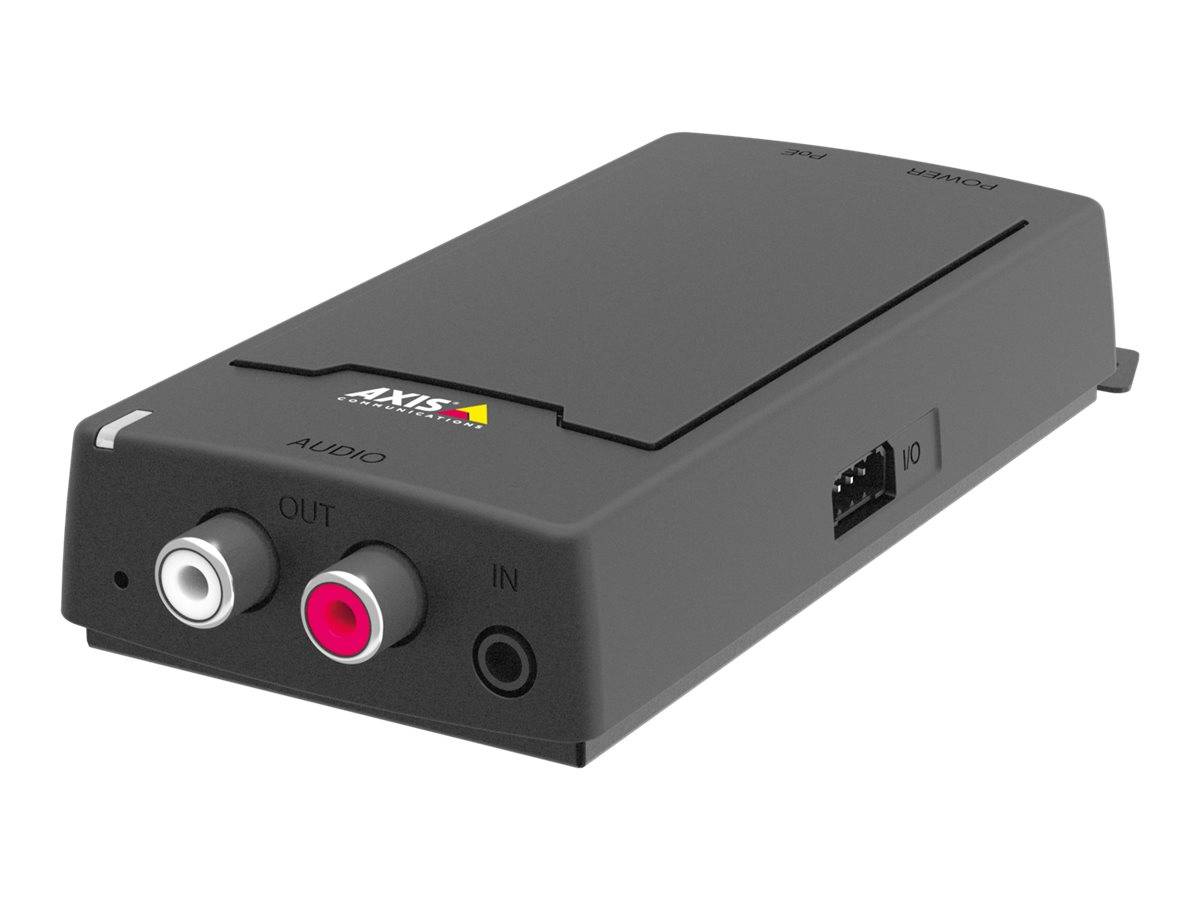

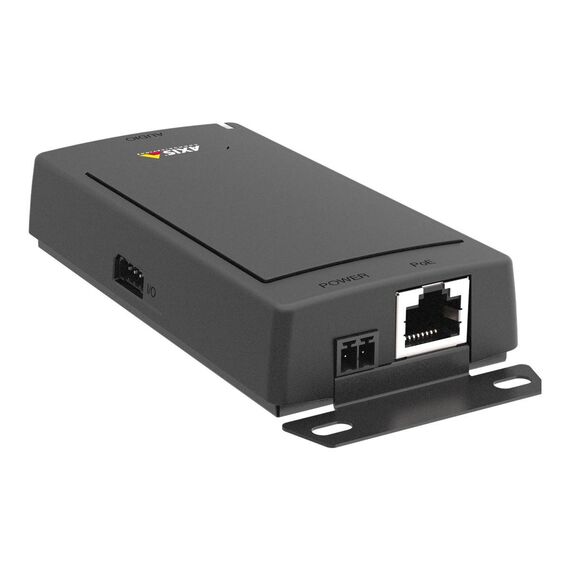

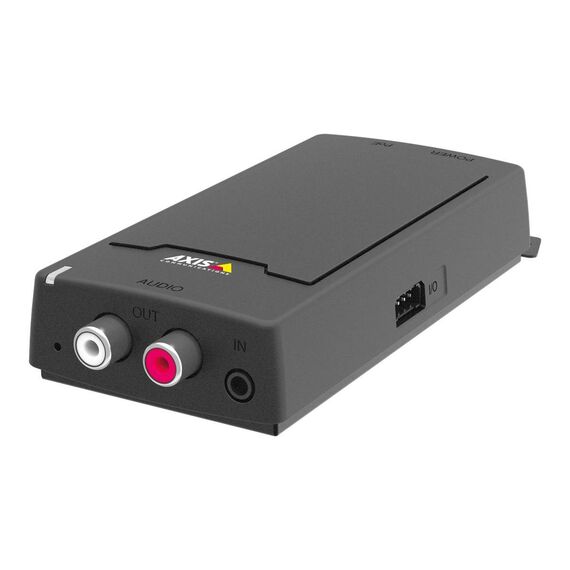

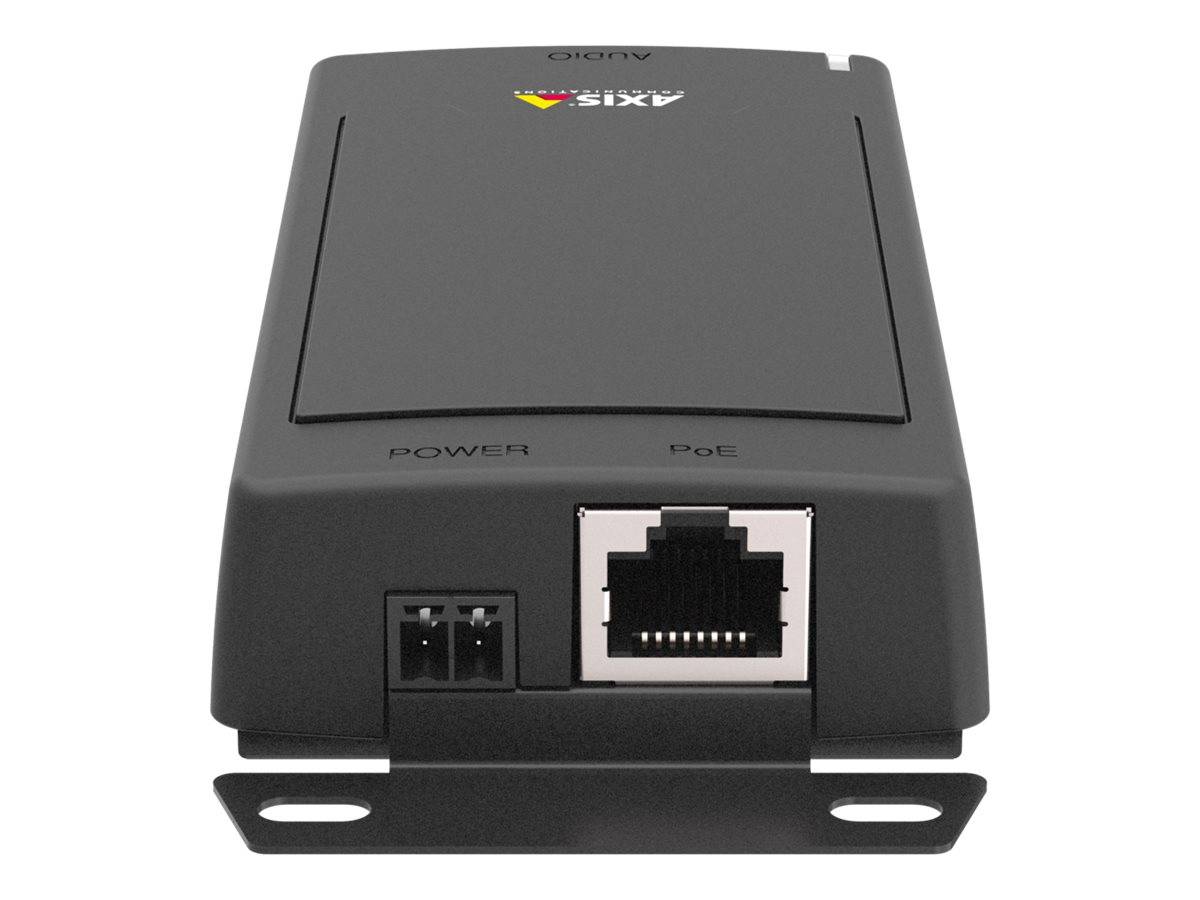

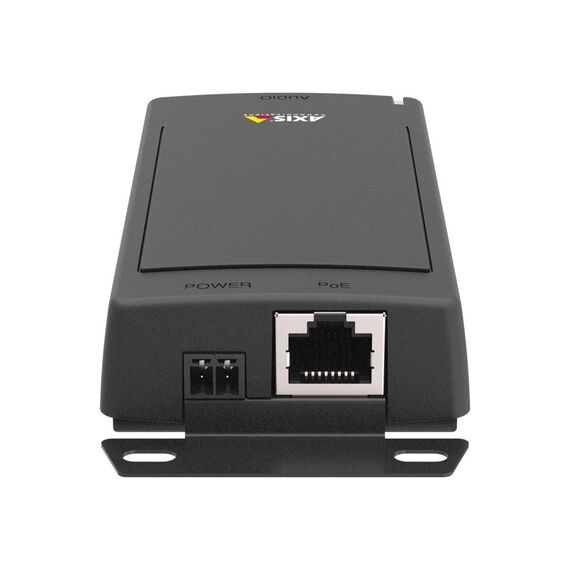

AXIS C8110 / Audio extender | 02370-001
02370-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Audio extender |
| Form Factor | External |
| Built-in Devices | 512 MB RAM, 512 MB flash, microSDXC card reader |
| Colour | Black, NCS S 9000-N |
| Localisation | Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe |
| Networking | Networking |
| Connectivity Technology | Wired |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SFTP, SMTP |
| Features | Power over Ethernet (PoE), IPv6 support, IP address filtering, IPv4 support, Management Information Base (MIB) II, HTTPS encryption, password protection, digest authentication, user access log, centralised certificate management |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, G.711, G.726 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (PoE) - RJ-45 female ¦ 1 x Digital I/O - 4 pin terminal block ¦ 1 x audio line-in - mini jack female ¦ 1 x audio line-out - RCA female x 2 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Hook & loop fastener, AXIS Camera Station licence key, I/O connector, power connector, AVHS authentication key |
| Compliant Standards | EN 61000-6-1, IEC 60529 IP20, EMC, EN 61000-6-2, FCC Part 15 B Class A, VCCI Class B, EAC, RCM, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, KN32 Class B, CISPR 32 Class B, UL 62368-1, EN 55035, CISPR 35, ICES-3(B)/NMB-3(B) |
| Power | Power |
| Power Over Ethernet (PoE) | PoE Class 2 |
| Power Device | External power adapter (not included) |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Audio Manager Edge |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.8 cm |
| Depth | 5.6 cm |
| Height | 2.4 cm |
| Weight | 107 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 85% |
Features - AXIS - 02370-001
More Details
Product Code
CD92330
EAN Code
7331021076518
Manufacturer
AXIS
