AXIS FA1105 Sensor Unit 0913-001 Modular Camera Sensor 1080p 2.8 mm Lens 111 Degree Forensic WDR Indoor for FA51 FA54

Brand:
AXIS
AXIS FA1105 Sensor Unit 1080p 0913-001
AXIS FA1105 Sensor Unit 0913-001 Modular Camera Sensor 1080p 2.8 mm Lens 111 Degree Forensic WDR Indoor for FA51 FA54
€237.62 inc. VAT
Buy
0913-001
€199.68
€237.62 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
B093015
EAN Code
7331021052307
Manufacturer
AXIS

Quick Specs

Resolution
1080p, 25/30 fps
Lens / view
2.8 mm, 111° horizontal
Works with
AXIS FA51, FA51-B, FA54
Size
29 mm × Ø20 mm, 16 g
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS FA1105 Sensor Unit — discreet 1080p

1080p111° viewForensic WDRIndoor

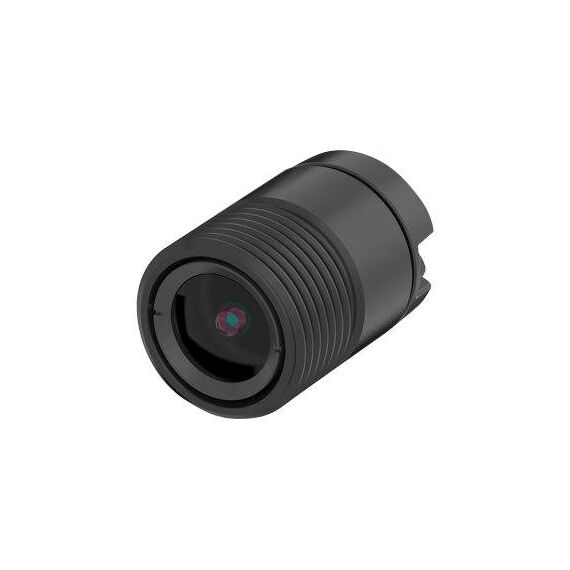

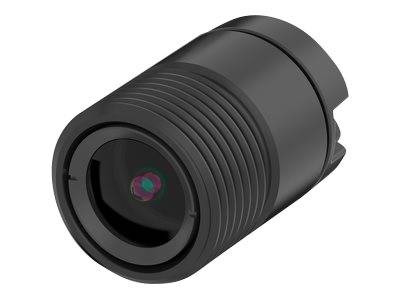

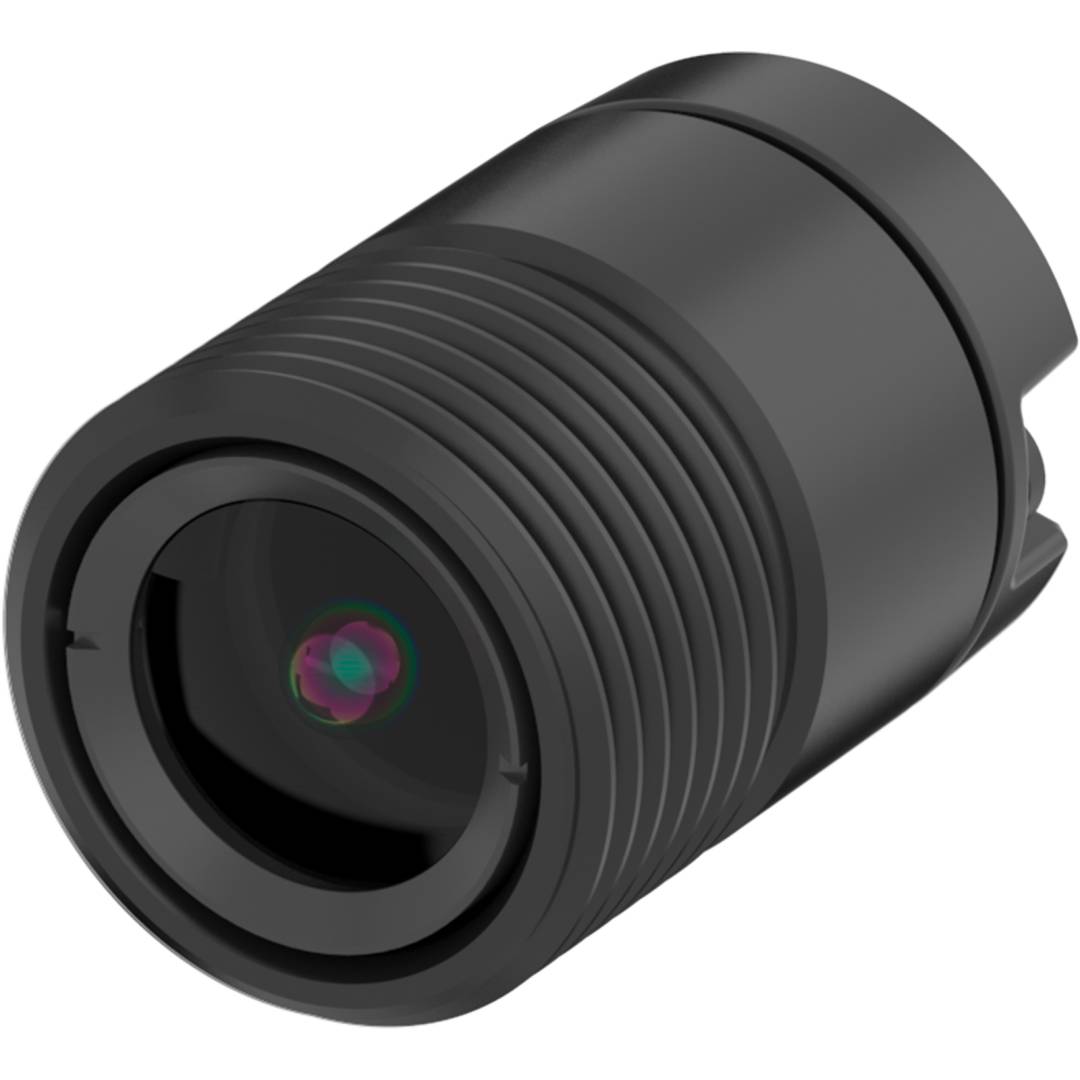

The AXIS FA1105 Sensor Unit (part number 0913-001) is the camera head of an AXIS modular camera system: a tiny 1080p sensor, just 29 mm long and 20 mm in diameter, that mounts flush and connects by cable to an AXIS FA main unit. It records Full HD at 25/30 fps through a replaceable 2.8 mm M12 lens with a 111° horizontal view, sees colour down to 0.2 lux and uses Forensic WDR for scenes with bright windows and dark corners. An 8 m sensor cable and a mounting bracket come in the box. In practice it is the discreet camera for ATMs, cash desks, shop shelves and reception counters.

Compatibility — check before buying:
Not a standalone camera. The sensor unit only works when it is connected to an AXIS FA main unit — AXIS lists the FA51, FA51-B and FA54 Main Units — which handles the network, power and recording. It is rated IP3X, so it is for indoor installation only. The FA1105 is the flush-mounted version with a wide 111° view; the AXIS FA1125 (0914-001) is the pinhole version with a 3.7 mm lens and 91° view. Not sure? Tell us your model and we check it for you.

Best For

✓ ATMs and self-service kiosks
✓ Cash desks and counters
✓ Retail shelves and displays
✓ Reception and entrance areas
✓ Discreet indoor surveillance
✓ Tight spaces where a camera must hide

Key Features


Tiny sensor
29 mm × Ø20 mm and 16 g, mounts almost invisibly.

Wide 111° view
2.8 mm replaceable M12 lens.

Forensic WDR
Keeps detail in scenes with strong backlight.

8 m cable included
Sensor cable, bracket and wall mounts in the box.

Technical Specifications

Identification
Brand AXIS
Product AXIS FA1105 Sensor Unit
Part Number 0913-001
EAN / GTIN 7331021052307
Model AXIS FA1105
Product Type Modular camera sensor unit (needs an AXIS FA main unit)
Sensor CMOS, 1920 × 1080 (1080p)
Frame rate 25/30 fps
Lens M12, 2.8 mm, replaceable
Field of view Horizontal 111°, vertical 61°
Minimum illumination Colour 0.2 lux
Wide dynamic range Forensic WDR
Physical & Environment
Dimensions 29 mm × Ø20 mm
Weight 16 g
Material Aluminium and plastic, PVC free
Rating IP3X (indoor)
Operating conditions −20 to 50 °C, 10–85% RH
Storage temperature −40 to 65 °C
System
Main units AXIS FA51, FA51-B, FA54
Power From the main unit over the sensor cable
Cable in the box 8 m, AXIS F7308 (black)
Optional AXIS F7315 white 15 m cable, F8204 mounting band, F8212 trim ring
Before You Order
Main unit FA51, FA51-B or FA54 required
Location Indoor only (IP3X)
Lens choice 2.8 mm wide view (pinhole version: FA1125)
In the Box

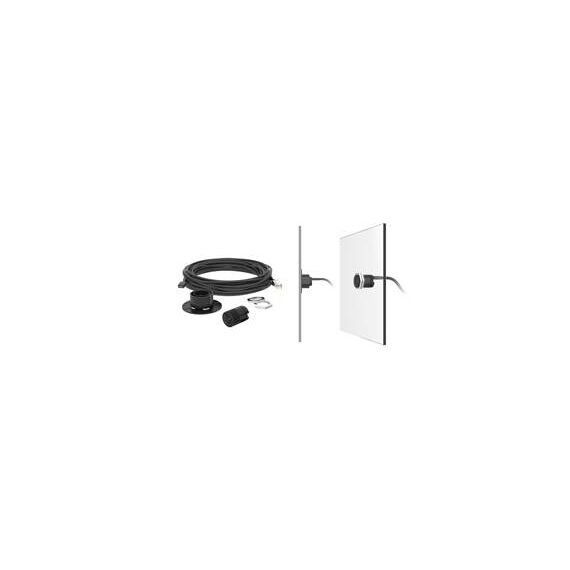

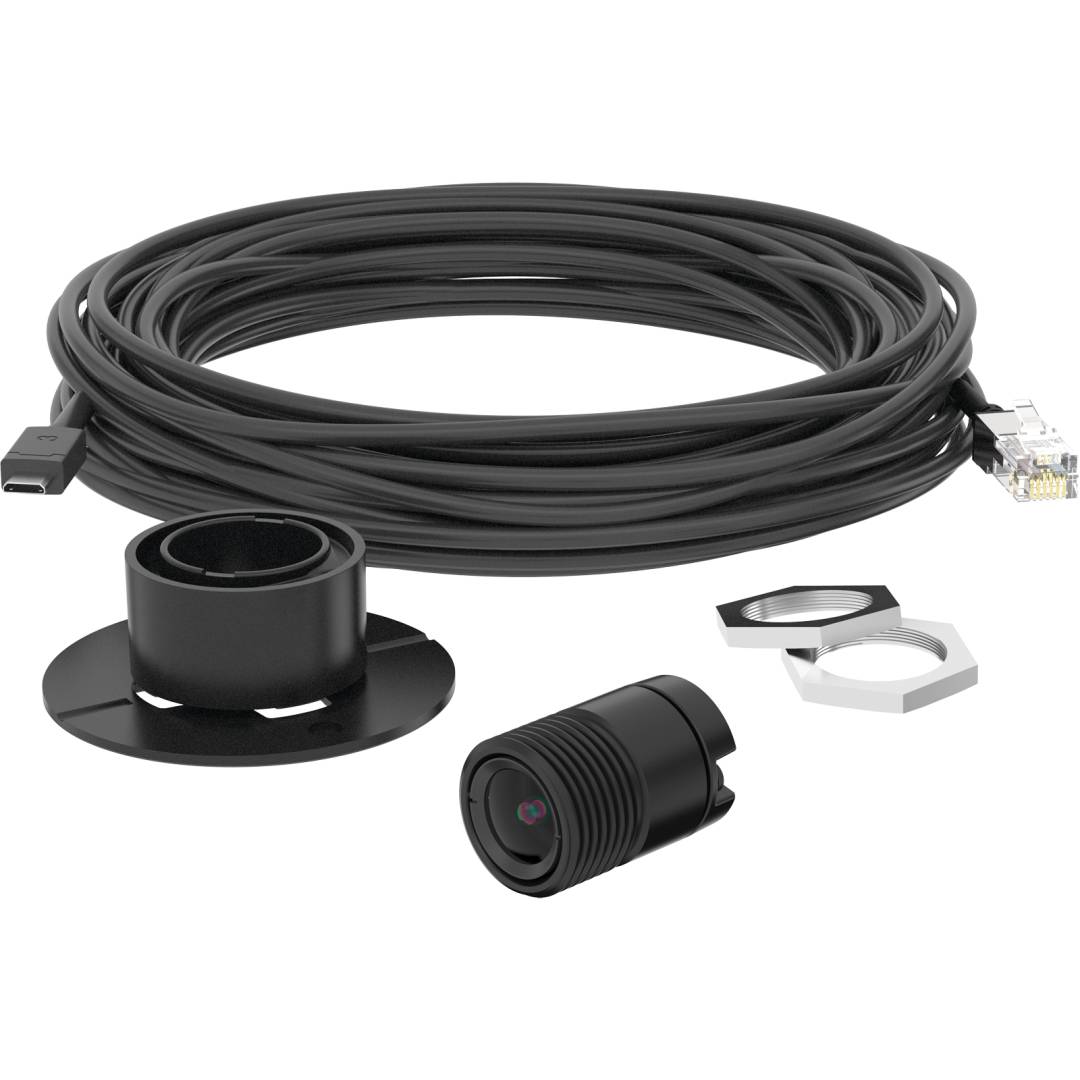

Included Sensor unit, 8 m cable AXIS F7308 (black), mounting bracket, locking nuts, AXIS RJ12 Plug Shielded, AXIS TF9905 Wall mount (adhesive, 5 pcs)
Not Included AXIS FA main unit; network switch; longer or white sensor cables
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 5-year warranty on the current product page, while the older datasheet states 3 years; we apply the term AXIS confirms for your unit. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I use it without a main unit?
No. It must be connected to an AXIS FA51, FA51-B or FA54 Main Unit.
Can it be installed outdoors?
No. It is rated IP3X, for indoor use.
How long is the included cable?
8 m (AXIS F7308, black).
What is the difference from the FA1125?
The FA1125 is a pinhole sensor with a 3.7 mm lens and 91° view; the FA1105 has a 2.8 mm lens and 111° view.
Singular Expert Insight
Modular FA cameras put only a tiny sensor where it is seen and keep the electronics out of sight — ideal for ATMs, counters and shelves. Plan the cable route to the main unit first; the 8 m cable in the box covers most installations. For the rest of the system, see our IP cameras.

Buyer’s Guide

Buy it if

You build a discreet indoor AXIS FA system and need a wide 1080p view.

Skip it if

You need an outdoor camera or a camera that works on its own.

Also consider

AXIS FA1125 Sensor Unit (0914-001) — pinhole version.
