AXIS TP3201 Recessed Mount 01757-001 Drop Ceiling Mount for AXIS M3215-LVE and M3216-LVE Dome Cameras Plenum Suitable
Brand:
AXIS
AXIS TP3201 Recessed Mount 01757-001 Drop Ceiling Mount for AXIS M3215-LVE and M3216-LVE Dome Cameras Plenum Suitable
€148.62 inc. VAT
01757-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS TP3201 Recessed Mount
RecessedDrop ceilingM3215/M3216-LVEPlenum suitable

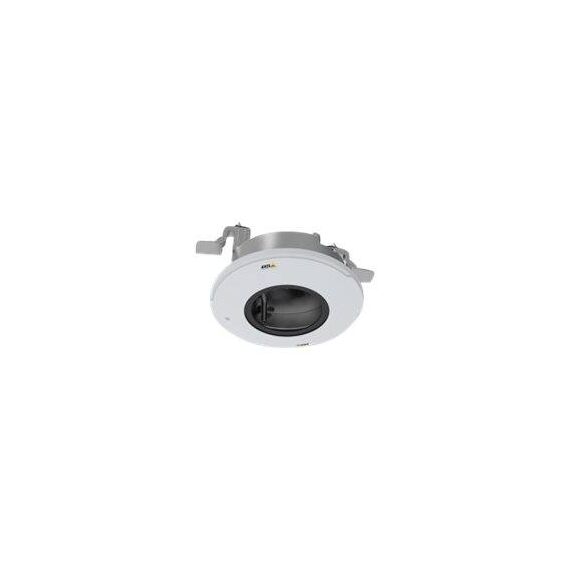

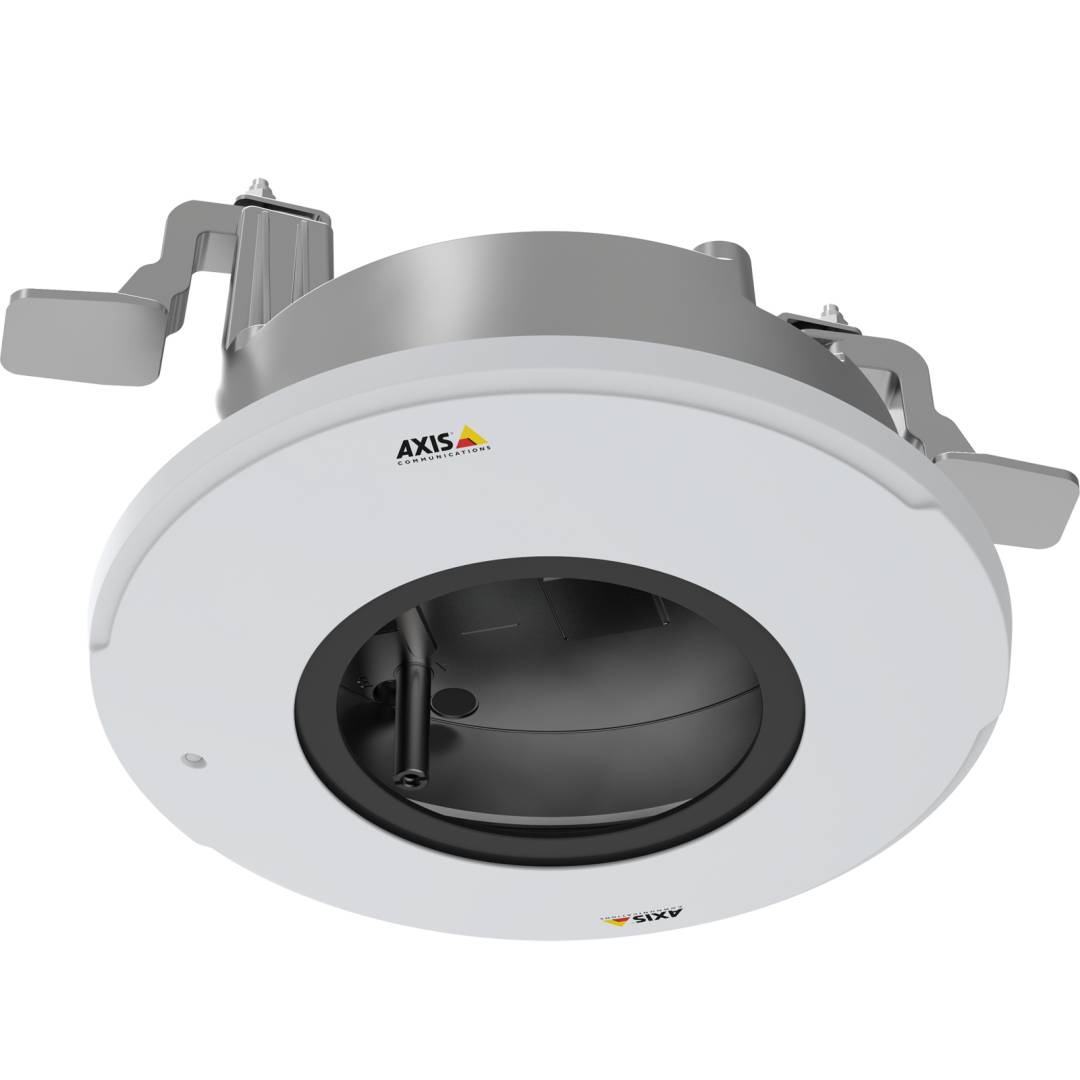

The AXIS TP3201 Recessed Mount (part number 01757-001) sets selected AXIS dome cameras into a drop ceiling, so only a flat ring and the dome are visible from the room. AXIS describes it as discreet video and audio surveillance for selected dome cameras and lists the M3215-LVE and M3216-LVE, with AXIS Device Microphone A or B as optional audio. The enclosure is metal alloy with ½″ (M20) and ¾″ (M25) conduit holes, and AXIS states it is suitable for plenum spaces. The outer ring is Ø246 mm. In practice it gives offices, shops and hotels a camera installation that blends into the ceiling.
Compatibility — check before buying:
Fits only the listed domes: AXIS M3215-LVE and M3216-LVE (older, discontinued models are also listed by AXIS). The camera, microphone and safety wire are not included; AXIS recommends its Safety Wire 3 m. AXIS does not publish weight, cut-out size or ceiling thickness range for this mount, so send us the ceiling details before ordering. Not sure? Tell us your model and we check it for you.
Best For
✓ Offices with drop ceilings
✓ Retail and showrooms
✓ Hotels and reception areas
✓ Discreet camera installations
✓ Audio-enabled domes
✓ Plenum ceilings
Key Features
Flush in the ceiling
Only the ring and dome remain visible.
Audio option
AXIS Device Microphone A or B can be added.
Conduit ready
M20 and M25 conduit holes.
Plenum suitable
AXIS lists it for air-handling spaces.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Recessed domes look tidy, but the cut-out has to be planned with the ceiling contractor. Order the safety wire with the mount. For the cameras, see our IP cameras.
Buyer’s Guide
Buy it if
You set an AXIS M3215-LVE or M3216-LVE flush into a drop ceiling.
Skip it if
Your ceiling is solid plaster or concrete.
Also consider
AXIS Safety Wire 3 m.
Features - AXIS - 01757-001
More Details
Product Code
B093688
EAN Code
7331021067400
Manufacturer
AXIS
