AXIS C8310 Volume Controller 02741-001 Backlit Touch Buttons Volume Mute 3 Sources for AXIS Network Speakers via I/O Port White

Brand:
AXIS
AXIS C8310 Volume Controller 02741-001
AXIS C8310 Volume Controller 02741-001 Backlit Touch Buttons Volume Mute 3 Sources for AXIS Network Speakers via I/O Port White
€268.19 inc. VAT
Buy
02741-001
€225.37
€268.19 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CI90898
EAN Code
7331021082755
Manufacturer
AXIS

Quick Specs

Controls
Volume +/−, mute, 3 sources
Connection
I/O port, 4-pin terminal block
Power
12 V DC from host, 0.6 W
Mounting
Wall or single gang box
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

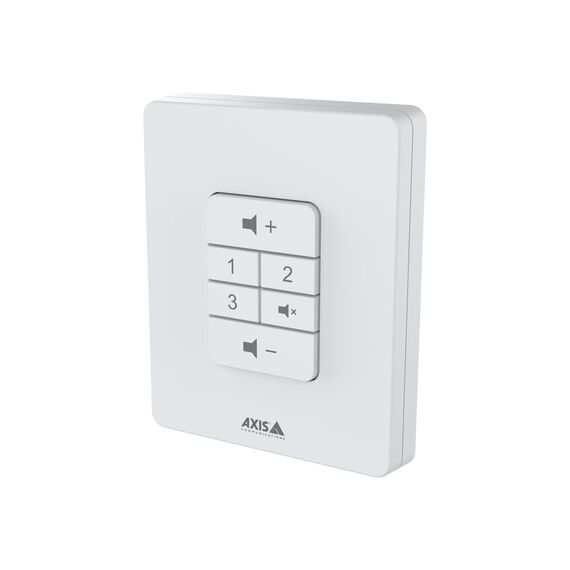

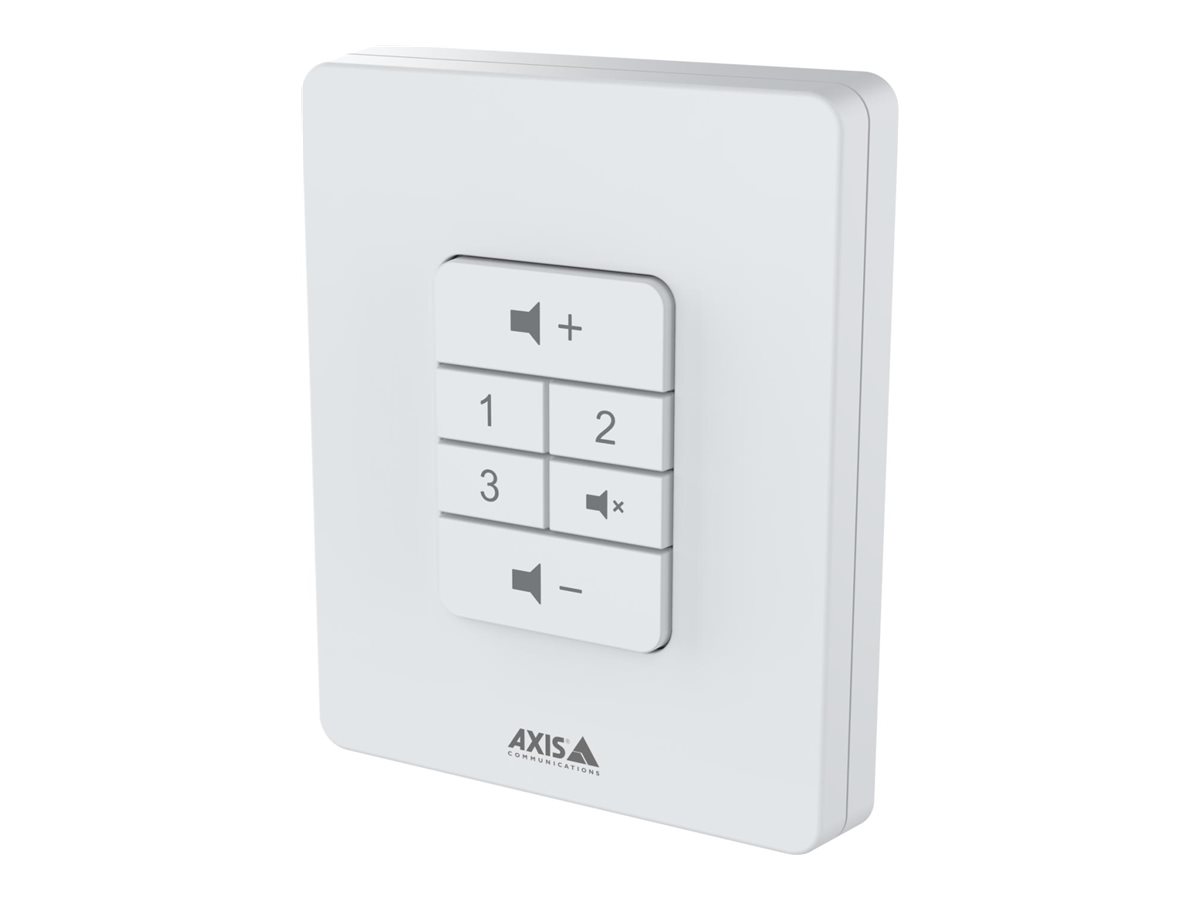

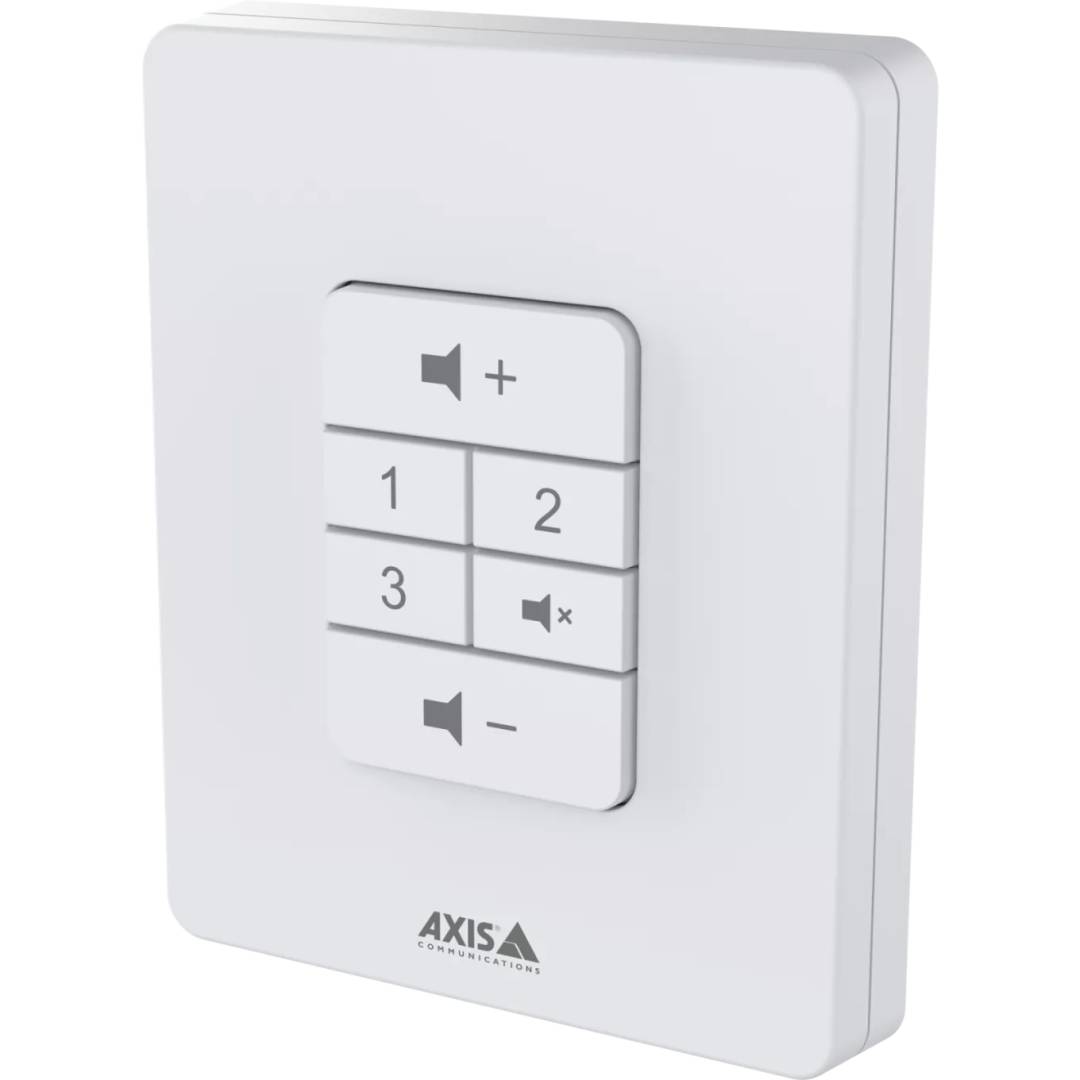

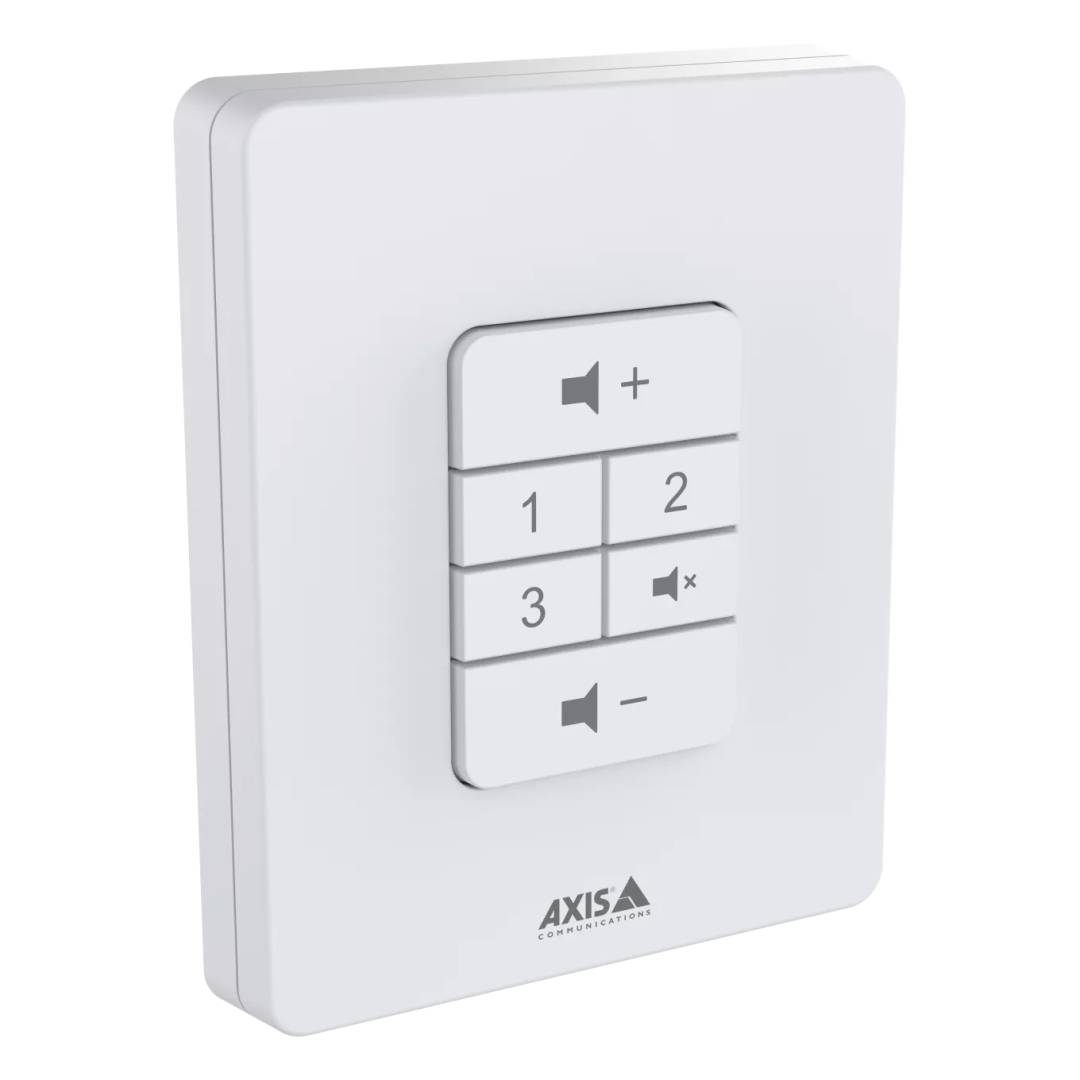

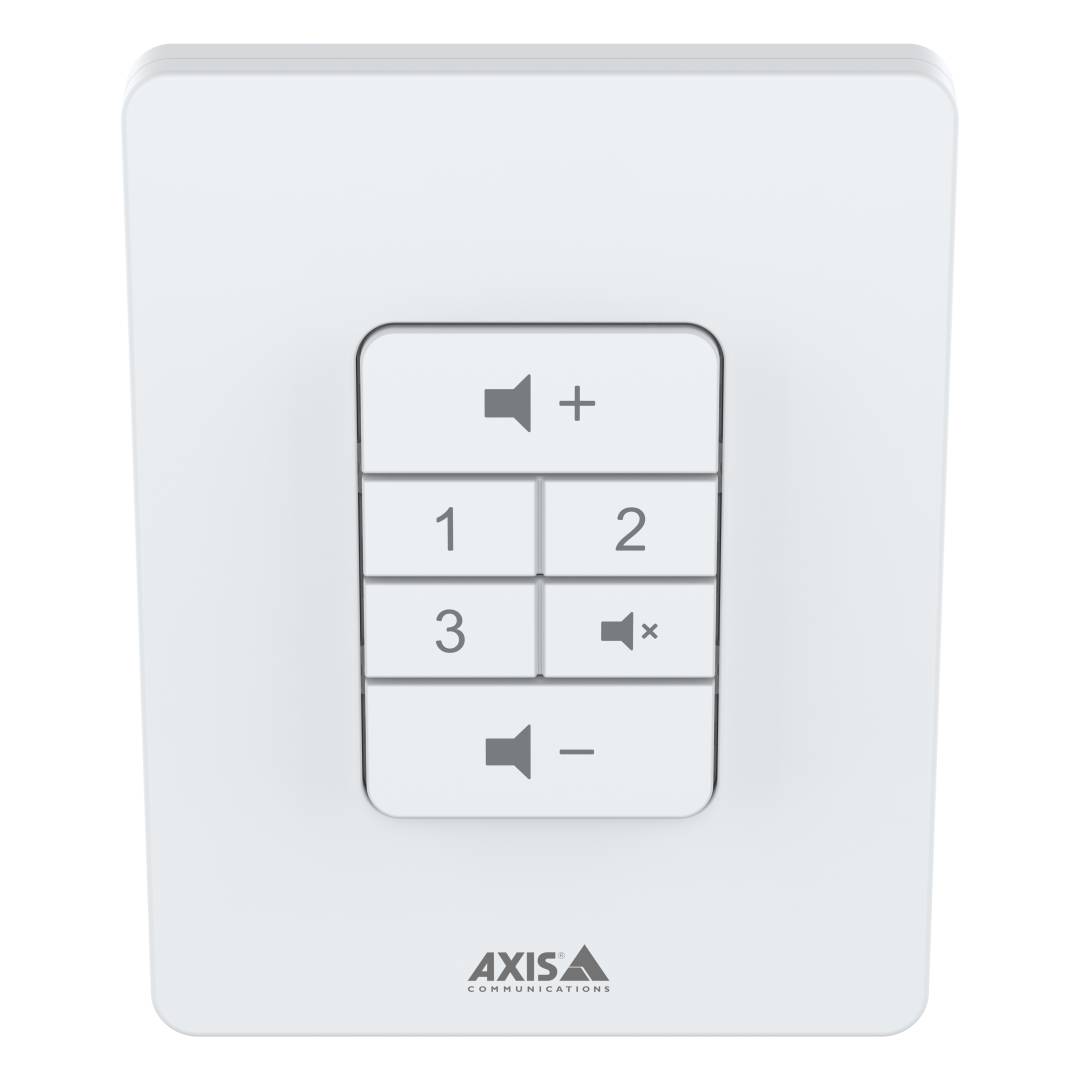

AXIS C8310 Volume Controller

Touch buttonsVolume & mute3 sourcesWhite

The AXIS C8310 Volume Controller (part number 02741-001) gives staff simple local control over an AXIS network audio system. Its backlit touch buttons raise and lower the volume, mute the sound and switch between three sources, and they can also be set to trigger other devices. It is wired to the I/O port of an AXIS audio device through a 4-pin 2.5 mm terminal block and draws its power (12 V DC, max. 0.6 W) from that device. The white plastic panel (NCS S 1002-B) is rated IP42, measures 114 × 15 × 93 mm and mounts on a wall or recessed in a single gang box.

Compatibility — check before buying:
Not a network device. It connects by wire to the I/O port of an AXIS network audio device with firmware 11.6 or later. AXIS lists the D4200-VE, C1110-E, C1111-E, C1210-E, C1211-E, C1510, C1511, C1610-VE, C1710, C1720, C8110 and C8210. The I/O port it uses is then not available for other functions. It is for indoor use (IP42). Not sure? Tell us your model and we check it for you.

Best For

✓ Shops and restaurants
✓ Offices and reception areas
✓ Meeting rooms
✓ Schools and classrooms
✓ Background music zones
✓ Staff control without an app

Key Features


Touch controls
Volume, mute and three source buttons.

Backlit
Buttons are visible in dim light.

Powered by the host
No separate power supply.

Gang-box ready
Wall or recessed mounting.

Technical Specifications

Identification
Brand AXIS
Product AXIS C8310 Volume Controller
Part Number 02741-001
EAN / GTIN 7331021082755
Model AXIS C8310
Product Type Wired volume controller for AXIS network audio devices
Controls
Buttons Volume +, volume −, mute, source 1, 2, 3 (backlit touch)
Other use Buttons can trigger other devices
Connection & Power
Connector 4-pin 2.5 mm terminal block to the host I/O port
Power 12 V DC from the audio device, max. 0.6 W
Host firmware AXIS OS 11.6 or later
Physical & Environment
Dimensions 114 × 15 × 93 mm
Weight 71 g (86 g with frame)
Material Plastic
Colour White, NCS S 1002-B
Rating IP42
Operating temperature 0 to 50 °C
Storage temperature −40 to 65 °C
Compatibility
AXIS audio devices D4200-VE, C1110-E, C1111-E, C1210-E, C1211-E, C1510, C1511, C1610-VE, C1710, C1720, C8110, C8210
Before You Order
Your audio device Has a free I/O port, firmware 11.6+
Wiring Cable run from controller to device
Mounting Wall or single gang box
In the Box
Included Volume controller (AXIS does not publish further box contents)
Not Included Network audio device; cable between controller and device; gang box
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 5-year warranty for this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it connect to the network?
No. It is wired to the I/O port of an AXIS audio device.
Does it need a power supply?
No, the audio device powers it.
Which speakers does it work with?
AXIS lists the C1210-E, C1211-E, C1510, C1610-VE, C8110, C8210 and others with firmware 11.6+.
Can it switch music sources?
Yes, between three sources.
Singular Expert Insight
A wall controller stops staff from asking IT to change the music volume. Keep the I/O port free for it when you design the system. See also our speakers.

Buyer’s Guide

Buy it if

You want local volume and source control for an AXIS audio system.

Skip it if

Your speakers are not AXIS network audio devices.

Also consider

AXIS C1210-E or C1211-E network speakers.
