AXIS F2135-RE Fisheye Sensor 02641-001 1080p 185° Modular Camera Sensor Unit 1.98mm IP66/IP67 for AXIS F9111/F9114 Black

Brand:
AXIS
AXIS F2135-RE 1080p Fisheye Sensor Unit 02641-001
AXIS F2135-RE Fisheye Sensor 02641-001 1080p 185° Modular Camera Sensor Unit 1.98mm IP66/IP67 for AXIS F9111/F9114 Black
€408.1 inc. VAT
Buy
02641-001
€342.94
€408.10 inc. VAT
Ships from EU stock: 49 item(s)
+ −
Add to wish list Ask a question
Product Code
CG33779
EAN Code
7331021080737
Manufacturer
AXIS

Quick Specs

Resolution
1080p up to 60 fps
View
185° H fisheye
Rating
IP66/IP67, IP6K9K
Needs
AXIS F91xx main unit
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS F2135-RE 1080p Fisheye Sensor Unit

185° fisheye1080p, 720p @ 180 fpsIP66/IP67For AXIS F91xx

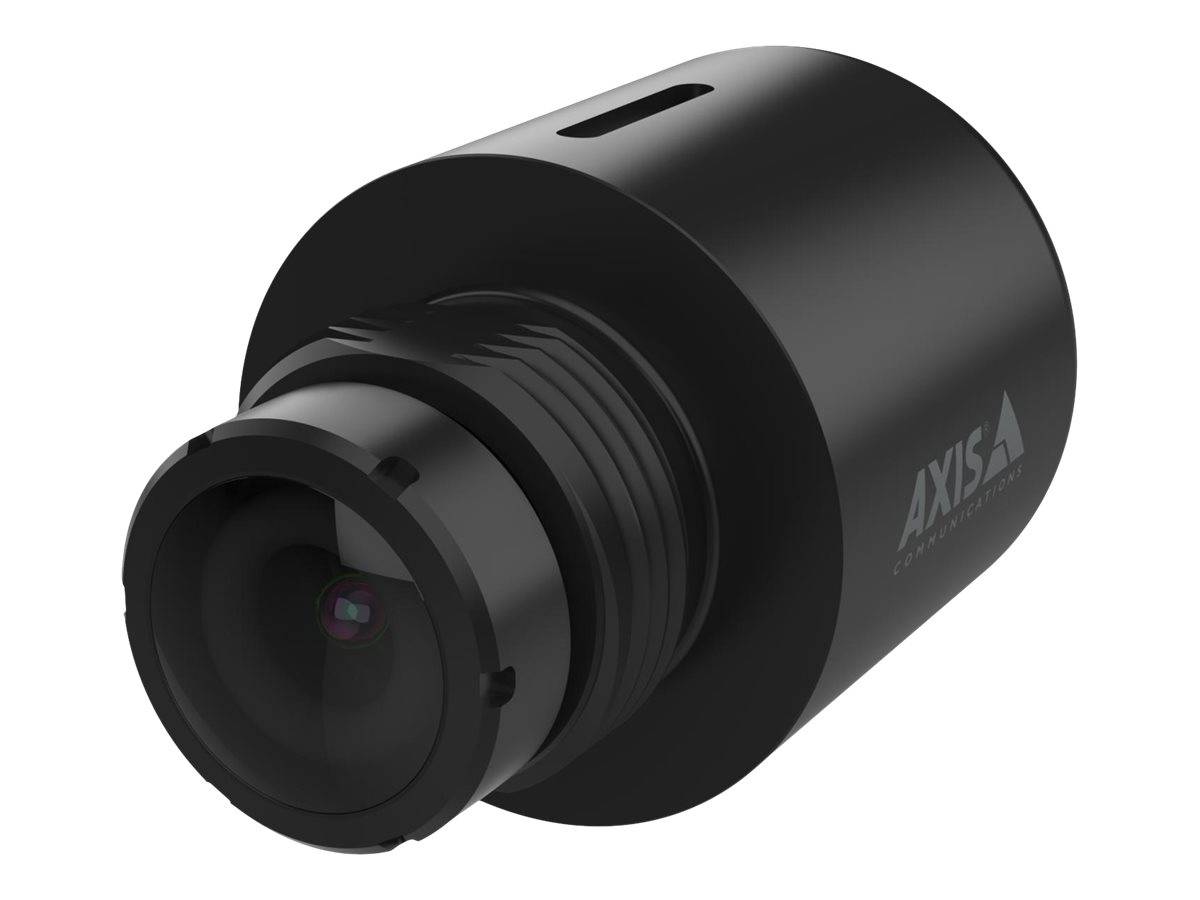

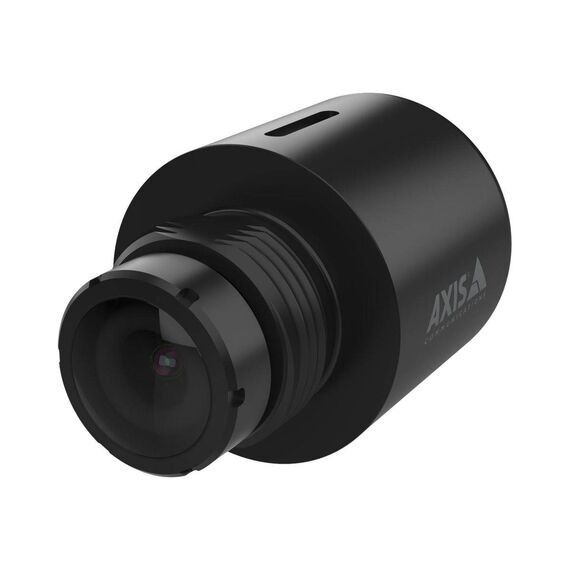

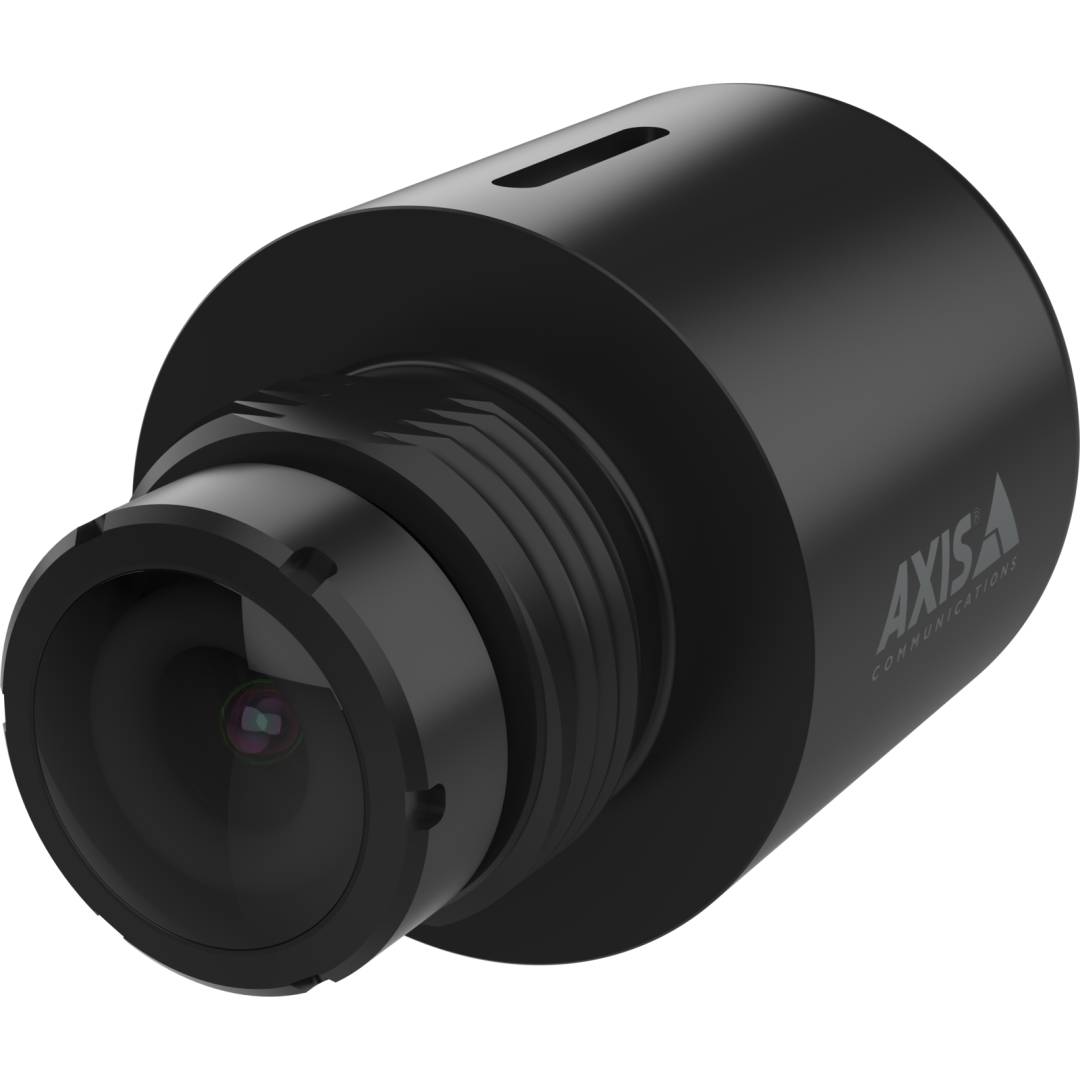

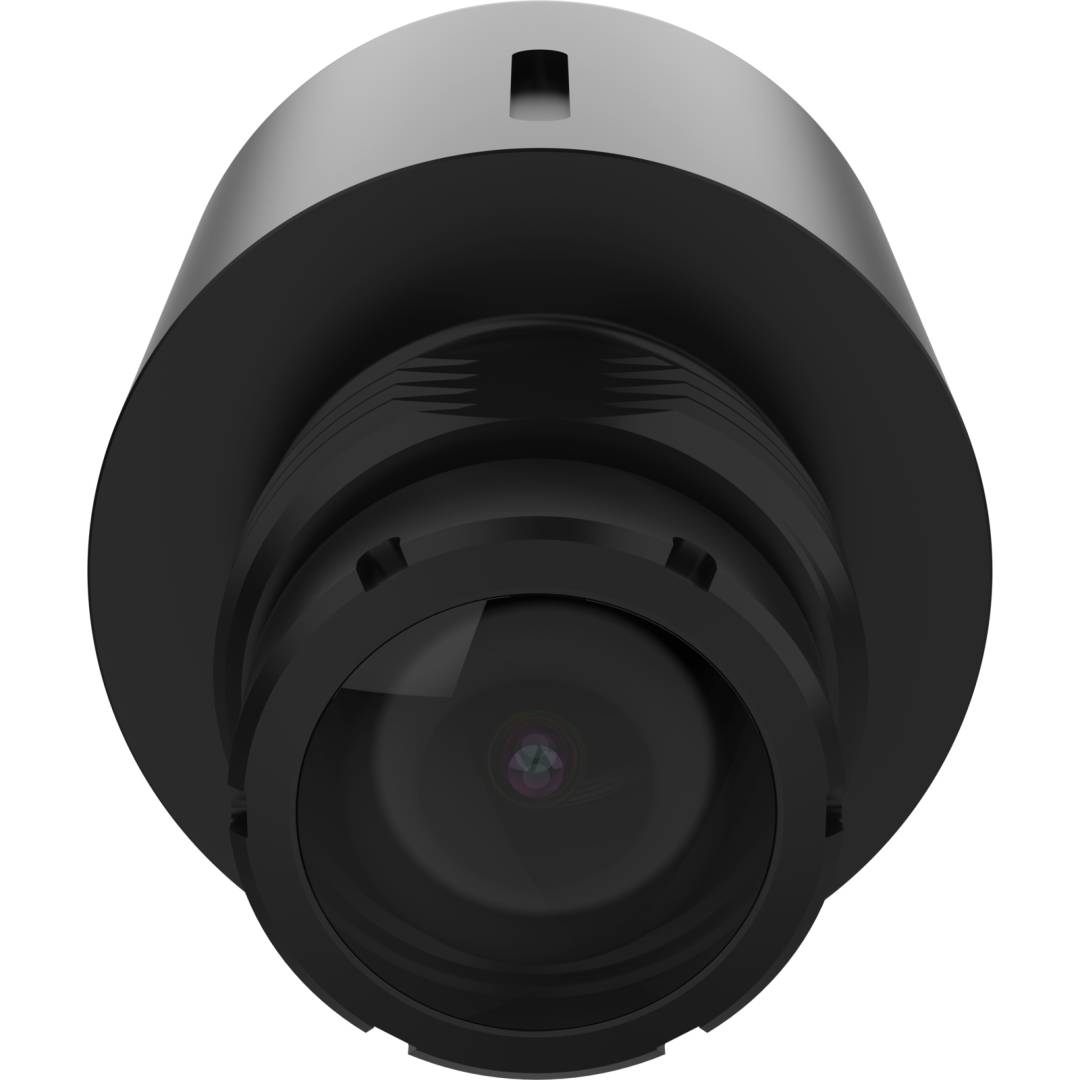

The AXIS F2135-RE Fisheye Sensor (02641-001) is a discreet 1080p sensor for the AXIS F-series modular system that sees 185° horizontally through a 1.98 mm fisheye lens. The 46 mm long, 50 g black aluminium sensor fits vehicles, kiosks, lifts and machines, while processing and networking stay in a separate AXIS F91xx main unit. It records 1080p at up to 60 fps (720p up to 180 fps) and is rated IP66, IP67, IP6K9K and NEMA 4X. Separating the sensor from the main unit lets you place a tiny lens in the middle of a ceiling or roof while the electronics sit in a cabinet up to 30 m away.

Compatibility — check before buying:
In the box: F2135-RE sensor unit, installation guide. Not in the box: AXIS F-series main unit, SMA-FAKRA sensor cable (up to 30 m), PoE switch, memory card. Not a standalone camera: it needs an AXIS F9104-B Mk II, F9111-R Mk II, F9114-B Mk II or F9114-R Mk II (older F9111, F9114, F9114-B and F9104-B are also listed) to work. Cable sold separately: no sensor cable is in the box; Axis supports SMA-FAKRA cables up to 30 m. Not for old main units: it does not work with the first-generation AXIS F34, F41 or F44 main units. Tell us which Axis main unit you have, or plan to buy, and we confirm the sensor and cable combination.

Best For

✓ Vehicles and transit
✓ Lifts and small rooms
✓ Kiosks and machines
✓ Ceiling-centre overviews
✓ Industrial washdown areas (IP6K9K)
✓ Adding a view to an existing AXIS F91xx system

Key Features


185° in one sensor
1.98 mm F2.0 fisheye lens, 185° H / 97° V at 1080p.

High frame rate
1080p up to 60 fps, 720p up to 180 fps.

Very rugged
IP66, IP67, IP6K9K and NEMA 4X, −40 °C to 60 °C.

Low power
4 W max., 1 W average, from the main unit.

Technical Specifications

Identification
Brand Axis Communications
Model AXIS F2135-RE Fisheye Sensor
Part Number 02641-001
EAN / GTIN 7331021080737
Product Type Modular camera sensor unit (fisheye)
Image & Lens
Image Sensor 1/2.8″ progressive scan RGB CMOS
Resolution 1080p up to 60 fps; 720p up to 180 fps
Lens 1.98 mm, F2.0, M12, replaceable
Field of View H 185°, V 97° at 1080p; H 120°, V 62° at 720p
Min. Illumination Colour 0.1 lux
System
Compatible Main Units AXIS F9104-B Mk II, F9111-R Mk II, F9114-B Mk II, F9114-R Mk II
Cable SMA-FAKRA, up to 30 m (separate)
Power 4 W max., 1 W average
Physical
Colour Black (NCS S 9000-N)
Protection IP66, IP67, IP6K9K, NEMA 4X
Material Aluminium
Dimensions Length 46 mm, Ø29.8 mm
Weight 50 g
Operating Temperature −40 °C to 60 °C
Ordering Notes
This Listing Single sensor, 02641-001
Multi-pack 8-pack sold as 02641-021
Predecessor AXIS F1035 Sensor Unit (discontinued); F2135-RE is its named replacement
Also Needed F91xx main unit and SMA-FAKRA cable
Typical Use Vehicles, lifts, kiosks, machines, small rooms
In the Box
Included F2135-RE sensor unit, installation guide
Not included AXIS F-series main unit, SMA-FAKRA sensor cable (up to 30 m), PoE switch, memory card
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Axis publishes a 5-year warranty for this product (see axis.com/warranty). Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

What else do I need?
An AXIS F-series main unit (F9104-B Mk II, F9111-R Mk II, F9114-B Mk II or F9114-R Mk II) and an SMA-FAKRA sensor cable of up to 30 m. The main unit connects to your network and PoE switch.
Why 185°?
A fisheye lens sees wall to wall from one point, ideal in the centre of a vehicle roof or small room. The image is circular; the main unit and VMS can present it as-is or de-warped depending on setup.
Can it be hosed down?
Yes. Axis rates it IP6K9K for high-pressure, high-temperature washdown, plus IP66, IP67 and NEMA 4X.
Is there a multi-pack?
Axis sells an 8-pack of the same sensor as 02641-021. This listing is the single sensor, 02641-001.
Singular Expert Insight
The F2135-RE is the widest sensor in Axis’s F-series. Where the camera must be invisible rather than wide, the AXIS F7225-RE pinhole (02363-001) uses the same main units. Build the rest of the system from our IP cameras and PoE switches.

Buyer’s Guide

Buy it if

You have or plan an AXIS F91xx main unit and need a rugged, wide 185° view from a tiny sensor.

Skip it if

You want a complete standalone camera, or you have a first-generation F34/F41/F44 main unit.

Also consider

AXIS F7225-RE pinhole sensor; more in our IP cameras.
