AXIS F9114-B Main Unit 01991-031 4-Channel Modular Barebone Video Unit for AXIS F-Series Sensors PoE or 10-48V DC Audio I/O

Brand:
AXIS
AXIS F9114-B 4-Channel Main Unit Barebone 01991-031
AXIS F9114-B Main Unit 01991-031 4-Channel Modular Barebone Video Unit for AXIS F-Series Sensors PoE or 10-48V DC Audio I/O
€990.77 inc. VAT
Buy
01991-031
€832.58
€990.77 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
CG33734
EAN Code
7331021070523
Manufacturer
AXIS

Quick Specs

Channels
4 sensor inputs
Video
Up to 3840×2160 per sensor
Power
PoE Class 4 or 10–48 V DC
Audio & I/O
2 in, 1 out, 4 I/O
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS F9114-B Main Unit — 4 channels

4 channelsBareboneAudio + I/OVehicle ready

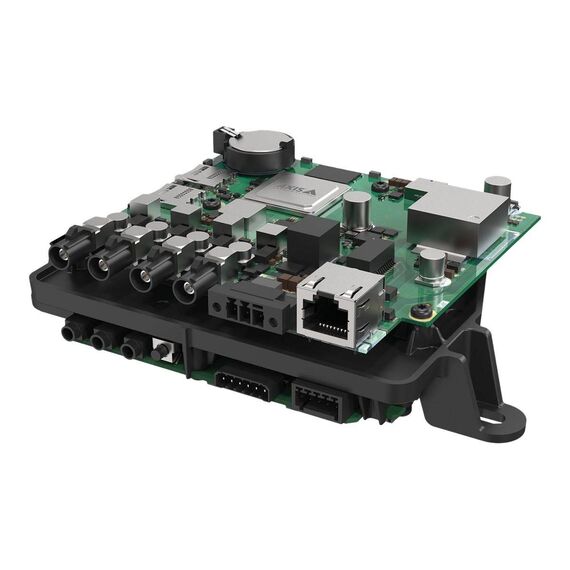

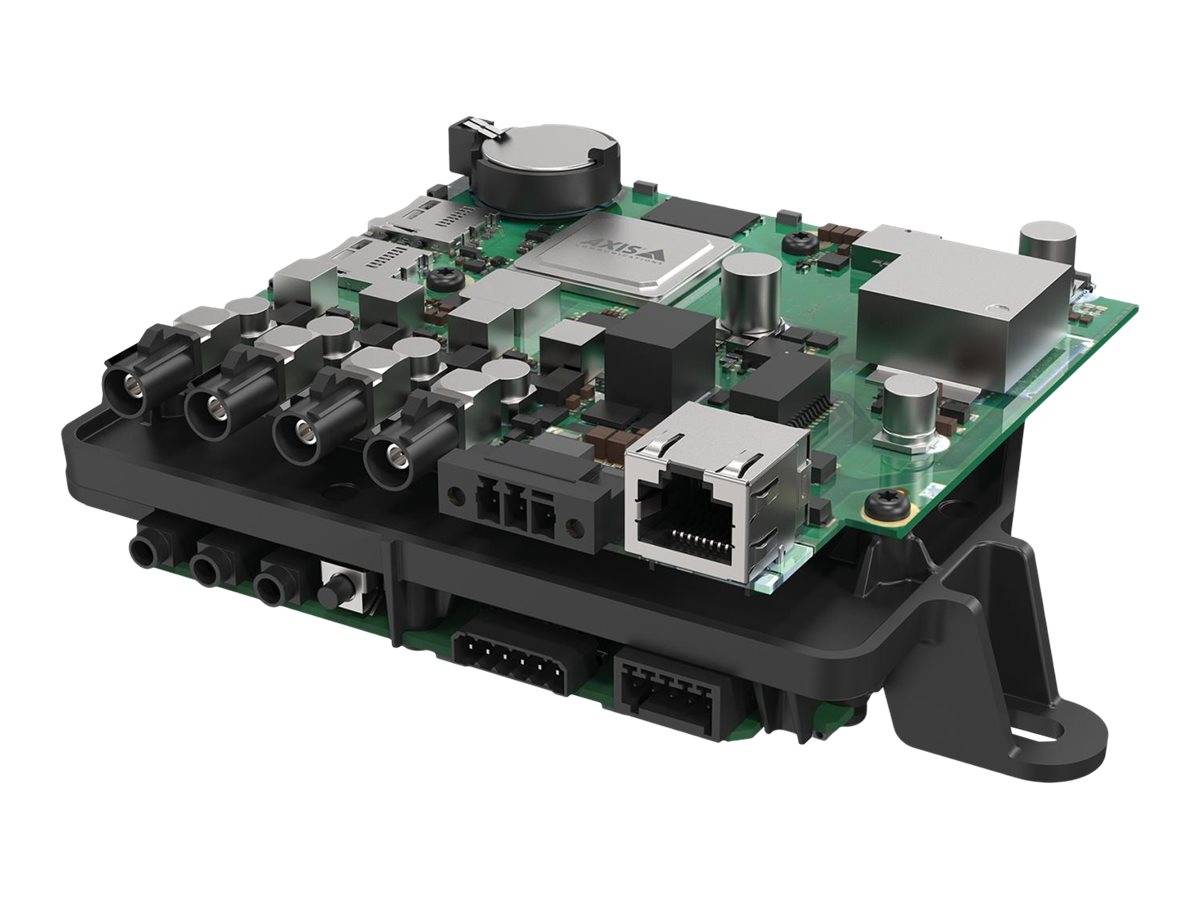

The AXIS F9114-B Main Unit (part number 01991-031) is a 4-channel modular barebone unit of the AXIS F-series. It is the “brain” of a split camera system: up to four small AXIS sensor units connect to it by cable, and the main unit handles encoding, storage and the network. AXIS aims it at emergency vehicles and buses, with ignition control, 2 audio inputs, 1 audio output, 4 configurable I/Os, RS232/RS485, GPS input and Modbus RTU. It runs on PoE (802.3at Class 4) or 10–48 V DC and records to a microSD card. The unit measures 43 × 123 × 160 mm and weighs 190 g. AXIS has replaced it with the F9114-B Mk II.

Compatibility — check before buying:
Sensor units are sold separately — AXIS lists the F21 series, F4105-LRE Dome and F7225-RE Pinhole. On its own the main unit records nothing. This is the first-generation F9114-B; the current model is the F9114-B Mk II (03001-001), and the unbranded F9114 Main Unit (01991-001) is a different product. AXIS keeps hardware support for the F9114-B to 2031. Tell us which sensors you plan to use and we confirm the combination.

Best For

✓ Buses and coaches
✓ Emergency vehicles
✓ Trains and trams
✓ Covert multi-sensor installs
✓ ATMs and kiosks
✓ Existing F-series systems

Key Features


4 sensor channels
Up to four AXIS F-series sensors on one unit.

Vehicle ready
Ignition control, GPS input, 10–48 V DC.

Audio and I/O
2 inputs, 1 output, 4 configurable I/Os.

Edge storage
microSD / SDHC / SDXC with encryption.

Technical Specifications

Identification
Brand AXIS
Product AXIS F9114-B Main Unit
Part Number 01991-031
EAN / GTIN 7331021070523
Model AXIS F9114-B
Product Type 4-channel modular main unit (barebone)
Successor AXIS F9114-B Mk II (03001-001)
Video
Channels 4
Resolution 1080p at 30 fps; up to 3840×2160 depending on sensor
Compression H.264, H.265, MJPEG, Zipstream
Sensors AXIS F21 series, F4105-LRE Dome, F7225-RE Pinhole (sold separately)
Interfaces
Network RJ45 1 GbE
Sensor inputs 4 × FAKRA
Audio 2 × external mic/line in, 1 × line out (3.5 mm)
I/O 4 configurable I/Os, 12 V DC 50 mA
Serial RS232 / RS485, GPS (NMEA 0183), Modbus RTU
Storage microSD / SDHC / SDXC with encryption
Power
Input PoE IEEE 802.3at Type 2 Class 4 or 10–48 V DC
Consumption Typical 9 W, max. 25.5 W
Vehicle Ignition control
Physical & Environment
Dimensions 43 × 123 × 160 mm
Weight 190 g
Operating conditions −40 to 60 °C, 10–85% RH
Status Replaced by AXIS F9114-B Mk II; hardware support to 2031
In the Box
Included Main unit, installation guide, Windows decoder 1-user licence
Not Included Sensor units; sensor cables; microSD card; power supply
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 5-year warranty for this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it include cameras?
No. It is a barebone unit; F-series sensor units are sold separately.
Can it run in a vehicle?
Yes, it has ignition control and accepts 10–48 V DC.
Is this the Mk II?
No, it is the first-generation F9114-B; the Mk II is 03001-001.
Where are recordings stored?
On a microSD card (not included) or on your recorder over the network.
Singular Expert Insight
Split systems like the F-series put a tiny sensor where a normal camera will not fit. Plan the sensors and cable lengths together with the main unit. For recorders and switches, see our PoE switches.

Buyer’s Guide

Buy it if

You extend or service an AXIS F-series system with F9114-B units.

Skip it if

You start a new project; consider the F9114-B Mk II.

Also consider

AXIS F9114-B Mk II Main Unit (03001-001).
