AXIS 30 W Outdoor Midspan PoE+ Injector, 1-Port Gigabit, IP66/IP67 Aluminium Housing, 802.3at, -40 to 65°C

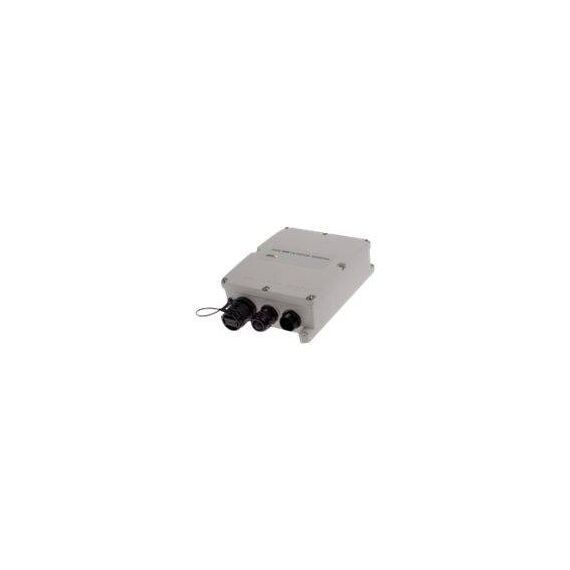

The AXIS 30 W Outdoor Midspan (part number 01944-001) is a single-port PoE+ injector in a sealed aluminium housing that adds up to 30 W of IEEE 802.3at power to a Gigabit Ethernet link right where the camera or radio is mounted outdoors. It is built for installers who have mains power on a pole, façade or perimeter fence but only a data cable — or a non-PoE switch — coming from the building.

Data enters on one shielded RJ45 port and leaves with power on the other at 54 VDC. Both RJ45 ports and the 3-pin AC connector are themselves IP-rated, so you connect everything without opening the enclosure. The unit auto-detects 802.3af (Class 3) and 802.3at (Class 4) devices, carries 6 kV surge protection on both the AC and PoE side, and runs from -40 °C to 65 °C in condensing humidity.

• AXIS 30 W Outdoor Midspan (01944-001)
• Installation guide
• An AC mains cable is not listed in the package contents — plan the mains connection to the IP68 AC connector with your electrician
• Pole mount AXIS TD9301 is sold separately

• Put the PoE source next to the camera: the 100 m Ethernet limit then counts from the switch to the midspan, and the short patch from midspan to camera stays outdoors.
• Use it when the indoor switch has no PoE, or when its PoE budget is already used up.
• Because the housing is IP66/IP67 and NEMA 4X, it can sit unprotected on a pole in rain, dust and sea air — no extra cabinet is needed.
• At 2 W idle and 36 W maximum draw, it adds little load to an outdoor mains circuit.

• It does not power IEEE 802.3bt (60 W / 90 W) devices.
• It is not a switch: one data input, one data+power output, no VLANs or management.
• It does not convert PoE to 12 V or 24 V — a camera without PoE needs a splitter.
• It needs a mains AC supply on site; it cannot be fed from another PoE port.
