Baaske Medical MI 1005 — 5 kV Network Isolator for Medical Equipment
5 kV isolationIEC 60601-1Up to 2.5 Gbit/sPlug-in, no installation

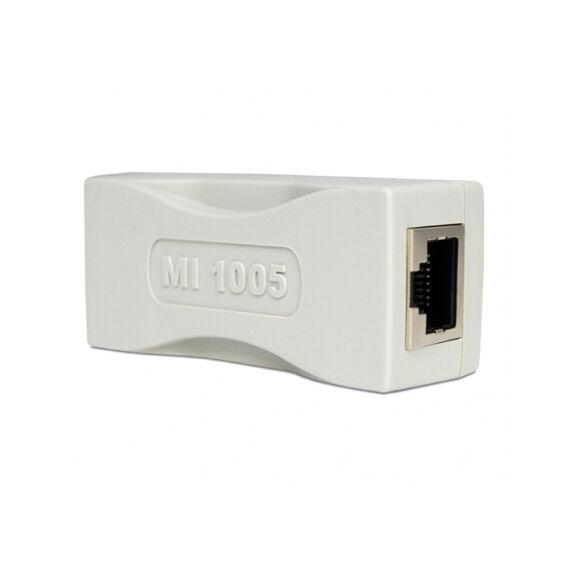

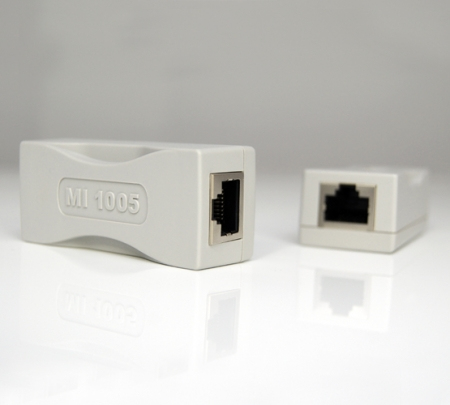

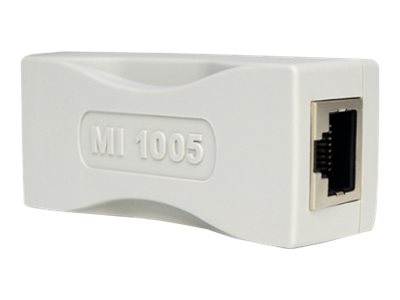

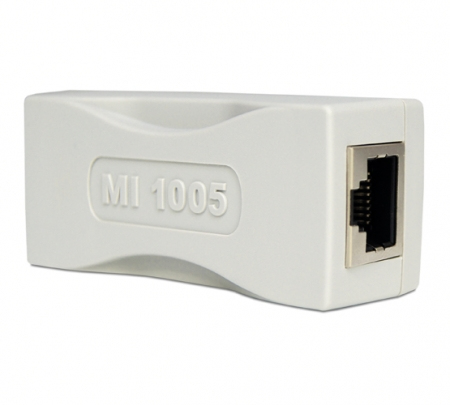

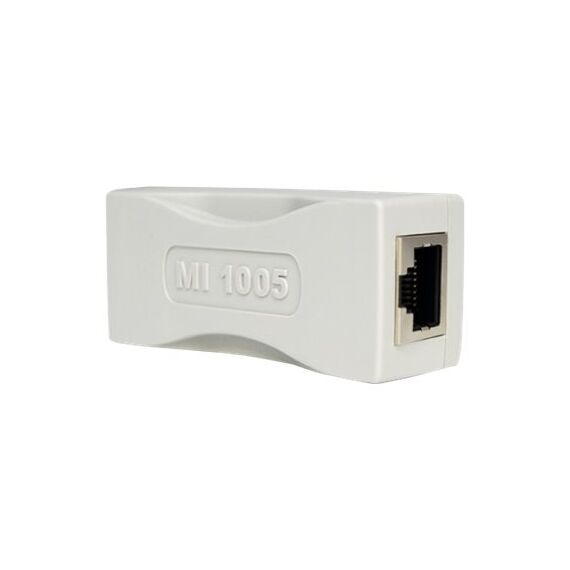

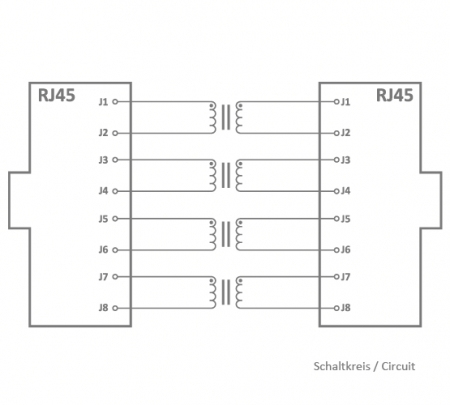

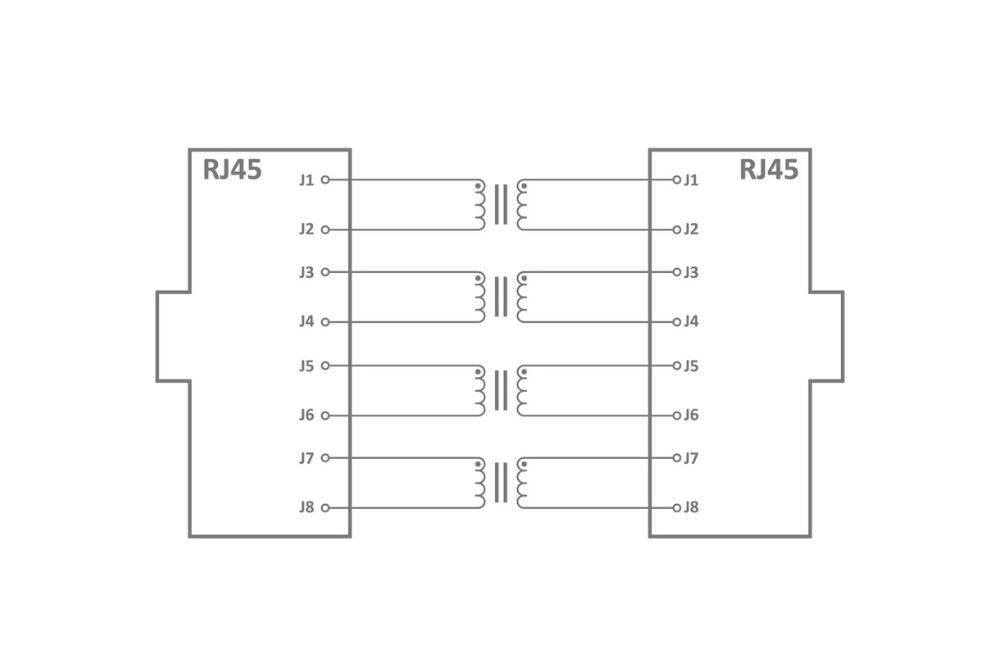

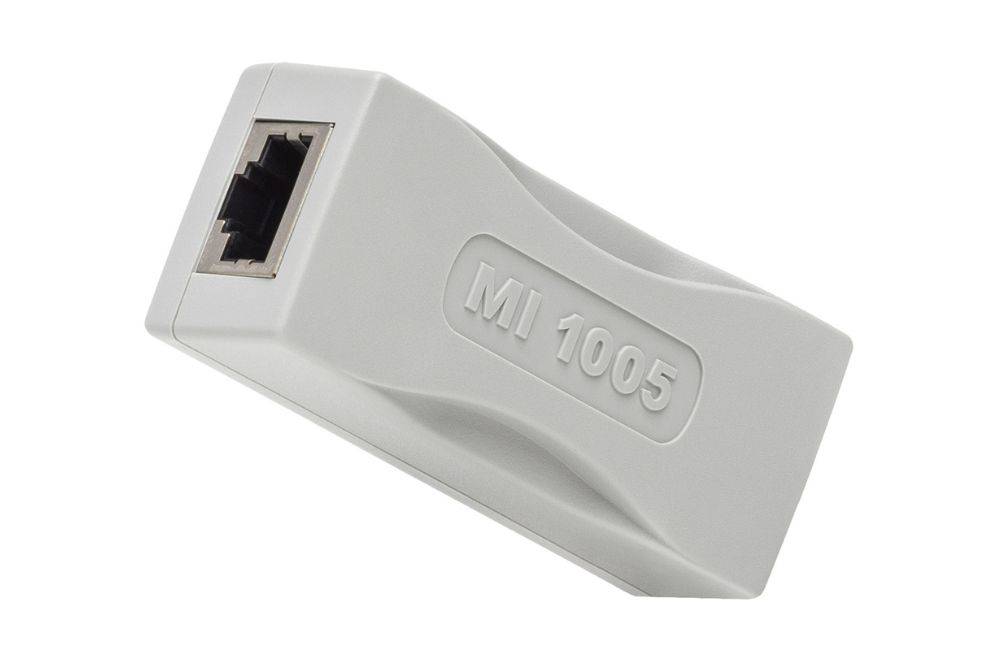

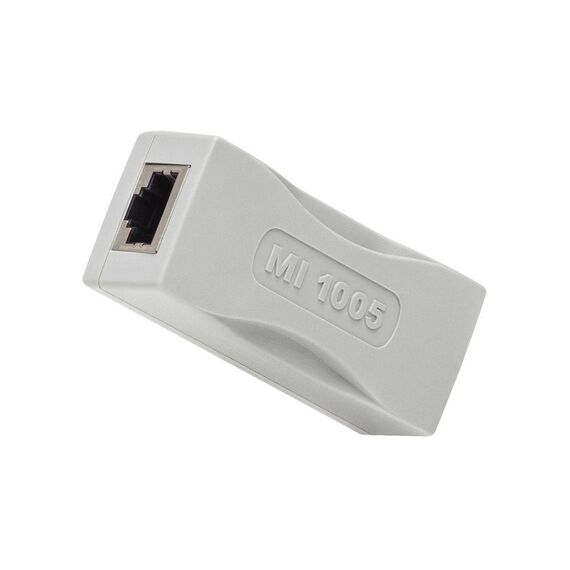

The Baaske Medical MI 1005 (2005674) is a compact Ethernet network isolator that galvanically separates a medical device from the building network, with 5000 V isolation and certification to IEC 60601-1 — for clinics, hospitals, dental and lab practices that connect ECGs, ultrasound units, imaging PCs or other patient-area equipment to the LAN.

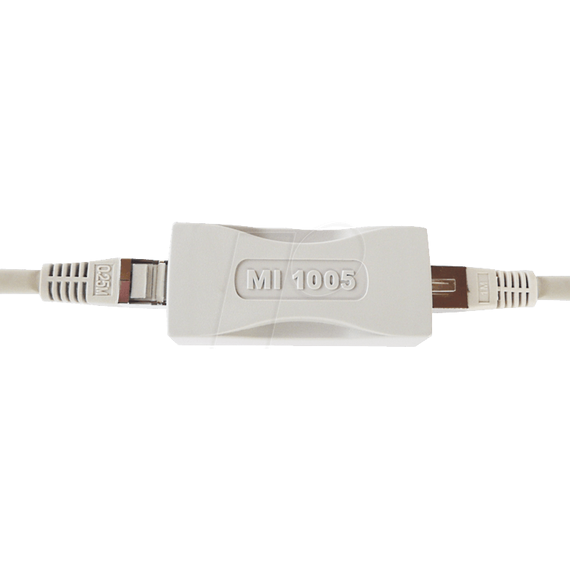

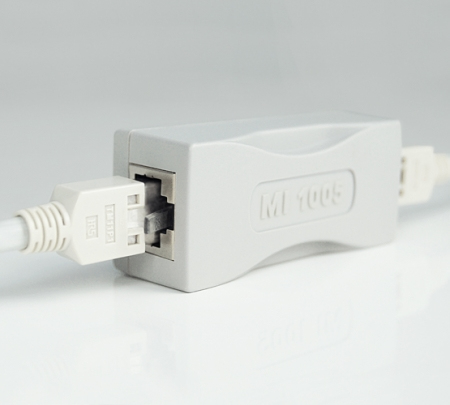

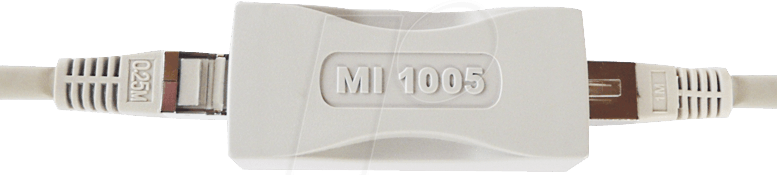

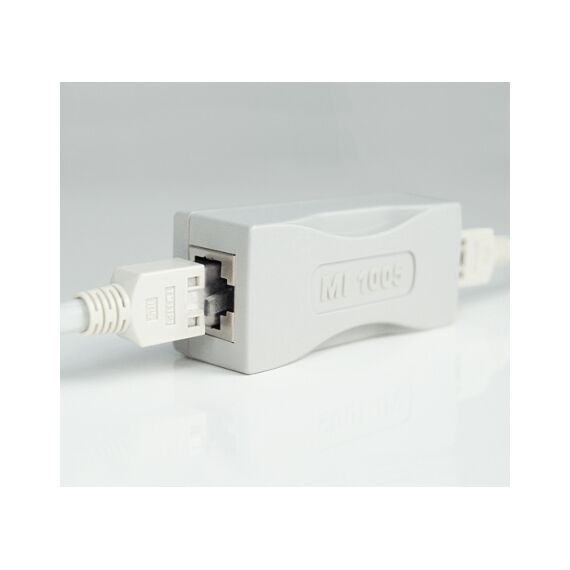

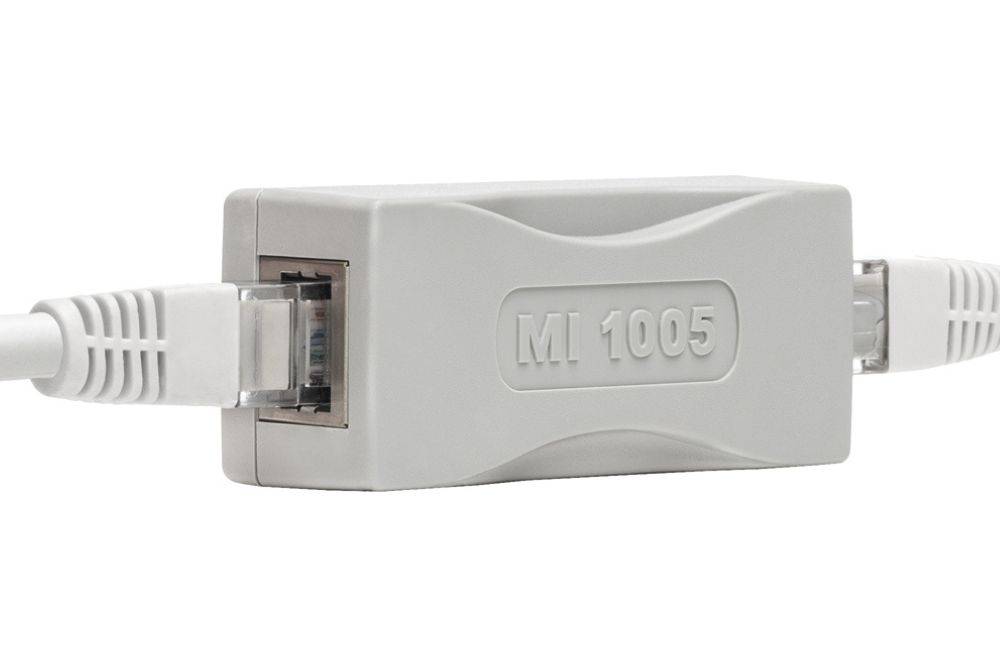

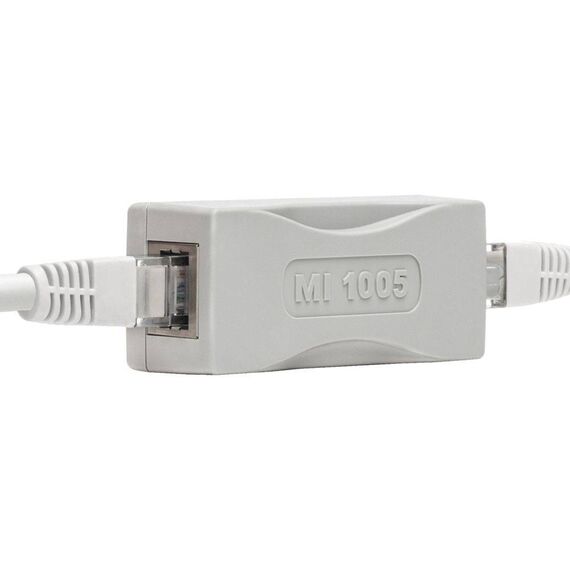

It sits in the network cable between the device and the wall socket or switch, with RJ45 in and out, and passes data at 10/100/1000/2500 Mbit/s. No installation or configuration is needed.
Before you order: Power over Ethernet is not listed in Baaske's specifications for the MI 1005 — plan a separate power source for PoE-powered devices.
What's in the Box
- 1 × Baaske Medical MI 1005 network isolator
What It Means in Practice
- Leakage currents and potential differences from the network side are kept away from patients, users and connected equipment.
- It helps meet IEC 60601-1 requirements when a medical electrical system is connected to IT networks.
- Plug it in-line with standard patch cables — no power supply or software.
- Full 2.5 Gbit/s support means it does not slow down modern imaging workstations.
What Will Not Work
- It is not a switch or media converter — it isolates one network link.
- It is not a surge protector for mains power.
- It does not include patch cables — Baaske sells matching Cat6 cables separately.
- It is not a rack-mounted device.
Key Features
5000 V isolation
Voltage resistance 5000 V, 50/60 Hz for 1 minute.
IEC 60601-1 certified
IEC 60601-1:2005/AMD1:2012/AMD2:2020 Ed. 3.2 and EN 60601-1-2:2015.
Up to 2.5 Gbit/s
IEEE 802.3bz 10/100/1000/2500BASE-T data throughput.

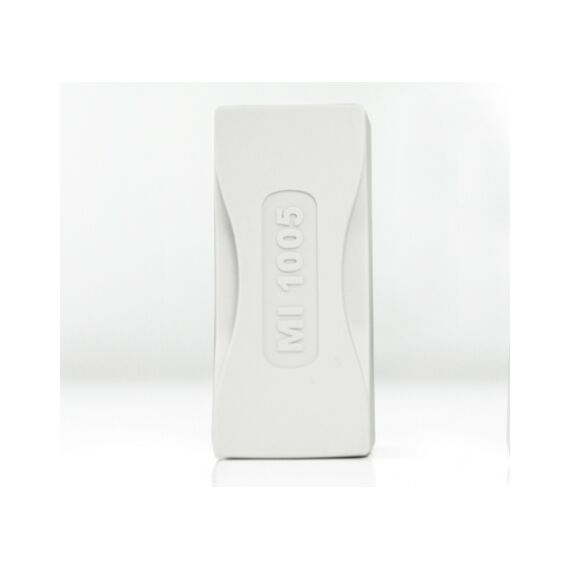

Compact housing

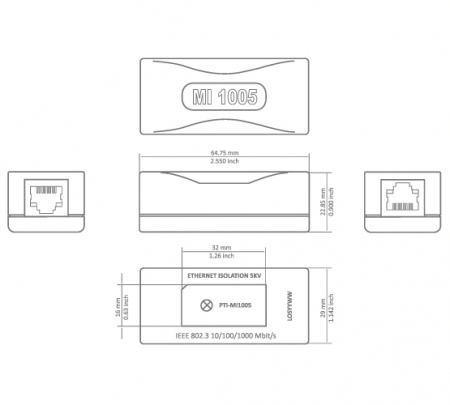

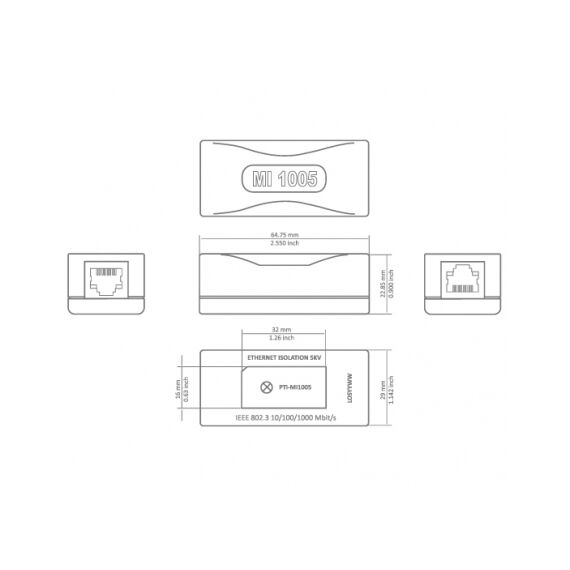

65 × 29 × 23 mm, 50 g, UL94 V-0 material.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Network isolators are a small part of meeting IEC 60601-1 in patient areas, and the MI 1005 covers modern multi-gigabit links. Pair it with good patch cables from our network cables range.
✓ Buy it if you connect medical equipment to a LAN and need 5 kV galvanic isolation.
✕ Skip it if the device is powered by PoE or you need mains surge protection.
→ Also consider Baaske Medical built-in or wall-mount MI 1005 variants for fixed installation.
Not sure which isolator your installation needs? Tell us the medical device and network setup and we will check before you order.
