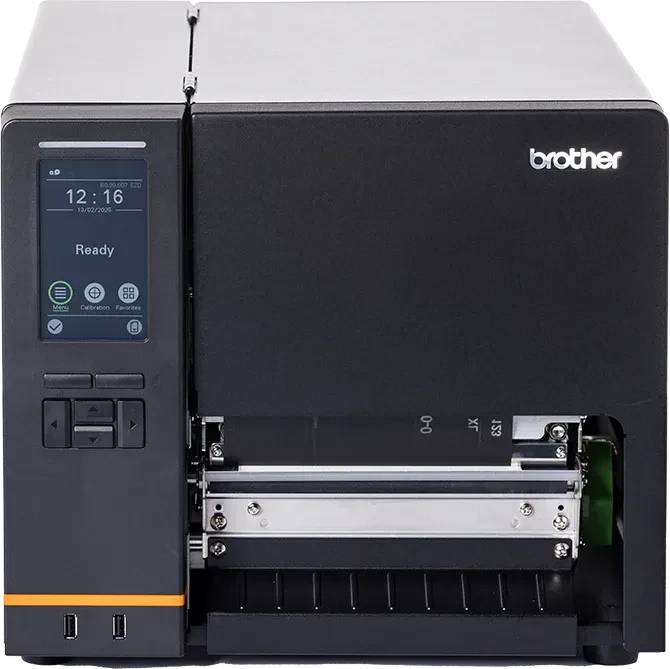

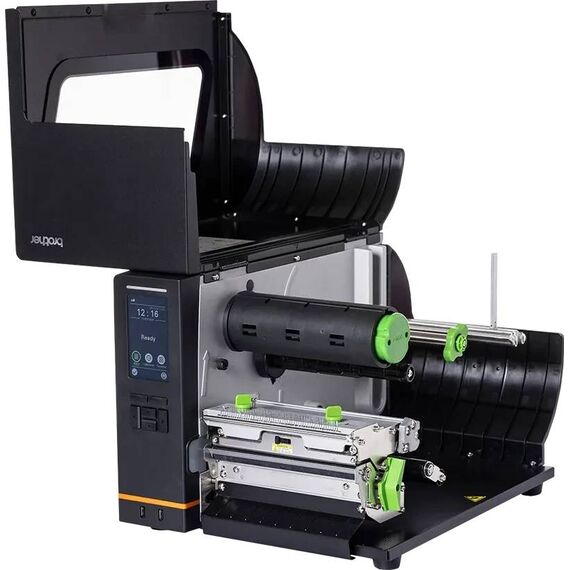

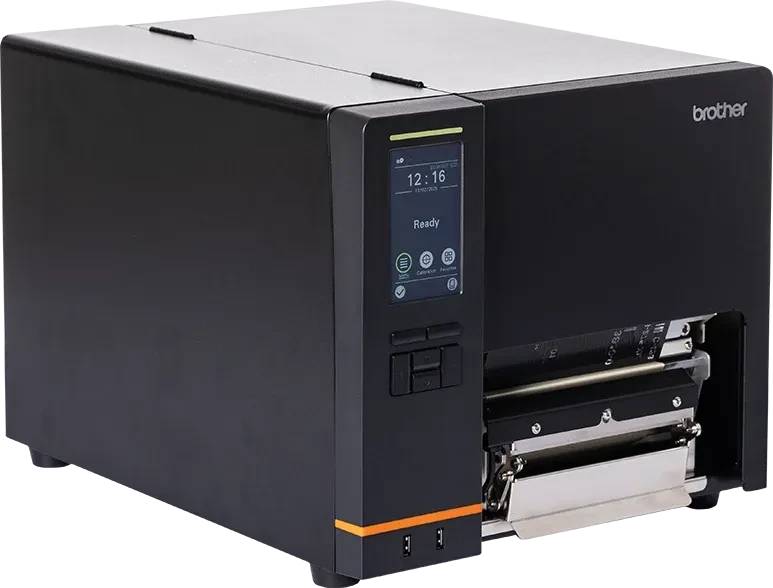

Brother TJ-6521TN — 6-inch, 300 dpi Industrial Label Printer for Logistics and Production
168 mm print width300 dpi254 mm/s (10 ips)450 m ribbon
The Brother TJ-6521TN is a 6-inch industrial label printer that prints up to 168 mm wide at 300 dpi and 254 mm per second, made for warehouses, production lines and shipping areas that print pallet labels, GHS chemical labels and large barcode labels all shift long. It prints by thermal transfer with a ribbon for durable labels, or direct thermal without a ribbon for short-life shipping labels.
It takes media rolls up to 208 mm outside diameter and a 450 m ribbon, so operators change consumables less often. A 4.3-inch colour touchscreen handles setup at the printer, and USB, 10/100 Ethernet and RS-232C serial are built in for connection to a PC, network or legacy equipment.
Before you order: Wi-Fi and Bluetooth are not built in — they need the optional Brother PA-WB-001 module. Cutter, peeler and rewinder are also optional accessories.
What's in the Box
- Brother TJ-6521TN printer
- AC power cord
- USB cable
- Documentation
What It Means in Practice
- Labels up to 168 mm wide cover A6 shipping labels (105 x 148 mm) and wide pallet or drum labels in one pass.
- At 300 dpi, small 2D codes and fine text on chemical (GHS) labels stay readable by scanners.
- Thermal transfer with wax, wax-resin or resin ribbon gives labels that survive handling, cold storage or abrasion; direct thermal is cheaper for labels that live only days.
- A 450 m ribbon and up to 208 mm media rolls mean fewer stops for consumable changes during a shift.
What Will Not Work
- No Wi-Fi or Bluetooth out of the box — without the PA-WB-001 module it connects only by USB, Ethernet or serial.
- No ribbon or labels are included; order media and ribbon matched to the printer width and your label material.
- It does not cut or peel labels unless the optional cutter or peeler is fitted.
- Media wider than 172.7 mm or narrower than 50.8 mm will not feed.
Key Features
Wide 6-inch format
Max print width 168 mm and media from 50.8 to 172.7 mm for pallet, drum and shipping labels.
300 dpi at 10 ips
254 mm/s print speed with 300 dpi resolution for sharp barcodes and small text.
Long-run consumables
450 m ribbon and media rolls up to 208 mm OD on a 38.1 or 76.2 mm core.
Touchscreen control
4.3-inch colour touchscreen (480 x 272) for settings and diagnostics at the printer.
Technical Specifications
| Identification |
| Brand |
Brother |
| Model |
TJ-6521TN |
| Part Number |
TJ6521TNZ1 |
| Type |
6-inch industrial label printer |
| Printing |
| Print method |
Thermal transfer / direct thermal |
| Resolution |
300 dpi |
| Max print speed |
254 mm/s (10 ips) |
| Max print width |
168 mm |
| Max print length |
6,604 mm |
| Media & Ribbon |
| Media width |
50.8 – 172.7 mm |
| Media thickness |
0.06 – 0.268 mm |
| Media types |
Continuous, die-cut, black mark, fan-fold, notch |
| Max roll OD |
208.3 mm |
| Core |
38.1 mm or 76.2 mm |
| Ribbon |
450 m, max OD 81 mm, width 50.8 – 178 mm, 25.4 mm core, ink in or out |
| Connectivity & Control |
| Interfaces |
USB 2.0, USB host, 10/100 Ethernet, RS-232C serial |
| Optional |
GPIO attachment; PA-WB-001 Wi-Fi/Bluetooth module |
| Memory |
256 MB RAM, 512 MB flash |
| Display |
4.3" colour touchscreen, 480 x 272 |
| Physical |
| Dimensions (W x D x H) |
357 x 510 x 313 mm |
| Weight |
approx. 17.9 kg |
| Power |
AC 100 – 240 V, 50/60 Hz |
| Optional accessories |
Cutter, label peeler, rewinder kit PA-RW-001 |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
5-year return-to-base warranty per Brother EU — claims handled through Singular |
Frequently Asked Questions
Do I need a ribbon?
Only for thermal transfer printing on standard labels. Direct thermal labels print without a ribbon but fade over time with heat and light.
Can it connect wirelessly?
Yes, with the optional PA-WB-001 Wi-Fi/Bluetooth module, which Brother lists as compatible with the TJ-6521TN.
How big is it?
357 x 510 x 313 mm and about 17.9 kg — plan a sturdy bench or cart, not a desktop shelf.
Singular Expert Insight · Buyer's Guide
The TJ-6521TN is a printer for volume: pick it when a 4-inch printer forces you to split pallet or GHS labels or when daily runs exhaust desktop ribbons. Most sites connect it over the LAN — the box has only a USB cable, so add a patch lead from our
network cables range.
✓ Buy it if you print wide labels (up to 168 mm) in volume and need 300 dpi for small codes.
✕ Skip it if your labels are 4 inches or narrower — a 4-inch industrial or desktop label printer costs less.
→ Also consider the optional cutter or peeler if labels must be dispensed one at a time on the line.
Tell us your label size, material and software (BarTender, ERP, WMS) and we will match media, ribbon and options before you order.
