EFB MK7001.0,5O Cat 6A S/FTP PiMF Patch Cable 0.5 m Orange Cat 7 Raw Cable LSZH RJ45 500 MHz 10GbE 4PPoE

Brand:
EFB
EFBElektronik Patch cable RJ45 (M) to RJ45 (M) MK7001.0,5O
EFB MK7001.0,5O Cat 6A S/FTP PiMF Patch Cable 0.5 m Orange Cat 7 Raw Cable LSZH RJ45 500 MHz 10GbE 4PPoE
€4.56 inc. VAT
Buy
MK7001.0,5O
€3.83
€4.56 inc. VAT
Ships from EU stock: 41 item(s)
+ −
Add to wish list Ask a question
Product Code
04:261948
EAN Code
4049759126506
Manufacturer
EFB
Quick Specs
Standard
Cat 6A (500 MHz, 10GbE)
Shielding
S/FTP PiMF, Cat 7 raw
Length
0.5 m
Colour
Orange
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB MK7001.0,5O Cat 6A S/FTP Patch Cable, 0.5 m Orange

Cat 6A · 10GbECat 7 raw cableLSZH · 4PPoE0.5 m · Orange

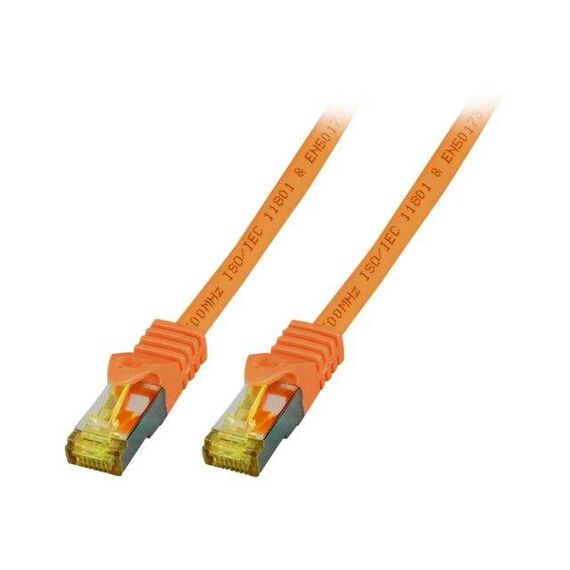

The EFB-Elektronik MK7001.0,5O is a 0.5 m orange Cat 6A S/FTP patch cable built on Cat 7 raw cable, designed for short 10 Gigabit Ethernet links between patch panels, switches and servers in racks. Part number MK7001.0,5O (EAN 4049759126506) combines 4×2 AWG 26/7 copper pairs in metal foil with an overall braid, an LSZH halogen-free jacket and Cat 6A RJ45 plugs (IEC 60603-7-51) with gold contacts and locking-lever protection. Typically in stock with fast delivery across Cyprus.
Before you buy — compatibility note
The raw cable is printed Cat 7 / 600 MHz, but the RJ45 plugs make this a Cat 6A (Class EA, 500 MHz) channel — that is what the cord delivers end to end, and it is all 10GBASE-T needs. The shield only drains when the panel, outlet and switch are shielded too. At 0.5 m this length is meant for rack jumpers between adjacent units; measure the port-to-port distance before ordering.

Key Features


Cat 7 raw cable, Cat 6A channel
AWG 26/7 copper pairs with PiMF + braid screen give extra crosstalk and EMC headroom, while the Cat 6A plugs guarantee 500 MHz / 10GBASE-T interoperability.

LSZH, silicone-free jacket
Flame-retardant to IEC 60332-1, halogen-free to IEC 60754-2 and low-smoke to IEC 61034, 6.5 mm diameter; suitable for data centres and public buildings.

4PPoE to IEEE 802.3bt
EFB specifies data and power over one line via 4PPoE — ideal for short PoE++ drops to access points, cameras and thin clients.

Technical Specifications

Identification
Part Number MK7001.0,5O
EAN / GTIN 4049759126506
MPN MK7001.0,5O
Brand EFB-Elektronik
Cable
Channel Class Cat 6A (TIA) / Class EA — 500 MHz, 10 Gbit/s (set by the RJ45 plugs)
Raw Cable Grade Cat 7 S/FTP 4×2×AWG26/7 PiMF, printed 600 MHz
Shielding S/FTP PiMF — pairs in metal foil plus overall braid
Conductors 4×2 AWG 26/7 stranded copper
Jacket LSZH — halogen-free (IEC 60754-2), low smoke (IEC 61034), flame-retardant (IEC 60332-1), silicone-free
Outer Diameter 6.5 mm
Bend Radius > 32.5 mm
Length 0.5 m
Colour Orange
Connectors
Connectors 2× RJ45 male, IEC 60603-7-51, shielded, yellow housings
Contacts Gold-plated, ≥ 750 mating cycles
Wiring 1:1 to TIA/EIA-568B
Boot Moulded anti-kink sleeve, locking-lever protection, length imprint
Electrical & Environment
PoE PoE, PoE+ and 4PPoE (IEEE 802.3bt)
Impedance 100 Ω ± 5 Ω
Current / Voltage Max. 1 A, max. 50 V DC
Operating Temperature −20 °C to +60 °C
Protection IP20 — indoor use
Standards ANSI/TIA-568, EN 50173, ISO/IEC 11801, EN 50575 (CPR)

Frequently Asked Questions

Is the EFB MK7001.0,5O a Cat 7 cable?
The raw cable is Cat 7 grade, but because it uses RJ45 plugs the finished cord is a Cat 6A (500 MHz) patch cable. That fully supports 10GBASE-T; a true Cat 7 channel would need GG45 or TERA connectors.
Does the EFB MK7001.0,5O support 10 Gigabit Ethernet and PoE++?
Yes. It is rated Cat 6A for 10 Gbit/s and EFB specifies 4PPoE to IEEE 802.3bt, so it suits 10G switch uplinks and high-power PoE devices.
What do I need to know before buying the MK7001.0,5O?
It is only 0.5 m long — a rack jumper between adjacent devices. Choose a shielded panel/switch to benefit from the S/FTP screen, and pick other MK7001 colours to colour-code links.
Singular Expert Insight
The MK7001 series is our go-to for 10G rack patching: Cat 7 raw cable gives a thicker, better-screened cord than slim Cat 6A leads, and the 0.5 m MK7001.0,5O keeps top-of-rack runs between patch panels and network switches tidy. It comes in eight colours (white, grey, green, red, yellow, orange, blue, black) for colour-coded uplinks. For Gigabit-only desks the cheaper EFB ECOLAN Cat 6 cords are enough; for very dense panels consider a slim Cat 6A cord such as DIGITUS DK-1632-A.

Buyer's Guide

Buy it if
You need a short 0.5 m Cat 6A jumper for 10GBASE-T or PoE++ between rack devices, with LSZH jacket and robust Cat 7 raw cable.
Skip it if
You need longer runs, an outdoor cable, or ultra-slim cords for very high-density panels (6.5 mm is a standard thickness).
Also consider
EFB ECOLAN Cat 6 for Gigabit · DIGITUS DK-1644-A Cat 6A S/FTP · equip Cat 6A S/FTP 606xxx.
