Good Connections GC-N0150 Cat.6A Cable Connector Tool-Free Field-Terminable LSA STP Shielded Metal Inline Splice 10 Gbit PoE+

Brand:
GoodConnections
Good Connections GC-N0150 Cat.6A Cable Connector STP
Good Connections GC-N0150 Cat.6A Cable Connector Tool-Free Field-Terminable LSA STP Shielded Metal Inline Splice 10 Gbit PoE+
€6.95 inc. VAT
Buy
GC-N0150
€5.84
€6.95 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
04:480073
EAN Code
4014619710072
Manufacturer
GoodConnections

Quick Specs

Type
Cable-to-cable connector
Category
Cat.6A · 500 MHz · 10 Gbit
Termination
Tool-free LSA, both sides
Cable
Ø 6–9 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Good Connections GC-N0150 — Cat.6A Cable Connector, Tool-Free, Shielded

Cat.6A 500 MHzJoins 2 cablesTool-free LSAZinc alloy STP

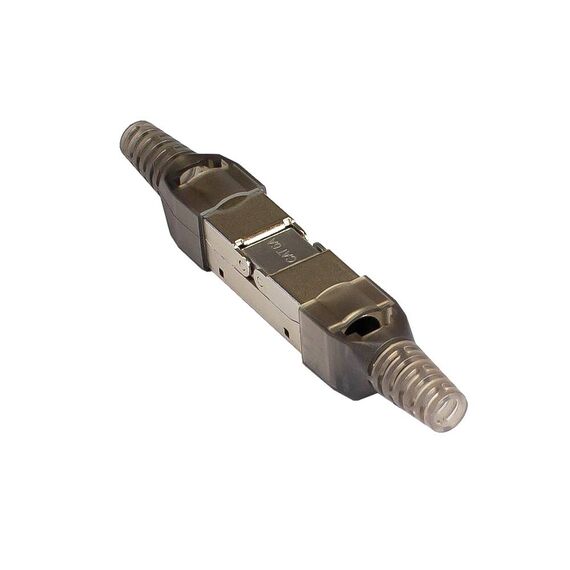

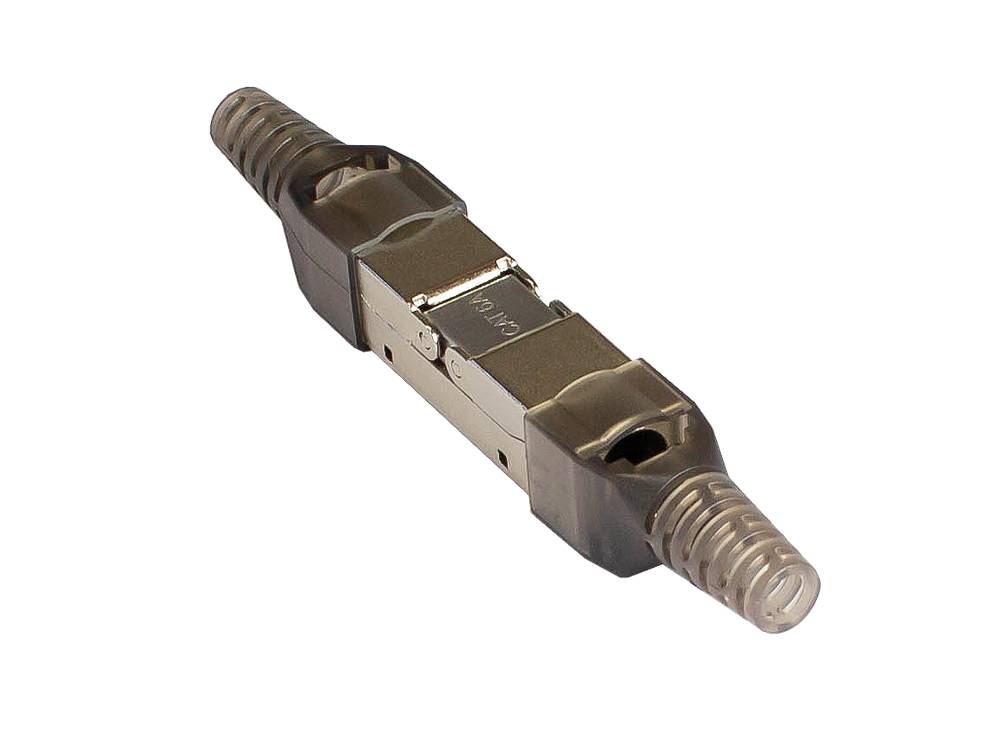

The Good Connections GC-N0150 is a Cat.6A cable connector: a small shielded box that joins two network cables end to end. Each cable is terminated on its own LSA contacts inside the metal housing without a tool, so you can repair a cut installation cable or extend a run that came out too short — without adding a patch panel or wall outlet. The housing is zinc alloy with full STP shielding and adjustable strain relief on both sides; the contacts are phosphor bronze. The manufacturer rates it Cat.6A, 500 MHz, 10 Gigabit Ethernet and PoE, PoE+ and UPoE, for cable diameters of 6–9 mm.

Compatibility — check before buying:
It joins two cables — there is no RJ45 socket or plug. You cannot plug a device into it. If you want to put a plug on the end of a cable, you need a field-terminable RJ45 plug instead. Cable: outer diameter 6–9 mm. The datasheet lists solid conductors AWG 26–22; the manufacturer’s product page also lists stranded AWG 27/7–22/7. Operating range −25 to +68 °C, indoor use. Send us your cable type and we confirm.

Best For

✓ Repairing cut installation cable
✓ Extending a cable run
✓ Relocating a network outlet
✓ Shielded Cat.6A links
✓ PoE cameras and access points
✓ Service and maintenance kits

Key Features


Joins two cables
An inline box that splices two network cables end to end.

Tool-free LSA
Each side terminates without a punch-down tool, T568A/B.

Cat.6A, 10 Gbit
500 MHz, 10 Gigabit Ethernet; PoE, PoE+ and UPoE.

Full metal shielding
Zinc alloy housing, phosphor-bronze contacts, strain relief both sides.

Technical Specifications

Identification
Brand Good Connections
Product Cable connector Cat.6A, tool-free, field-terminable, LSA, STP shielded, metal
Part Number GC-N0150
EAN / GTIN 4014619710072
Manufacturer ALCASA (brand Good Connections)
Product Type Cable connector (connection box)
Performance
Category Cat.6A
Bandwidth 500 MHz
Ethernet 10 Gbit/s
PoE PoE, PoE+, UPoE
Contact Resistance ≤100 mΩ
Insulation Resistance ≥1000 MΩ at 500 V DC
Termination
Method LSA, tool-free, T568A/B
Solid Conductors AWG 26/1–22/1 (datasheet)
Stranded Conductors AWG 27/7–22/7 (product page)
Cable Diameter 6–9 mm
Strain Relief Adjustable, both sides
Mechanical
Housing Zinc alloy, STP shielded
Contacts Phosphor bronze
Operating Temperature −25 to +68 °C
Standards ISO/IEC 11801 Ed.2.2, EN 50173-1, IEEE 802.3an
In the Box

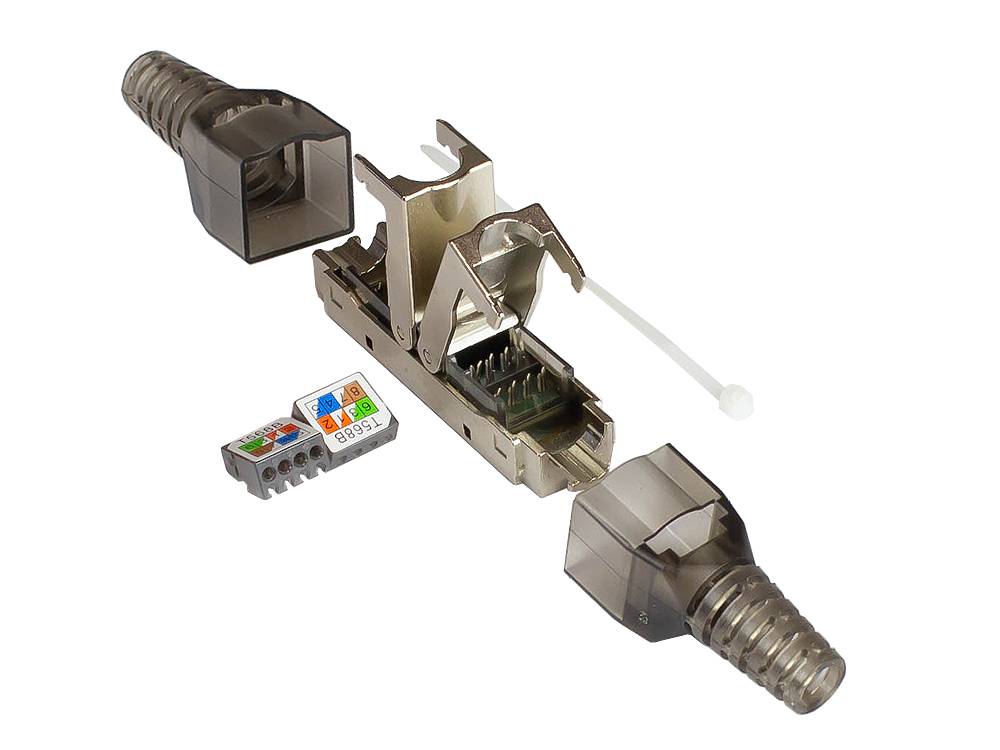

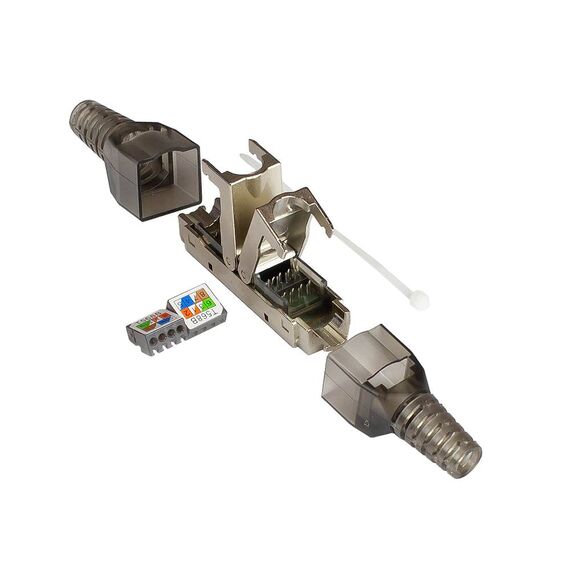

Included 1× shielded cable connector, 2× threading aids, 2× strain reliefs, 2× cable ties, assembly instructions
Not Included Tools, network cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term ALCASA (Good Connections) does not publish a warranty term for this article. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Can I plug a device into it?
No. It has no RJ45 port; it joins two cables. For a plug on the cable end, use a field-terminable RJ45 plug.
Does it keep Cat.6A performance?
The manufacturer rates it Cat.6A, 500 MHz and 10 Gbit/s when both cables are Cat.6A.
Do I need a tool?
No. Both sides terminate tool-free on LSA contacts.
Can it carry PoE?
Yes. PoE, PoE+ and UPoE are listed.
Singular Expert Insight
We suggest the GC-N0150 as the clean fix when an installation cable is damaged or a few metres short — a shielded splice instead of a new cable run. Keep one or two in your service kit. Browse our network cables and networking accessories. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You need to join or repair two Cat.6A network cables without a panel or outlet.

Skip it if

You want to put an RJ45 plug on a cable end — choose a field-terminable plug.

Also consider

EFB E-20091 — Cat.6A keystone jack for terminating cable in panels.
