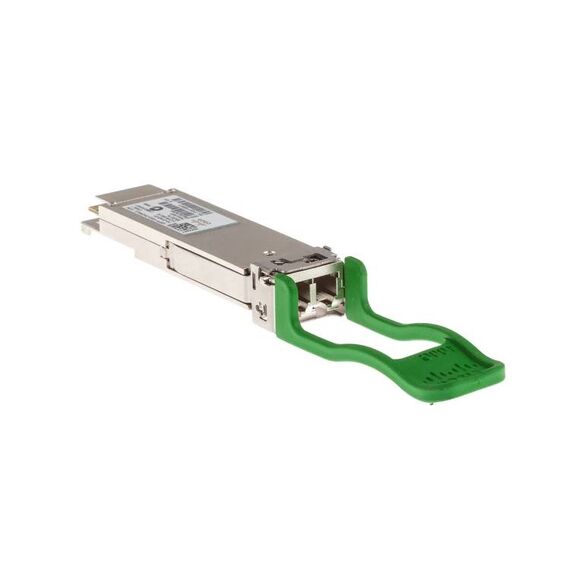

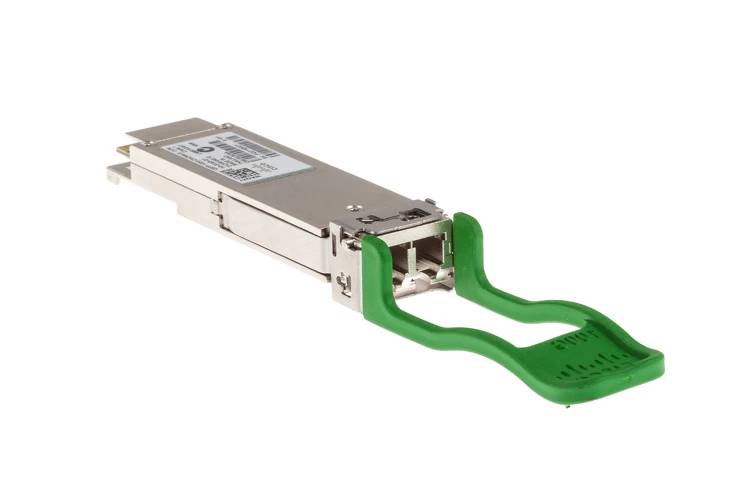

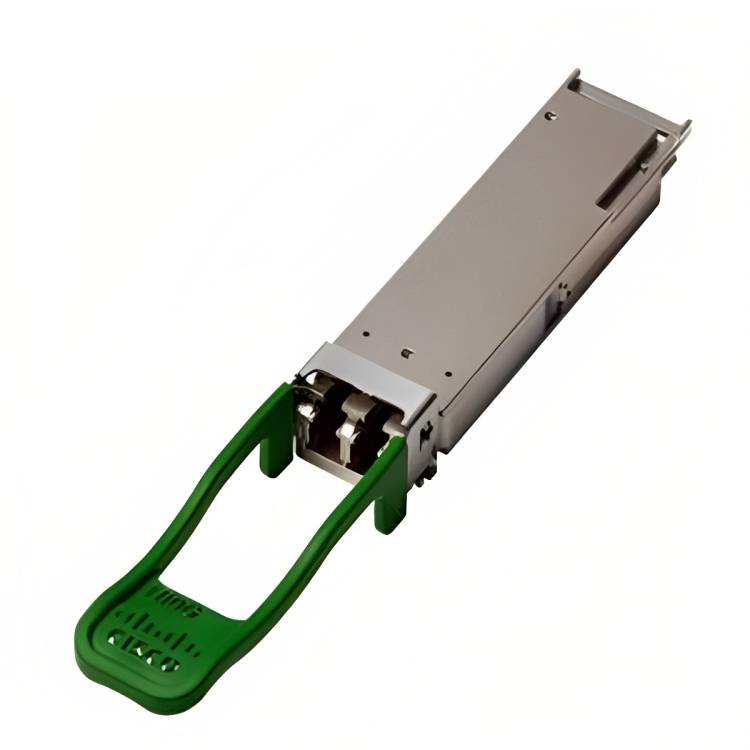

Cisco QSFP-100G-SM-SR= 100GbE QSFP+ Transceiver Module
The Cisco QSFP-100G-SM-SR= is a plug-in QSFP+ transceiver module for wired 100 Gigabit Ethernet connections. It uses 100GBase-CWDM4 Lite over LC single-mode fibre and is specified for up to 2 km, making it suitable for compatible Cisco network equipment where a 100GbE optical link is required.
Technical Specifications
| Specification | Detail |
|---|---|
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Colour | Green |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-CWDM4 Lite |
| Data Link Protocol | 100 Gigabit Ethernet |
| Data Transfer Rate | 100 Gbps |
| Optical Wavelength | 1271 nm | 1291 nm | 1311 nm | 1331 nm |
| Maximum Transfer Distance | 2 km |
| Interfaces | 1 x Ethernet 100GBase-CWDM4 Lite - LC single-mode female x 2 |
| Compliant Standards | IEEE 802.3ba | ITU-T G.652 | IEEE 802.3bm | Laser Class 1 | ELV | RoHS | GR-326-CORE | GR-20-CORE |
| Power Consumption (Operational) | 3.5 Watt |
| Dimensions | 1.84 cm W x 7.24 cm D x 1.35 cm H |
| Weight | 100 g |
| Service & Support | Limited warranty - 90 days |
| Operating Temperature | 10 °C to 60 °C |
| Designed For | C1-N9K-C92160YC-X | C1-N9K-C92304QC | C1-N9K-C9236C | C1-N9K-C93180YC-EX | N9K-C92160YC-X | N9K-C92160YC-X= | N9K-C92160YC-X=S | N9K-C92160YC-X-3PK | N9K-C92304QC | N9K-C9236C | N9K-C93180LC-EX | N9K-C93180LC-EX= | N9K-C93180LC-EX-B2 | N9KC93180LCEXB2-WS | N9K-C93180YC-EX | N9K-C93180YC-EX= | N9K-C93180YC-EX-B | N9K-X9432C-S= | N9K-X9732C-EX | N9K-X9732C-EX= | N9K-X9732C-EX-RF | NCS-5501 | NCS-5501= | NCS-5501-SE | NCS-5502 | NCS-5502-SE |
| SKU / EAN | QSFP-100G-SM-SR= | 0882658930508 |
SINGULAR RECOMMENDS
For who
For network teams that need a Cisco 100GbE optical transceiver for compatible equipment using single-mode LC fibre.
Real reason to buy it
A grounded choice for 100GbE links where Cisco compatibility, 2 km reach and CWDM4 Lite optical connectivity are required.
Know before
This module is specified for compatible Cisco hardware only, with a 90-day limited warranty. Check the supported part numbers and fibre type before ordering.
