Cisco PWR-C4-950WAC-R= 950W AC Config 4 Power Supply Hot-Swappable Front-to-Back Cooling for Catalyst 9500 12Q 16X 24Q 40X

Brand:
Cisco
Cisco PWR-C4-950WAC-R= 950W AC PSU Catalyst 9500
Cisco PWR-C4-950WAC-R= 950W AC Config 4 Power Supply Hot-Swappable Front-to-Back Cooling for Catalyst 9500 12Q 16X 24Q 40X
€2621.03 inc. VAT
Buy
PWR-C4-950WAC-R=
€2,202.55
€2,621.03 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
677MN22
EAN Code
0889728035507
Manufacturer
Cisco

Quick Specs

Output
950 W
Input
90–264 V AC, 47–63 Hz
Design
Hot-swap, 1+1 redundant, front-to-back
Fits
Catalyst 9500 12Q, 16X, 24Q, 40X
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

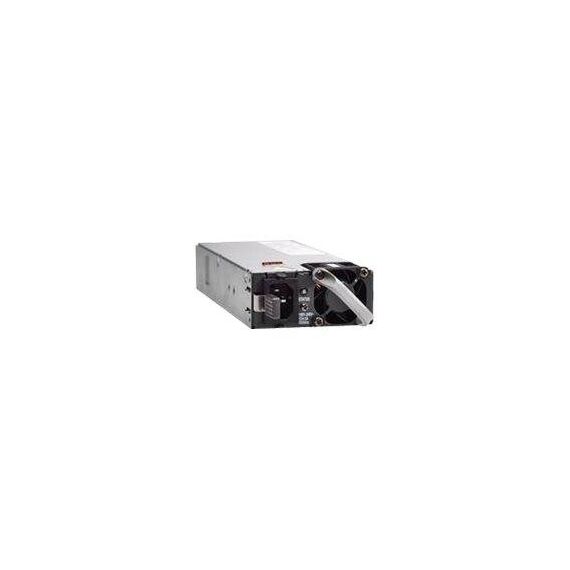

Cisco 950W AC Config 4 Power Supply — PWR-C4-950WAC-R=

950 W94% efficiencyHot-swapCatalyst 9500

The Cisco PWR-C4-950WAC-R= is the 950W AC Config 4 Power Supply with front-to-back cooling for the first-generation Cisco Catalyst 9500 fixed switches: the C9500-12Q, C9500-16X, C9500-24Q and C9500-40X. The “=” at the end marks the spare, sold on its own to replace a failed unit or to add the second supply for redundancy. It accepts 90–264 V AC, delivers 950 W at 94% efficiency and is hot-swappable; with two units installed, the switch shares the load between them in 1+1 redundant mode. In practice it keeps a core or distribution switch running through a power supply failure.

Compatibility — check before buying:
Not every Catalyst 9500 takes this supply. Cisco lists it only for the C9500-12Q, -16X, -24Q and -40X. The Catalyst 9500 High Performance models (C9500-32C, -32QC, -48Y4C, -24Y4C) use C9K-PWR-650WAC-R or C9K-PWR-1600WAC-R, and the Catalyst 9500X uses C9K-PWR-1500WAC. It is also not a Catalyst 9400 supply (those use C9400-PWR-*). No power cord is included — Cisco sells regional cords separately. There is a DC version, PWR-C4-950WDC-R. Not sure? Tell us your model and we check it for you.

Best For

✓ Catalyst 9500-16X
✓ Catalyst 9500-40X
✓ Catalyst 9500-12Q and -24Q
✓ Adding a redundant supply
✓ Replacing a failed supply
✓ Service spares for core switches

Key Features


950 W, 94% efficient
Rated 12 V at 79 A plus 12 V at 3 A.

Wide AC input
90–264 V AC, 47–63 Hz.

Hot-swappable
Replace it with the switch running.

1+1 load sharing
Two units share the load, each near 50%.

Technical Specifications

Identification
Brand Cisco
Product Cisco 950W AC Config 4 Power Supply, front-to-back cooling (spare)
Part Number PWR-C4-950WAC-R
EAN / GTIN 0889728035507
Product Type Hot-swappable AC power supply (spare)
For Cisco Catalyst 9500 C9500-12Q, -16X, -24Q, -40X
Input
Voltage 90–264 V AC
Frequency 47–63 Hz
Input current 10 A at 115 V AC; 5 A at 230 V AC
Output & Efficiency
Output power 950 W
Rated output 12 V at 79 A; 12 V at 3 A
Efficiency 94%
Hold-up time 10 ms at maximum load
Operation
Hot-swap Yes, field-replaceable unit
Redundancy 1+1; both units share the load (between 40% and 60% each)
Cooling Front to back
Front panel Status LED, AC inlet, power cord retainer, release latch and handle, fan
Compatibility
Switches Cisco Catalyst C9500-12Q, C9500-16X, C9500-24Q, C9500-40X
Not for C9500-32C, -32QC, -48Y4C, -24Y4C (High Performance), Catalyst 9500X, Catalyst 9400
DC version PWR-C4-950WDC-R
Before You Order
Your switch Check the exact C9500 model
Power cord Order a regional Cisco cord separately
Redundancy Two units for 1+1
In the Box
Included 950W AC power supply (Cisco does not publish further box contents for the spare)
Not Included Power cord (regional Cisco cord sold separately); switch
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Cisco publishes an Enhanced Limited Lifetime hardware warranty (E-LLW) for the Catalyst 9500 Series in its ordering guide, with next-business-day replacement where available and 90 days of 8x5 TAC support; it does not state a separate term for spare power supplies. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it fit my Catalyst 9500?
Only the C9500-12Q, -16X, -24Q and -40X. High Performance and 9500X models use other supplies.
Is a power cord included?
No. Cisco sells regional power cords separately.
What does the “=” mean?
It is the spare part, sold on its own.
Can I replace it without downtime?
Yes, if a second supply is running; the unit is hot-swappable.
Singular Expert Insight
A core switch with one supply is one fault away from a site outage. Two supplies in 1+1 mode remove that risk. Before ordering, read the model label on the switch: the 9500 family uses three different power supply types. For switches, see our network switches.

Buyer’s Guide

Buy it if

You run a Catalyst C9500-12Q, -16X, -24Q or -40X and need a spare or redundant supply.

Skip it if

Your switch is a Catalyst 9500 High Performance, 9500X or 9400.

Also consider

PWR-C4-950WDC-R for DC-powered installations.
